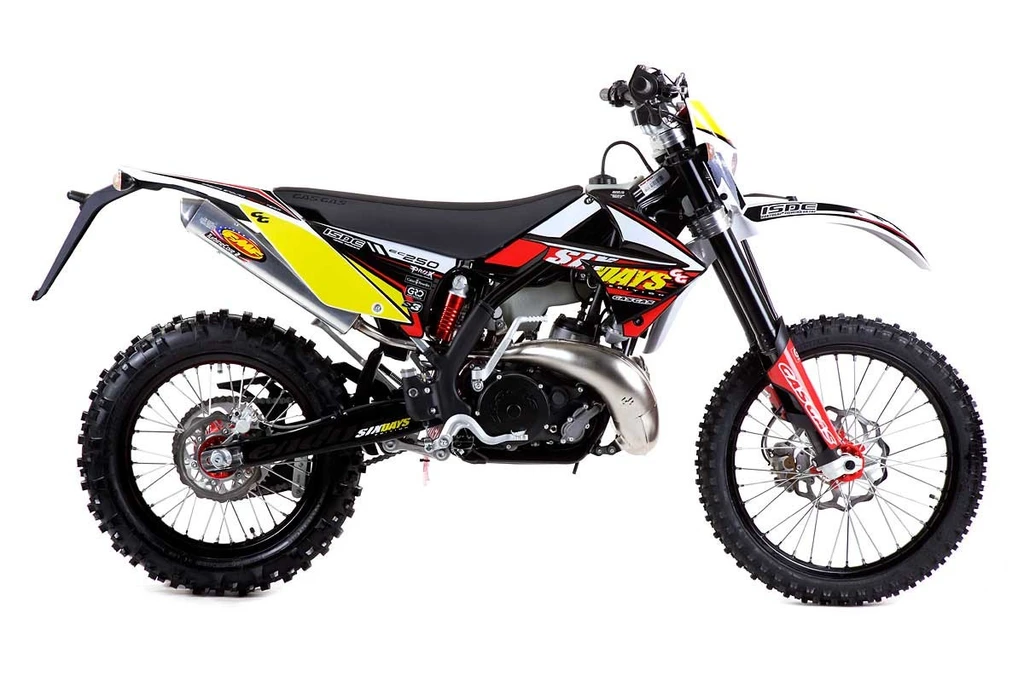

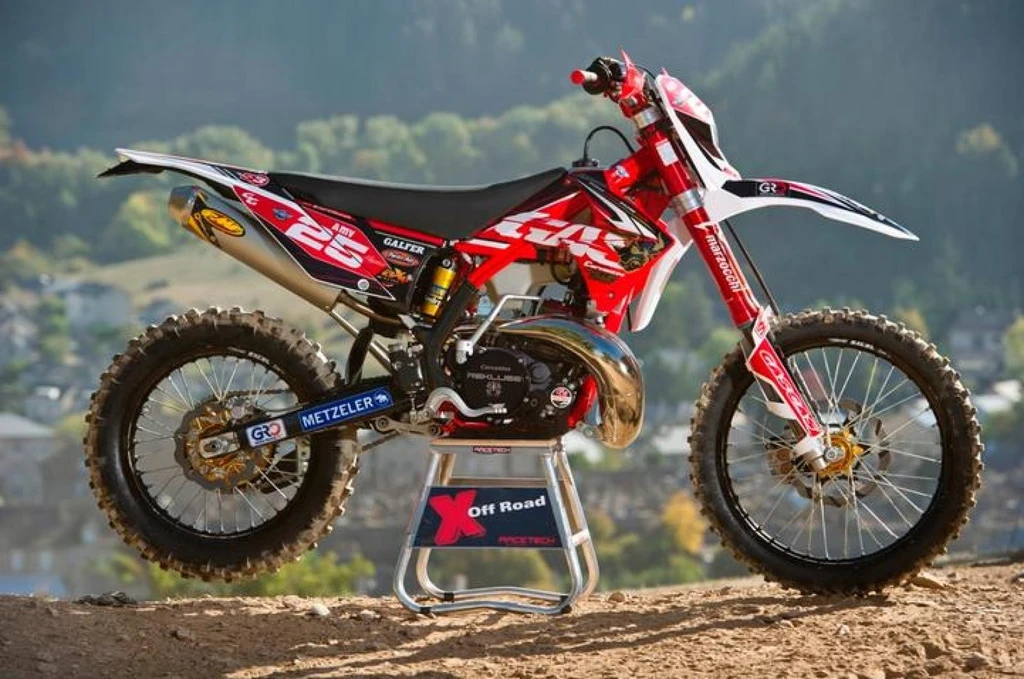

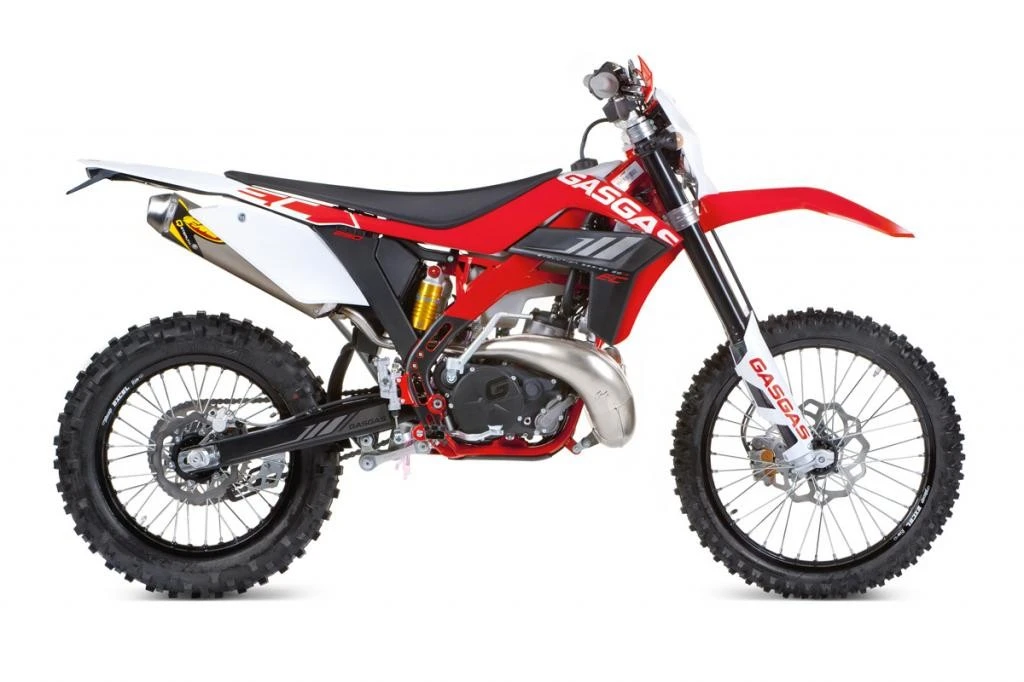

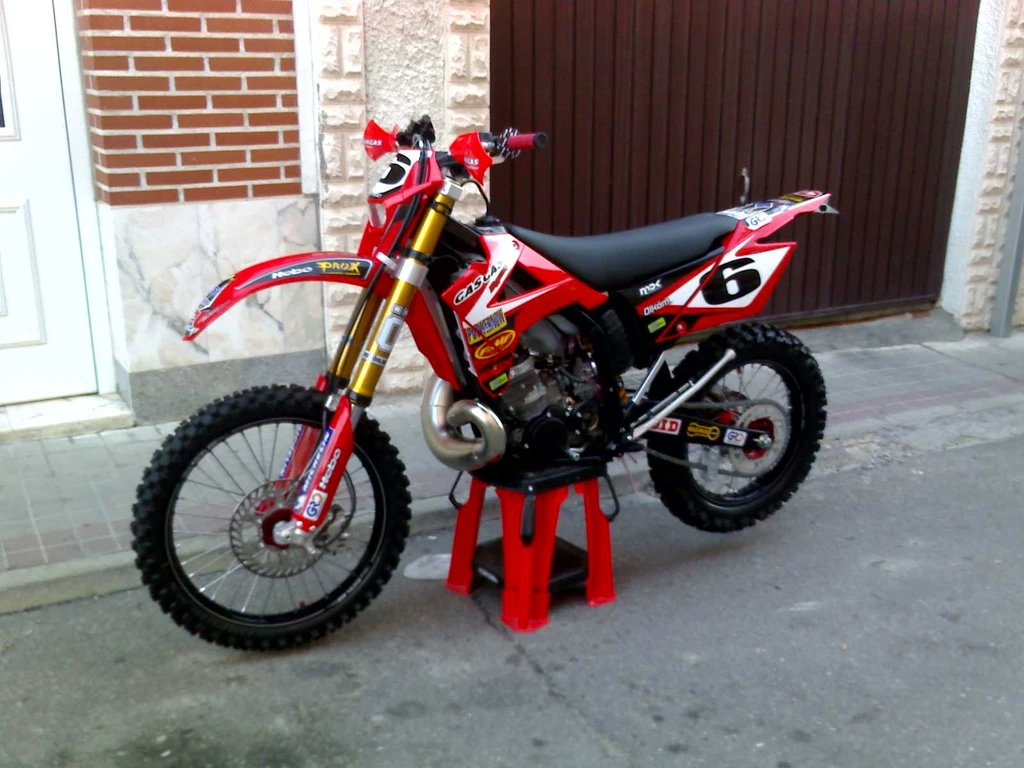

Gas Gas EC 250 4T (2010 -)

Gas Gas EC 250 4T (2010 -)

The Gas Gas EC 250 4T is a high-performance motorcycle designed for the most demanding riders. Its DOHC engine, with four valves per cylinder, delivers exceptional power and torque. The 250cc capacity provides a perfect balance of agility and performance. With its advanced fuel injection system and optimized combustion chamber design, this bike offers impressive fuel efficiency and reduced emissions.

The EC 250 4T features a lightweight aluminum frame, ensuring agile handling and quick acceleration. The suspension system, comprising of 48mm inverted forks and a monoshock rear unit, provides precise control and stability over various terrain types.

Whether tackling challenging trails or carving through twisty roads, the Gas Gas EC 250 4T is engineered to deliver an unparalleled riding experience, with its exceptional engine performance, agile handling, and robust build quality making it the perfect choice for adventure-seekers.

Key Specifications

Engine TypeFour stroke, single cylinder, DOHC, 5-Valve Yamaha engine
Engine Capacity15.2 cubic inches / 249 cc
Fuel Tank Capacity1.6 US gallons / 6.3 L
Seat Height37.2 inches / 945 mm
Gas Gas EC 250 4T (2010 -)

All Specifications

Make & Model

ModelGas Gas EC 250 4T
Year2010 –

Engine

Engine TypeFour stroke, single cylinder, DOHC, 5-Valve Yamaha engine
Displacement15.2 cubic inches / 249 cc
Bore x Stroke77 x 53.6 mm
Compression Ratio12.5:1
Engine Management SystemKeihin FCR-MX37 carburetor
Cooling SystemLiquid cooled

Performance

Top Speedn/a

Transmission

ClutchWet multiplate with hydraulic control
Gearbox6 Speed
Final DriveChain

Electrical & Electronics System

StarterElectric & kick

Chassis & Suspension

Frame TypeChrom-Molybdenum frame with B-profil
Front Suspension45mm Marzocchi Up-Side-Down
Front Suspension Travel11.6 inches / 295 mm
Rear SuspensionAluminium, Progressive linkage system, 310mm wheel travel
Rear Suspension Travel11.7 inches / 298 mm

Wheels & Brakes

Front Tire Size90/90 -21
Rear Tire Size140/80 -18
Front BrakesSingle 260mm disc 2 piston caliper
Rear BrakesSingle 220mm disc 1 piston caliper

Dimension & Weights

Overall Length2200 mm / 86.6 in
Overall Width830 mm / 32.7 in
Overall Height1260 mm / 49.6 i
Seat Height37.2 inches / 945 mm
Wheelbase58.1 inches / 1476 mm
Ground Clearance340 mm / 13.4 in
Fuel Tank Capacity1.6 US gallons / 6.3 L
Dry Weight110 kg / 242 lbs
