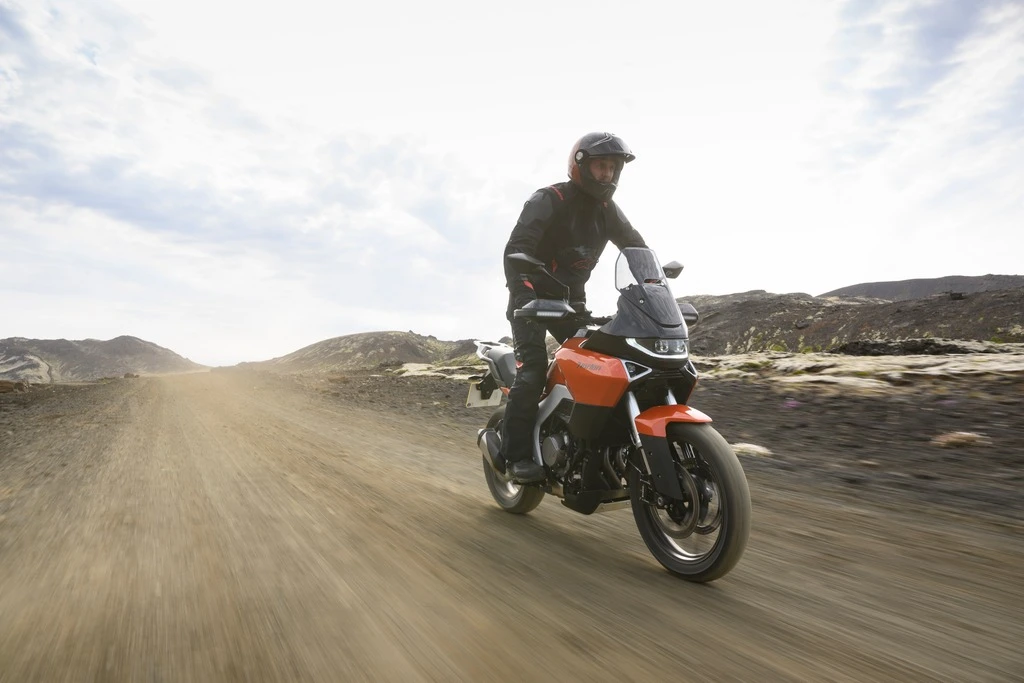

THE BRITISH ARMY KNIFE – The Atlas represents a fusion of rugged capability with modern design, crafted to elevate everyday exploration and enable extraordinary adventures. Pairing its lightweight chassis with a flexible and responsive powerplant, and complemented by an advanced electronics suite, the Atlas instills confidence on any terrain – empowering its rider to push onward toward the next challenge.
Key Specifications
| Engine Type | 4 stroke, Liquid-cooled DOHC 270º crank parallel twin |
| Engine Capacity | 35.7 cubic inches / 585 cc |
| Max Power | 69 BHP / 70 PS / 51.5 kW @ 9,300 rpm |
| Max Torque | 57.5 Nm / 42 ft-lb @ 7,300 rpm |
| Top Speed | ~ 118 mph / 190 kmph |
| Fuel Tank Capacity | 4.06 US gallons / 15.4 L |
| Weight (Wet/Kerb) | Atlas – 414.4 lbs / 188 kg (no fuel) Atlas Apex – 423.2 lbs / 192 kg (no fuel) |
| Seat Height | 33.26 inches / 845 mm |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | Norton Atlas / Atlas Apex |
| Year | 2026 |
Engine
| Engine Type | 4 stroke, Liquid-cooled DOHC 270º crank parallel twin |
| Displacement | 35.7 cubic inches / 585 cc |
| Bore x Stroke | 78mm x 61.2mm |
| Compression Ratio | 12.2:1 |
| Number of Cylinders | 2 |
| Max Horsepower | 69 BHP / 70 PS / 51.5 kW @ 9,300 rpm |
| Max Torque | 57.5 Nm / 42 ft-lb @ 7,300 rpm |
| Valve Train | DOHC |
| Engine Management System | Multi-point sequential fuel injection system |
| Lubrication System | Twin oil pumps |
| Cooling System | High-flow coolant system |
| Ignition System | Electronic ignition |
| Exhaust System | Steel 2-into-1 system with upswept silencer |
| Emissions Compliance | EURO5+, Bharat Stage VI, California & US |
Performance
| Top Speed | ~ 118 mph / 190 kmph |
| Fuel Consumption | 54 mpg (US) / 65 mpg (Imperial) / 23 kmpl |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Cable-operated Assist & Slip multiplate wet clutch |
| Gearbox | 6-speed |
| Primary Drive Ratio | 40:81 |
| Gear Ratios | 1st: 16.445 2nd: 12.268 3rd: 9.447 4th: 7.647 5th: 6.514 6th: 5.678 |
| Final Drive | X-ring 116 Chain, 16T Front Sprocket, 47T Rear Sprocket |
| Quick Shifter | Bi-directional up/down Quick Shift |
| Traction Control System | Traction Control with cornering traction control |
| Assist & Slipper Clutch | Yes |
Electrical & Electronics System
| Starter | Electric |
| Headlight Type | LED twin-projector headlamps with dynamic light intensity & DRL |
| Taillight Type | LED 3-in-1 tail light |
| Instrumentation | 8″ touchscreen TFT (720p) |
| Connectivity | Bluetooth & Wi-Fi; multimedia control Turn-by-turn navigation GoPro control OTA software & firmware updates Ride telematics Norton Rider app integration |
| Riding Modes | Urban, Rain, Sport, Tour, Enduro |
| Traction Control System | Traction Control with cornering traction control |
| ABS | Bosch 10.3MB 6-axis IMU, N-ABS |
| Cruise Control | N-DCC – Dynamic Cruise Control |
Chassis & Suspension
| Frame Type | High-strength steel trellis frame with engine as a stressed member |
| Front Suspension | 43mm KYB USD forks, fully adjustable 20-step compression and rebound settings |
| Front Suspension Travel | 7 inches / 180mm |
| Rear Suspension | KYB monoshock RSU, adjustable tension damping with hydraulic preload adjustment |
| Rear Suspension Travel | 7 inches / 180mm |
| Rake | 25.7 º |
| Trail | 4 inches / 101.7 mm |
| Swingarm | Cast aluminium |
Wheels & Brakes
| Wheels | Cast alloy / Spoked steel |
| Front Wheel/Rim Size | Atlas – 19″ × 2.50″ Atlas Apex – 19″ × 3.00″ |
| Front Tire Size | Eurogrip Explo R Plus, 110/80 ZR19 |
| Rear Wheel/Rim Size | Atlas – 17″ × 4.00″ Atlas Apex – 17″ × 4.50″ |
| Rear Tire Size | Eurogrip Explo R Plus, 150/70 ZR17 |
| Front Brakes | 2x 310mm semi-floating discs, radially-mounted Bybre calipers |
| Rear Brakes | 270mm rear disc, Bybre caliper |
| ABS | Bosch 10.3MB 6-axis IMU, N-ABS |
Dimension & Weights
| Seat Height | 33.26 inches / 845 mm |
| Wheelbase | 57.67 inches / 1465 mm |
| Ground Clearance | 8.66 inches / 220 mm |
| Fuel Tank Capacity | 4.06 US gallons / 15.4 L |
| Wet (kerb/curb) Weight | Atlas – 414.4 lbs / 188 kg (no fuel) Atlas Apex – 423.2 lbs / 192 kg (no fuel) |
Features
Design
- Adjustable brake and clutch levers
- Aluminium footpegs with removable rubber insert
- Plastic protective cover (Base)
- Aluminium integrated bash plate (Apex)
- Adjustable hand & foot levers (Apex)
- Rugged plastic bash plate (Apex)
- All-terrain sump protection kit (aluminium insert) (Apex)
- Easy-adjust windscreen (Apex)
- Rear luggage & pillion handle kit (Apex)
Lighting
- LED twin-projector headlamps with dynamic light intensity & signature DRL (Daytime Running Lights)
- LED front indicators integrated into handguards
- LED 3-in-1 multi-function taillight & rear indicators
- LED cornering lights (Apex)
- LED puddle lamp (Apex)
Instruments
- Full-colour 8” touchscreen TFT display, 720p resolution
- Multi-way connectivity (Bluetooth & Wi-Fi)
- Multimedia control (music & calls)
- Navigation control (turn-by-turn)
- Go Pro control
- Over-the-air software (S-OTA) & firmware (F-OTA) updates
- Ride telematics
- Norton Rider app integration
Electronics
- Keyless ignition with electronic steering lock, seat lock & fuel filler cap
- USB-C charger
- Tyre pressure monitoring system (TPMS) (Apex)
- Integrated heated grips (Apex)
Ride Modes
- Urban
- Rain
- Sport
- Tour
- Enduro
Electronic Rider Aids
- Bosch 10.3MB 6-axis IMU (Inertial Measurement Unit), including…
- N-DTC – Drag Torque Control
- N-ABS – Anti-Lock Braking System
- N-TEC – Tractive Effort Control
- N-DCC – Dynamic Cruise Control
- N-TWC – Total Wheelie Control
- N-RLC – Rear Lift Control
- N-RSC – Rear Slide Control
- N-VHC – Vehicle Hold Control (Apex)
- N-ECB – Electronic Combined Braking (Apex)

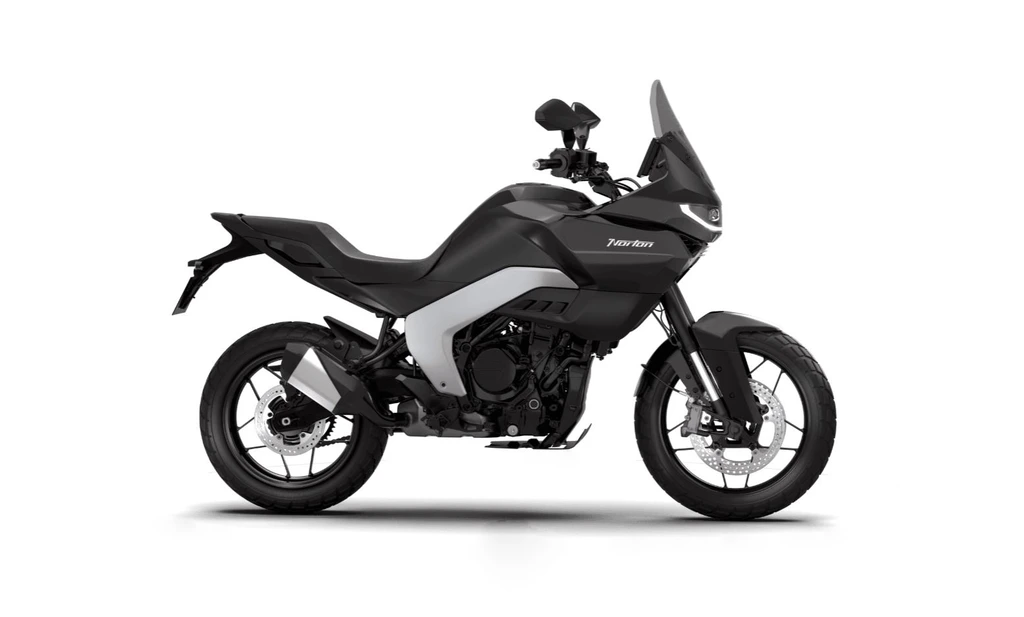

Norton Atlas / Atlas Apex (2026) Color Options
- Matrix Black

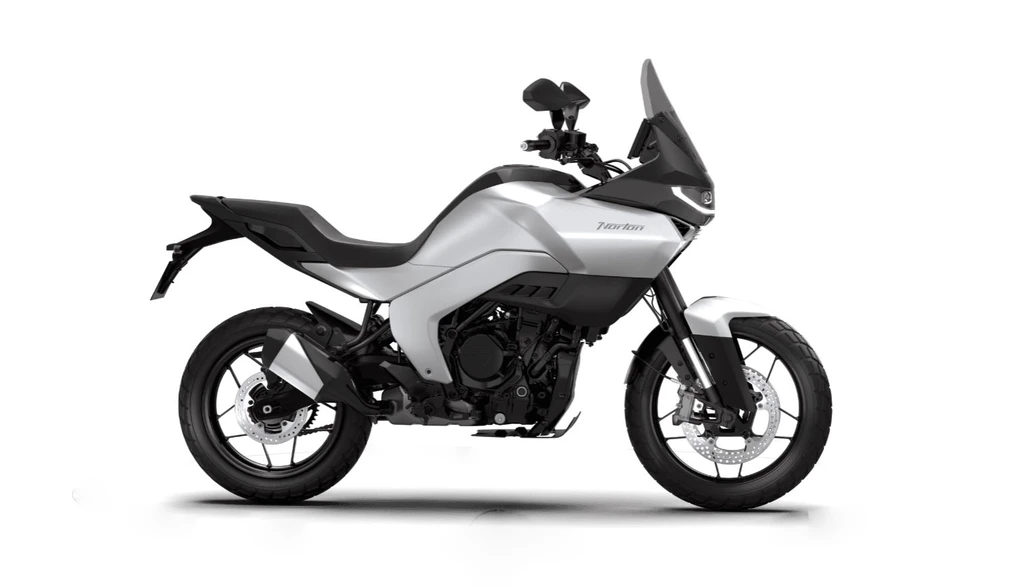

- Trophy Silver

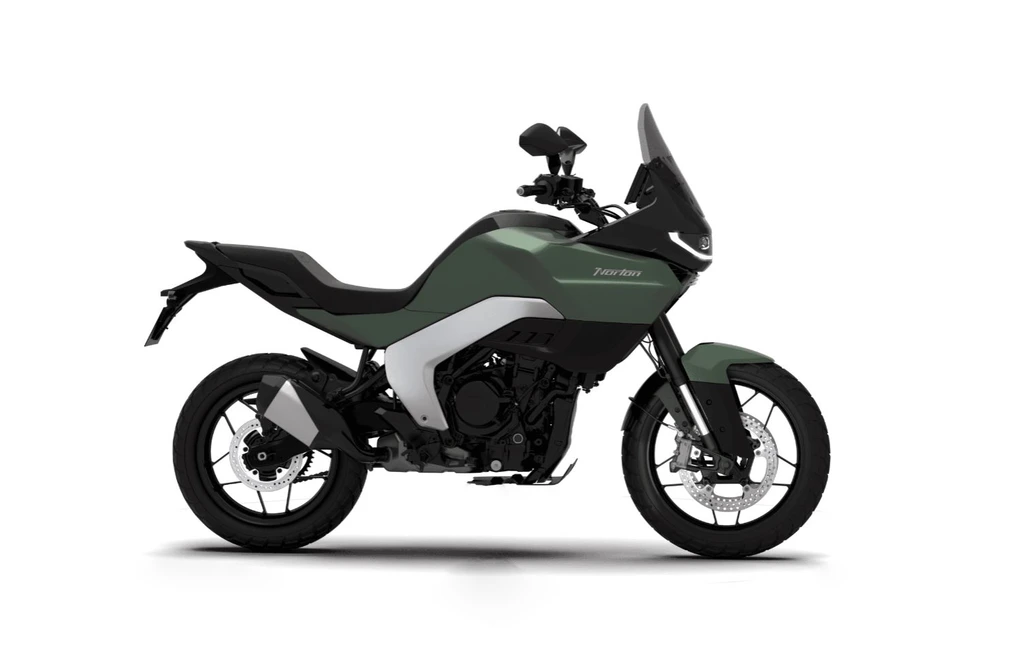

- Verona Green
- Sinopia Orange

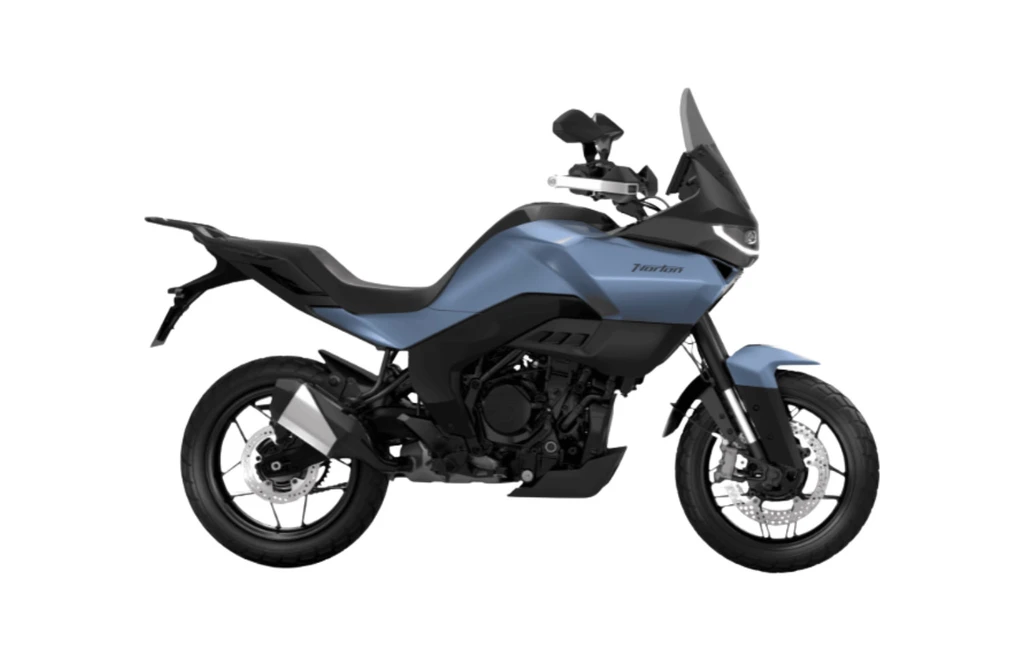

- Glacier Blue (cost option) (Apex)
