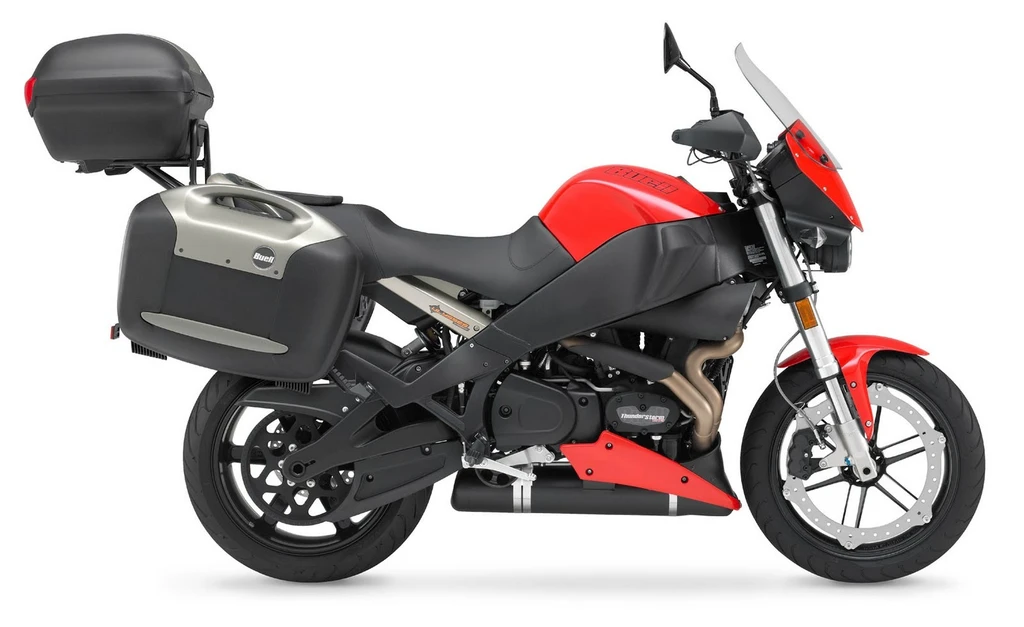

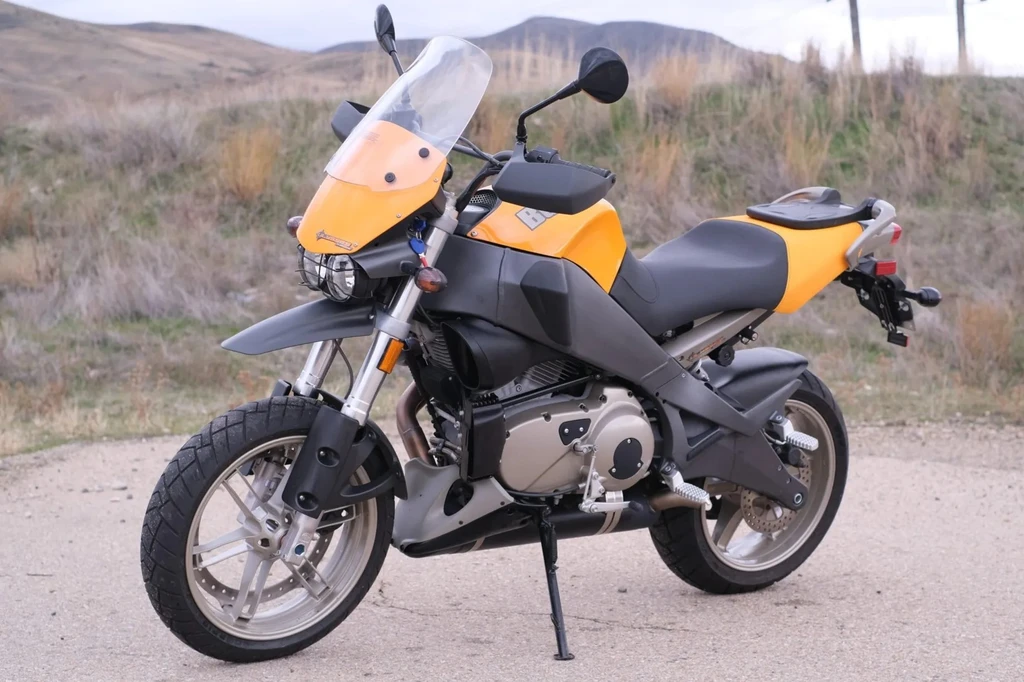

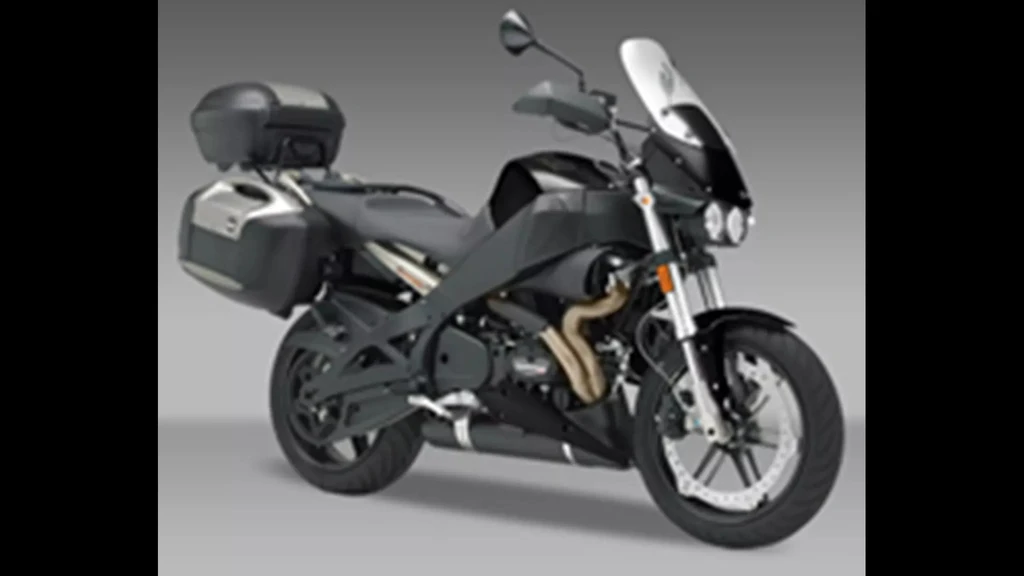

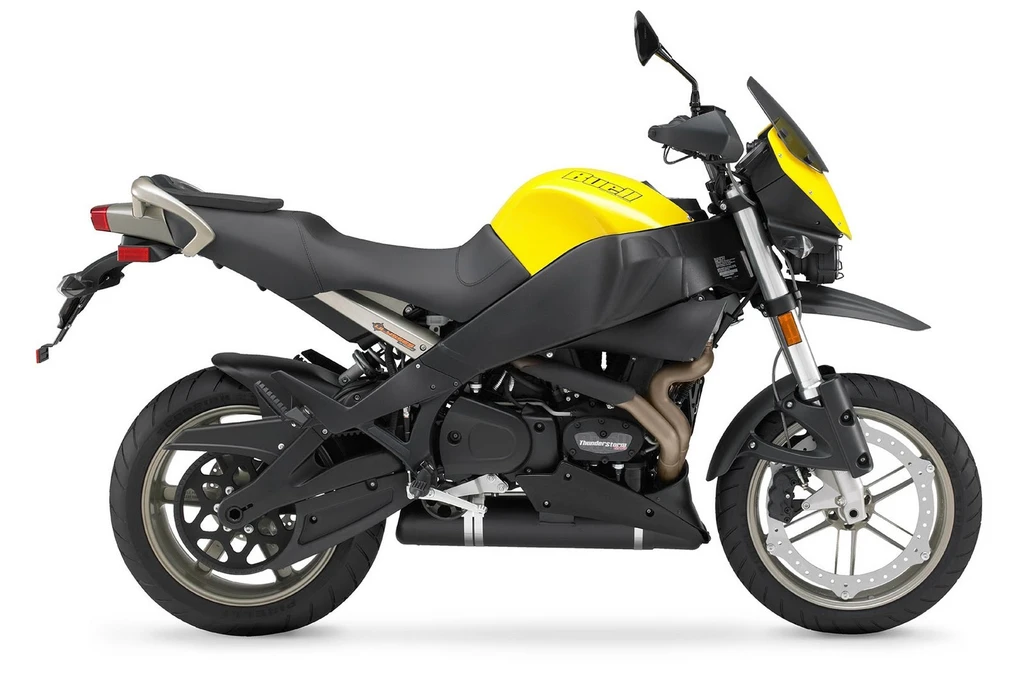

The Buell Ulysses XB12XT is an adventure-sport tourer that embodies the perfect blend of agility and comfort. Its 1203cc air-cooled engine purrs smoothly, providing effortless acceleration while its sport-inspired suspension delivers exceptional handling on both paved and unpaved roads.
Buell’s innovative Trilogy of Technology – chassis rigidity, centralized mass, and low unsprung weight – ensures instant responsiveness to rider input. The Ulysses features a premium design, all-day comfort, and an array of practical amenities, including heated grips and a tall windscreen.
With its road-tuned suspension and aggressive styling, the Buell Ulysses XB12XT is poised to tackle any adventure that comes its way, making it the ultimate companion for those who crave freedom on two wheels. Its seamless performance and versatility redefine what an adventure motorcycle can be: The perfect ride, anywhere you roam.
Key Specifications
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve,hydraulic self-adjusting lifters,2 valve per cylinder.
Engine Capacity
1203 cc / 73 cu in
Max Power
86.9 kw / 103 hp
Max Torque
114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6500 rpm
Fuel Tank Capacity
16.7 L / 4.4 US gal
Seat Height
780 mm / 30.7″
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Unknown Unknown
Year
2010
Engine
Engine Type
45 V-Twin, four stroke, pushrod actuated overhead valve,hydraulic self-adjusting lifters,2 valve per cylinder.
Displacement
1203 cc / 73 cu in
Bore x Stroke
88.9 x 96.8 mm
Compression Ratio
10.0:1
Max Horsepower
86.9 kw / 103 hp
Max Torque
114 Nm / 11.6 kgf-m / 84 ft-lbs @ 6500 rpm
Engine Management System
DDFI 3 Electronic Fuel Injection ECM
Lubrication System
Dry sump
Cooling System
Air cooled
Exhaust
Buell InterActive Exhaust
Performance
Top Speed
206 km/h / 127.9 mph
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multi-plate, compensated
Gearbox
5 Speed
Gear Ratios
1st2.68 / 2nd1.89 / 3rd1.407 / 4th1.14 / 5th1.000
Final Drive
Belt
Electrical & Electronics System
Battery
12V, 12Ah
Starter
Electric
Chassis & Suspension
Frame Type
Aluminium frame with Uniplanar Powertrain vibration isolation system, fuel in frame
Front Suspension
Showa 43 mm inverted forks compression damping, rebound damping and spring preload adjustable
Front Suspension Travel
124 mm / 4.9″
Rear Suspension
Showa coil-over monoshock, remote underseat reservoir and adjustable compression damping, rebound damping and spring preload
Rear Suspension Travel
124 mm / 4.9″
Rake
23.8
Trail
122 mm / 4.8″
Wheels & Brakes
Wheels
6-Spoke, ZTL cast aluminium
Front Wheel/Rim Size
3.50 x 17″
Front Tire Size
120/70 R17 Pirelli Angel
Rear Wheel/Rim Size
5.50 x 17″
Rear Tire Size
180/55 R17 Pirelli Angel
Front Brakes
ZTL type brake, 6 piston, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor
Rear Brakes
Single 240 mm disc, 1 piston floating caliper
Dimension & Weights
Overall Length
2180
Overall Width
1006 mm /
Seat Height
780 mm / 30.7″
Wheelbase
1369 mm / 53.9″
Ground Clearance
150 mm / 5.9″
Fuel Tank Capacity
16.7 L / 4.4 US gal
Dry Weight
211 kg / 465 lbs
Features
1203cc air-cooled engine
Sport-inspired suspension
Standard side and top cases
Heated grips
Tall windscreen
Intuitive handling on paved and unpaved roads
Premium styling
All-day comfort
Rigid cast-aluminum swingarm
Engine oil reservoir in swingarm
Eight-row oil cooler
Goodyear Hibrex final drive belt with Flexten Plus technology
Buell InterActive Exhaust
Six-piston front brake (Buell ZTL)
Dial-adjustable rear suspension pre-load
Cosmetic frame protectors
Supermoto-style crossbar handlebar with deflectors
Two-piece, tall windscreen reduces buffeting
