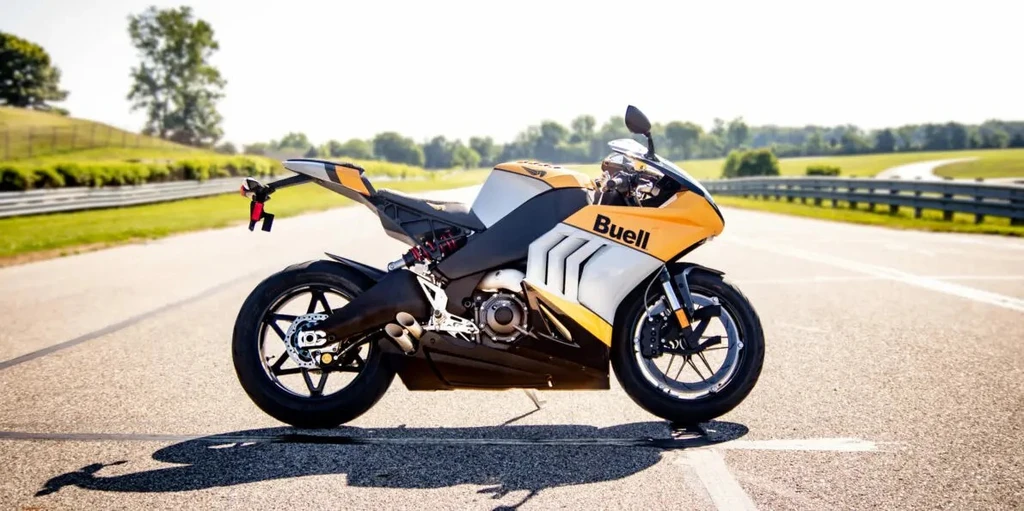

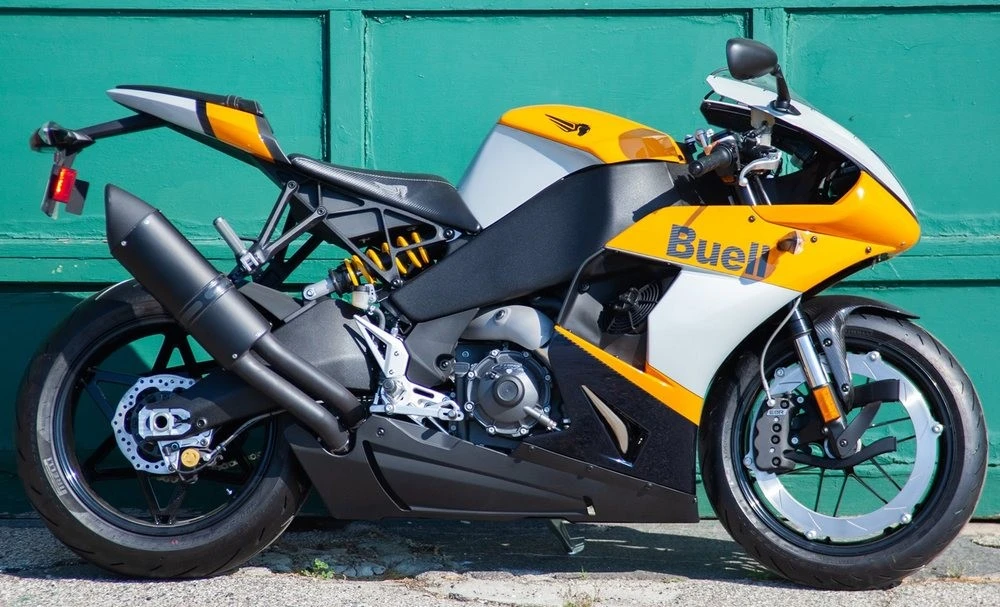

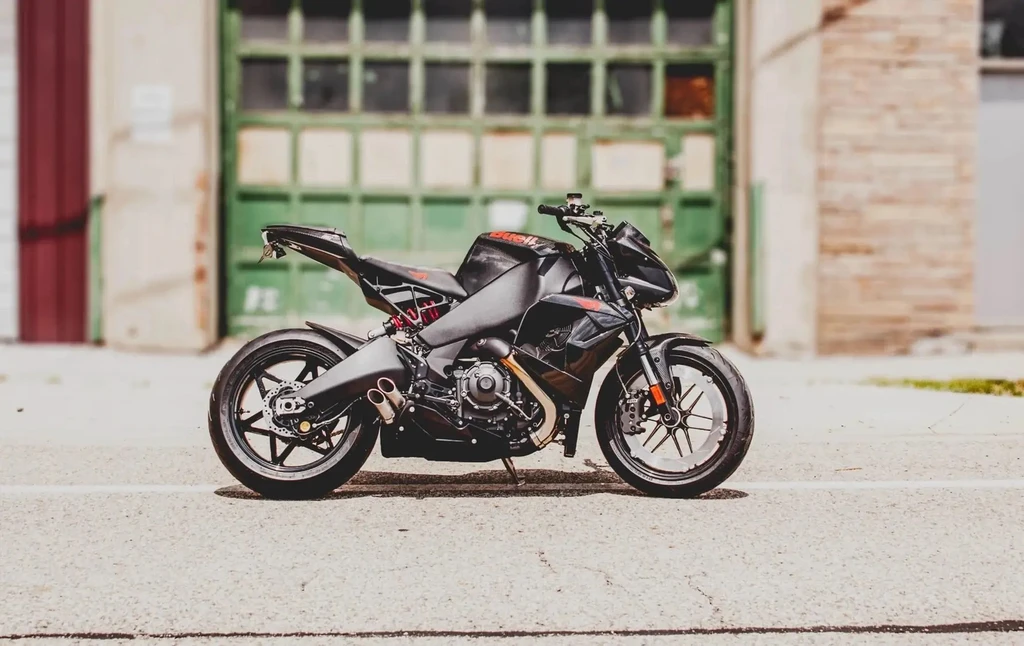

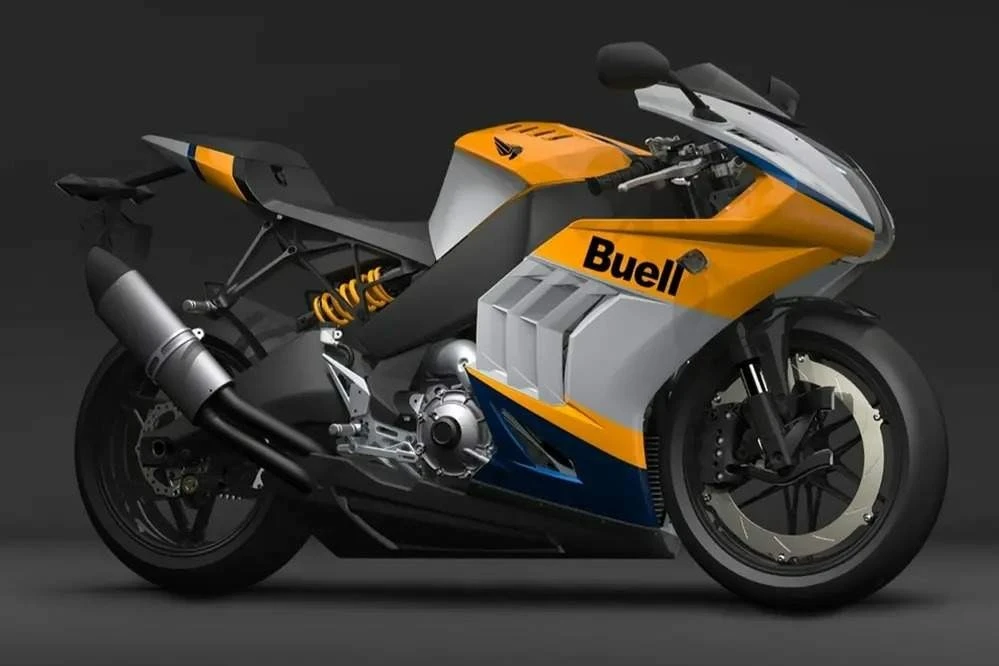

The wait is over. Buell’s new Hammerhead 1190 bursts onto the scene with a vengeance, boasting an impressive array of features that will leave enthusiasts salivating.
This beast of a bike has been carefully crafted by the team at Buell, drawing on their vast experience and heritage in motorcycle design and engineering. The result is a stunning creation that exudes passion, pride, and a relentless pursuit of excellence.
At its heart lies an updated Rotax Helicon motor, a 72 V-twin powerhouse delivering a whopping 185 horsepower and 102 ft-lbs of torque – figures that firmly place the Hammerhead in the realm of superbikes. This potent engine is married to a lightweight chassis, tipping the scales at a mere 416 pounds (190 kg), ensuring blistering acceleration and handling.
But it’s not just about raw power; Buell has also retained some of the innovative features that made their bikes so beloved by enthusiasts. The Hammerhead boasts a front brake disc mounted on the wheel’s perimeter, fuel-in-frame setup, and oil storage within the swingarm – all clever touches that add to its sporty character.
With fully adjustable Showa USD Big Piston Forks up front and a direct-mounted single Showa shock rear, this bike is tailor-made for track days and twisty roads. And when it comes to stopping power, Buell’s 386mm perimeter brake disc and eight-piston caliper setup will leave you breathless.
The Buell Hammerhead 1190 (2022) is a game-changer, and we can’t wait to get our hands on one – the ultimate American superbike has finally arrived.
Key Specifications
Engine Type
Four stroke, 72 V-Twin
Engine Capacity
72.6 cubic inches / 1190 cc
Max Power
138 kw / 185 hp
Max Torque
101.6 ft-lb / 137.8 nm
Fuel Tank Capacity
4.5 US gallons / 17.0 L
Weight (Wet/Kerb)
414 lbs / 188 kg
Seat Height
32.5 inches / 826 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Buell Hammerhead 1190
Year
2022
Engine
Engine Type
Four stroke, 72 V-Twin
Displacement
72.6 cubic inches / 1190 cc
Bore x Stroke
106 x 67.5 mm
Compression Ratio
13.4 :1
Max Horsepower
138 kw / 185 hp
Max Torque
101.6 ft-lb / 137.8 nm
Engine Management System
Electronic Fuel injection with 2 port injectors and 2 showerhead injectors
386mm Single perimeter rotor, 8 piston inside-out caliper
Rear Brakes
Single 220mm disc, 2-piston Hayes performance brakes caliper
Dimension & Weights
Overall Length
2040 mm / 80.3 in
Overall Width
810 mm / 31.9 in
Overall Height
1087 mm / 42.8 in
Seat Height
32.5 inches / 826 mm
Ground Clearance
120 mm / 4.7in
Fuel Tank Capacity
4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight
414 lbs / 188 kg
Features
Heritage Colors or Carbon Fiber body options
Built from start-to-finish with pride and passion
Designed by Ryan Hahn in collaboration with Buell
Powered by an updated Rotax Helicon motor
72 V-twin engine producing 185 hp
102 ft-lbs of torque
Front brake disc mounting on the wheel’s perimeter
Fuel-in-frame setup
Oil storage within the swingarm
Running dry weight: 416 pounds (190 kg)
Fully adjustable Showa USD Big Piston Forks up front
Fully adjustable, direct-mounted single Showa shock rear
386mm perimeter brake disc and eight-piston caliper setup
Superior stopping power and weight savings compared to traditional setup
Lightweight configuration for stunning performance
