Yamaha YZF-R1 (2024)

R1 has constantly pushed at the very limits of Supersport technology ever since the original model forever changed the world of motorcycling over 25 years ago. Built without compromise, this outstanding race-bred motorcycle is the most exciting supersport bike of our time.

Key Specifications

Engine Type	CP4 998cc, liquid-cooled inline 4 cylinder DOHC; 4-valves per cylinder
Engine Capacity	998 cc / 61 cubic inches
Max Power	147.1 kW (200.0 PS) @ 13,500 rpm
Max Torque	113.3 Nm (11.6 kg-m) @ 11,500 rpm
Fuel Tank Capacity	17 L / 4.5 US gallons
Weight (Wet/Kerb)	201 kg / 443 lbs
Seat Height	855 mm / 33.66 inches

*n/a – information not provided by manufacturer

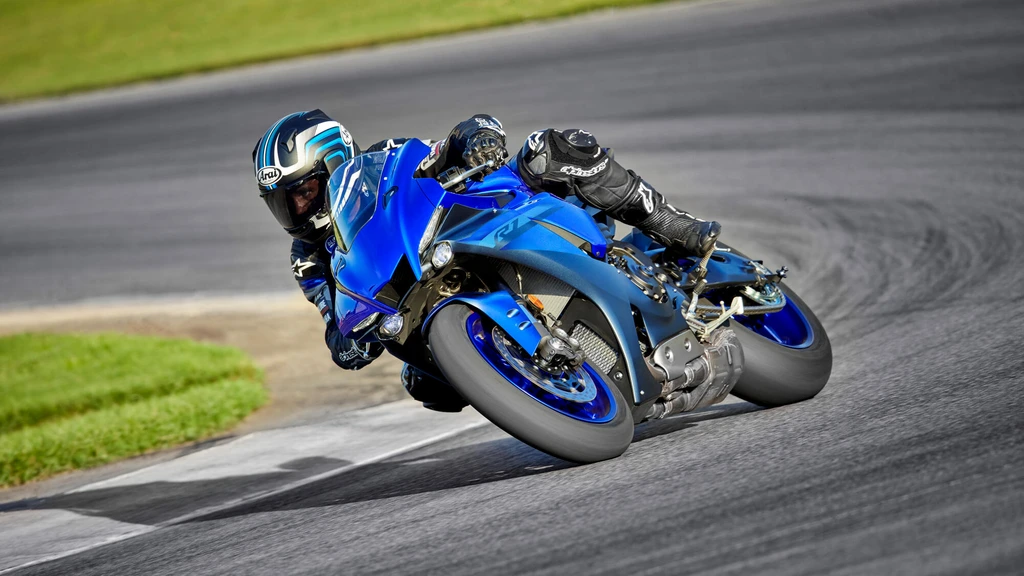

2024-yamaha-r1-throttlecraze.com-1_throttlecraze.com

All Specifications

Make & Model

Model	Yamaha YZF-R1
Year	2024

Engine

Engine Type	CP4 998cc, liquid-cooled inline 4 cylinder DOHC; 4-valves per cylinder
Displacement	998 cc / 61 cubic inches
Bore x Stroke	79 x 50.9 mm
Compression Ratio	13 : 1
Number of Cylinders	4
Max Horsepower	147.1 kW (200.0 PS) @ 13,500 rpm
Max Torque	113.3 Nm (11.6 kg-m) @ 11,500 rpm
Valve Train	4 Valves per cylinder, DOHC
Valves per Cylinder	4
Engine Management System	Electronic Fuel Injection
Lubrication System	Wet sump
Cooling System	Liquid Cooled
Ignition System	TCI
Exhaust System	Lightweight titanium muffler

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multiplate assist and slipper clutch
Gearbox	6-speed
Gear Ratios	1st gear: 39/15 2nd gear: 37/17 3rd gear: 35/19 4th gear: 30/19 5th gear: 29/21 6th gear: 30/24
Final Drive	Chain
Quick Shifter	Quick Shift System (QSS) with three settings, Up and Down
Traction Control System	Lean angle-sensitive Traction Control (TCS) incorporates 6-axis IMU
Assist & Slipper Clutch	Yes

Electrical & Electronics System

Headlight Type	LED
Taillight Type	LED
Instrumentation	Advanced, full-color TFT display
Riding Modes	2 Modes – Street, Track
Traction Control System	Lean angle-sensitive Traction Control (TCS) incorporates 6-axis IMU
Launch Control	Four-level Lift Control System (LIF)
ABS	Yes

Chassis & Suspension

Frame Type	Slim aluminum Deltabox frame
Front Suspension	43mm KYB® inverted fork, fully adjustable
Front Suspension Travel	120 mm / 4.7 inches
Rear Suspension	KYB® single shock, Linkage-Type, fully adjustable
Rear Suspension Travel	120 mm / 4.7 inches
Rake	24 °
Trail	102 mm / 4.0 inches
Rear Subframe	Magnesium subframe
Swingarm	Aluminum swingarm

Wheels & Brakes

Wheels	10-spoke cast magnesium wheels
Front Tire Size	120/70ZR17 Bridgestone® BATTLAX RACING STREET RS11F
Rear Tire Size	190/55ZR17 Bridgestone® BATTLAX RACING STREET RS11R
Front Brakes	Brembo Stylema Monobloc with Brembo Master cylinder, Dual 320mm hydraulic disc; Brake Control System and ABS
Rear Brakes	Brembo 220mm hydraulic disc; Brake Control System and ABS
ABS	Yes.

Dimension & Weights

Overall Length	2055 mm / 80.9 inches
Overall Width	690 mm / 27.2 inches
Overall Height	1165 mm / 45.9 inches
Seat Height	855 mm / 33.7 inches
Wheelbase	1405 mm / 55.3 inches
Fuel Tank Capacity	17 L / 4.5 US gallons
Wet (kerb/curb) Weight	201 kg / 443 lbs

Features

MotoGP®-Derived Crossplane Crankshaft Engine
Digital Superbike Technology
Superbike Brakes & Tires
Sharp, Sleek Styling
Legendary R-Series Handling
Next Level R-Series Evolution
Cutting-Edge CP4® Engine
High-Output Engine Technology
High-Performance Intake System
Refined Rocker-Arm Valvetrain
Titanium Exhaust System
Compact Stacked Transmission
Advanced Clutch
Ride-by-Wire Throttle System
Variable Intake System
MotoGP®-Level Controllability
Engine Brake Management (EBM)
Power Delivery Mode (PWR)
Lean Angle-Sensitive Traction Control System (TCS)
MotoGP®-Developed Slide Control System (SCS)
Lift Control System (LIF)
Launch Control System (LCS)
Up & Down Quick Shift System (QSS)
Brake Control (BC) System with ABS
Supersport Braking Components
Fully Adjustable KYB® Fork
Linkage-Type KYB® Shock
Bridgestone® RS11 Tires
Race-Ready Magnesium Wheels
Compact Deltabox Frame
Aluminum Fuel Tank
Sleek Styling
All-LED Lighting
Full-Color Instruments

Yamaha YZF-R1 (2024) Color Options

Icon Blue (Europe)
Midnight Black (Europe)
Team Yamaha Blue (US)
Raven Black (US)

2024-yamaha-r1-throttlecraze.com-3_throttlecraze.com

2024-yamaha-r1-throttlecraze.com-4_throttlecraze.com
