In every dimension, the Speed Triple 1200 RS delivers an absolute revolution in terms of Speed Triple power, performance, handling and technology.
Key Specifications Engine Type Liquid-cooled, 12 valve, DOHC, inline 3-cylinder Engine Capacity 1160 cc Max Power 180 PS / 177 HP (132.4 kW) @ 10,750 rpm Max Torque 124.7 Nm / 92 lbft @ 9,000 rpm Top Speed ~ 230 kmph / 143 mph Fuel Tank Capacity 15.5 L / 4.1 US gallons Weight (Wet/Kerb) 198 kg / 437 lbs Seat Height 830 mm / 32.7 inches
*n/a – information not provided by manufacturer
All Specifications Make & Model Model Triumph Speed Triple 1200 RS Year 2021 – 2024
Engine Engine Type Liquid-cooled, 12 valve, DOHC, inline 3-cylinder Displacement 1160 cc Bore x Stroke 90 mm x 60.8 mm Compression Ratio 13.2 : 1 Number of Cylinders 3 Max Horsepower 180 PS / 177 HP (132.4 kW) @ 10,750 rpm Max Torque 124.7 Nm / 92 lbft @ 9,000 rpm Valve Train DOHC Valves per Cylinder 4 Engine Management System Multipoint sequential electronic fuel injection with electronic throttle control Lubrication System Wet sump Ignition System Fully electronic ignition Fuel Unleaded, 95 RON (U.S. 89 CLC/AKI) Exhaust System Stainless steel 3-into-1 header system with underslung primary silencer and side-mounted secondary silencer Emissions Compliance Euro 5
Performance Top Speed ~ 230 kmph / 143 mph Fuel Consumption 37.3 mpg (6.3 L / 100km) Range 246 kms / 153 m
*n/a – information not provided by manufacturer
Transmission Clutch Wet mulit-plate, slip assist Gearbox 6 speed, constant mesh Primary Drive Ratio 76:41 Gear Ratios 1st gear – 41:17 Final Drive Chain RK 525 Quick Shifter Triumph Shift Assist Up-and-Down Quickshifter Traction Control System Switchable Optimized Cornering Traction Control Assist & Slipper Clutch Optimized Cornering ABS
Electrical & Electronics System Battery HJTZ14S-FPZ Alternator/Generator 34A Headlight Type LED Taillight Type LED Instrumentation Full-color 5″ TFT instruments Riding Modes 5 Modes – Rain, Road, Sport, Track, Rider Traction Control System Switchable Optimized Cornering Traction Control Launch Control Front Wheel Lift Control ABS Optimized Cornering ABS Cruise Control Cruise control
Chassis & Suspension Frame Type Aluminum twin spar frame Front Suspension Ohlins 43 mm NIX30 upside down forks with adjustable preload, rebound and compression damping Front Suspension Travel 120 mm / 4.72 inches Rear Suspension Öhlins TTX36 twin tube monoshock with preload, rebound and compression damping Rear Suspension Travel 120 mm / 4.72 inches Rake 23.9 ° Trail 104.7 mm / 4.1 inches Rear Subframe Bolt-on aluminum rear subframe Swingarm Aluminum, single-sided
Wheels & Brakes Wheels Cast aluminum Front Wheel/Rim Size 3.5 x 17″ Front Tire Size 120/70 ZR17 Rear Wheel/Rim Size 6.0 x 17″ Rear Tire Size 190/55 ZR17 Front Brakes Twin 320mm floating discs. Brembo Stylema monobloc calipers, OC-ABS, radial master cylinder with separate reservoir Rear Brakes Single 220mm disc. Brembo twin piston caliper, OC-ABS. Rear master cylinder with separate reservoir ABS Optimized Cornering ABS
Dimension & Weights Overall Width 792 mm / 31.2 inches Overall Height 1089 mm / 42.9 inches Seat Height 830 mm / 32.7 inches Wheelbase 1445 mm / 56.9 inches Fuel Tank Capacity 15.5 L / 4.1 US gallons Wet (kerb/curb) Weight 198 kg / 437 lbs

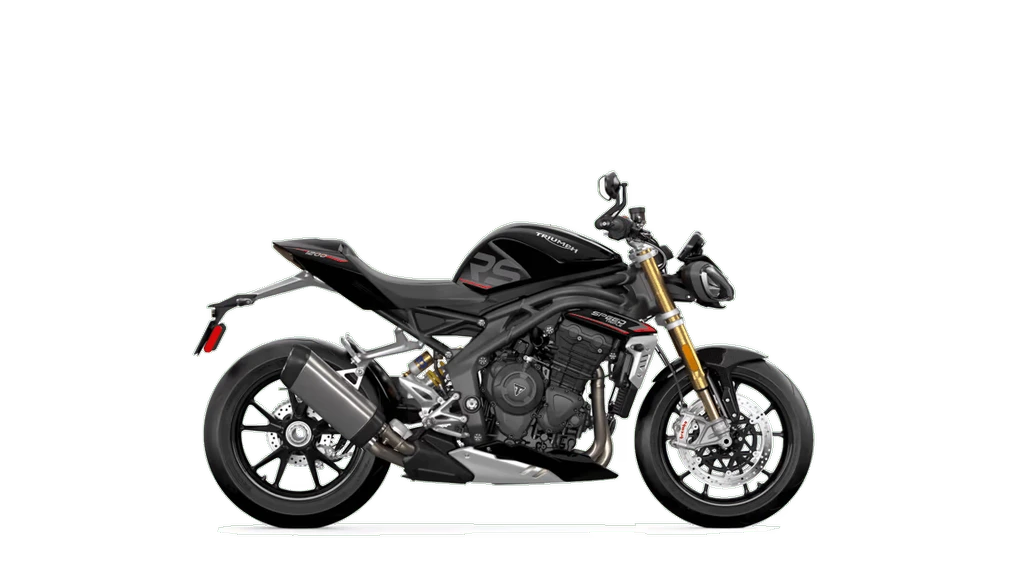

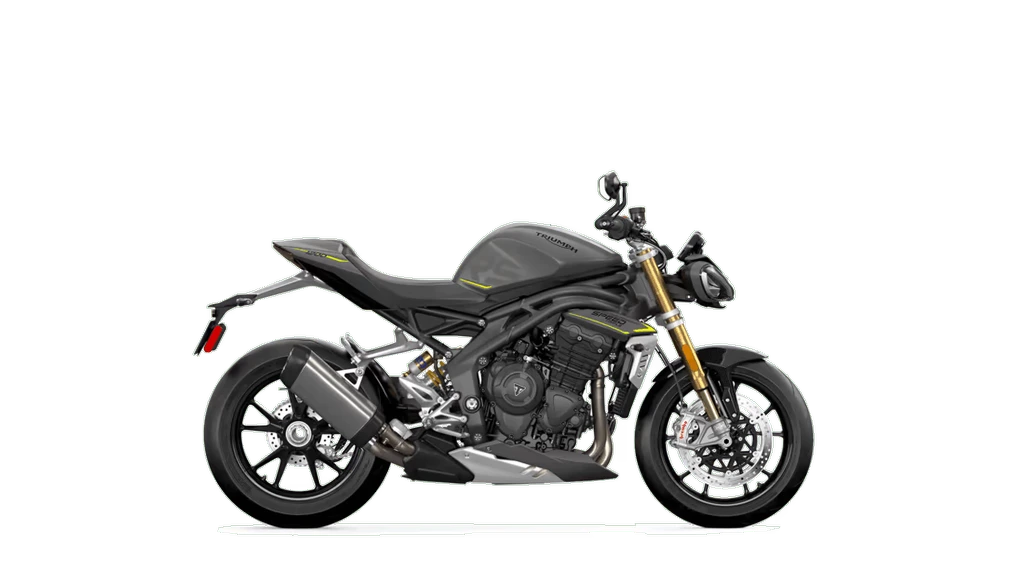

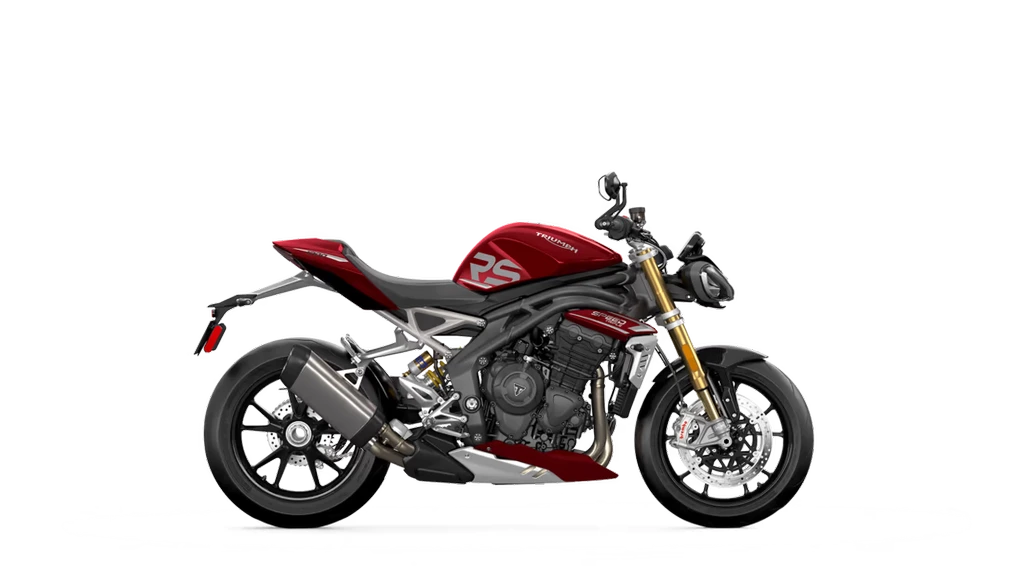

Standard Equipment Fully adjustable Öhlins suspension Brembo Stylema brake calipers, with twin 320mm discs Pirelli Diablo Supercorsa V3 tyres Optimized Cornering ABS and switchable Optimized Cornering Traction Control (with IMU), Front Wheel Lift Control, Cruise Control 5” TFT instruments 5 configurable riding modes (rain, road, sport, track, and rider) Triumph Shift Assist up and down quickshifter Slip & assist clutch Lithium-ion battery All-LED lighting, with self-cancelling indicators Full keyless system Triumph Speed Triple 1200 RS (2021 – 2024) Color Options Sapphire Black Matte Silver Ice Carnival Red *We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
