With a modern scrambler design, rider-focused technology and intuitive handling, the Street Scrambler is born for freedom and fun.
Key Specifications Engine Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin Engine Capacity 900 cc Max Power 64.1 Hp (47.8 kW) @ 7250 rpm Max Torque 80 Nm / 59 lb-ft (80 Nm) @ 3250 rpm Top Speed ~ 170 kmph / 105.6 mph Fuel Tank Capacity 12 L / 3.17 US gallons Weight (Wet/Kerb) 223 kg / 492 lbs Seat Height 790 mm / 31.1 inches
*n/a – information not provided by manufacturer
All Specifications Make & Model Model Triumph Scrambler 900 Year 2023 –
Engine Engine Type Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin Displacement 900 cc Bore x Stroke 84.6 mm x 80 mm Compression Ratio 11 : 1 Number of Cylinders 2 Max Horsepower 64.1 Hp (47.8 kW) @ 7250 rpm Max Torque 80 Nm / 59 lb-ft (80 Nm) @ 3250 rpm Valve Train SOHC Valves per Cylinder 4 Engine Management System Multipoint sequential electronic fuel injection Lubrication System Wet sump Ignition System Fully electronic ignition Fuel Unleaded, 91 RON (CLC or AKI octane rating (R+M)/2 of 87 or higher) Exhaust System Brushed stainless steel 2 into 2 exhaust system with twin high-level brushed stainless steel silencers Emissions Compliance Euro 5
Performance Top Speed ~ 170 kmph / 105.6 mph Fuel Consumption 54.7 mpg (4.3 liters/100km) Range 280 kms / 174 m
*n/a – information not provided by manufacturer
Transmission Clutch Wet, multi-plate torque assist clutch Gearbox 5 speed Primary Drive Ratio 93:74 Gear Ratios 1st gear – 49:14 Final Drive Chain DID 520VM4 Traction Control System Ride-by-wire throttle with switchable traction control
Electrical & Electronics System Battery YTX12-BS Alternator/Generator 14 Volt, 46.5 Amps (maximum) at 3,000 rpm Headlight Type H4 Halogen Taillight Type LED Instrumentation Analogue speedometer with LCD multi-functional display Traction Control System Ride-by-wire throttle with switchable traction control ABS Switchable ABS
Chassis & Suspension Frame Type Tubular steel, with twin cradles Front Suspension Ø 41mm forks with cartridge damping Front Suspension Travel 120 mm / 4.72 inches Rear Suspension Twin shocks with adjustable preload Rear Suspension Travel 120 mm / 4.72 inches Rake 25.6 ° Trail 109 mm / 4.3 inches Swingarm Twin-sided steel fabrication
Wheels & Brakes Wheels Spoked steel rims Front Wheel/Rim Size 2.5 x 19″ Front Tire Size 100/90-19 Metzeler Tourance Rear Wheel/Rim Size 4.25 x 17″ Rear Tire Size 150/70 R17 Metzeler Tourance Front Brakes Single Ø310mm floating disc, Brembo 4-piston fixed axial caliper, ABS Rear Brakes Single Ø255mm disc, Nissin 2-piston floating caliper, ABS ABS Switchable ABS
Dimension & Weights Overall Width 835 mm / 32.8 inches Overall Height 1180 mm / 46.5 inches Seat Height 790 mm / 31.1 inches Wheelbase 1445 mm / 56.9 inches Fuel Tank Capacity 12 L / 3.17 US gallons Wet (kerb/curb) Weight 223 kg / 492 lbs

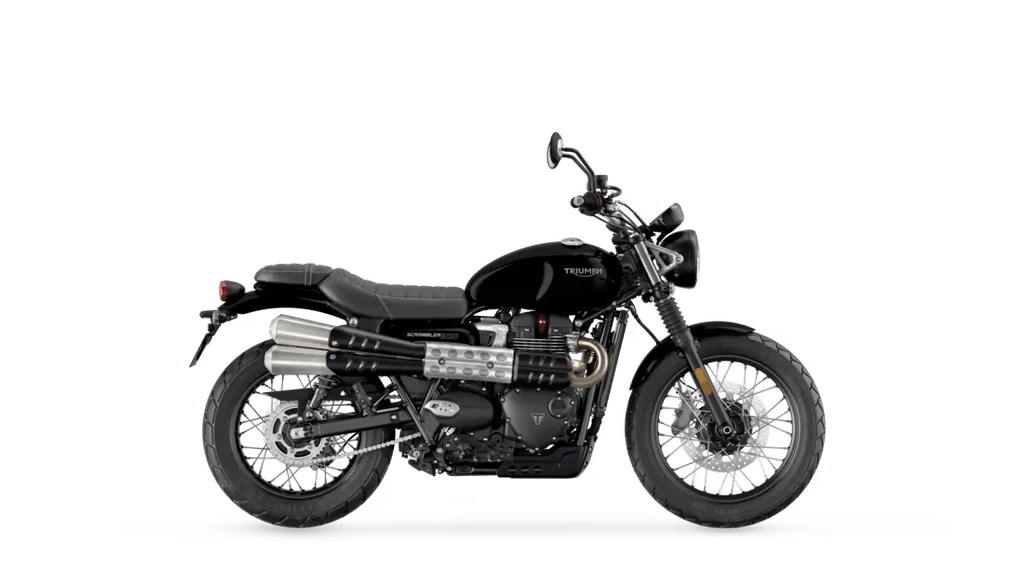

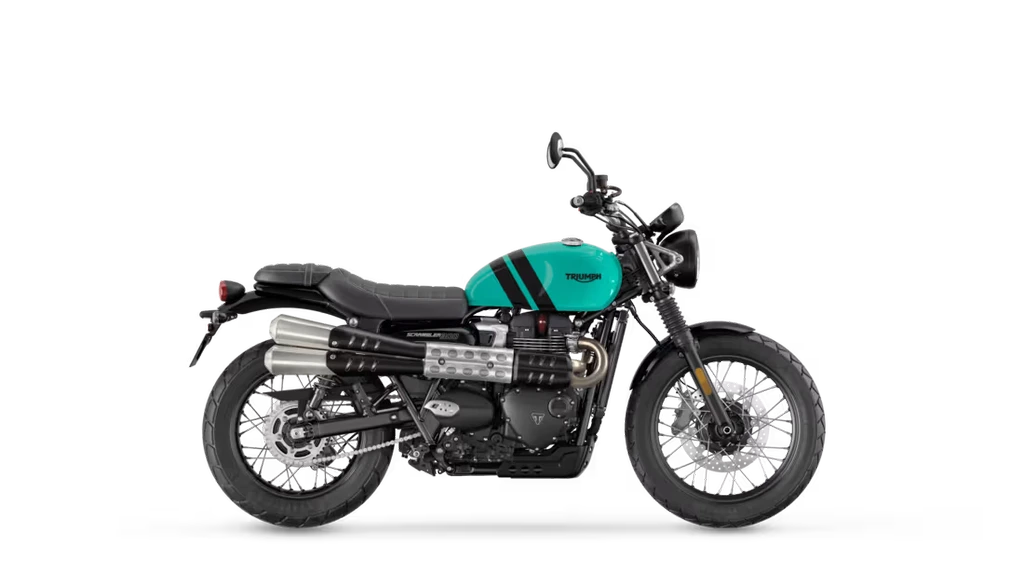

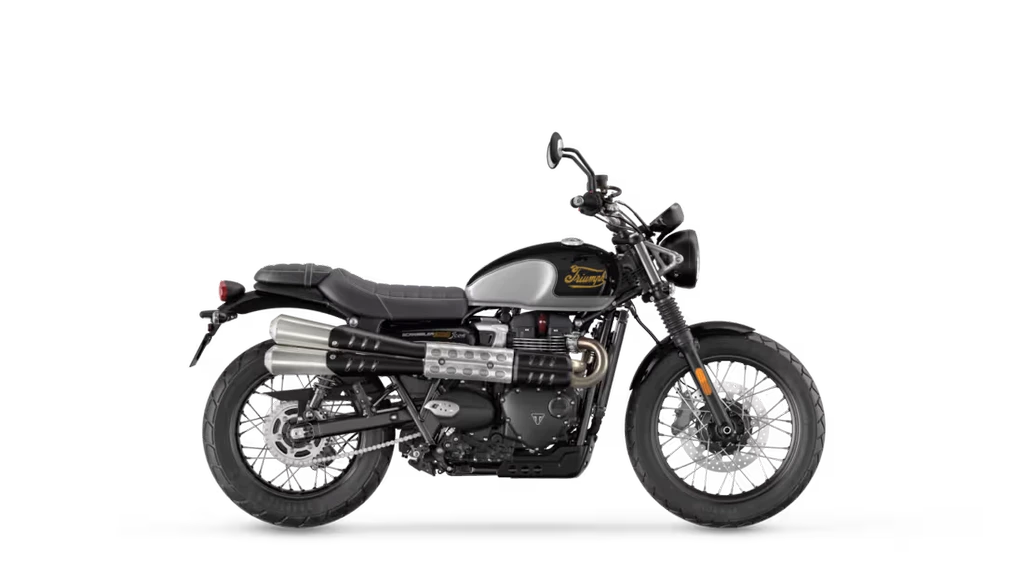

Triumph Scrambler 900 (2023 – ) Color Options Kingfisher Blue Jet Black Matte Khaki Green Icon Edition – Sapphire Black Aluminium Silver *We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
