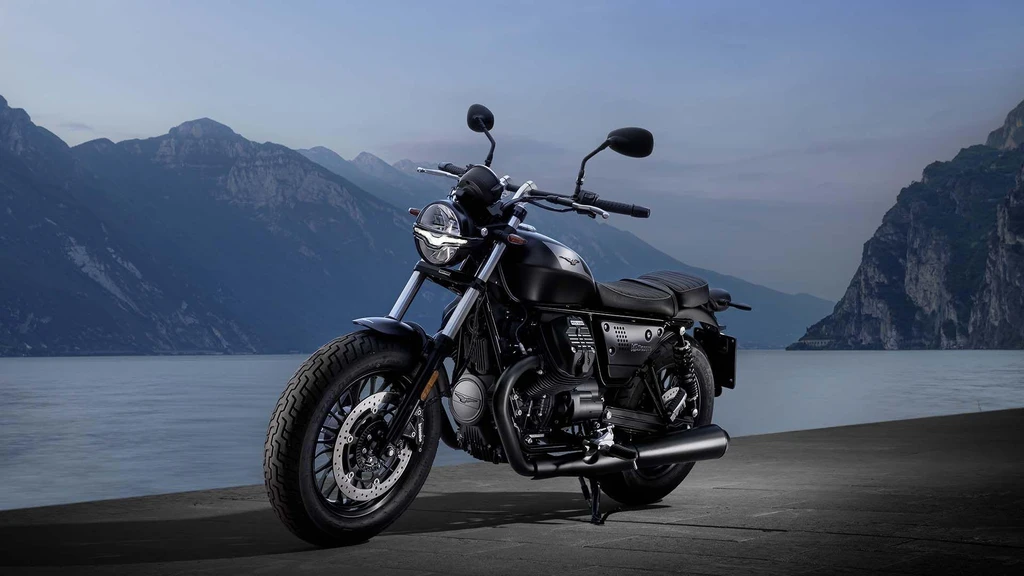

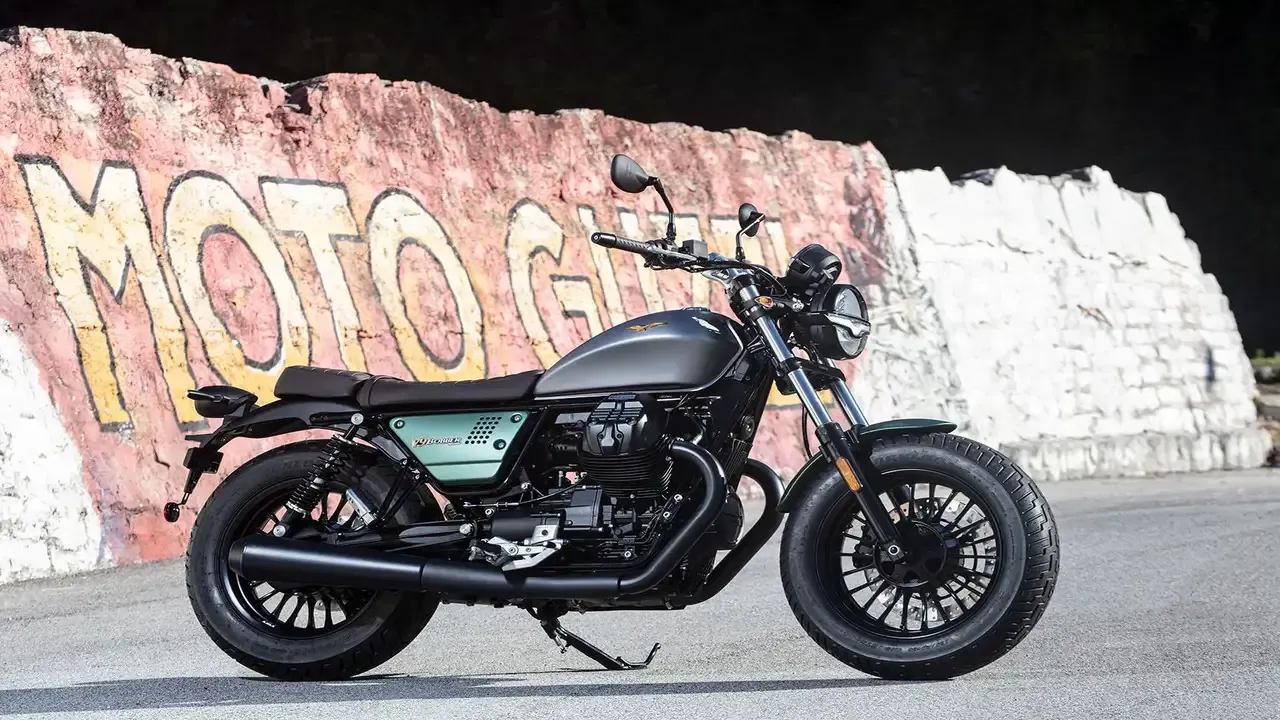

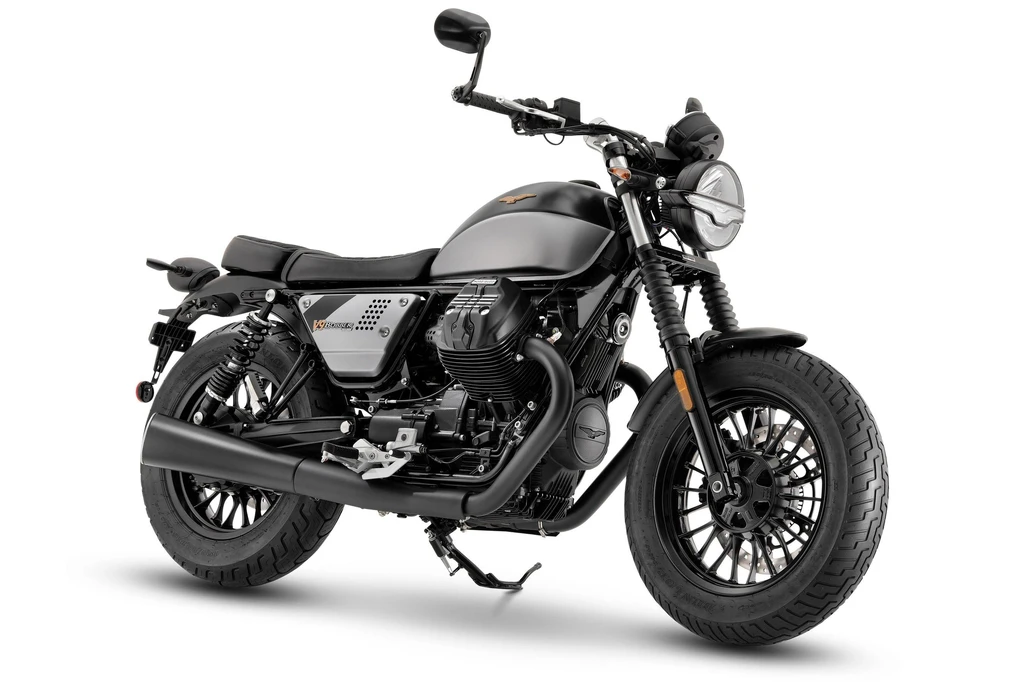

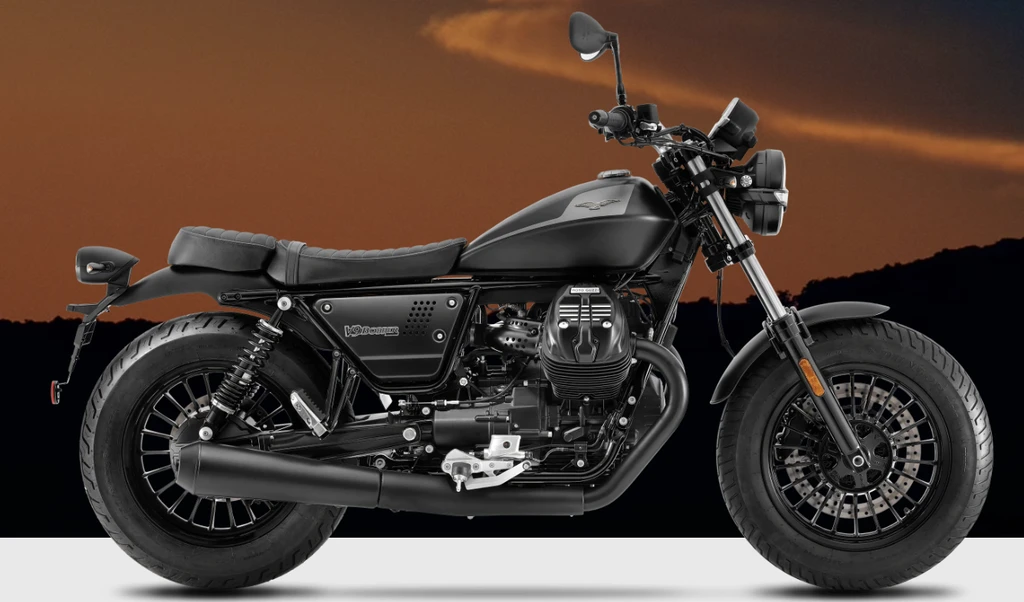

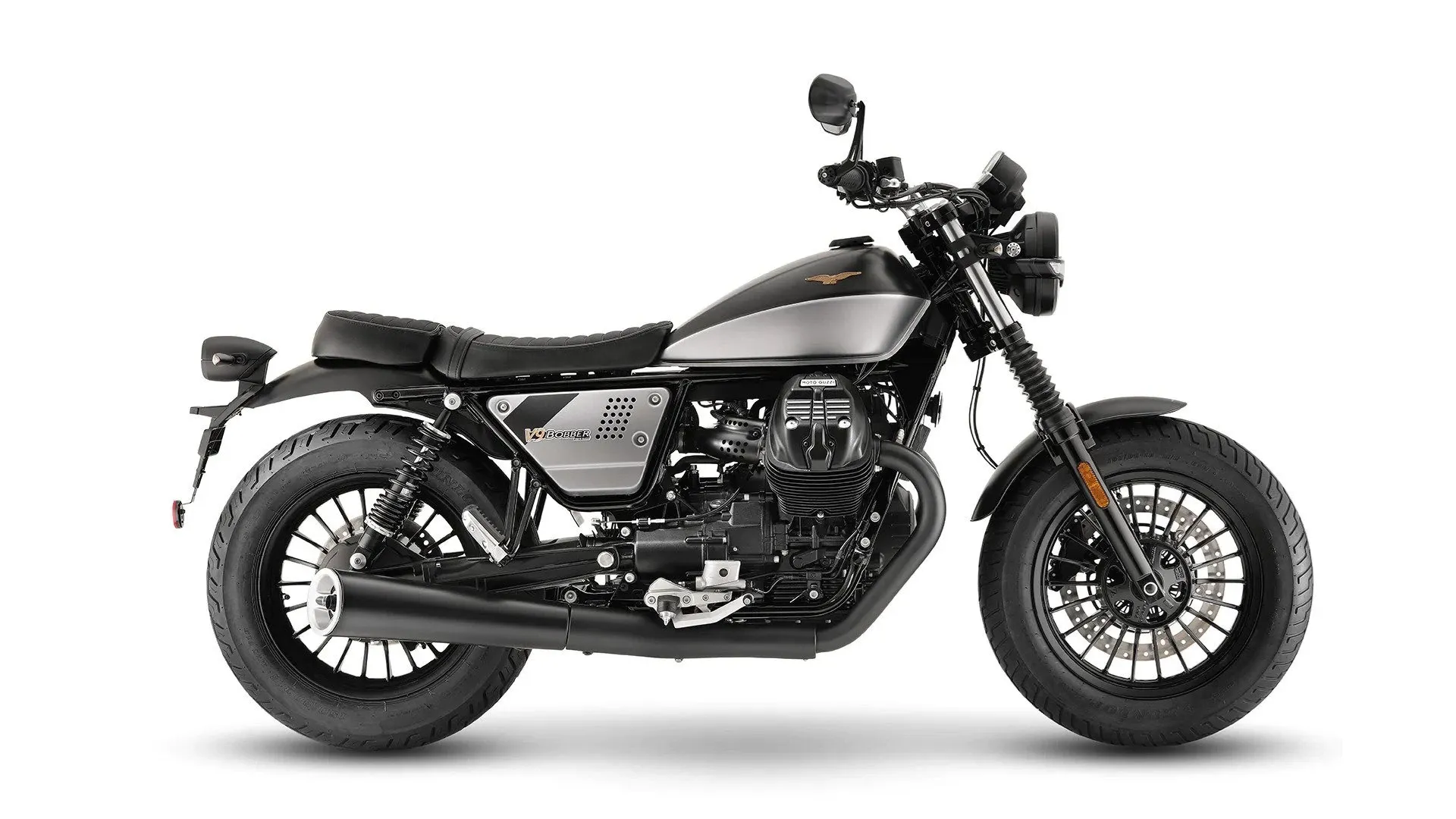

Moto Guzzi V9 Bobber Special Edition (2023)

Moto Guzzi V9 Bobber Special Edition (2023)

The Moto Guzzi V9 Bobber Special Edition is a rebellious yet refined creation that embodies the essence of a classic bobber. Its sleek, minimalist design is characterized by a predominantly black aesthetic, punctuated by billet aluminium accents and the distinctive sound of its 90° transverse V-twin engine.

Under the skin, the V9 Bobber’s potent engine delivers a unique riding experience, with its rich, throaty exhaust note and a healthy dose of torque. Its large, 16-inch tyres provide ample grip, while the precise handling and responsive steering allow riders to carve through corners with ease.

A true tribute to Moto Guzzi’s rich heritage, the V9 Bobber Special Edition boasts a unique equipment package that elevates its already impressive credentials. Its Workshop twin-tone black and grey colour scheme is a masterclass in understated elegance, and the intricate details of its engine and frame are a testament to the brand’s commitment to quality and craftsmanship. And so, the Moto Guzzi V9 Bobber Special Edition is the ultimate expression of a timeless riding experience, one that seamlessly blends style, substance, and a deep connection to the world of motorcycling.

Key Specifications

Engine TypeTransversal 90 V-twin, 4-stroke, 2-valves per cylinder
Engine Capacity52.0 cubic inches / 853 cc
Max Torque53.8 ft-lb / 73 nm
Fuel Tank Capacity4.0 US gallons / 15.0 L
Weight (Wet/Kerb)462.9 lbs / 210 kg
Seat Height30.9 inches / 785 mm
Moto Guzzi V9 Bobber Special Edition (2023)

All Specifications

Make & Model

ModelMoto Guzzi V9 Bobber Special Edition
Year2023

Engine

Engine TypeTransversal 90 V-twin, 4-stroke, 2-valves per cylinder
Displacement52.0 cubic inches / 853 cc
Bore x Stroke84 x 77 mm
Compression Ratio10.5:1
Max Torque53.8 ft-lb / 73 nm
Engine Management SystemMarelli MIU single-body electronic injection, integrated management of traction control on 2 levels
Cooling SystemAir/oil cooled
ExhaustStainless steel, 2-in-2 type, three-way catalytic converter with double lambda probe

Performance

Top Speedn/a

Transmission

Clutch170 mm Single disc with integrated flexible couplings
Gearbox6 speeds (with overdrive top gear)
Gear Ratios1st 16/39 = 1: 2.4372nd 18/32 = 1: 1.7773rd 21/28 = 1: 1.3334th 24/26 = 1: 1.0835th 25/24 = 1: 0.966th 28/24 = 1: 0.857
Final DriveDouble universal joint and double bevel gear units (8/33 ratio = 1: 4.125)

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeALS steel twin tube cradle frame
Front Suspension40mm Standard fork
Front Suspension Travel5.1 inches / 130 mm
Rear SuspensionSwingarm with double shock absorber with adjustable spring preload.
Rear Suspension Travel3.6 inches / 91 mm
Rake26.4
Trail117 mm / 4.6 in

Wheels & Brakes

WheelsAluminium alloy
Front Wheel/Rim Size3.50 x 16
Front Tire Size130/90 – 16
Rear Wheel/Rim Size4.00 x 16
Rear Tire Size150/80 B 16
Front BrakesSingle 320 mm stainless steel floating disc, Brembo opposed four-piston callipers
Rear BrakesSingle 260 mm stainless steel floating disc, Brembo opposed two-piston callipers

Dimension & Weights

Overall Length2185 mm / 86.0 in
Overall Width840 mm / 33.0 in
Overall Height1120 mm / 44.0 in
Seat Height30.9 inches / 785 mm
Wheelbase57.6 inches / 1465 mm
Fuel Tank Capacity4.0 US gallons / 15.0 L
Wet (kerb/curb) Weight462.9 lbs / 210 kg
Dry Weight194 kg / 427.6 lbs

Features

  • Twin-tone black and grey colour scheme
  • Billet aluminium cap on metal teardrop fuel tank
  • Aluminium side panels
  • Bar-end mirrors
  • Fork seals
  • Short front mudguard
  • High-quality paintwork
  • Immaculately finished welds on new frame
  • Matt black cylinder head covers with Moto Guzzi branding
  • 90 transverse V-twin engine
  • Street-legal slip-on exhaust
  • Matte black paint on slip-on exhaust
  • Aluminium bottom on slip-on exhaust
  • Oblique shape on slip-on exhaust terminal
  • Sporty, active, and extended riding position
  • Low seat height of 785 mm
  • Light overall kerb weight of 210 kg
