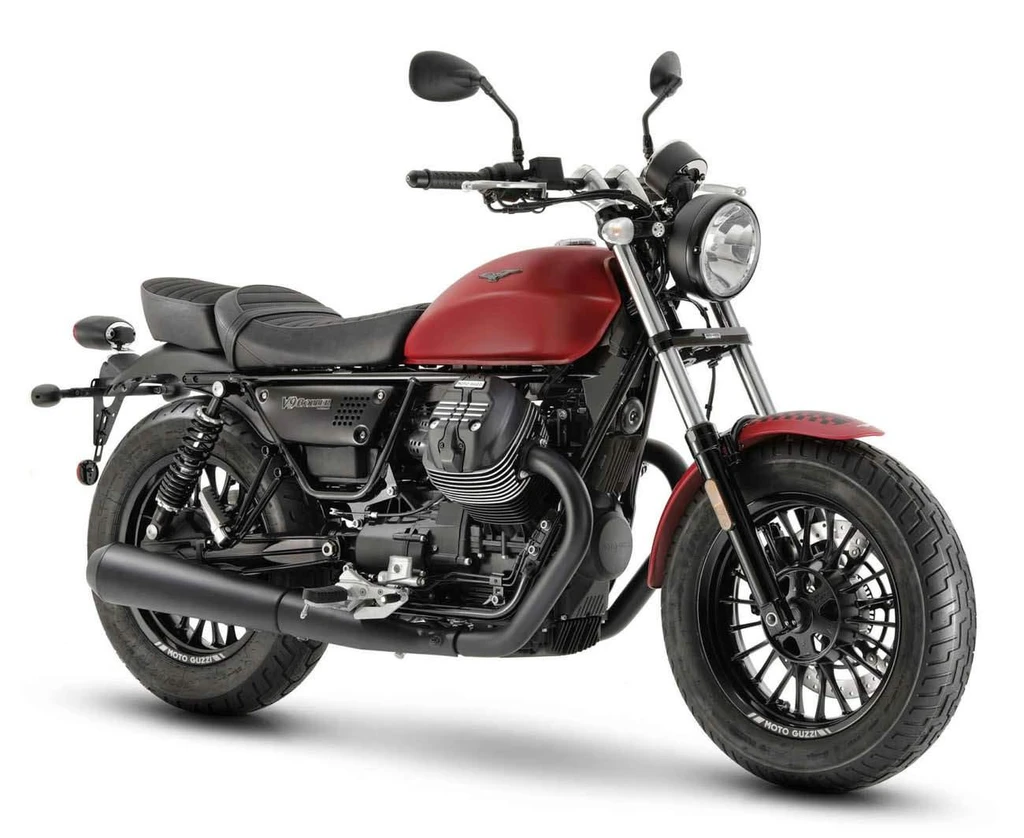

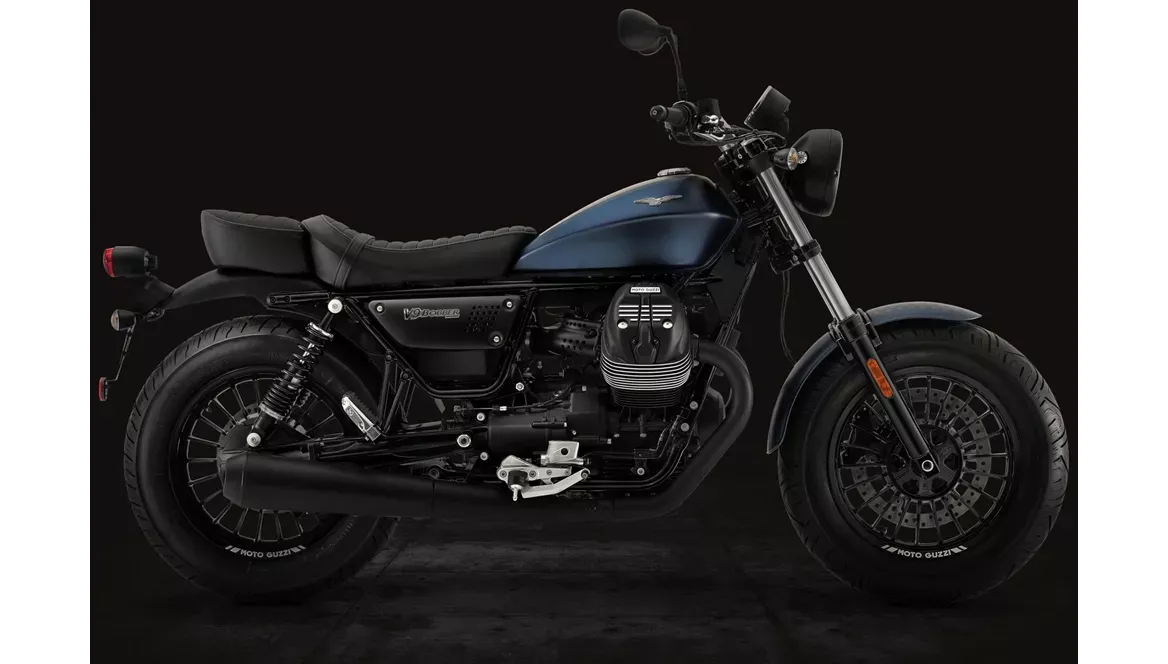

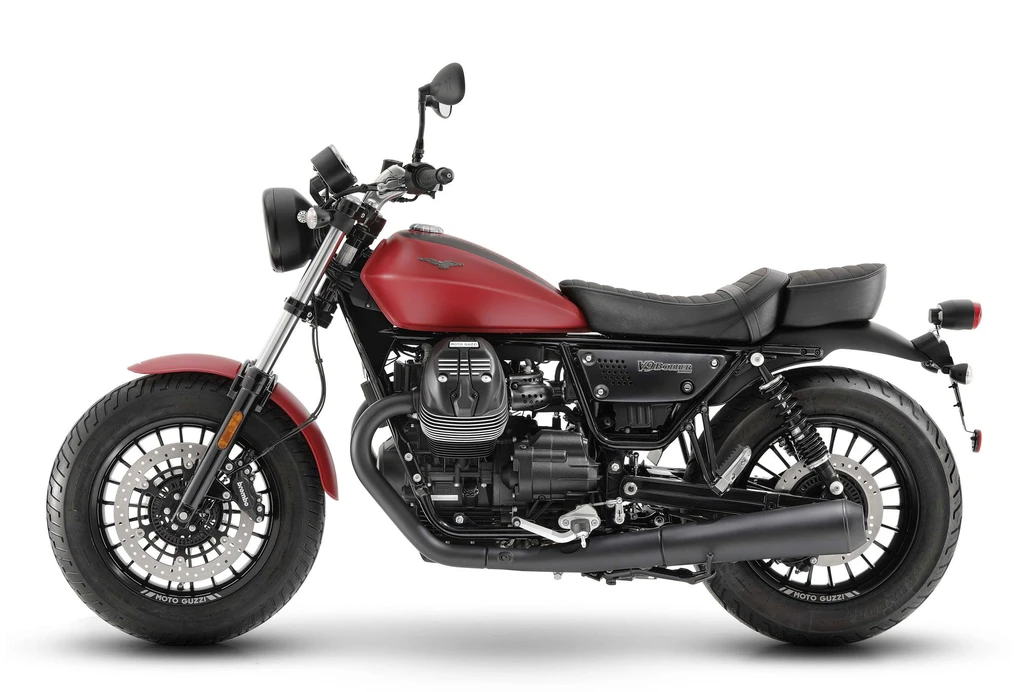

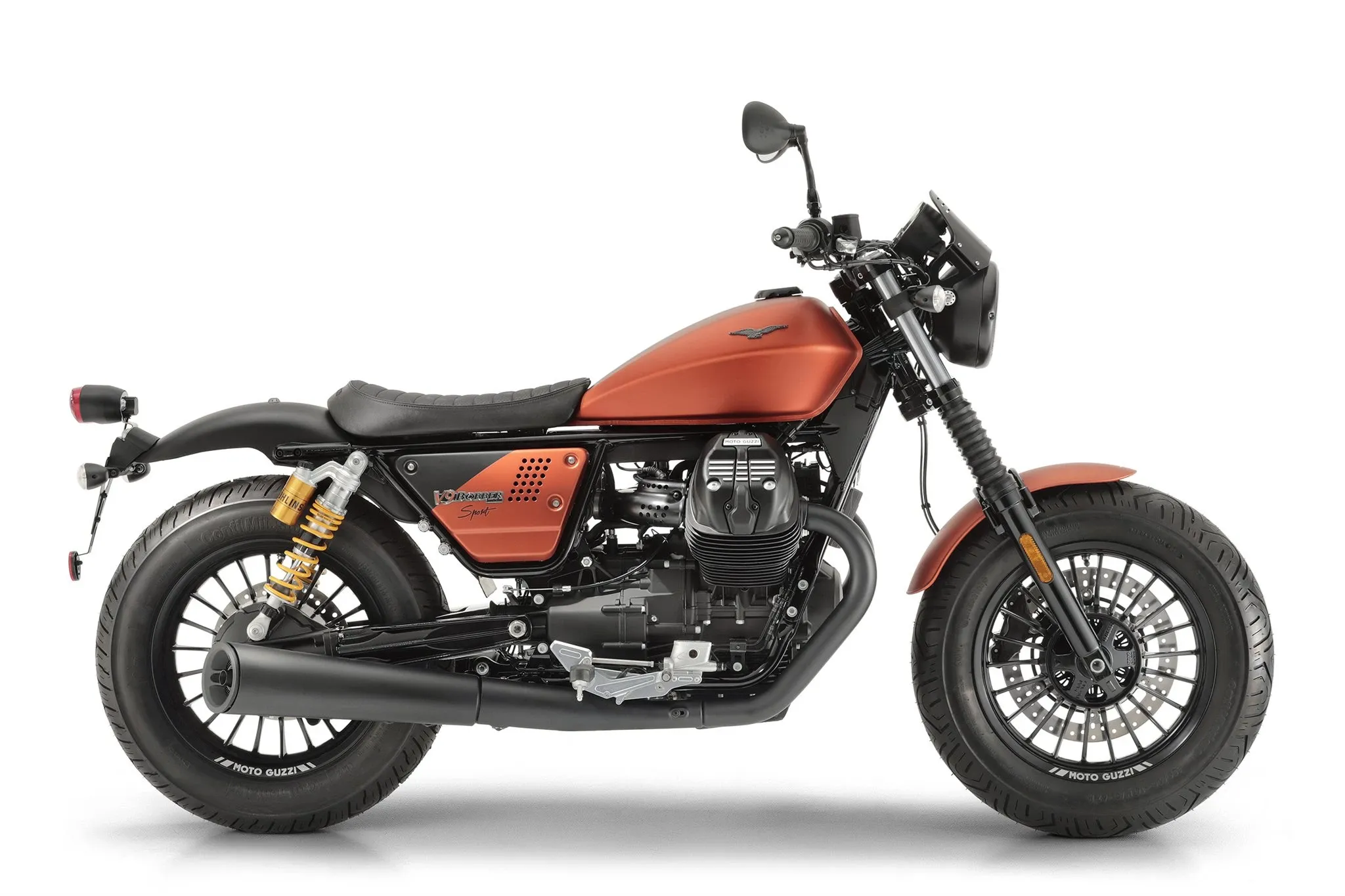

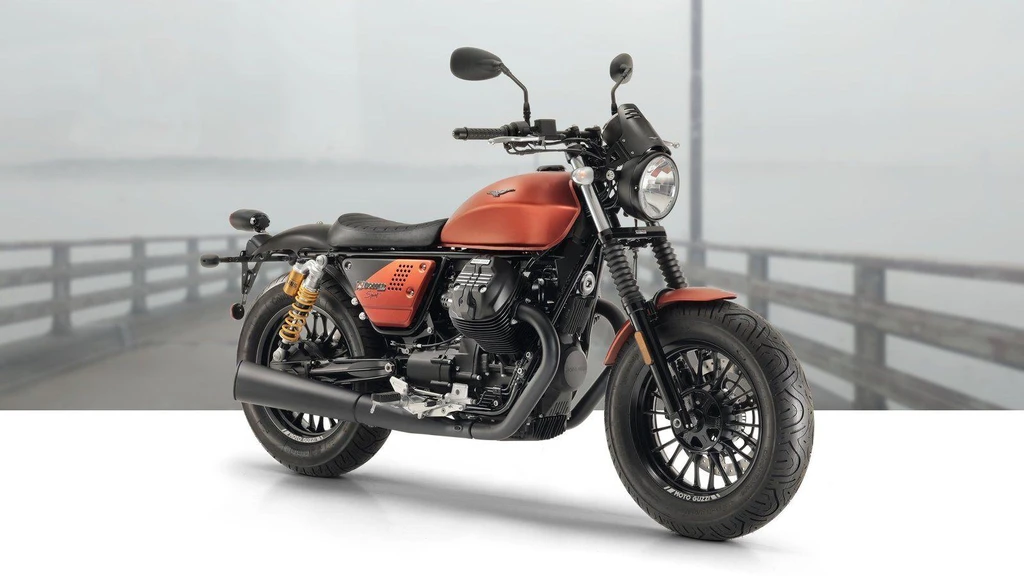

Moto Guzzi V9 Bobber (2019 – 2020)

Moto Guzzi V9 Bobber (2019 - 2020)

The Moto Guzzi V9 Bobber embodies the essence of a true Italian sports custom, its sleek, matt-black design evoking the spirit of post-war American bobbers. Powered by the potent 850cc Euro 4 engine, this bike delivers unprecedented torque, smoothness, and responsiveness, ensuring an exhilarating ride experience. With its oversized tyres and minimalist aesthetic, the V9 Bobber is a rebellious take on the traditional cruiser, yet it still offers exceptional riding pleasure and handling.

The V9 Bobber’s 850cc twin-cylinder engine is the heart and soul of this bike, providing a thrilling experience that’s as smooth as it is powerful. The engine’s effortless torque and responsive nature make it a joy to ride, whether carving through twisties or cruising down the highway.

The V9 Bobber’s design is a masterclass in understated elegance, with its matt-black finish and subtle detailing creating a sense of raw, unbridled power. Yet, beneath its rugged exterior lies a bike that’s as comfortable as it is capable, inviting riders to take the helm and explore the open road.

The V9 Bobber is more than just a bike – it’s an attitude, a mindset, and a way of life. It’s a true Moto Guzzi, born from a passion for the road and a desire to create something truly unique.

Key Specifications

Engine TypeTransversal 90 V-twin, 4-stroke, 2-valves per cylinder
Engine Capacity853 cc / 52.0 cu in
Max Torque45.7 ft-lb / 62 nm
Fuel Tank Capacity4.0 US gallons / 15.0 L
Weight (Wet/Kerb)441 lbs / 200 kg
Seat Height31.8 inches / 808 mm
Moto Guzzi V9 Bobber (2019 - 2020)

All Specifications

Make & Model

ModelMoto Guzzi V9 Bobber
Year2019 – 2020

Engine

Engine TypeTransversal 90 V-twin, 4-stroke, 2-valves per cylinder
Displacement853 cc / 52.0 cu in
Bore x Stroke84 x 77 mm
Compression Ratio10.5:1
Max Torque45.7 ft-lb / 62 nm
Engine Management SystemMarelli MIU single-body electronic injection, integrated management of traction control on 2 levels
Cooling SystemAir/oil cooled
ExhaustStainless steel, 2-in-2 type, three-way catalytic converter with double lambda probe

Performance

Top Speedn/a

Transmission

Clutch170 mm Single disc with integrated flexible couplings
Gearbox6-Speed
Gear Ratios1st 16:39 (2.437) / 2nd 18:32 (1.778) / 3rd 21:28 (1.333) / 4th 24:26 (1.083) / 5th 25:24 (0.960) 6 th 28:24 (0.857)
Final DriveShaft, double universal joint and double bevel gear units, 8:33 ratio

Electrical & Electronics System

Battery12V, 18Ah
StarterElectric

Chassis & Suspension

Frame TypeALS steel twin tube cradle frame
Front Suspension40mm Standard fork
Front Suspension Travel5.1 inches / 130 mm
Rear SuspensionSwingarm with double shock absorber with adjustable spring preload.
Rear Suspension Travel3.6 inches / 91 mm
Rake26.4º
Trail116.1 mm / 4.6 in

Wheels & Brakes

Front Wheel/Rim Size3.50 x 16
Front Tire Size130/90 – 16
Rear Wheel/Rim Size4.00 x 16
Rear Tire Size150/80 – 16
Front BrakesSingle 320 mm stainless steel floating disc, Brembo opposed four-piston callipers
Rear BrakesSingle 260 mm stainless steel floating disc, Brembo opposed two-piston callipers

Dimension & Weights

Overall Length2185 mm / 86.0 in
Overall Width840 mm / 33.0 in
Overall Height1160 mm / 45.6 in
Seat Height31.8 inches / 808 mm
Wheelbase57.6 inches / 1465 mm
Fuel Tank Capacity4.0 US gallons / 15.0 L
Wet (kerb/curb) Weight441 lbs / 200 kg

Features

  • 850cc twin cylinder Euro 4 engine
  • High-grade finishes and exceptional quality of components
  • Matt black details and total matt black look
  • Oversized 130/90 tyre with wide shoulder
  • 16-inch matt black wheel rims with grey Moto Guzzi logo
  • Black painted low drag bar
  • Set-back aluminium footpegs
  • Passenger portion as standard equipment
  • Removable passenger footpegs
  • Single-seater, aggressive riding position
  • Ground clearance of 785mm
  • Total kerb weight of 199kg
  • High torque, smoothness and responsiveness
  • Air and oil cooled engine
  • 90-degree transverse V-twin engine configuration
