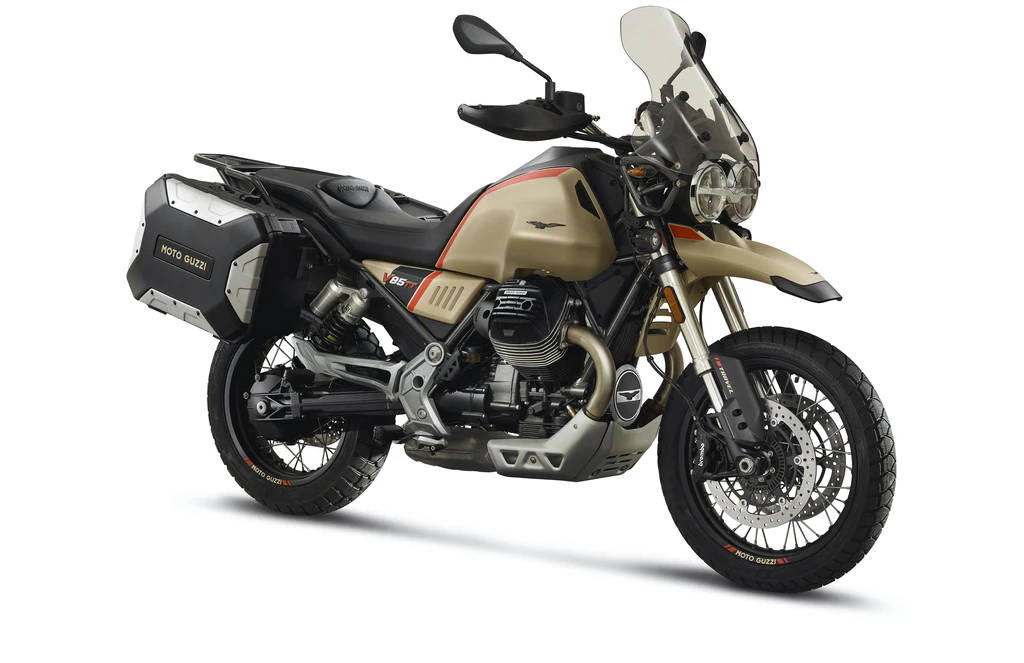

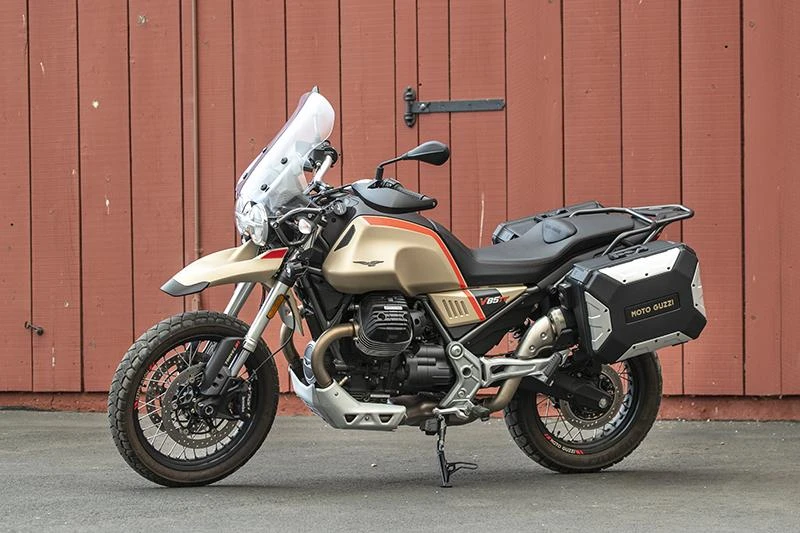

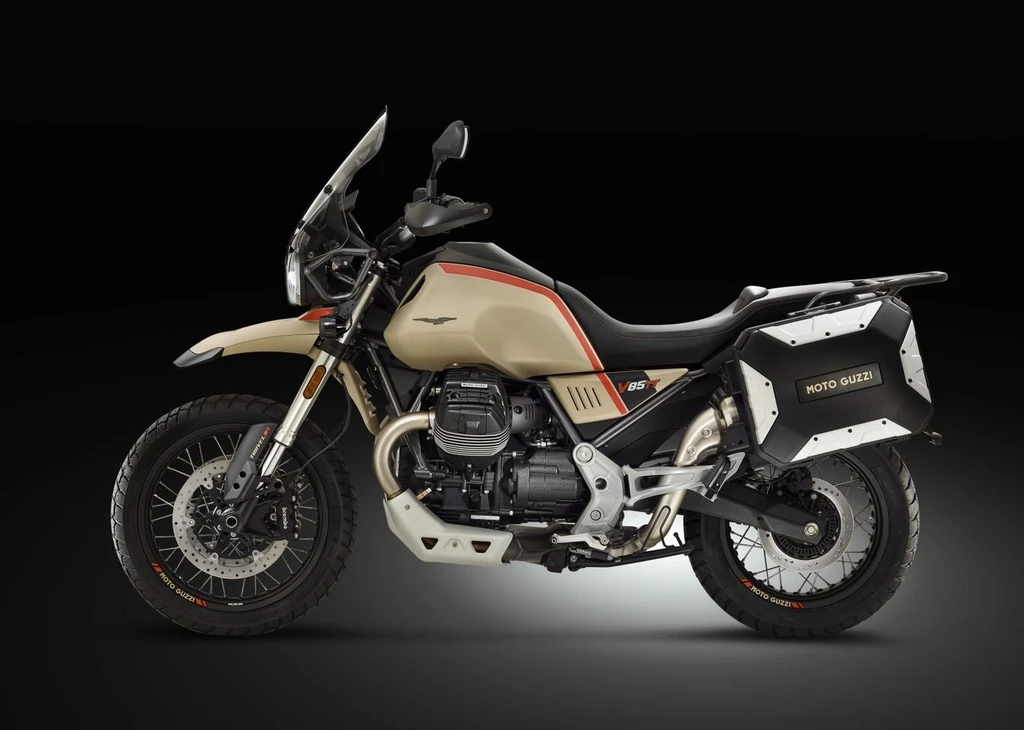

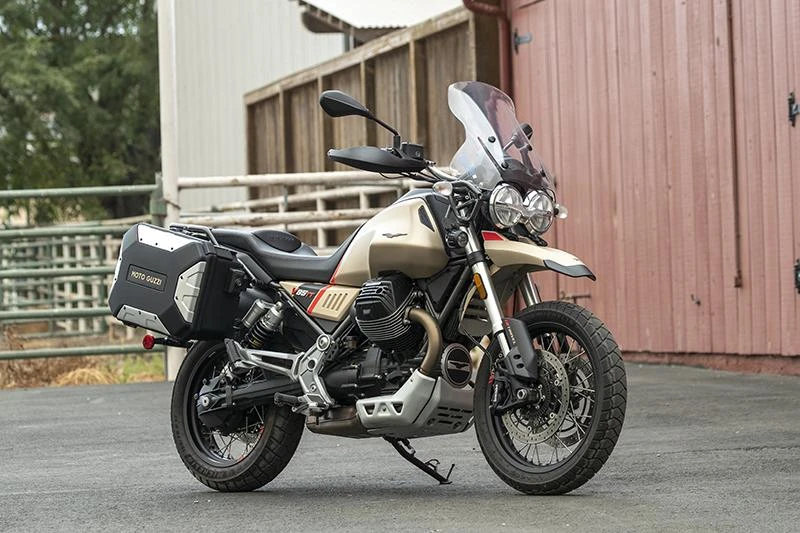

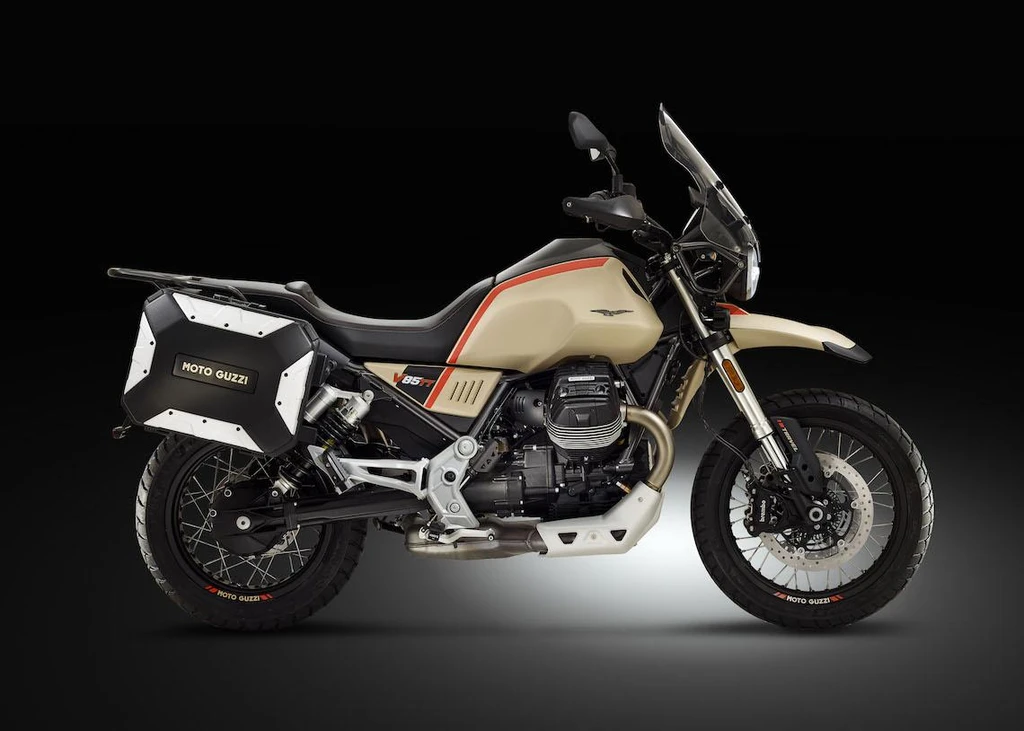

Moto Guzzi V85 TT Travel (2020)

Moto Guzzi V85 TT Travel (2020)

The Moto Guzzi V85 TT Travel is a true grand touring icon, boasting a sophisticated blend of style and cutting-edge technology. At its heart lies a 52mm single throttle body, Ride-by-Wire, and a 41mm hydraulic telescopic USD fork, adjustable for spring preload and hydraulic rebound. The V85 TT’s signature versatility shines through in its double-sided swingarm, with a single shock on the right side, also adjustable for spring preload and hydraulic rebound.

With its standard equipment including panniers, a high windshield, and heated hand grips, the V85 TT Travel is ready to embark on any adventure. Moto Guzzi has taken the feedback of its devoted fans to create a bike that perfectly balances simplicity, practicality, and handling, resulting in an unfiltered riding experience that’s uniquely Moto Guzzi.

The Travel version’s comprehensive range of accessories is designed to provide the ultimate adventure touring experience, with a higher touring windshield offering greater air protection and panniers boasting a generous 37 and 27.5 litres of capacity, respectively. With its sleek design and generous storage, the Moto Guzzi V85 TT Travel is the ultimate companion for any long-distance journey, perfectly suited to tackle the open road and explore the unknown with confidence and style.

Key Specifications

Engine TypeFour stroke Transversal 90 V-twin, 2-valves per cylinder
Engine Capacity853 cc / 52.0 cu in
Max Torque59 ft-lb / 80 nm
Fuel Tank Capacity6.0 US gallons / 23.0 L
Weight (Wet/Kerb)534 lbs / 242 kg
Seat Height32.6 inches / 830 mm
Moto Guzzi V85 TT Travel (2020)

All Specifications

Make & Model

ModelMoto Guzzi V85 TT Travel
Year2020

Engine

Engine TypeFour stroke Transversal 90 V-twin, 2-valves per cylinder
Displacement853 cc / 52.0 cu in
Bore x Stroke84 x 77 mm
Compression Ratio10.5:1
Max Torque59 ft-lb / 80 nm
Engine Management SystemElectronic injection; 52 mm single throttle body, Ride-by-Wire
Cooling SystemAir cooled

Performance

Top Speedn/a

Transmission

ClutchDry single disc
Gearbox6 Speed
Gear Ratios1st 16/39 = 1: 2.437 2nd 18/32 = 1: 1.778 3rd 21/28 = 1: 1.333 4th 24/26 = 1: 1.083 5th 25/24 = 1: 0.960 6th 27/24 = 1: 0.889
Final DriveShaft, double universal joint and double bevel gear units, 8:33 ratio

Electrical & Electronics System

Battery12V 12 Ah
StarterElectric

Chassis & Suspension

Frame TypeHigh strength steel tubular frame
Front Suspension41 mm hydraulic telescopic USD fork, with adjustable spring preload and hydraulic rebound
Front Suspension Travel6.7 inches / 170 mm
Rear SuspensionDouble-sided swingarm in box-type aluminum with a single shock on the right side, with adjustable spring preload and hydraulic rebound
Rear Suspension Travel6.7 inches / 170 mm

Wheels & Brakes

Front Wheel/Rim SizeSpoked 2.50 x 19
Front Tire SizeWith air chamber 110/80 R19
Rear Wheel/Rim SizeSpoked 4.25 x 17
Rear Tire SizeWith air chamber 150/70 R17
Front Brakes2x stainless steel floating discs, Brembo radial-mounted calipers with 4 opposed pistons
Rear BrakesSingle 260 mm stainless steel disc, floating caliper with 2 pistons

Dimension & Weights

Seat Height32.6 inches / 830 mm
Fuel Tank Capacity6.0 US gallons / 23.0 L
Wet (kerb/curb) Weight534 lbs / 242 kg
Dry Weight210 kg / 463 lbs – not including side panniers

Features

  • Electronic injection
  • 52 mm single throttle body
  • Ride-by-Wire
  • 41 mm hydraulic telescopic USD fork
  • Adjustable spring preload
  • Hydraulic rebound
  • Double-sided swingarm in box-type aluminum
  • Single shock on the right side
  • Adjustable spring preload and hydraulic rebound
  • Panniers
  • High windshield
  • Heated hand grips
  • Additional LED lights
  • Moto Guzzi MIA multimedia platform
  • Smartphone connectivity
  • Michelin Anakee Adventure tyres
  • Sabbia Namib exclusive color scheme
  • Grey frame
  • Matte chassis color
