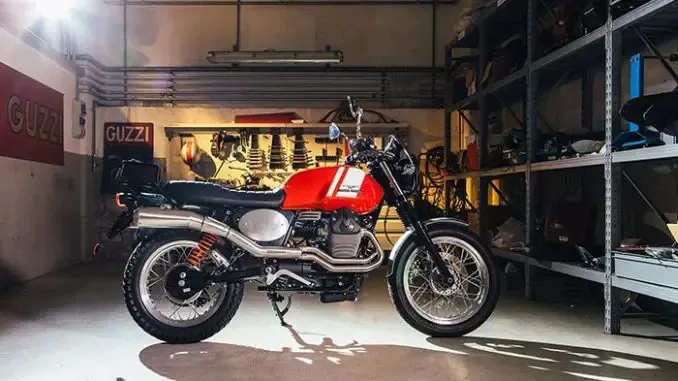

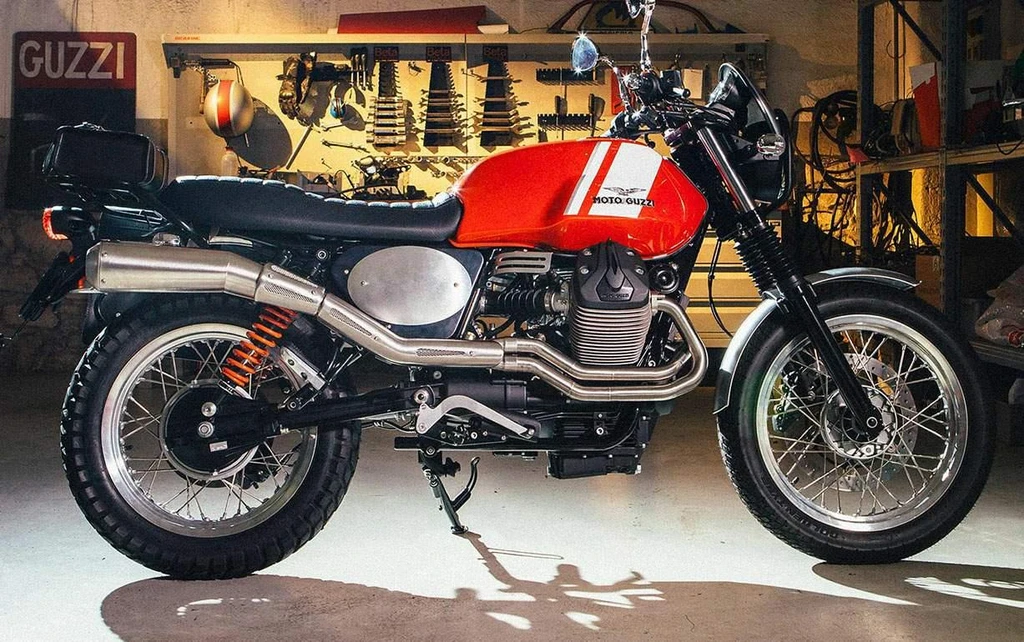

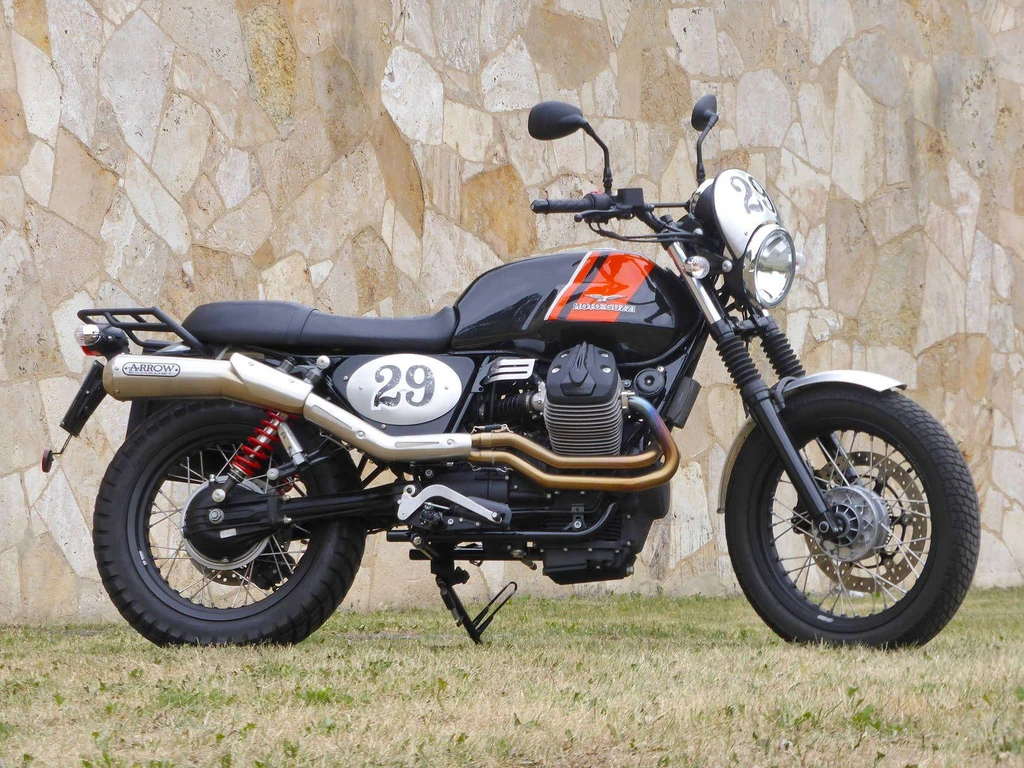

The Moto Guzzi V7 II Scrambler Kit is the ultimate personalization solution for the iconic V7 II model. This comprehensive kit transforms the V7 II into a rugged, off-road capable bike with a strong personality, perfect for those who crave adventure and a unique riding experience. The kit boasts 18 meticulously designed accessories, including long satin finish mudguards and exclusive details that exude high-quality craftsmanship. With its satin finish aluminum components, this Scrambler Kit is a perfect blend of style and functionality, giving riders the freedom to explore both on and off the beaten path. The V7 II Scrambler Kit is the ultimate expression of individuality, allowing owners to tailor their ride to suit their unique taste and riding style, creating a truly one-of-a-kind motorcycle.
Key Specifications
Engine Type
Four stroke, V twin, longitudinally mounted, OHV, 2 valves with light alloy pushrods and rockers
Engine Capacity
744 cc / 45.4 in
Max Power
35 kw / 48 hp
Max Torque
40.3 ft-lb / 58 nm
Fuel Tank Capacity
22 Litres / 5.8 gal
Weight (Wet/Kerb)
416.6 lbs / 189 kg
Seat Height
31.1 inches / 790 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi V7 II Scrambler Kit
Year
2015
Engine
Engine Type
Four stroke, V twin, longitudinally mounted, OHV, 2 valves with light alloy pushrods and rockers
Displacement
744 cc / 45.4 in
Bore x Stroke
80 x 74 mm
Compression Ratio
9.6:1
Max Horsepower
35 kw / 48 hp
Max Torque
40.3 ft-lb / 58 nm
Engine Management System
Weber- Marelli electronic injection
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Single disc, dry, with cush drive.
Gearbox
6 Speed
Final Drive
Shaft
Electrical & Electronics System
Battery
12 V – 330 Watt Voltage 12 V – 14 Amp/h
Starter
Electric
Chassis & Suspension
Frame Type
Detachabletubularduplexcradle
Front Suspension
Marzocchi 40 mm telescopic front forks
Front Suspension Travel
5.1 inches / 130 mm
Rear Suspension
Die cast light alloy swing arm with 2 shock absorbers with adjustable spring preload
Rear Suspension Travel
4.6 inches / 111 mm
Trail
138 mm / 5.43 in
Wheels & Brakes
Wheels
Cast aluminum alloy multi-spoke black anodized rims
Front Tire Size
100/70-18
Rear Tire Size
130/80-17
Front Brakes
Single 320mm disc 2 piston caliper
Rear Brakes
Single 260mm disc 2 piston caliper
Dimension & Weights
Seat Height
31.1 inches / 790 mm
Wheelbase
56.5 inches / 1435 mm
Ground Clearance
182 mm / 7.2 in
Fuel Tank Capacity
22 Litres / 5.8 gal
Wet (kerb/curb) Weight
416.6 lbs / 189 kg
Features
Four stroke, V twin engine
Longitudinally mounted engine
OHV engine design
2 valves per cylinder
Light alloy pushrods and rockers
Die cast light alloy swing arm
2 shock absorbers with adjustable spring preload
Aluminum with satin finish
Long satin finish mudguards
Satin finish number plates
Satin finish guards
High two-in-one exhaust
Knobby offroad tires
Handlebar cross brace
Offroad footpegs
Vintage-style saddle
Tool bag
Handmade leather side panniers
