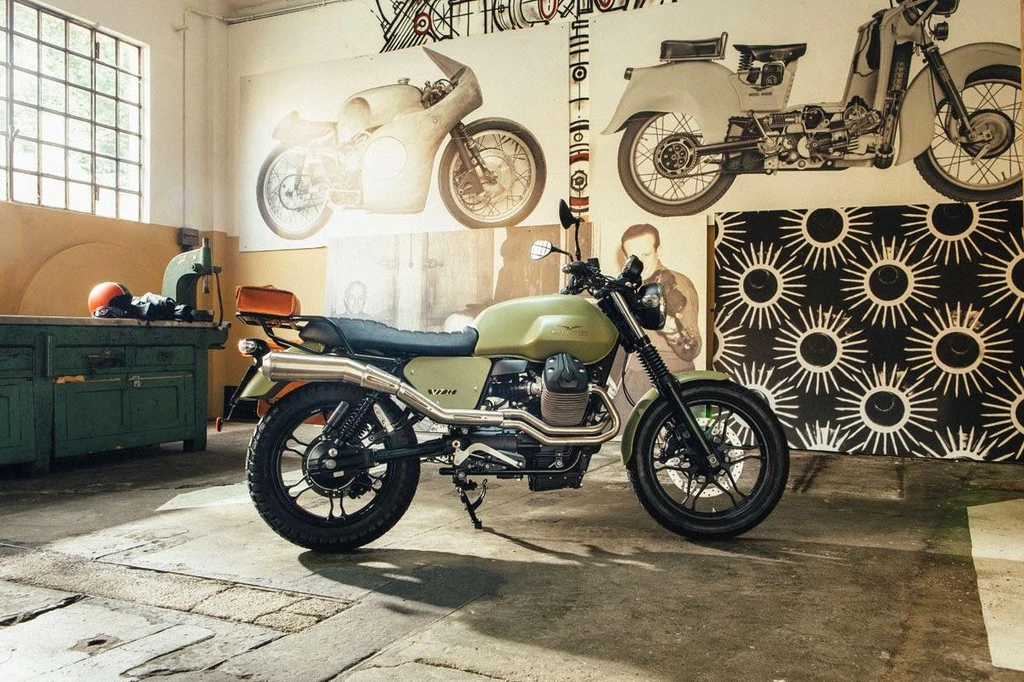

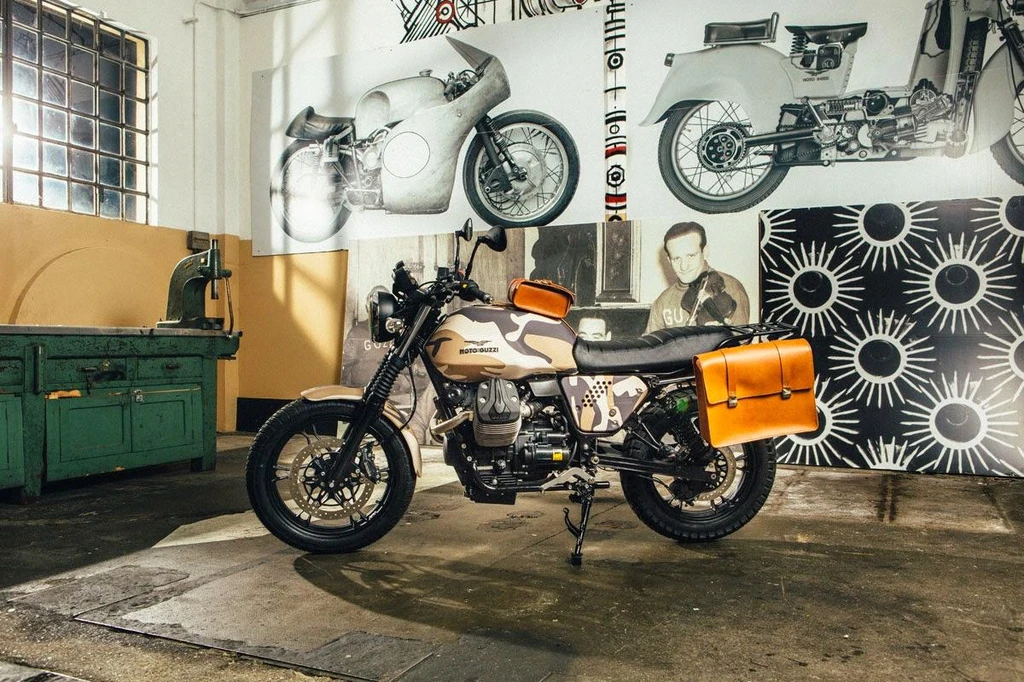

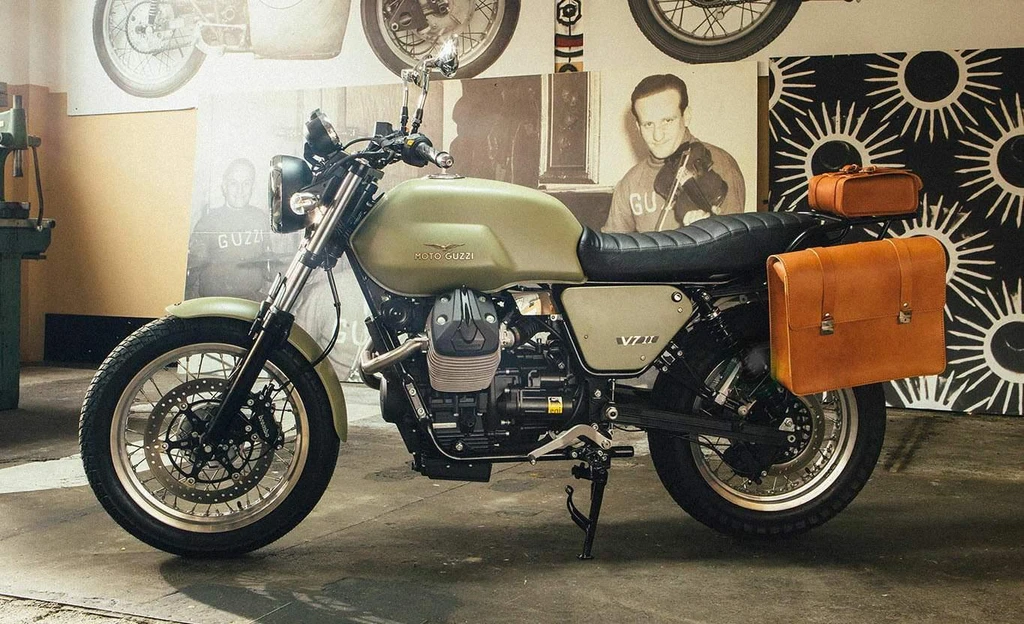

The Moto Guzzi V7 II Heritage Legend is a masterclass in classic motorcycle design, blending timeless style with the rich heritage of the Italian marque. Its four-stroke, longitudinally mounted V-twin engine is a symphony of smooth, linear power delivery, with two valves per cylinder and light alloy pushrods and rockers that add to its character.
The V7 II Heritage Legend’s riding experience is just as impressive, with a die-cast light alloy swing arm and two shock absorbers with adjustable spring preload that provide a smooth, compliant ride.
Whether cruising through the countryside or carving through twisty roads, the V7 II Heritage Legend is a bike that demands to be ridden, its 90-degree V-twin engine singing a sweet melody as you twist the throttle. With its Heritage Legend kit, you’ll be transported back to the golden age of motorcycling, when style and substance ruled supreme.
Key Specifications
Engine Type
Four stroke, V twin, longitudinally mounted, OHV, 2 valves with light alloy pushrods and rockers.
Engine Capacity
744 cc / 45.4 in
Max Power
35 kw / 48 hp
Max Torque
40.3 ft-lb / 58 nm
Fuel Tank Capacity
22 Litres / 5.8 gal
Weight (Wet/Kerb)
416.6 lbs / 189 kg
Seat Height
31.1 inches / 790 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi V7 II Heritage Legend
Year
2015
Engine
Engine Type
Four stroke, V twin, longitudinally mounted, OHV, 2 valves with light alloy pushrods and rockers.
Displacement
744 cc / 45.4 in
Bore x Stroke
80 x 74 mm
Compression Ratio
9.6:1
Max Horsepower
35 kw / 48 hp
Max Torque
40.3 ft-lb / 58 nm
Engine Management System
Weber- Marelli electronic injection
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Single disc, dry, with cush drive
Gearbox
6 Speed
Final Drive
Shaft
Electrical & Electronics System
Battery
12 V – 330 Watt Voltage 12 V – 14 Amp/h
Starter
Electric
Chassis & Suspension
Frame Type
Detachabletubularduplexcradle
Front Suspension
Marzocchi 40 mm telescopic front forks
Front Suspension Travel
5.1 inches / 130 mm
Rear Suspension
Die cast light alloy swing arm with 2 shock absorbers with adjustable spring preload
Rear Suspension Travel
4.6 inches / 111 mm
Trail
138 mm / 5.43 in
Wheels & Brakes
Wheels
Cast aluminum alloy multi-spoke black anodized rims
Front Tire Size
100/70-18
Rear Tire Size
130/80-17
Front Brakes
Single 320mm disc 2 piston caliper
Rear Brakes
Single 260mm disc 2 piston caliper
Dimension & Weights
Seat Height
31.1 inches / 790 mm
Wheelbase
56.5 inches / 1435 mm
Ground Clearance
182 mm / 7.2 in
Fuel Tank Capacity
22 Litres / 5.8 gal
Wet (kerb/curb) Weight
416.6 lbs / 189 kg
Features
Four stroke engine
V twin configuration
Longitudinally mounted engine
OHV engine design
2 valves per cylinder
Light alloy pushrods
Rockers for valve actuation
Die cast light alloy swing arm
2 shock absorbers with adjustable spring preload
Dark satin finish high “two-in-one” silencer
Knobby tyres
Olive green fuel tank
Side fairings
Mudguard
High handlebar cross brace
Black luggage rack
Long saddle for 2 people
Natural leather side bag
Over 60 new accessories available for personalization
