The Guzzi V7 750 Sport Verde Legnano is a true Italian thoroughbred, bred for speed and agility on the winding roads of the motherland. Its 90-degree transverse V-twin engine, developed from the iconic V7 Special, produces a potent 748cc of power, with a bore and stroke of 82.5 x 70 mm. This compact powerhouse delivers a thrilling riding experience, with a distinctive engine character that’s at once smooth and rev-happy.
As you twist the throttle, the Guzzi’s V-twin engine comes alive, its exhaust note a deep, throaty growl that’s music to the ears. The bike’s responsive handling and precise steering make it a joy to carve through tight corners, while its comfortable ergonomics and plush seat invite you to ride all day.
The Guzzi V7 750 Sport Verde Legnano is a rare gem, a true collector’s item for those who appreciate the beauty and character of a classic Italian motorcycle. With its sleek styling, rich history, and exhilarating performance, this bike is a must-have for any serious motorcyclist.
Key Specifications
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valve per cylinder
Engine Capacity
45.6 cubic inches / 748.4 cc
Max Power
70 hp / 32 kW @ 6300 rpm
Max Torque
NA
Fuel Tank Capacity
4.4 US gallons / 17.0 L
Weight (Wet/Kerb)
500 lbs / 227 kg
Seat Height
30 inches / 760 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model

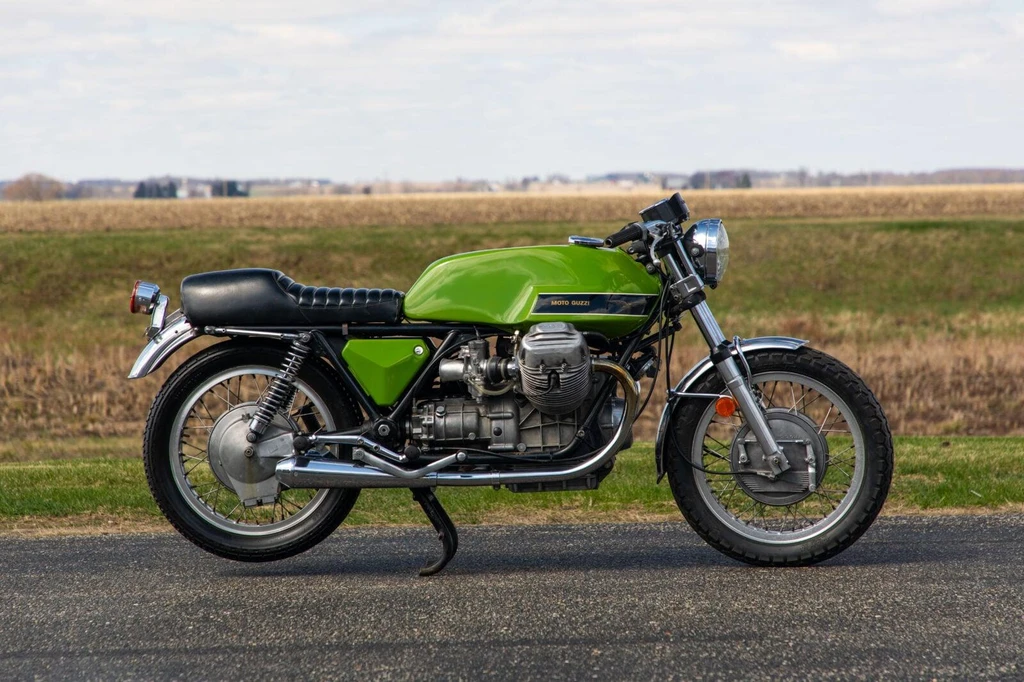

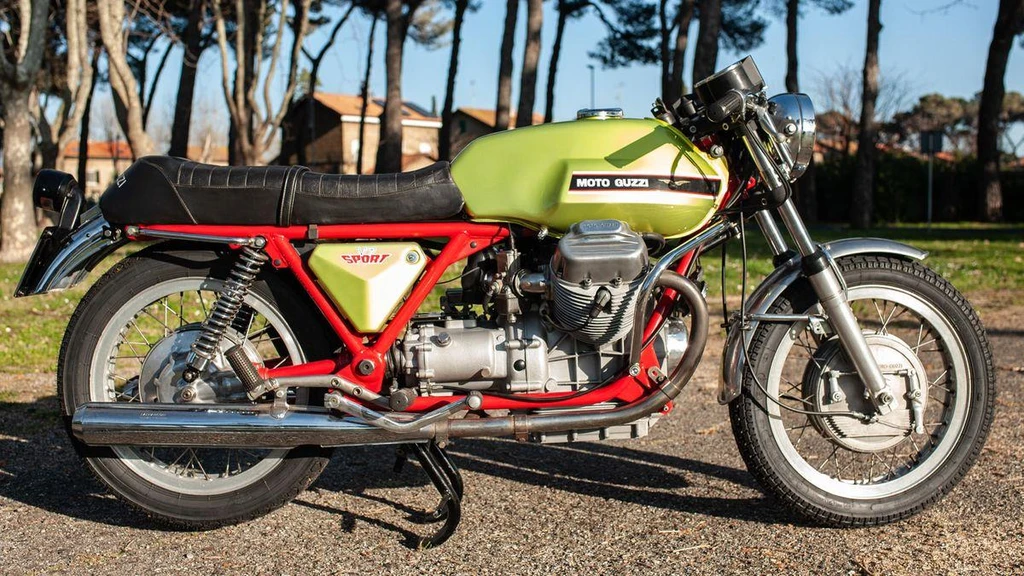

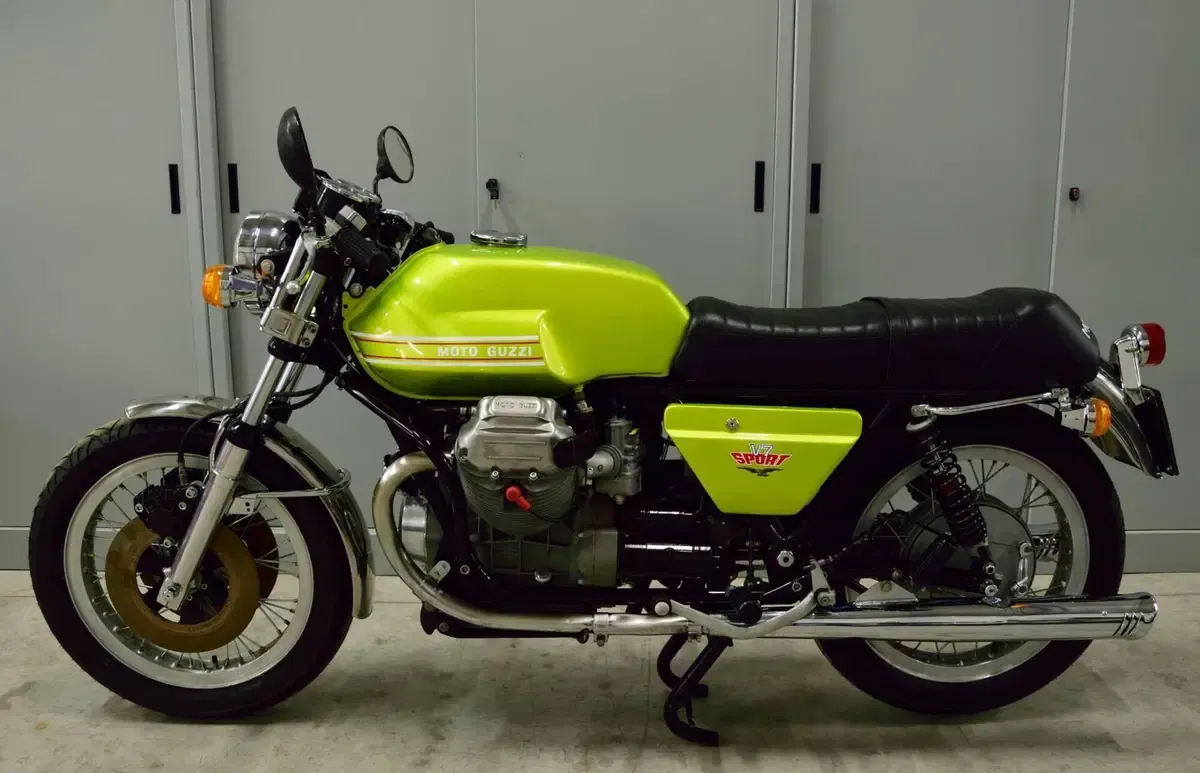

Moto Guzzi V7 750 Sport Verde Legnano
Year
1971 –
Engine
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valve per cylinder
Displacement
45.6 cubic inches / 748.4 cc
Bore x Stroke
83 x 70 mm
Compression Ratio
9.8:1
Max Horsepower
70 hp / 32 kW @ 6300 rpm
Max Torque
NA
Engine Management System
2x 30mm Dell’Orto VHB 30CD carburetors
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telehydraulic forks
Rear Suspension
Swinging arm with hydraulic dampers preload adjustable
Wheels & Brakes
Front Tire Size
90/90-18
Rear Tire Size
110/90-18
Front Brakes
2x 220mm drum
Rear Brakes
220mm drum
Dimension & Weights
Seat Height
30 inches / 760 mm
Wheelbase
58 inches / 1500 mm
Fuel Tank Capacity
4.4 US gallons / 17.0 L
Wet (kerb/curb) Weight
500 lbs / 227 kg
Dry Weight
206 kg / 454 lbS
Features
90 degree V-twin engine
Longitudinally mounted
OHV (Overhead Valve) design
2 valves per cylinder
748cc displacement
82.5 x 70mm bore and stroke dimensions
Peak output of 52 BHP at 6400 RPM
5-speed gearbox
Bosch alternator
18-inch wheels
220mm double-sided twin-leading-shoe front drum brake
Sealed damper units in front forks
Transverse V-twin engine
Mandello del Lario firm’s design
Restored to original specifications
Immaculately restored early-Seventies machine
Compact crankcase
Heavily ribbed crankcase
Twin coils and points
Bigger, 30mm Dell’Orto carbs
