Moto Guzzi V100 Mandello Aviazione Navale Limited Edition (2023)

Moto Guzzi V100 Mandello Aviazione Navale Limited Edition (2023)

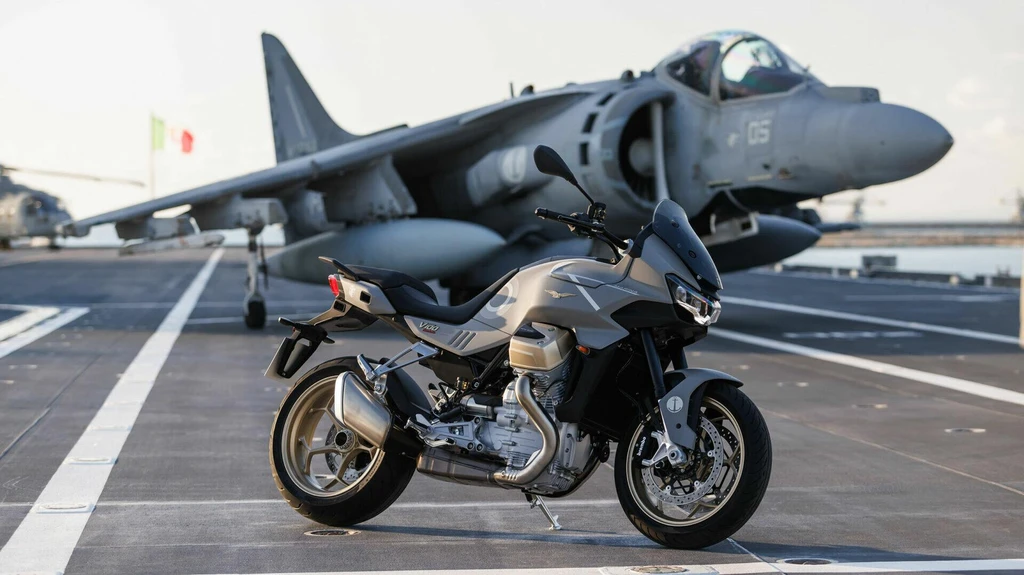

The Moto Guzzi V100 Mandello Aviazione Navale Limited Edition is a celebration of the brand’s rich history and its long-standing relationship with the Italian Navy. This exclusive model is a technological powerhouse, boasting a unique livery inspired by the F-35B fighters that makes it the most striking model in the V100 range.

With its powerful engine character and agile handling, the V100 Mandello Aviazione Navale is a thrilling ride that embodies the spirit of adventure and freedom. As you twist the throttle, the bike’s advanced technology and sleek design come alive, delivering a riding experience that’s both exhilarating and refined.

Produced in a limited edition of 1913 numbered motorcycles, each one a testament to the brand’s heritage and its ties to the Italian Navy, the V100 Mandello Aviazione Navale is a true collector’s item for those who appreciate the art of motorcycling and the rich history of Moto Guzzi.

Key Specifications

Engine TypeFour stroke, transversal 90 V-twin, DOHC, timing with finger followers and four valves per cylinder
Engine Capacity63.5 cubic inches / 1042 cc
Max Torque77 ft-lb / 104.3 nm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Weight (Wet/Kerb)513.6 lbs / 233 kg
Seat Height32 inches / 815 mm
Moto Guzzi V100 Mandello Aviazione Navale Limited Edition (2023)

All Specifications

Make & Model

ModelMoto Guzzi V100 Mandello Aviazione Navale Limited Edition
Year2023

Engine

Engine TypeFour stroke, transversal 90 V-twin, DOHC, timing with finger followers and four valves per cylinder
Displacement63.5 cubic inches / 1042 cc
Bore x Stroke96 x 72 mm
Compression Ratio12.6:1
Max Torque77 ft-lb / 104.3 nm
Engine Management SystemElectronic injection, 52 mm double throttle body, Ride-by-Wire
Cooling SystemLiquid-cooled

Performance

Top Speedn/a

Transmission

ClutchHydraulic multi-plate wet clutch with anti-juddering system
Gearbox6-Speed with electronic quick shift system
Final DriveShaft: Drive ratio: 12/38 (3.166)

Electrical & Electronics System

StarterElectric
ABSCornering ABS

Chassis & Suspension

Frame TypeHigh strength steel tubular frame
Front SuspensionFully adjustable 43 mm USD hlins Smart EC2.0 fork, with semi-activecompression and rebound damping.
Front Suspension Travel130 mm / 5.1
Rear SuspensionFully adjustable hlins TTX Smart EC2.0 monoshock with semi-active compression and rebound damping, remote preload adjustment
Rear Suspension Travel130 mm / 5.1
Rake26.4
Trail125.1 mm / 4.9 i n

Wheels & Brakes

WheelsAluminium alloy
Front Wheel/Rim Size3.50 x 17
Front Tire Size120/70 R17
Rear Wheel/Rim Size6.00 x 17
Rear Tire Size190/55 R17
Front Brakes2 x 320 mm floating discs, 4-piston Brembo monobloc radial calipers Radial front master cylinder
Rear BrakesSingle 280 mm disc, 2-piston Brembo caliper
ABSCornering ABS

Dimension & Weights

Overall Length2126 mm / 83.7 in
Overall Width835.6 mm / 32.9 in
Seat Height32 inches / 815 mm
Wheelbase58.1 inches / 1476 mm
Fuel Tank Capacity4.5 US gallons / 17.0 L
Wet (kerb/curb) Weight513.6 lbs / 233 kg

Features

  • Unique livery inspired by the F-35B fighters
  • Limited edition of 1913 numbered motorcycles
  • Technology-rich motorcycle
  • Tyre pressure monitoring system
  • Heated handgrips
  • Serial number laser etched on the handlebar riser
  • Each bike comes with its own cover
  • Commemorative plaque
  • Standard features of the V100 Mandello model
  • Exclusive version uniting two great names with ties to Italian history
  • Special livery with insignia on both sides of the cowl
  • Jet intake stripes on the livery
  • Low-visibility tricolour rosette on the fuel tank
  • Emblem of the Italian Naval Aviation
  • Logo of the Boarded Aircraft Unit
  • Standard equipment of the V100 Mandello Aviazione Navale model
  • Enhanced graphics inspired by the Navy’s F-35B fighter jets
