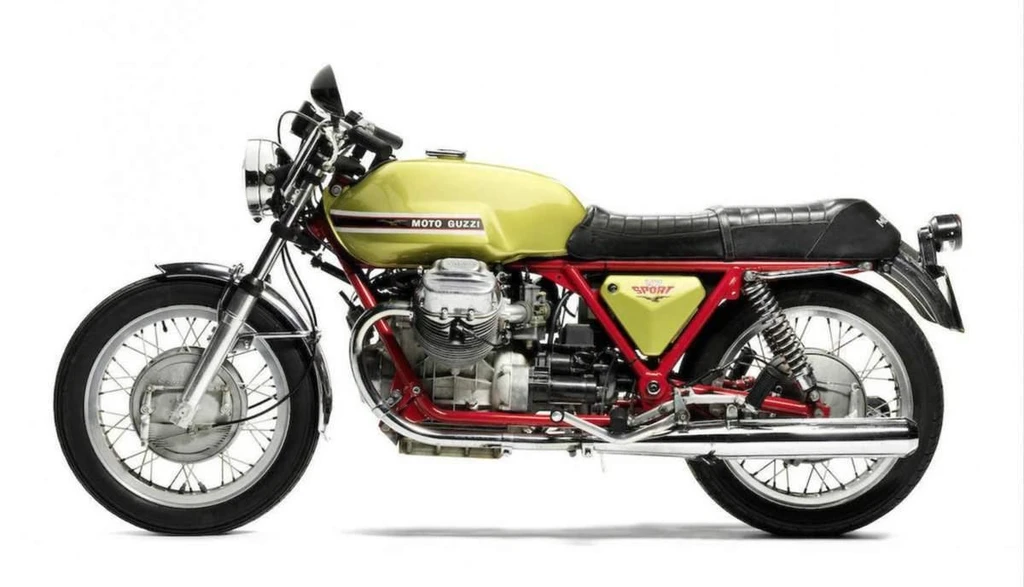

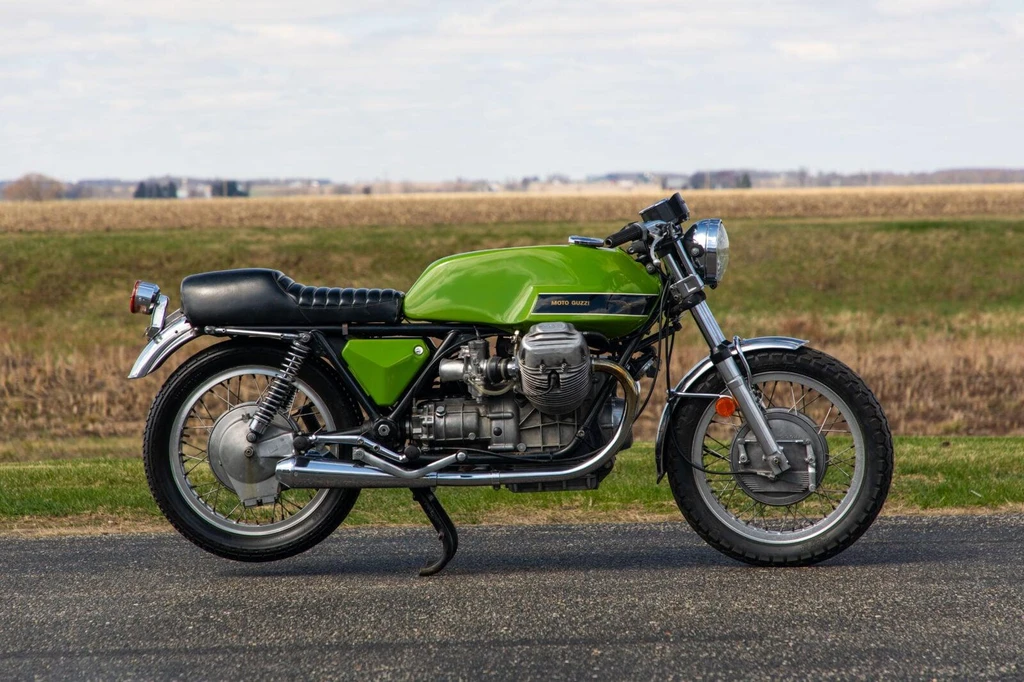

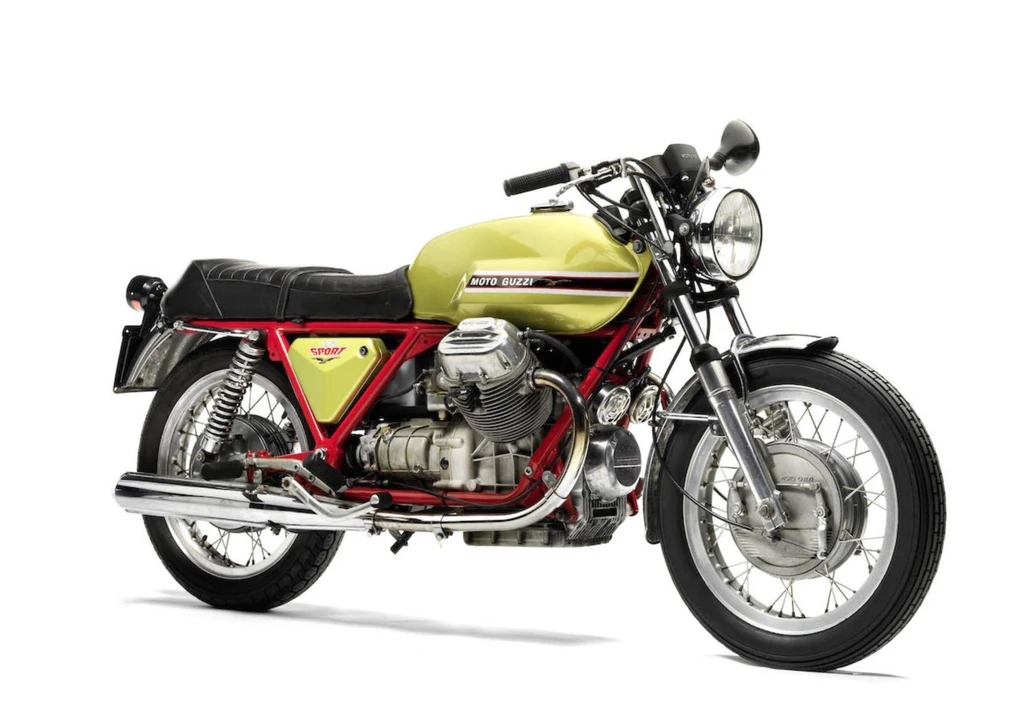

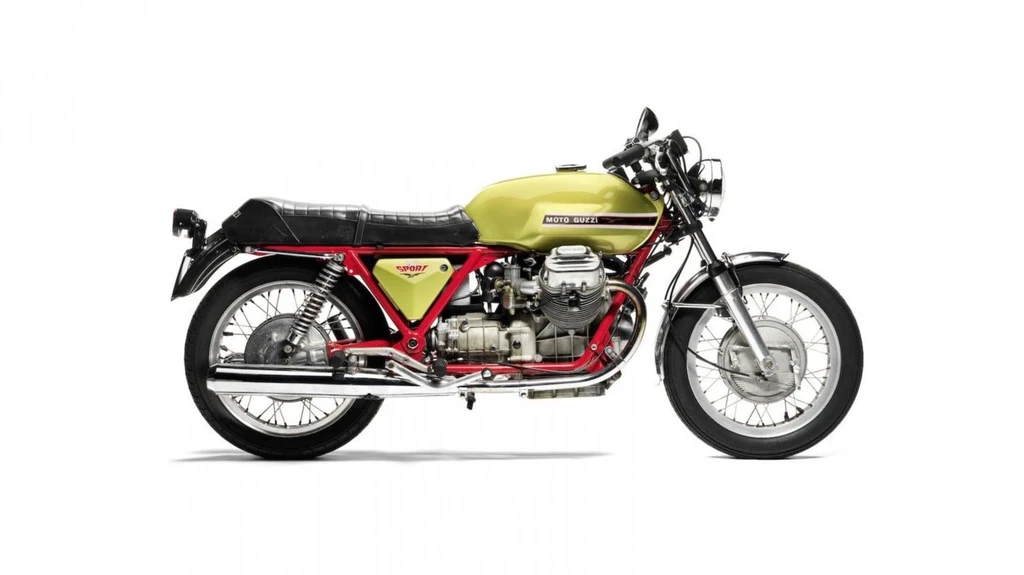

The Moto Guzzi V-7750 Sport, born from the iconic V7 engine that revolutionized the motorcycle world. This 90-degree V-twin, with its 2 valves per cylinder and OHV design, produced a unique and thrilling riding experience.
Mounted longitudinally in the frame, the engine’s heads protruded into the clean airflow, providing exceptional cooling and a distinctive visual appeal. Power was transmitted to the rear wheel via a low-maintenance shaft drive, a testament to Moto Guzzi’s commitment to practicality and durability.
As the first production motorcycle to harness the V7 engine’s performance potential, the V-7750 Sport was a game-changer in the world of motorcycling. Its arrival marked a new era for Moto Guzzi, one that would cement the company’s reputation as a leader in innovative design and engineering.
Key Specifications
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valve per cylinder
Engine Capacity
45.6 cubic inches / 748.4 cc
Max Power
70 hp / 32 kW @ 6300 rpm
Max Torque
NA
Fuel Tank Capacity
4.4 US gallons / 17.0 L
Weight (Wet/Kerb)
500 lbs / 227 kg
Seat Height
30 inches / 760 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi V-7750 Sport
Year
1971 – 72
Engine
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valve per cylinder
Displacement
45.6 cubic inches / 748.4 cc
Bore x Stroke
83 x 70 mm
Compression Ratio
9.8:1
Max Horsepower
70 hp / 32 kW @ 6300 rpm
Max Torque
NA
Engine Management System
2x 30mm Dell’Orto VHB 30CD carburetors
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telehydraulic forks
Rear Suspension
Swinging arm with hydraulic dampers preload adjustable
Wheels & Brakes
Front Tire Size
90/90-18
Rear Tire Size
110/90-18
Front Brakes
2x 220mm drum, Double-sided with twin leading shoes per side drum.
Rear Brakes
220mm drum
Dimension & Weights
Seat Height
30 inches / 760 mm
Wheelbase
58 inches / 1500 mm
Fuel Tank Capacity
4.4 US gallons / 17.0 L
Wet (kerb/curb) Weight
500 lbs / 227 kg
Dry Weight
206 kg / 454 lbS
Features
90 degree V-twin engine
Longitudinally mounted engine
OHV (Overhead Valve) design
2 valves per cylinder
Air-cooled engine
Shaft drive to rear wheel
Low-maintenance design
Stressed member engine
Duplex cradle frame design
Stiffer frame
Lighter frame
Improved handling
Modified engine for V7 Sport
7 bhp increase
Cafe racer styling
Sleek lines
Beautiful fuel tank design
Excellent handling
Good brakes
Beautiful styling
