The Moto Guzzi V 50 Monza II is a testament to the Italian manufacturer’s mastery of the V-twin design. This 90cc four-stroke engine is a marvel of simplicity and efficiency, with its longitudinal mounting and overhead valve configuration allowing for a compact and lightweight package. The OHV design and 4 valves per cylinder ensure a strong and responsive character, with a distinctively Guzzi-esque delivery of power.
With its 90cc displacement, the V 50 Monza II is an agile and accessible machine, perfect for navigating twisty roads and city streets. The engine’s smooth and linear power delivery makes it an absolute joy to ride, with a sense of connection to the machine that’s hard to find in more modern bikes.
The Guzzi V 50 Monza II is a bike that rewards the rider with its playful and intuitive nature, making it an ideal choice for those seeking a more laid-back riding experience.
Key Specifications
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Engine Capacity
29.9 cubic inches / 490 cc
Max Power
NA
Max Torque
NA
Fuel Tank Capacity
4.2 US gallons / 16.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model

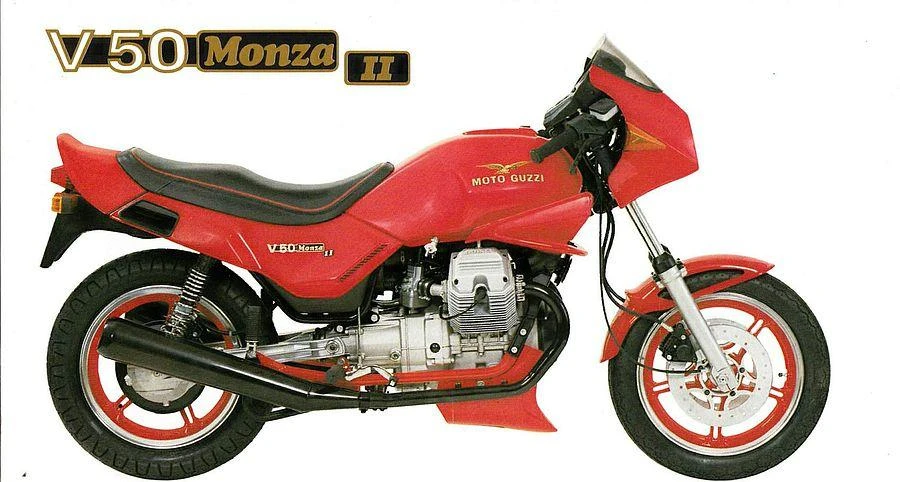

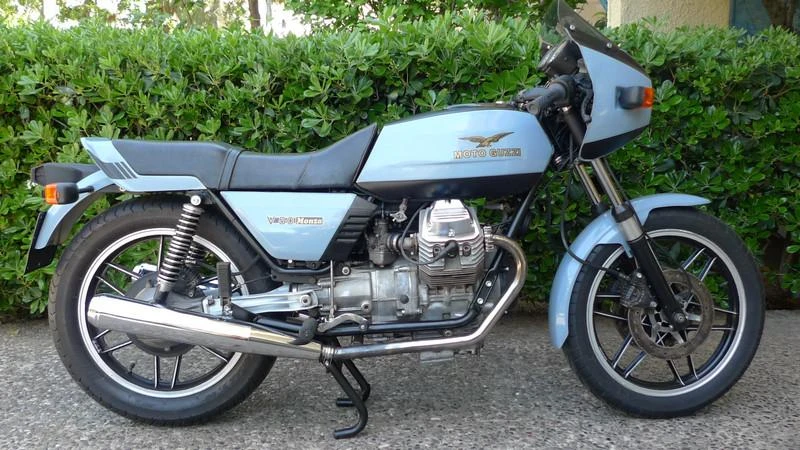

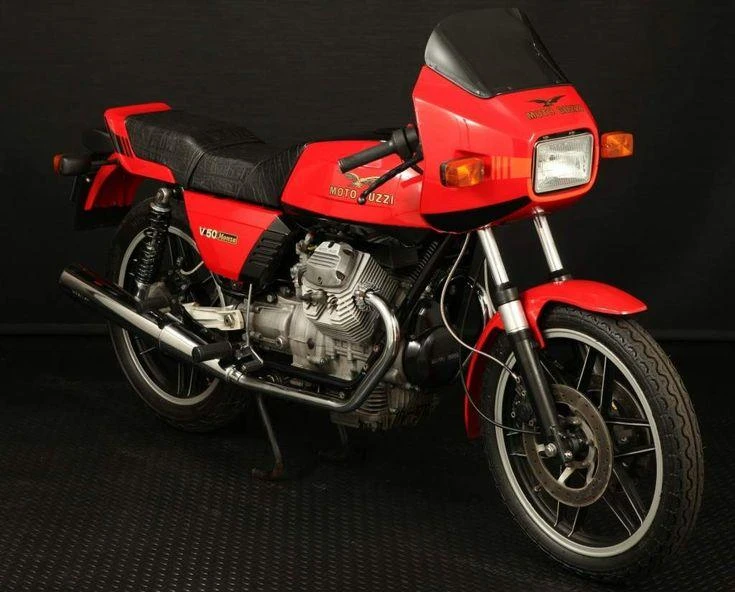

Moto Guzzi V 50 Monza II
Year
1983 – 84
Engine
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Displacement
29.9 cubic inches / 490 cc
Bore x Stroke
74 x 57 mm
Compression Ratio
10.4:1
Max Horsepower
NA
Max Torque
NA
Engine Management System
2x 28mm Dell’Orto PHBH carbs
Cooling System
Air cooled
Performance
Top Speed
107 mph
*n/a – information not provided by manufacturer
Transmission
Clutch
Dry single plate
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telehydraulic gas forks
Rear Suspension
Swinging arm fork with hydraulic gas shock absorbers
Wheels & Brakes
Front Tire Size
3.25-18
Rear Tire Size
3.50-18
Front Brakes
2x 260mm disc
Rear Brakes
Single 235mm disc
Dimension & Weights
Fuel Tank Capacity
4.2 US gallons / 16.0 L
Dry Weight
160 kg / 353 lbs
Features
Four-stroke engine
90 V-twin configuration
Longitudinally mounted engine
OHV (Overhead Valve) design
4 valves per cylinder
