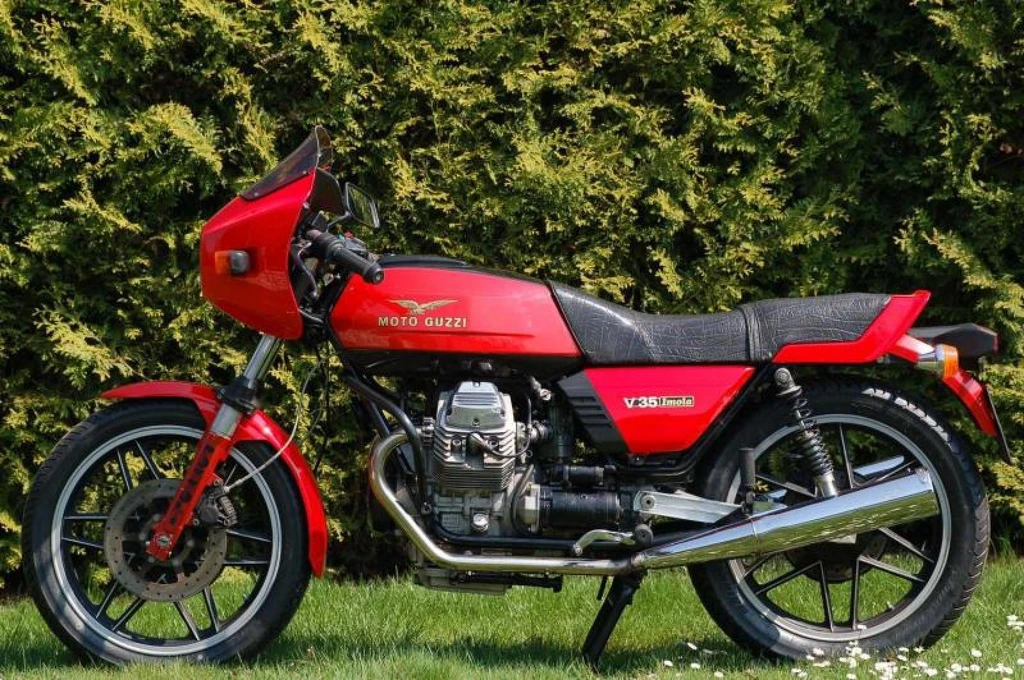

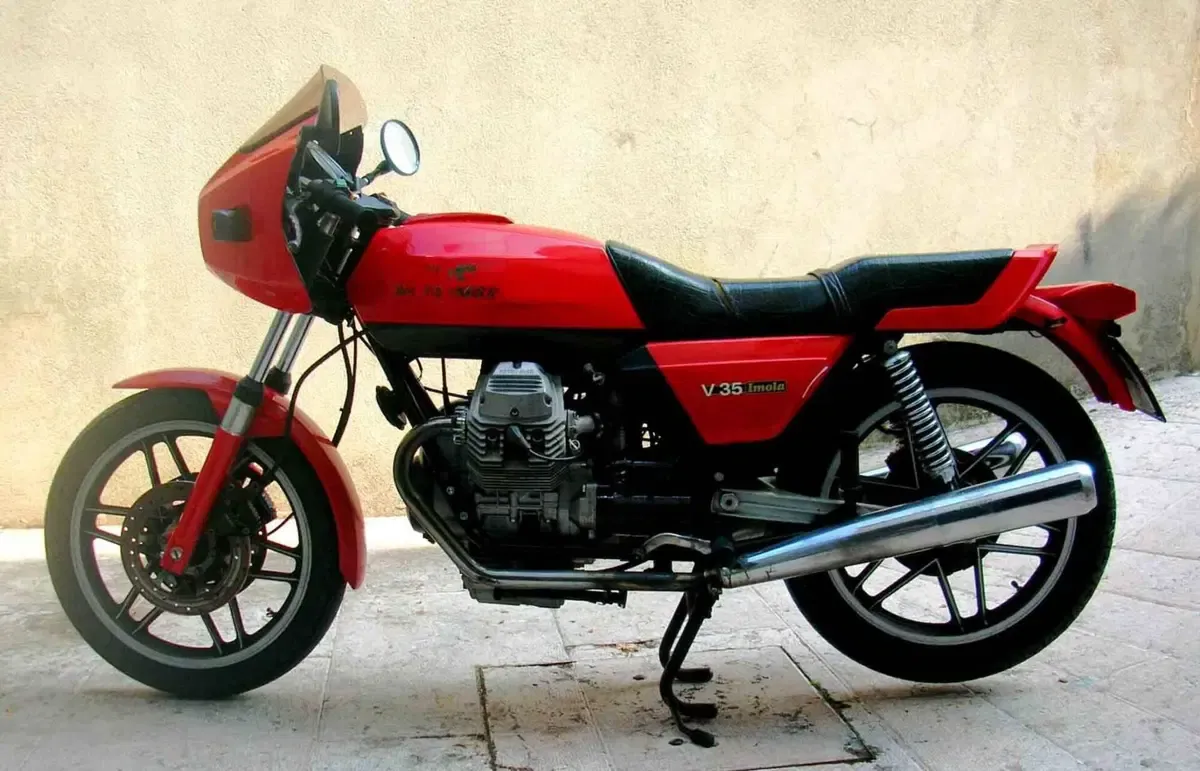

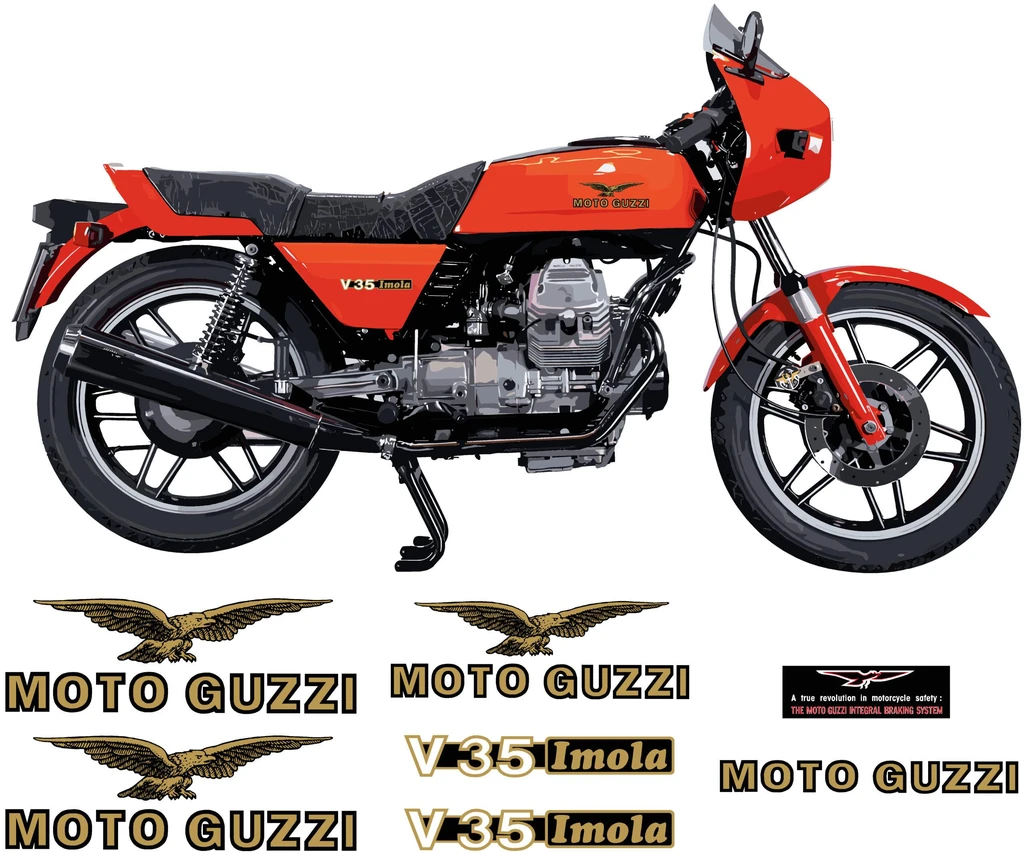

The Moto Guzzi V 35 Imola is a testament to the ingenuity of Italian motorcycle design. Born from the need for a de-taxable and accessible version of the V50, this bike boasts a 346cc V-twin engine crafted by the legendary Lino Tonti. The result is a machine that effortlessly blends performance with practicality, making it an ideal choice for city riding and longer journeys alike.
Its robust engine, characteristic of Moto Guzzi’s iconic V-twin design, provides a unique riding experience that is both exhilarating and comfortable. The V 35 Imola’s responsive handling and balanced ergonomics make it a joy to ride, while its Brembo braking system and high-quality suspension ensure a safe and confident ride.
With its three distinct series produced between 1977 and 1985, the V 35 Imola has become a sought-after collector’s item and a testament to the enduring legacy of Moto Guzzi. Its rich history, combined with its timeless design and exceptional performance, make the V 35 Imola a truly unique and unforgettable riding experience.
Key Specifications
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder
Engine Capacity
21.1 cubic inches / 346.2 cc
Max Power
36hp / 26 kW @ 8100 rpm
Max Torque
20.2 ft-lb / 27.3 nm
Fuel Tank Capacity
4.3 US gallons / 16.5 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi V 35 Imola
Year
1979 –
Engine
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder
Displacement
21.1 cubic inches / 346.2 cc
Bore x Stroke
66 x 50.6 mm
Compression Ratio
10.5:1
Max Horsepower
36hp / 26 kW @ 8100 rpm
Max Torque
20.2 ft-lb / 27.3 nm
Engine Management System
2x Dell’Orto VHB 26 F carburetors
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telehydraulic forks
Rear Suspension
Swinging arm fork with hydraulic shock absorber
Wheels & Brakes
Front Tire Size
3.25 S18
Rear Tire Size
3.50 S18
Front Brakes
2x 260mm discs
Rear Brakes
Single 235mm disc
Dimension & Weights
Fuel Tank Capacity
4.3 US gallons / 16.5 L
Dry Weight
158 kg / 348 lbs
Features
Brembo braking system
Sebac shock absorbers
Paioli shock absorbers
346 cm3 displacement
V-twin engine design by Lino Tonti
Three series: V35, V35 II, and V35 III
Standard qualities for city riding
Suitable for newly licensed riders
Depersonalized design
Multiple versions of the chassis
Interest from young people and others
Street bike and tourism version
Produced in Italy from 1977 to 1985
Available in normal and custom/cruiser versions
V35 C with low seat and long paddles
Tapered tank similar to California’s
Agile and comfortable bike
Produced from 1982 to 1985
Available in 500 cc displacement penalty-free version
