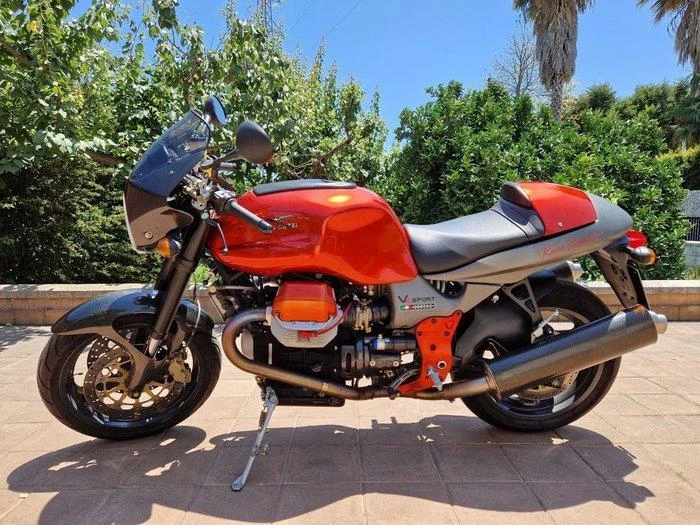

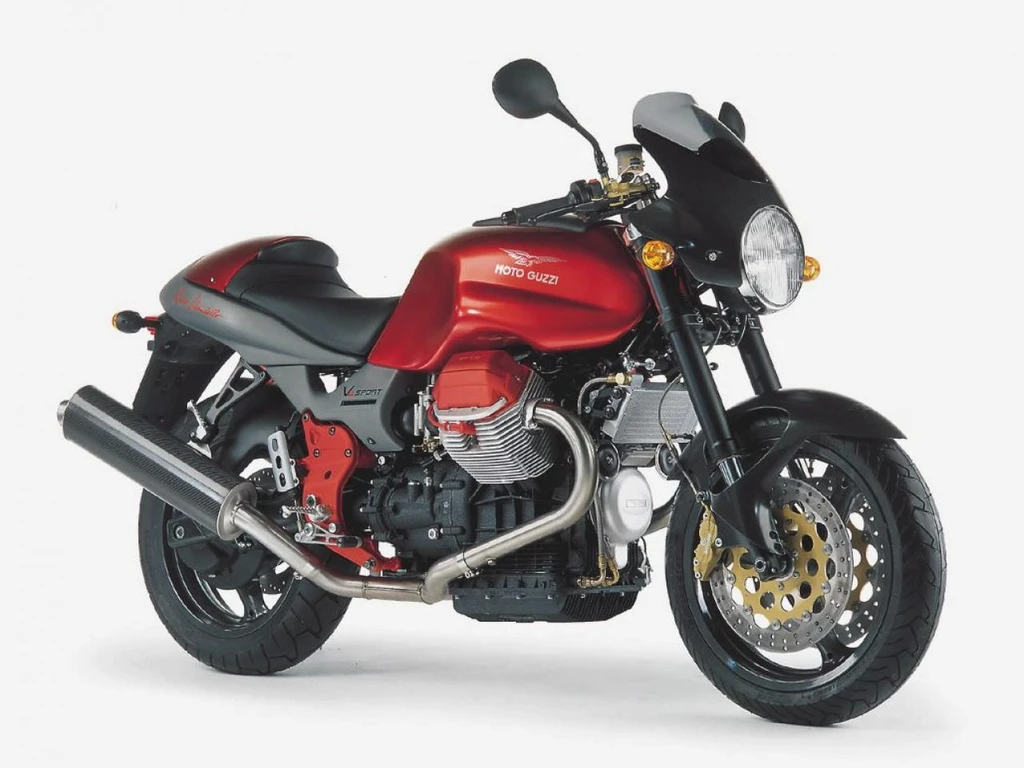

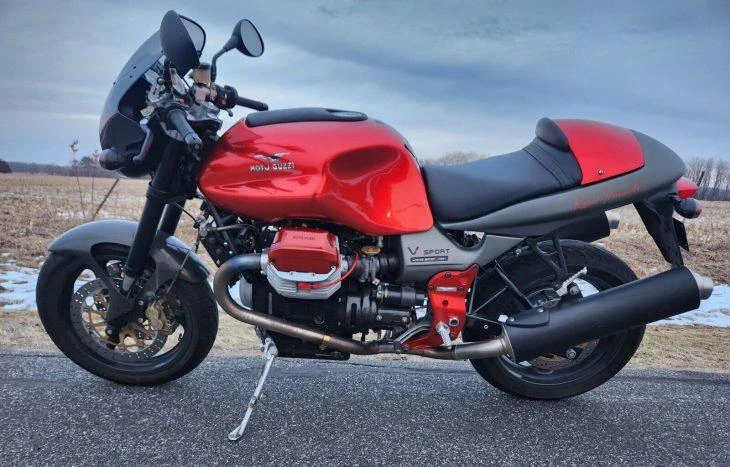

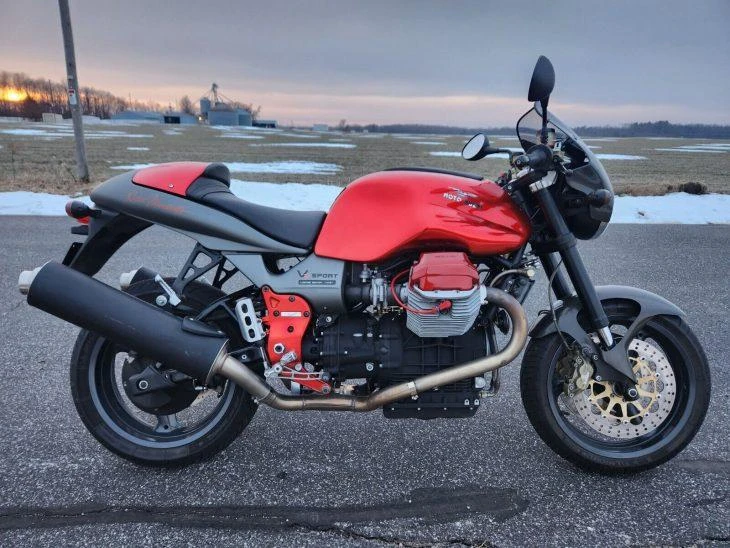

Moto Guzzi V 11 Sport Rosso Mandello (2001 – 2002)

Moto Guzzi V 11 Sport Rosso Mandello (2001 - 2002)

The Moto Guzzi V 11 Sport Rosso Mandello is a naked retro sportster that embodies the essence of Italian style and engineering. Its four-stroke, 90-degree V-twin engine is a masterclass in simplicity and elegance, delivering a distinctive exhaust note and a thrilling riding experience.

With its air-cooled powertrain, the V 11 Sport Rosso Mandello is a true retro classic, yet its updated six-speed gearbox and lightened clutch action make it feel refreshingly modern. The Brembo Oro brakes, Marzocchi upside-down forks, and WP rear shock combine to provide exceptional handling and stability.

The result is a bike that is both nostalgic and cutting-edge, with a unique character that sets it apart from its peers.

Key Specifications

Engine TypeFour stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Engine Capacity64.9 cubic inches / 1064 cc
Max Power91 hp / 66.3 kW @ 7800 rpm
Max Torque69.3 ft-lb / 94 nm
Fuel Tank Capacity5.0 US gallons / 19.0 L
Seat Height31.5 inches / 800 mm
Moto Guzzi V 11 Sport Rosso Mandello (2001 - 2002)

All Specifications

Make & Model

ModelMoto Guzzi V 11 Sport Rosso Mandello
Year2001 – 2002

Engine

Engine TypeFour stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Displacement64.9 cubic inches / 1064 cc
Bore x Stroke92 x 80 mm
Compression Ratio9.8:1
Max Horsepower91 hp / 66.3 kW @ 7800 rpm
Max Torque69.3 ft-lb / 94 nm
Engine Management SystemMagneti Marelli IAW Multipoint phased sequential fuel injection
Cooling SystemAir cooled

Performance

Top Speed213.6 km/h

Transmission

Gearbox5 Speed
Final DriveShaft

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Front Suspension40mm Marzocchi upside-down forks, adjustable compression, 120mm wheel travel.
Rear SuspensionCantilever swingarm, Sachs Boge mono shock, adjustable compression and rebound damping, 128mm wheel travel.

Wheels & Brakes

Front Tire Size120/70-17
Rear Tire Size170/60-17
Front Brakes2x 320mm discs 4 piston calipers
Rear BrakesSingle 282mm disc 2 piston caliper

Dimension & Weights

Seat Height31.5 inches / 800 mm
Wheelbase57.9 inches / 1471 mm
Fuel Tank Capacity5.0 US gallons / 19.0 L
Dry Weight219 kg /482.8 lbs

Features

  • 90 V twin engine
  • Longitudinally mounted engine
  • OHV engine design
  • 4 valves per cylinder
  • Air-cooled engine
  • Brembo Oro brakes
  • Marzocchi upside-down forks
  • WP rear shock
  • Six-speed gearbox
  • Lightened clutch action
  • Fuel-injection system
  • Enclosed shaft drive
  • Mandello Rosso limited-edition version
  • Special paint
  • Carbon-fibre performance parts
