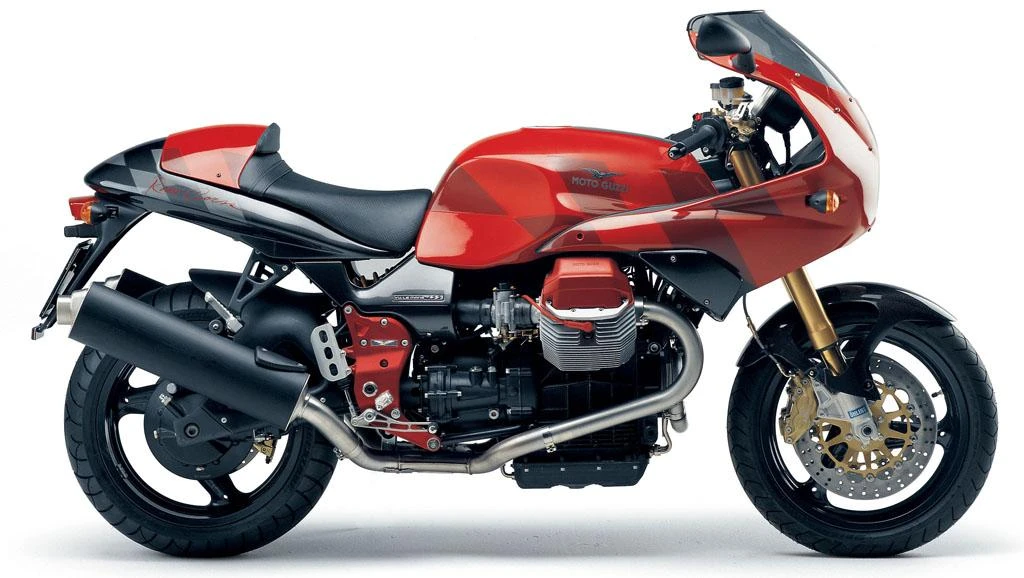

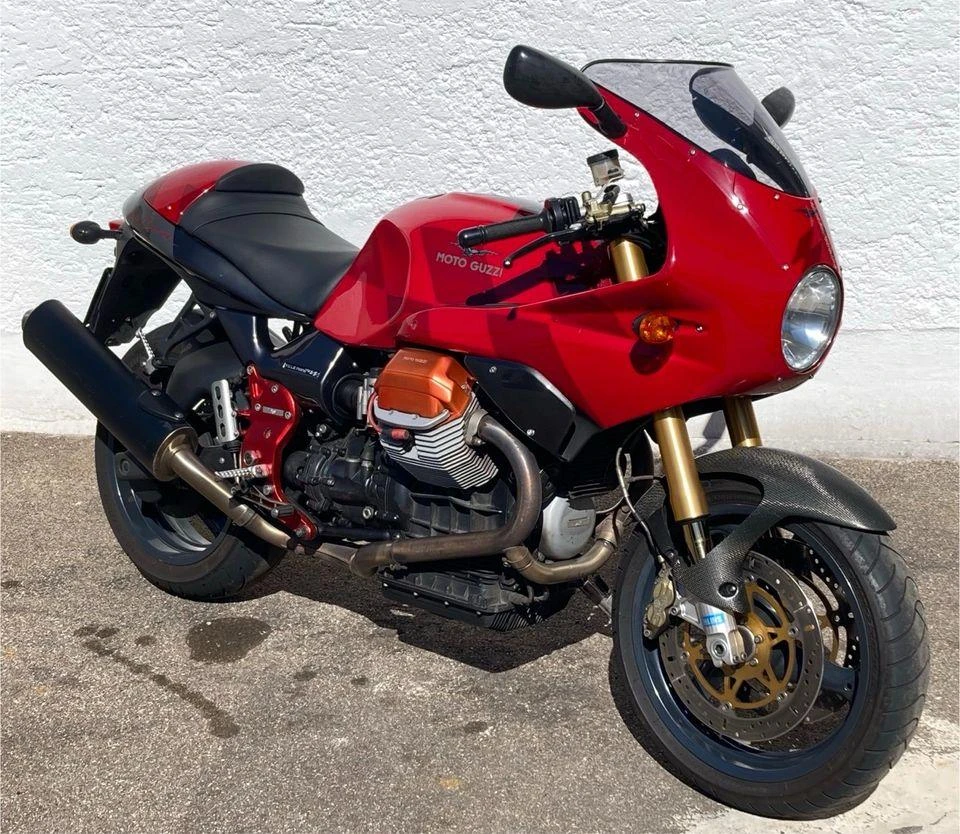

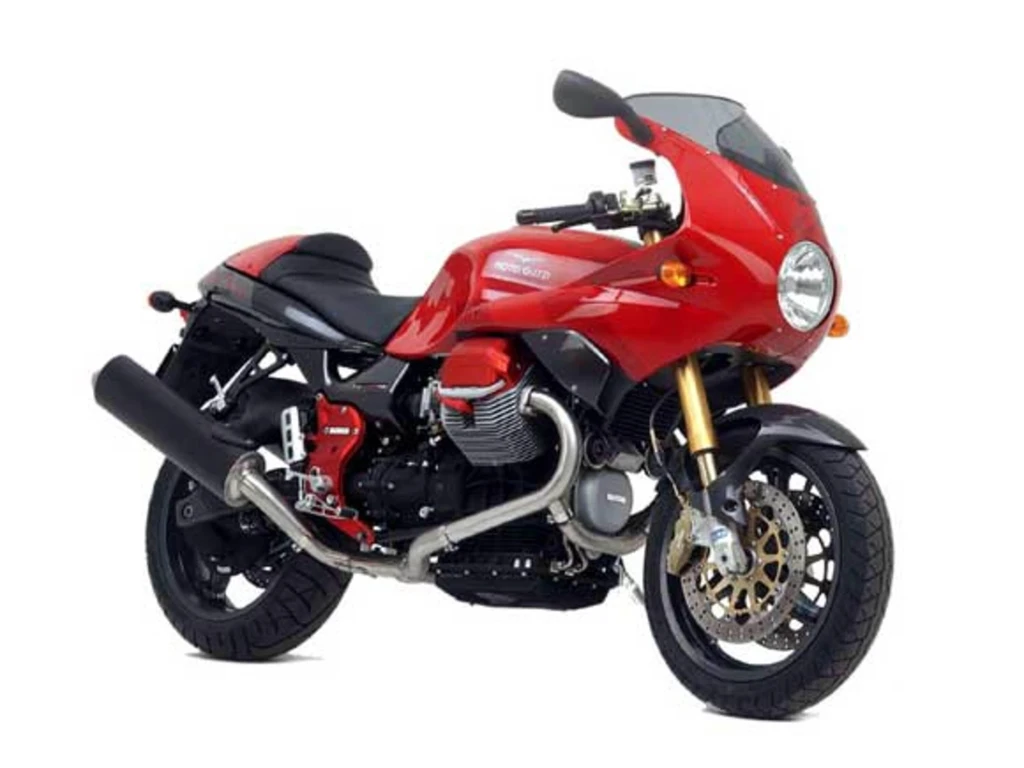

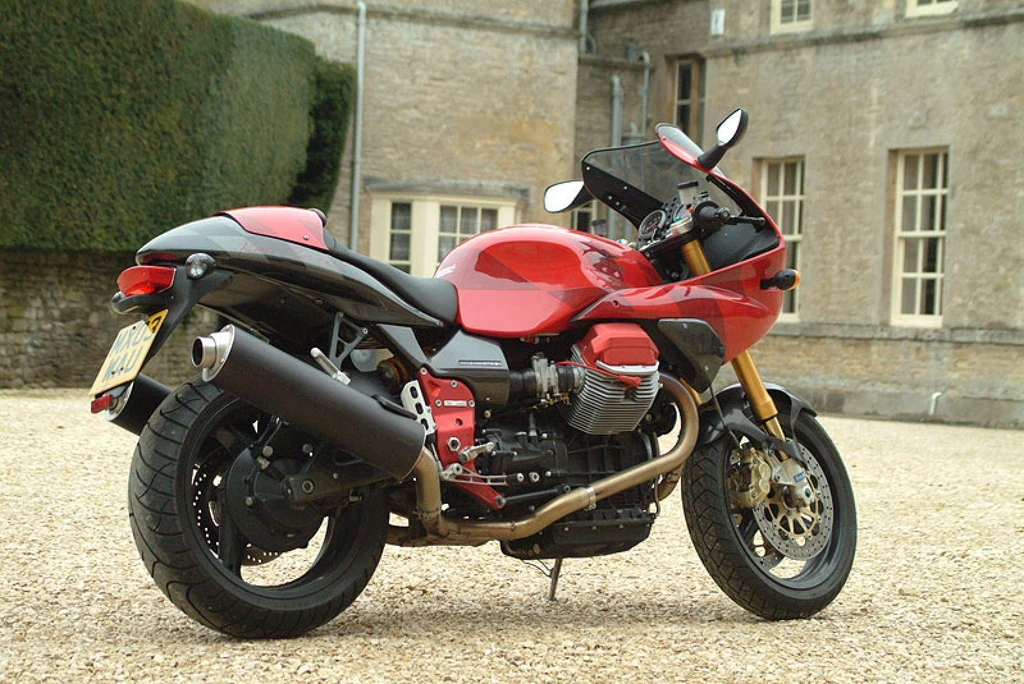

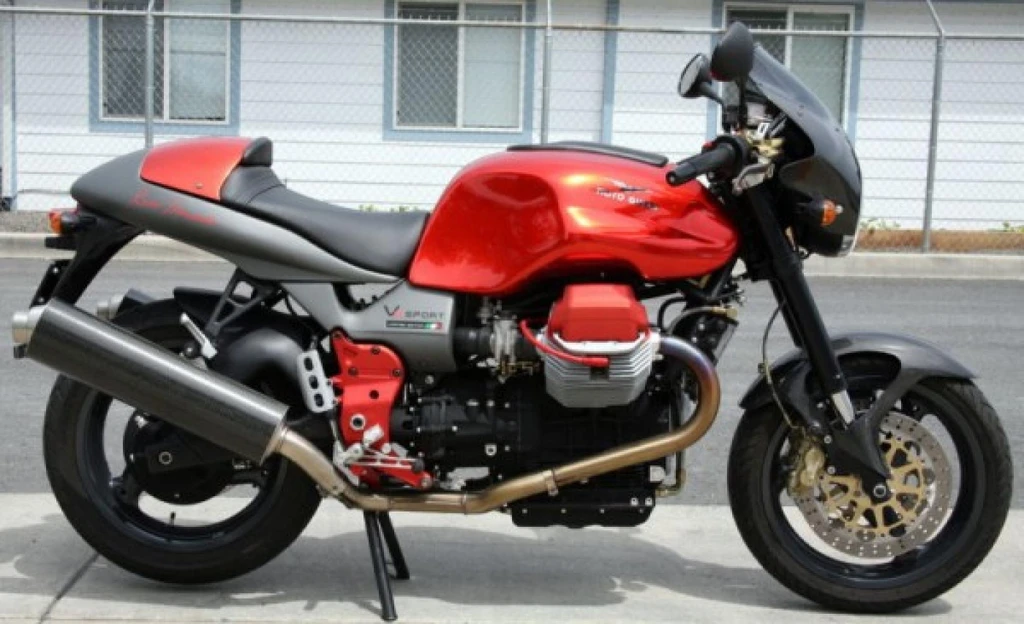

Moto Guzzi V 11 Le Mans Rosso Corsa (2002)

Moto Guzzi V 11 Le Mans Rosso Corsa (2002)

The Moto Guzzi V11 Le Mans Rosso Corsa – a motorcycle that embodies the spirit of Italian ingenuity and passion. Its 90-degree V-twin engine, with its four valves per cylinder and OHV design, is a masterpiece of engineering. The 1064cc air-cooled powerplant produces 80 rear-wheel horsepower and 65 foot-pounds of torque, delivering a unique and engaging riding experience.

With its classic Italian ergonomics, the Rosso Corsa is tailored to riders with long arms and short legs, but others may find it less accommodating. However, for those who appreciate the nuances of a Guzzi, the Rosso is a true gem, boasting high-quality components like Hinson suspension and Brembo calipers.

As a sport-tourer, the Rosso Corsa is a capable and charismatic companion for long rides, yet its sporting credentials are undeniable. With its distinctive checkered-flag graphics, the Rosso Corsa is a true original, and a worthy addition to any serious motorcycle collection.

Key Specifications

Engine TypeFour stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Engine Capacity64.9 cubic inches / 1064 cc
Max Power91 hp / 66.3 kW @ 7800 rpm
Max Torque69.3 ft-lb / 94 nm
Fuel Tank Capacity5.4 US gallons / 20.7 L
Seat Height31.5 inches / 800 mm
Moto Guzzi V 11 Le Mans Rosso Corsa (2002)

All Specifications

Make & Model

ModelMoto Guzzi V 11 Le Mans Rosso Corsa
Year2002

Engine

Engine TypeFour stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Displacement64.9 cubic inches / 1064 cc
Bore x Stroke92 x 80 mm
Compression Ratio9.8:1
Max Horsepower91 hp / 66.3 kW @ 7800 rpm
Max Torque69.3 ft-lb / 94 nm
Engine Management SystemMagneti Marelli IAW Multipoint phased sequential fuel injection
Cooling SystemAir cooled

Performance

Top Speed214 km/h

Transmission

Gearbox5 Speed
Final DriveShaft

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Front Suspension43mm hlins upside-down forks, adjustable compression
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionCantilever swingarm, Sachs Boge mono shock, adjustable compression and rebound damping
Rear Suspension Travel5.0 inches / 128 mm
Trail103 mm / 4.1 in

Wheels & Brakes

Front Tire Size120/70-17
Rear Tire Size170/60-17
Front Brakes2x 320mm discs 4 piston calipers
Rear BrakesSingle 282mm disc 2 piston caliper

Dimension & Weights

Seat Height31.5 inches / 800 mm
Wheelbase58.7 inches / 1490 mm
Ground Clearance178 mm / 7.0 in
Fuel Tank Capacity5.4 US gallons / 20.7 L
Dry Weight226.0 kg / 498.2 lbs

Features

  • 90 V twin engine
  • Longitudinally mounted engine
  • OHV (Overhead Valve) design
  • 4 valves per cylinder
  • 1064cc displacement
  • Air-cooled engine
  • 80 rear-wheel horsepower
  • 65 foot-pounds of torque
  • Pushrod twin design
  • Hlins suspension
  • Brembo calipers
  • Checkered-flag graphics
  • Fuel-injected engine
  • Anti-tip-over valve
  • Ergonomic design for long arms and short legs
  • Classic Italian styling
  • Anti-tip-over valve design
  • Longitudinally oriented crankshaft
