The Moto Guzzi V 1000G5 is a testament to Italian engineering and design. Its longitudinally mounted 90-degree V-twin engine is a marvel of simplicity and elegance, delivering a unique riding experience that sets it apart from its contemporaries. With a focus on smooth, linear power delivery, this OHV motor provides a refined and engaging ride, perfect for those who crave a more laid-back approach to motorcycling.
Its 2 valves per cylinder configuration allows for a generous power output, making the V 1000G5 a formidable performer on the open road. A true gem of a motorcycle, the Moto Guzzi V 1000G5 is an icon of its era, combining style, substance, and a dash of Italian flair to create a truly unforgettable riding experience.
The Moto Guzzi V 1000G5 is a motorcycle that will leave you wanting more.
Key Specifications
Engine Type
Four stroke, 90V twin, longitudinally mounted, OHV, 2 valve per cylinder.
Engine Capacity
57.9 cubic inches / 949 cc
Max Power
67 hp / 49 kW @ 6700 rpm
Max Torque
47.7 ft-lb / 64.6 nm
Fuel Tank Capacity
6.3 US gallons / 24.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model

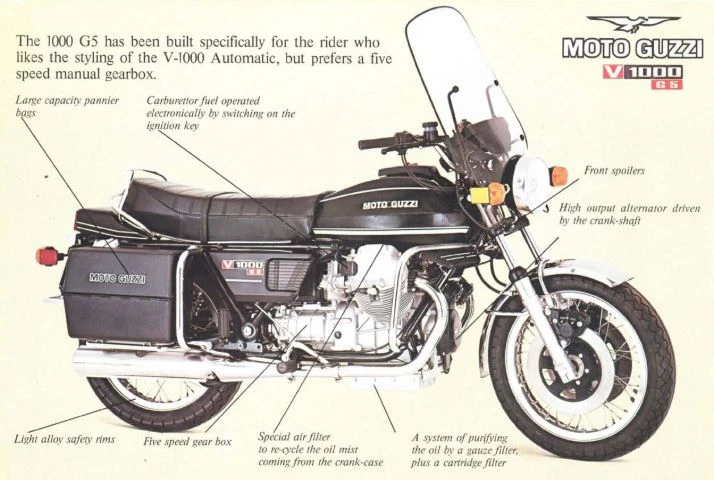

Moto Guzzi V 1000G5
Year
1978 – 80
Engine
Engine Type
Four stroke, 90V twin, longitudinally mounted, OHV, 2 valve per cylinder.
Displacement
57.9 cubic inches / 949 cc
Bore x Stroke
88 x 78 mm
Compression Ratio
9.2:1
Max Horsepower
67 hp / 49 kW @ 6700 rpm
Max Torque
47.7 ft-lb / 64.6 nm
Engine Management System
2x Dell’Orto VHB30 CD/CS carburetors
Lubrication System
By pressure pump
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Dry multi plate
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Duplex cradle, disassemblable
Front Suspension
Telescopic forks
Rear Suspension
Swinging fork
Wheels & Brakes
Front Tire Size
100/90 H18
Rear Tire Size
110/90 H18
Front Brakes
2x 300mm discs
Rear Brakes
Single 242mm disc
Dimension & Weights
Fuel Tank Capacity
6.3 US gallons / 24.0 L
Dry Weight
220 kg / 486 lbs
Features
Four stroke engine
90V twin cylinder configuration
Longitudinally mounted engine
OHV (Over Head Valve) design
2 valves per cylinder
