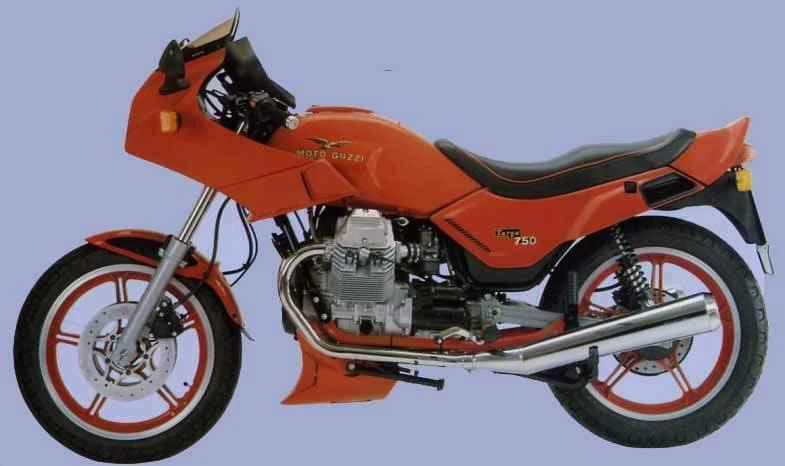

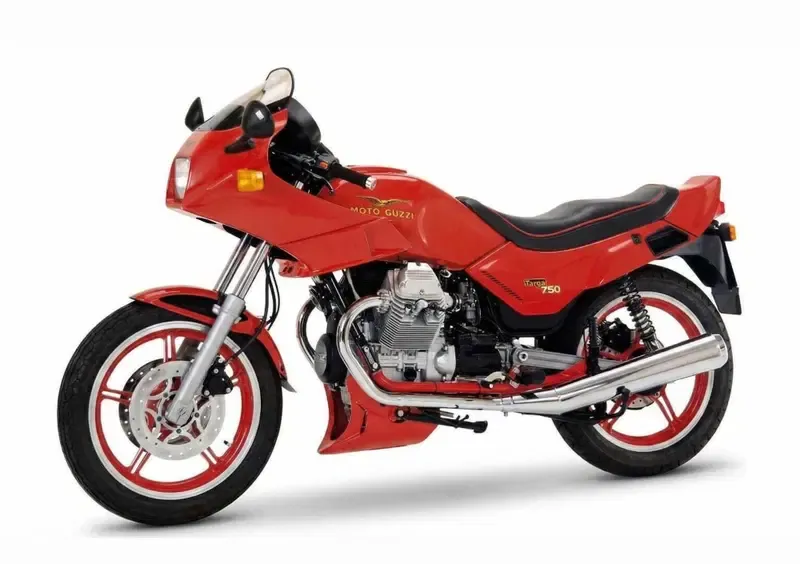

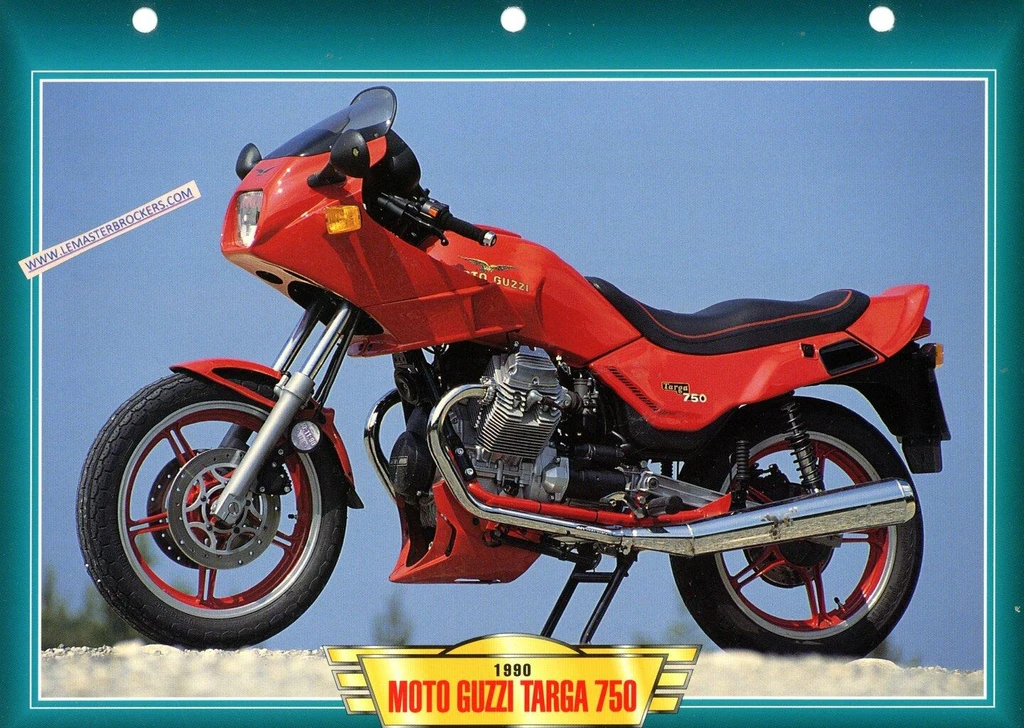

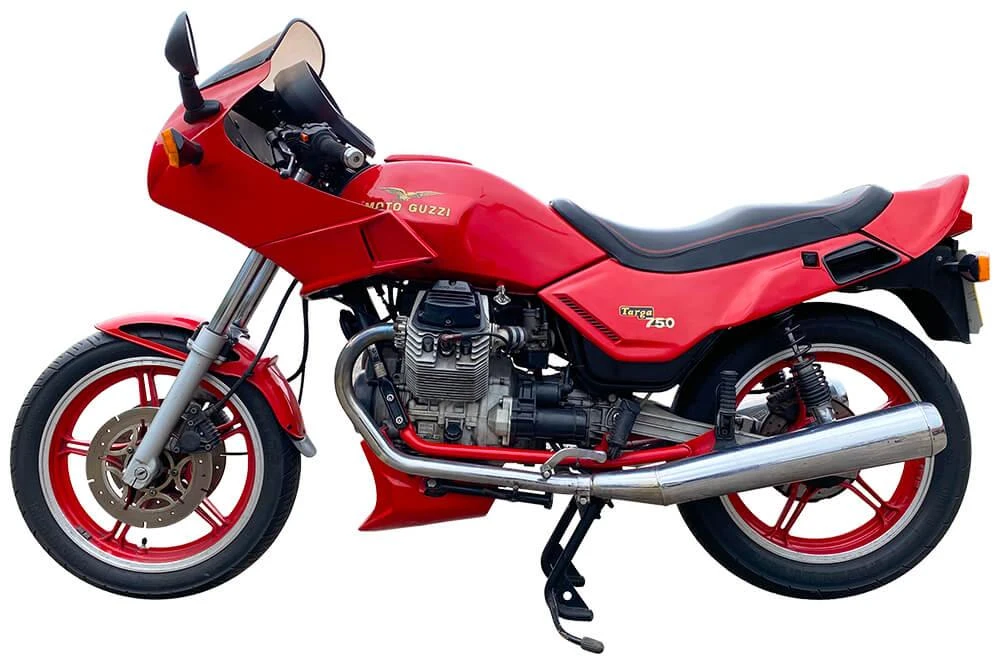

The Moto Guzzi Targa 750 is a masterclass in Italian practicality, combining existing parts to create a new 750cc roadster that defies the conventions of traditional Italian bike design. The air-cooled V-twin engine, borrowed from the NTX750 trail bike, produces a respectable 46bhp, while the twin-shock chassis, based on the 650 Lario, provides a smooth and comfortable ride.
But don’t let the Targa’s utilitarian roots fool you – this little roadster has a personality all its own. Its petite size and sweet-tempered nature make it an ideal companion for twisty roads and urban adventures, while its effective top-half fairing and streamlined lines ensure it cuts through the wind with ease.
Despite its modest power output, the Targa 750 is a joy to ride, with a character that’s distinctly Italian but refreshingly free from the excesses of the Le Mans. With its unique blend of practicality and charm, the Targa 750 is the perfect choice for anyone looking for a motorcycle that’s as much about the journey as the destination – and that’s a truly Guzzian experience.
Key Specifications
Engine Type
Four stroke, V twin, longitudinally mounted, OHV, 4 valves per cylinder.
Engine Capacity
45.3 cubic inches / 744 cc
Max Torque
59.4 Nm / 6.06 kgf-m @ 5600 rpm
Fuel Tank Capacity
16.5 Lutes / 4.3 US gal
Weight (Wet/Kerb)
430 lbs / 195 kg
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi Targa 750
Year
1991 –
Engine
Engine Type
Four stroke, V twin, longitudinally mounted, OHV, 4 valves per cylinder.
Displacement
45.3 cubic inches / 744 cc
Bore x Stroke
80 x 74 mm
Compression Ratio
9.7:1
Max Torque
59.4 Nm / 6.06 kgf-m @ 5600 rpm
Engine Management System
2x 36mm PHBH Dell’Orto carburetors
Lubrication System
Pressure pump
Cooling System
Air cooled
Performance
Top Speed
183.8 km/h
*n/a – information not provided by manufacturer
Transmission
Clutch
Single plate, dry type
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Steel tubular duplex cradle, disassemblable
Front Suspension
Telescopic air assisted
Rear Suspension
Marzocchi 5-way preload adjustment
Wheels & Brakes
Front Tire Size
110/90 V18
Rear Tire Size
120/80 V18
Front Brakes
2x 270mm disc
Rear Brakes
Single 235mm disc
Dimension & Weights
Fuel Tank Capacity
16.5 Lutes / 4.3 US gal
Wet (kerb/curb) Weight
430 lbs / 195 kg
Dry Weight
180 kg / 397 lbs
Features
Four stroke engine
V twin configuration
Longitudinally mounted engine
OHV (Overhead Valve) design
4 valves per cylinder
744cc capacity
46bhp output
7700rpm rev limit
Aircooled engine
Twin-shock chassis
Body shape similar to 1000cc Le Mans
Paint scheme similar to 1000cc Le Mans
Pushrod-operated valves
Two-valve per cylinder design
Top speed of 116mph
Speedo needle reaches 110mph with run-up
Instrument console is bar-mounted and large
