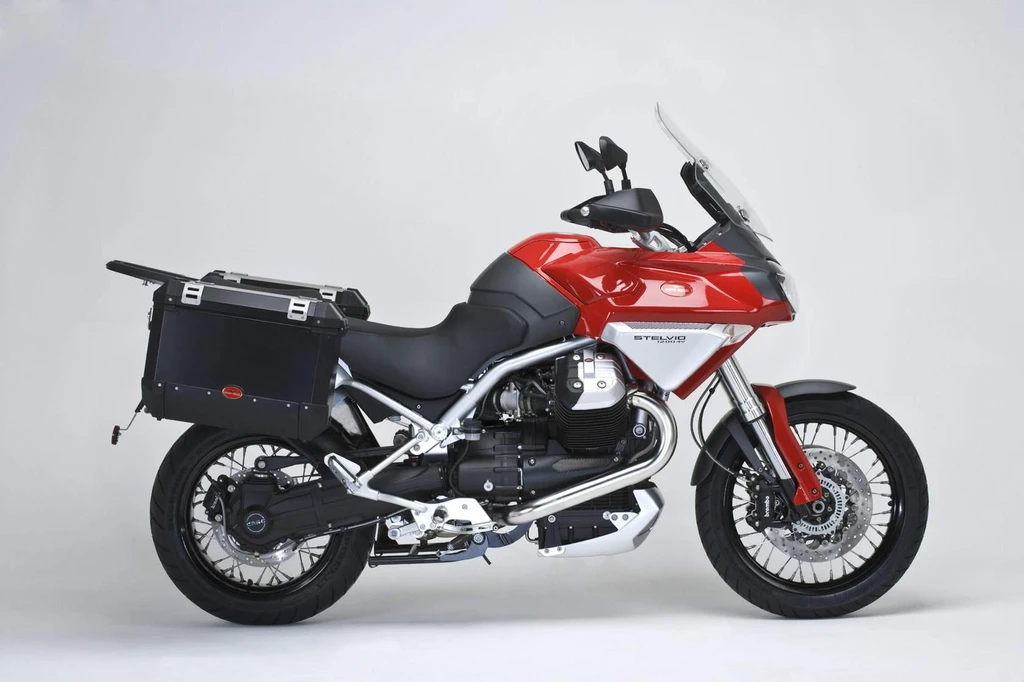

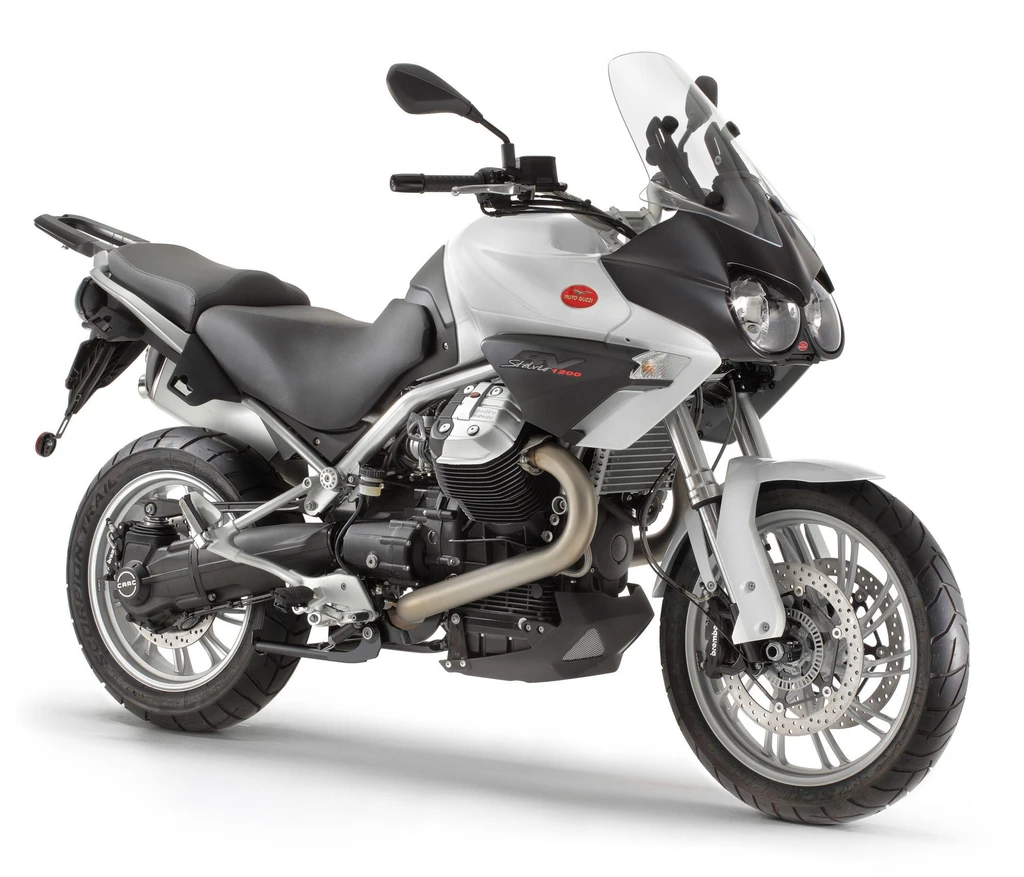

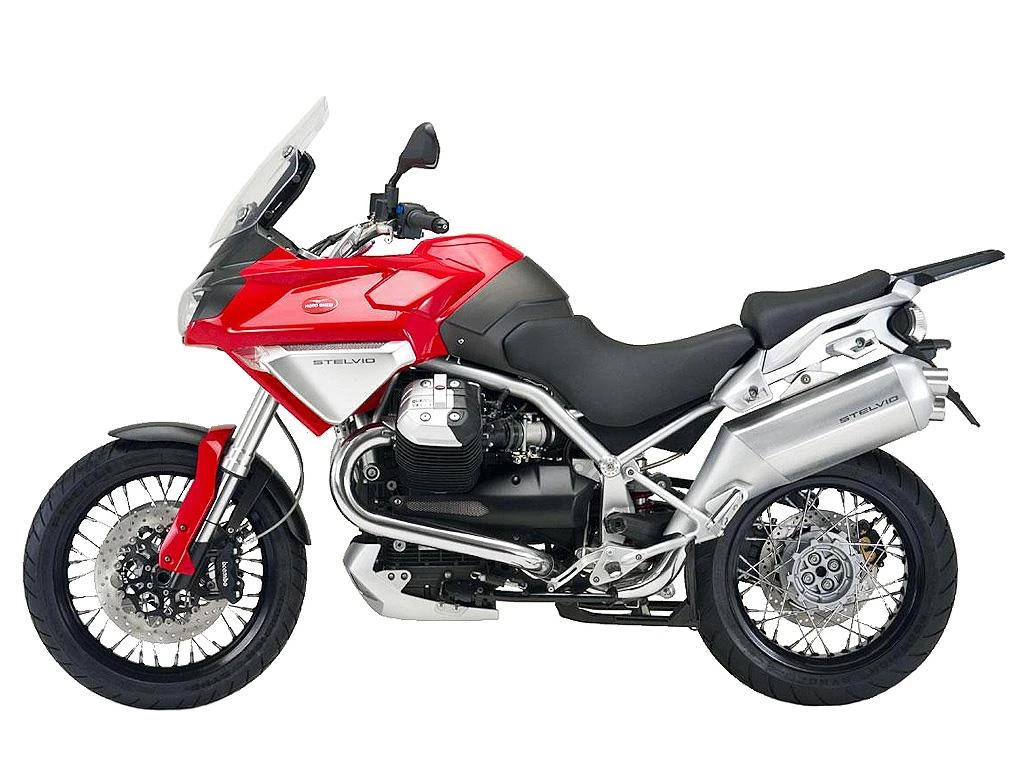

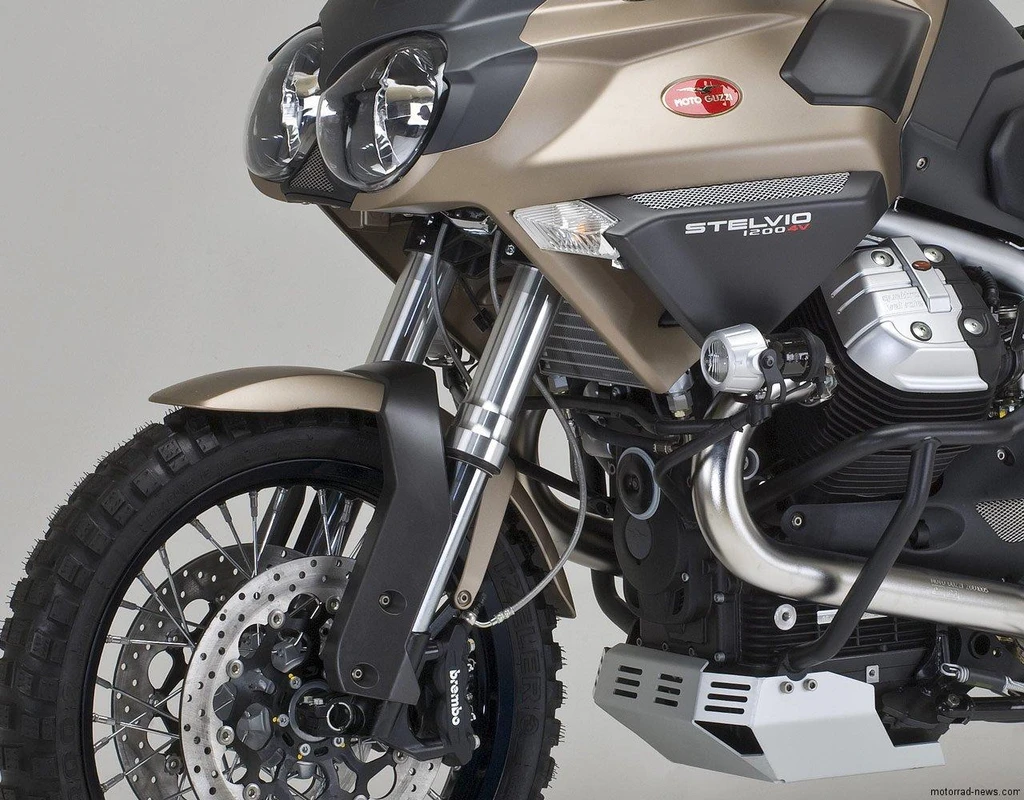

Moto Guzzi Stelvio 1200 (2008)

The Moto Guzzi Stelvio 1200 4V is a testament to the Italian manufacturer’s commitment to building exceptional motorcycles. Its single-sided swing-arm and progressive linkage with monoshock suspension deliver a smooth and responsive ride, while the adjustable hydraulic rebound and spring preload settings ensure a tailored experience for every rider.

Inspired by the legendary Stelvio Pass, this maxi-enduro is designed to conquer any terrain with its off-road capability and sporty demeanor. The 1200cc four-valve engine is a masterclass in power delivery, providing a thrilling ride that’s both comfortable and exhilarating.

As you tackle the twists and turns of the Stelvio Pass, you’ll appreciate the Stelvio 1200 4V’s exceptional chassis dynamics, engine response, and suspension absorption. Whether you’re a seasoned rider or an adventurer seeking a new challenge, this motorcycle is the ultimate companion for any journey.

Key Specifications

Engine Type	Four stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Engine Capacity	70.2 cubic inches / 1151 cc
Max Power	102 hp / 75 kW @ 7000 rpm
Max Torque	83.3 ft-lb / 110 nm
Fuel Tank Capacity	18 Litres / 4.7 gal
Seat Height	820 – 840 mm / 32 33 in adjustable

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Moto Guzzi Stelvio 1200
Year	2008

Engine

Engine Type	Four stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Displacement	70.2 cubic inches / 1151 cc
Bore x Stroke	95 x 81.2 mm
Compression Ratio	11.0:1
Max Horsepower	102 hp / 75 kW @ 7000 rpm
Max Torque	83.3 ft-lb / 110 nm
Engine Management System	Weber-Marelli electronic fuel injection with stepper motor control
Cooling System	Air cooled
Exhaust	Stainless steel, 2-in-1 type, three-way catalytic converter with lambda probe

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	single-disc with integrated anti-vibration buffer
Gearbox	6 Speed
Gear Ratios	1st 17/38 = 1 : 2.2352nd 20/34 = 1 : 1.7003rd 23/31 = 1 : 1.3484th 26/29 = 1 : 1.1155th 31/30 = 1 : 0.9686th 29/25 = 1 : 0.862
Final Drive	Shaft

Electrical & Electronics System

Battery	12V – 18 Ah
Starter	Electric

Chassis & Suspension

Frame Type	Tubular twin cradle, high tensile steel
Front Suspension	Completely adjustable upside-down fork spring preload and hydraulic compression and rebound damping with mounting bracket for radial brake calliper,
Front Suspension Travel	6.69 inches / 170 mm
Rear Suspension	Single-sided swing-arm with progressive linkage and monoshock with adjustable hydraulic rebound and dial for setting spring preload
Rear Suspension Travel	6.10 inches / 155 mm
Trail	125 mm / 4.92 in

Wheels & Brakes

Wheels	Light alloy (tubeless, spoked)
Front Tire Size	110/80 ZR19
Rear Tire Size	180/55 ZR17
Front Brakes	2x 320mm discs 4 piston caliper, ABS
Rear Brakes	Single 282mm disc 2 piston caliper, ABS

Dimension & Weights

Seat Height	820 – 840 mm / 32 33 in adjustable
Wheelbase	60.4 inches / 1535 mm
Ground Clearance	210 mm /
Fuel Tank Capacity	18 Litres / 4.7 gal
Dry Weight	251 kg / 553.3 lbs

Features

Single-sided swing-arm with progressive linkage and monoshock
Adjustable hydraulic rebound
Dial for setting spring preload
90-degree transversal V-twin engine
Quattrovalvole (four valves) version
Powerful double front headlight assembly
Refined aluminium spoke wheels
Compact and robust upper part
Ergonomics designed for optimal rider comfort
Ample section of chassis guides
Adjustable seat
Windshield
Aluminium exhaust silencer
Passenger and luggage transport assessment
Three colour concepts: red Corsa, Black Guzzi, and Lunar white
Designed for off-road and on-road use
Engine response and suspension absorbing capacity
Resistance and decelerating power
