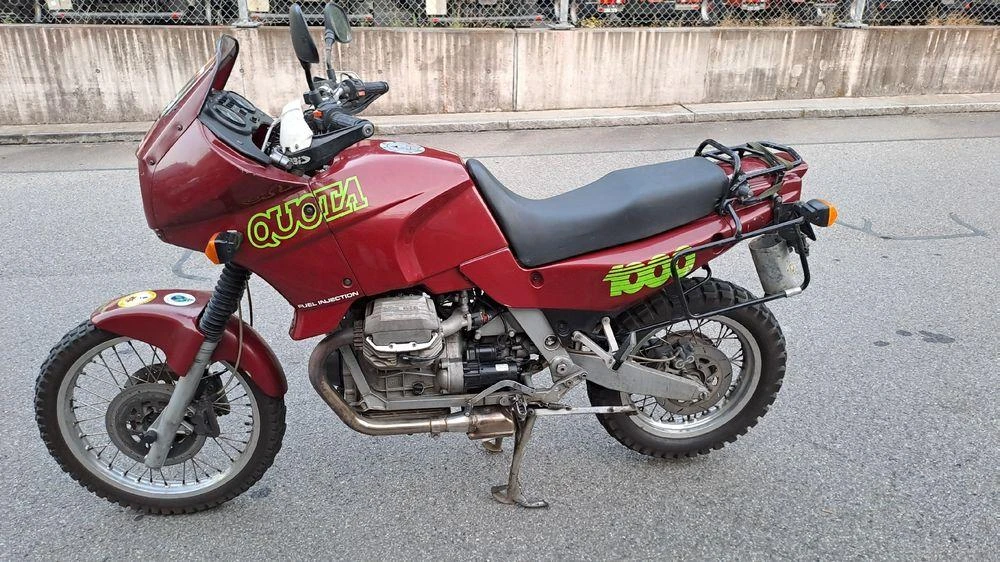

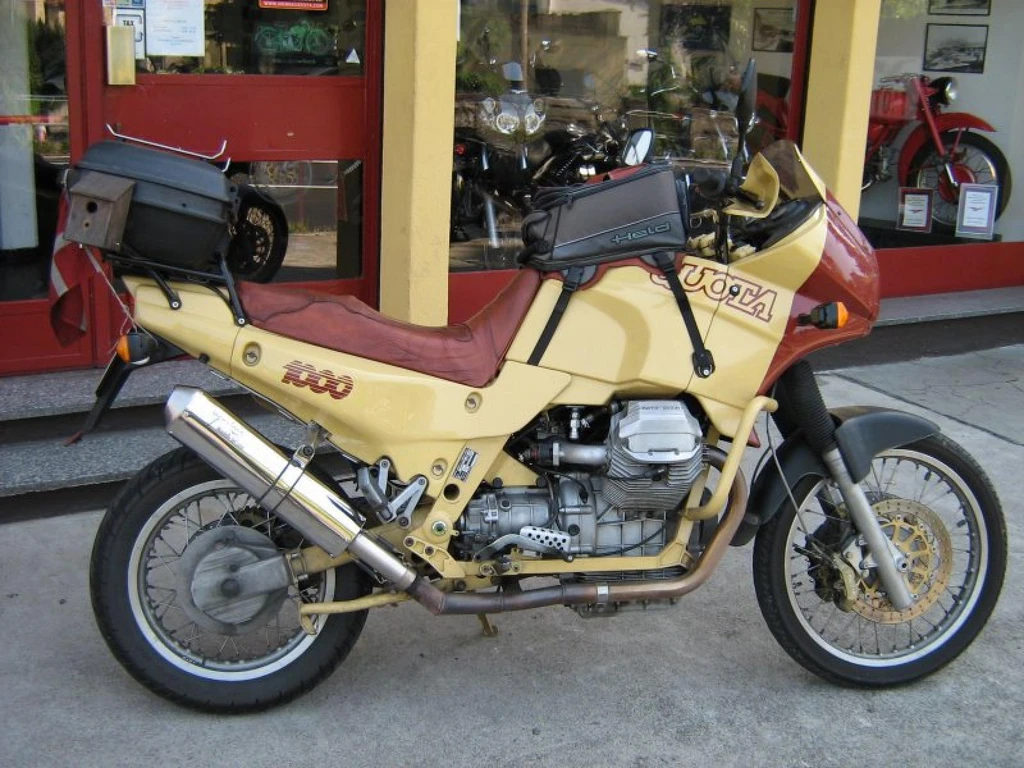

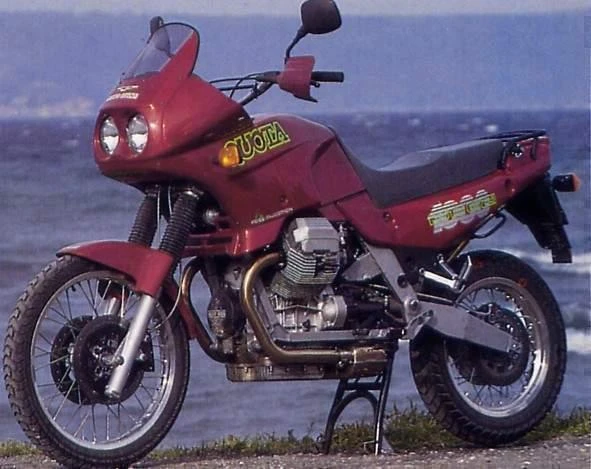

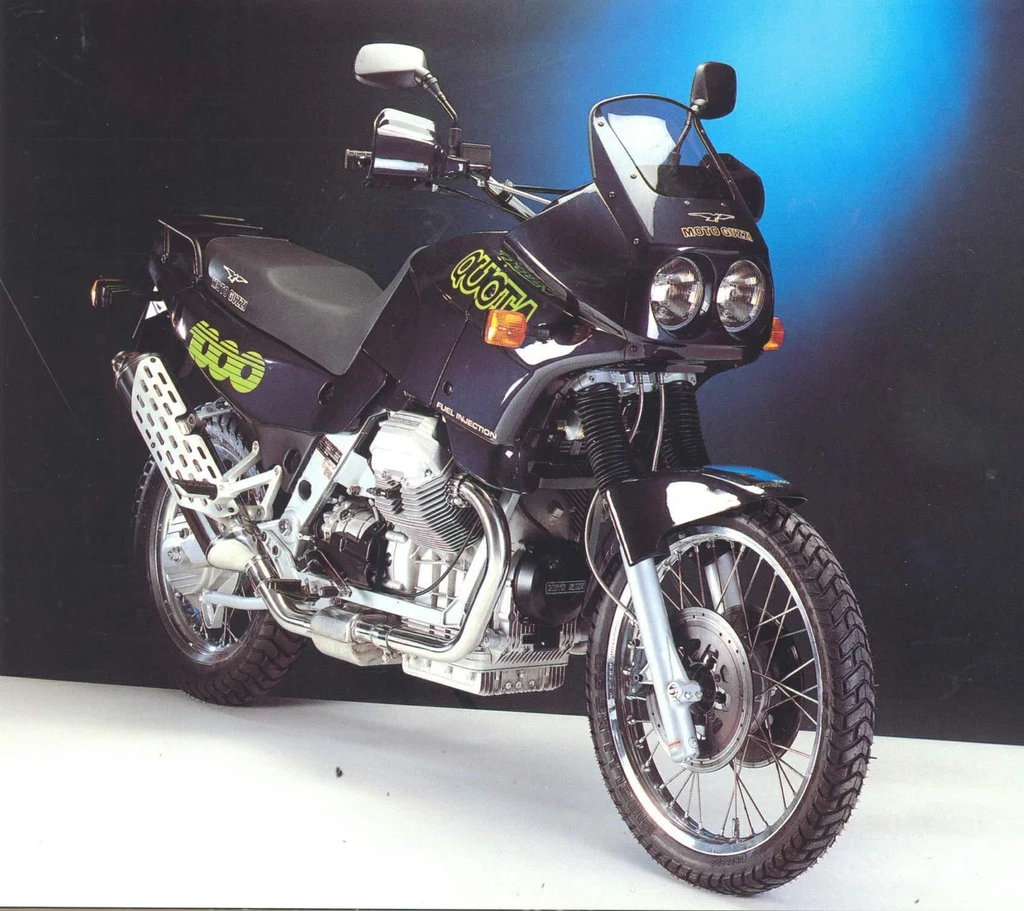

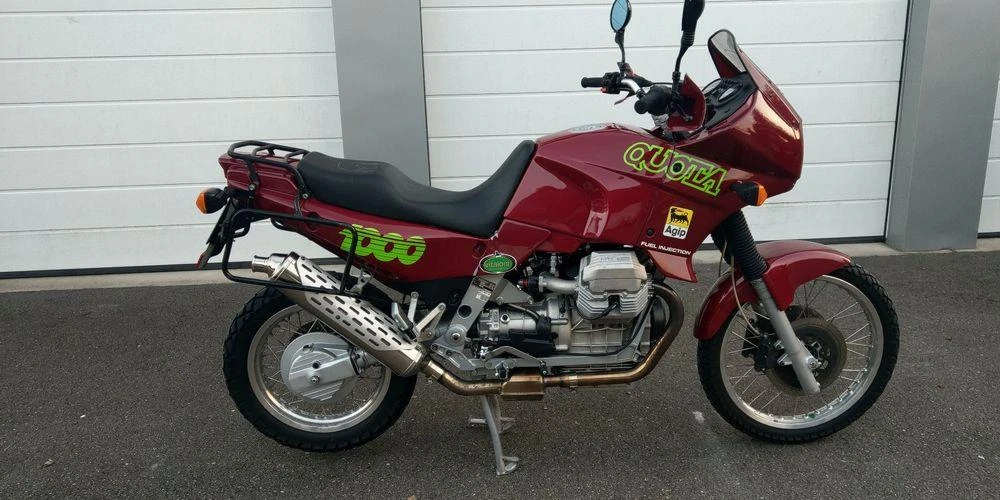

The Moto Guzzi Quota 1000 is a trailblazing off-road tourer that marks a significant departure from its predecessors. Powered by a mighty 948cc V-twin engine, this behemoth of the Italian landscape boasts a longitudinally mounted, OHV configuration with 2 valves per cylinder, fed by a state-of-the-art Webcr-Marelli injection system.
This potent powerplant is matched by a robust chassis, featuring a unique design that accommodates the engine’s considerable bulk. A pair of powerful box-section steel beams connect the swinging arm to the steering head, allowing for easy engine removal. Marzocchi suspension components, including 42mm telescopic forks with 240mm of travel, ensure a smooth ride both on and off the beaten track.
But what truly sets the Quota apart is its commanding presence, amplified by a majestic two-into-one exhaust system and an imposing, upswept stainless steel silencer. The Quota’s 21-inch front wheel and 17-inch rear wheel, shod in massive 130-section tires, exude a sense of rugged adventure. With its potent engine, advanced suspension, and bold styling, the Moto Guzzi Quota 1000 is a machine that embodies the spirit of unbridled exploration. It’s ready to conquer the heights, and leave an indelible mark on the world of off-road motorcycling.
Key Specifications
Engine Type
Four stroke, V twin, longitudinally mounted, OHV, 2 valve per cylinder.
Engine Capacity
57.8 cubic inches / 948.8 cc
Max Power
69 hp / 51 kW @ 6600 rpm
Max Torque
58.5 ft-lb / 79 nm
Fuel Tank Capacity
5.3 US gallons / 20.0 L
Seat Height
34.0 inches / 865 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi Quota 1000
Year
1989 – 92
Engine
Engine Type
Four stroke, V twin, longitudinally mounted, OHV, 2 valve per cylinder.
Displacement
57.8 cubic inches / 948.8 cc
Bore x Stroke
88 x 78 mm
Compression Ratio
9.5:1
Max Horsepower
69 hp / 51 kW @ 6600 rpm
Max Torque
58.5 ft-lb / 79 nm
Engine Management System
Weber-Marelli electronic fuel injection
Lubrication System
By pressure pump
Cooling System
Air cooled
Performance
Top Speed
191.1 km/h
*n/a – information not provided by manufacturer
Transmission
Clutch
Double disc dry type
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
41.7mm Marzocchi forksadjustable type
Front Suspension Travel
8.6 inches / 220 mm
Rear Suspension
Single shock adjustable for preload rebound and compression damping
Wheels & Brakes
Front Tire Size
90/90-2 1
Rear Tire Size
130/80- 17
Front Brakes
2x 280mm discs 4 piston calipers
Rear Brakes
Single 260mm disc 1 piston caliper
Dimension & Weights
Seat Height
34.0 inches / 865 mm
Fuel Tank Capacity
5.3 US gallons / 20.0 L
Dry Weight
210 kg /464 lbs
Features
Four-stroke V-twin engine
948cc displacement
2 valves per cylinder
OHV (Overhead Valve) design
Longitudinally mounted engine
Webber-Marelli injection system
Two-into-one exhaust system
Stainless steel silencer
Box-section steel beams for frame
Unboltable lower rails for engine drop-out
Marzocchi 42mm telescopics with 240mm travel
Preload and damping adjusters
Deltabox-lookalike swing-arm
Rising-rate linkage
Single Marzocchi shock absorber
21-inch straight spoked aluminium front wheel
17-inch rear wheel with 130-section tyre
Twin 280mm front discs with four-piston calipers
Independent 260mm rear disc with linked brake system
Four-and-a-half gallon fuel tank
Weight of over 5601b (unladen)
