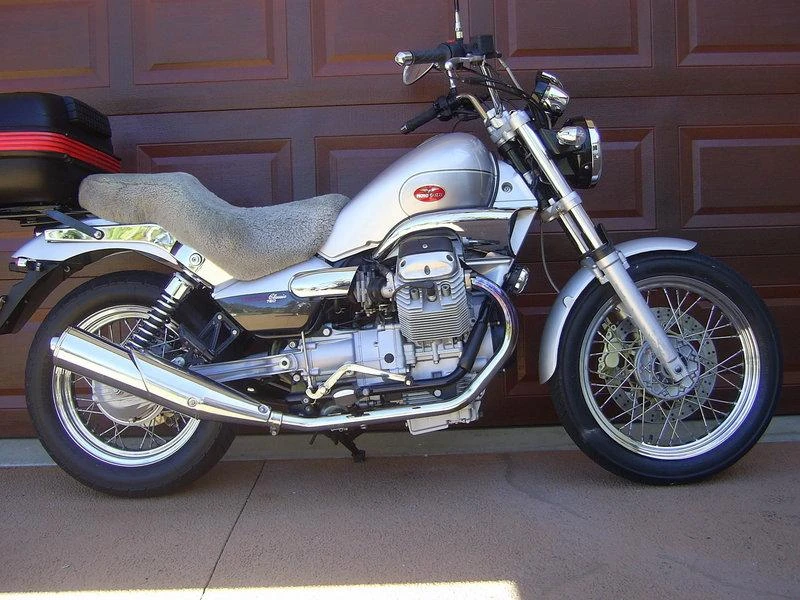

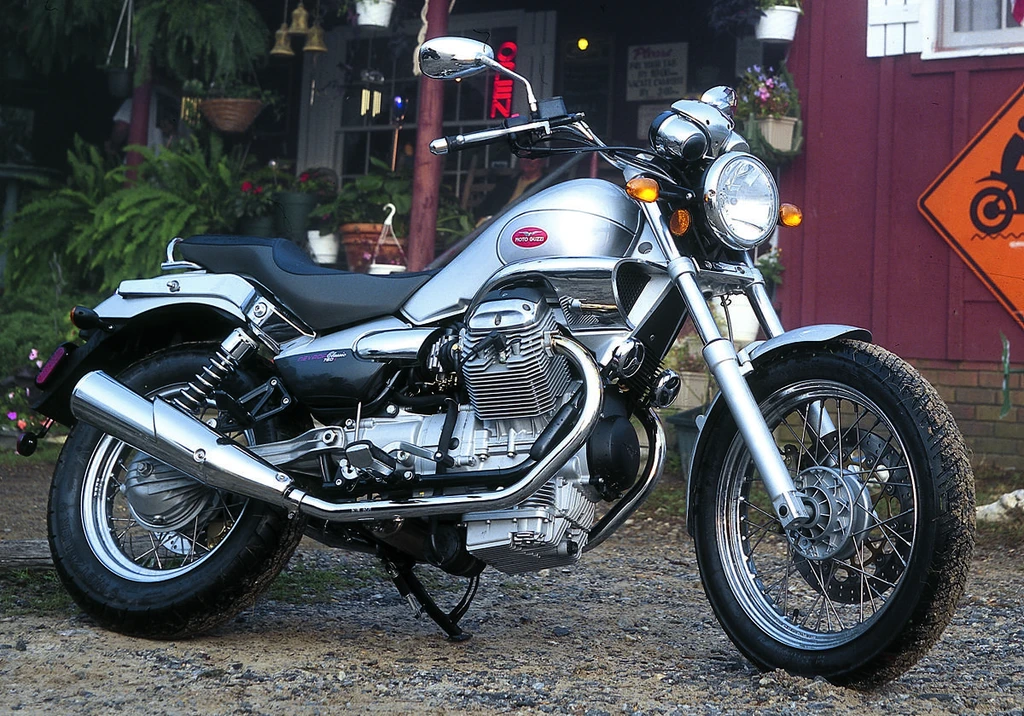

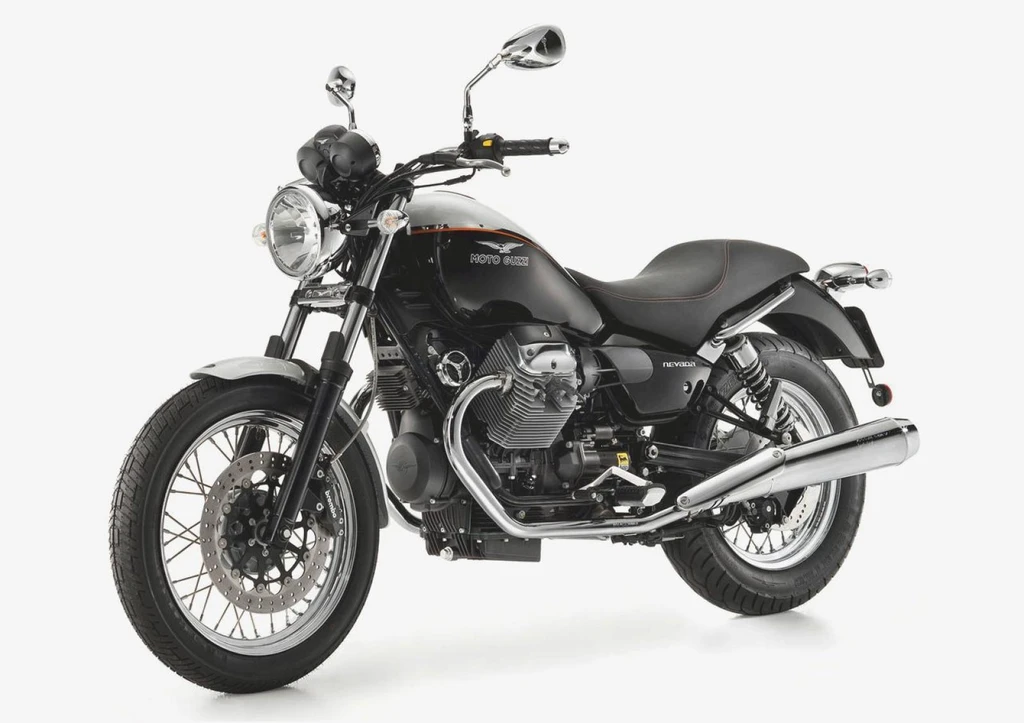

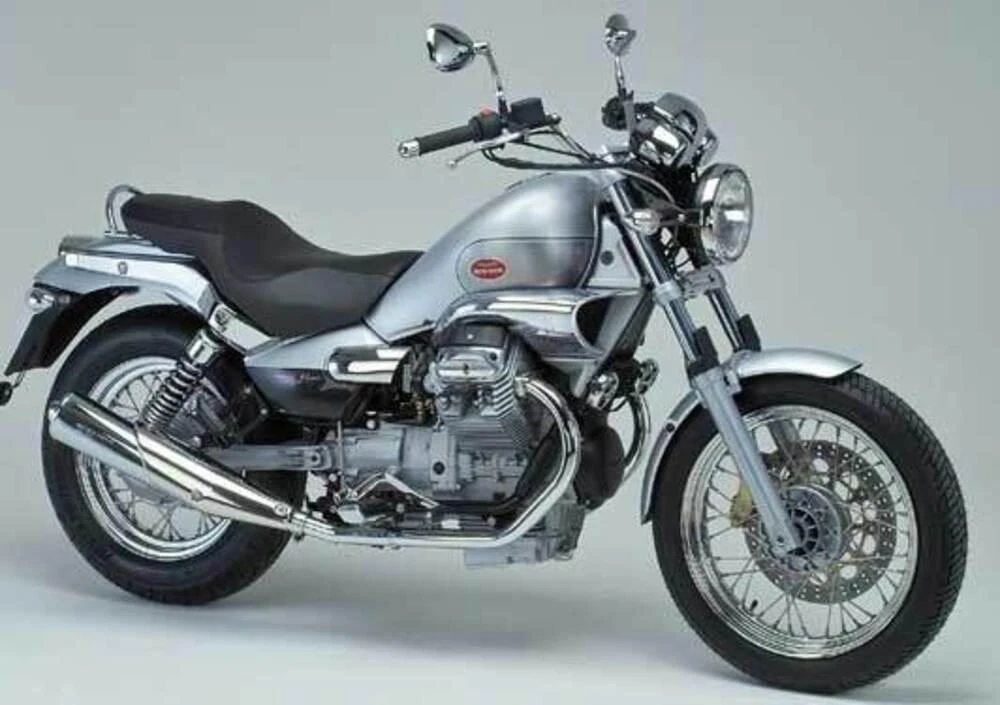

Moto Guzzi Nevada 750ie Classic (2004 – 2005)

Moto Guzzi Nevada 750ie Classic (2004 - 2005)

The Moto Guzzi Nevada 750ie Classic is a masterpiece of Italian engineering, where tradition meets modernity. Its 744cc 90 V-twin engine is a symphony of power and smoothness, thanks to electronic fuel injection and a Lambda probe catalyser that minimizes emissions.

The bike’s sleek new design is a result of a thorough redesign, with 87% of its parts replaced or updated. From the side panels to the rider footrests, every detail exudes style and sophistication. The ultra-modern instrumentation, including an LCD display, complements the bike’s sleek profile.

The riding experience is nothing short of exhilarating, with improved ergonomics, a new Marzocchi fork, and soft suspensions ensuring a comfortable and precise ride. The brakes are a testament to the bike’s sporty credentials, with a 320mm front disc and a 260mm rear disc.

Riding the Moto Guzzi Nevada 750ie Classic is an exercise in pure bliss, where the harmony of its engine, design, and handling come together to create an unforgettable experience.

Key Specifications

Engine TypeFour stroke, 90 V twin, longitudinally mounted, OHV, 2 valves per cylinder
Engine Capacity45.4 cubic inches / 744 cc
Max Power34.3kW/46kW @6600rpm
Max Torque42 ft-lb / 57 nm
Fuel Tank Capacity3.7 US gallons / 14.0 L
Seat Height30.0 inches / 767 mm
Moto Guzzi Nevada 750ie Classic (2004 - 2005)

All Specifications

Make & Model

ModelMoto Guzzi Nevada 750ie Classic
Year2004 – 2005

Engine

Engine TypeFour stroke, 90 V twin, longitudinally mounted, OHV, 2 valves per cylinder
Displacement45.4 cubic inches / 744 cc
Bore x Stroke80 x 74 mm
Compression Ratio9.6:1
Max Horsepower34.3kW/46kW @6600rpm
Max Torque42 ft-lb / 57 nm
Engine Management SystemWeber-Marelli electric injection
Lubrication SystemBy lobes with pressure pump
Cooling SystemAir cooled
ExhaustThree-way catalyzer with Lambda sensor

Performance

Top Speedn/a

Transmission

ClutchSingle disc, dry, with cush drive
Gearbox5 Speed
Gear Ratios1st 11/26 = 1 : 2,3636 2nd 14/23 = 1 : 1,6429 3rd 18/23 = 1 : 1,2778 4th 18/19 = 1 : 1,0556 5th 25/22 = 1 : 0,88
Final DriveShaft

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeDetachable tubular duplex cradle in special high-strengh steel
Front Suspension40mm Marzocchi hydraulic telescopic fork
Front Suspension Travel5.1 inches / 130 mm
Rear SuspensionSwinging fork in light alloy cast with two dampers and spring adjustable for preload and rebound
Rear Suspension Travel2.9 inches / 75 mm
Rake27.5
Trail135 mm / 5.4 in

Wheels & Brakes

Front Tire Size100/90 V18
Rear Tire Size130/90 V16
Front BrakesSingle 320mm disc 4 piston caliper
Rear BrakesSingle 260mm disc 1 piston caliper

Dimension & Weights

Seat Height30.0 inches / 767 mm
Wheelbase58.3 inches / 1482 mm
Fuel Tank Capacity3.7 US gallons / 14.0 L
Dry Weight176 kg /388 lbs

Features

  • Four-stroke 90 V-twin engine
  • Longitudinally mounted engine
  • OHV (overhead valve) design
  • 2 valves per cylinder
  • Electronic fuel injection
  • Lambda probe catalyser for emissions reduction
  • 744cc engine displacement
  • 90-degree V-twin configuration
  • Marzocchi 40mm fork for improved cornering and steering
  • Soft suspensions for rider and passenger comfort
  • Adjustable rear shock absorbers
  • 320mm front disc brake with four-pot calliper
  • 260mm rear disc brake
  • LCD display on new instrumentation
  • Redesigned handlebars and grips
  • Improved riding ergonomics for better control and handling
  • New profile seat with height of 760mm
  • Improved clutch lever action for smoother operation
  • Customisation options through dedicated accessories
