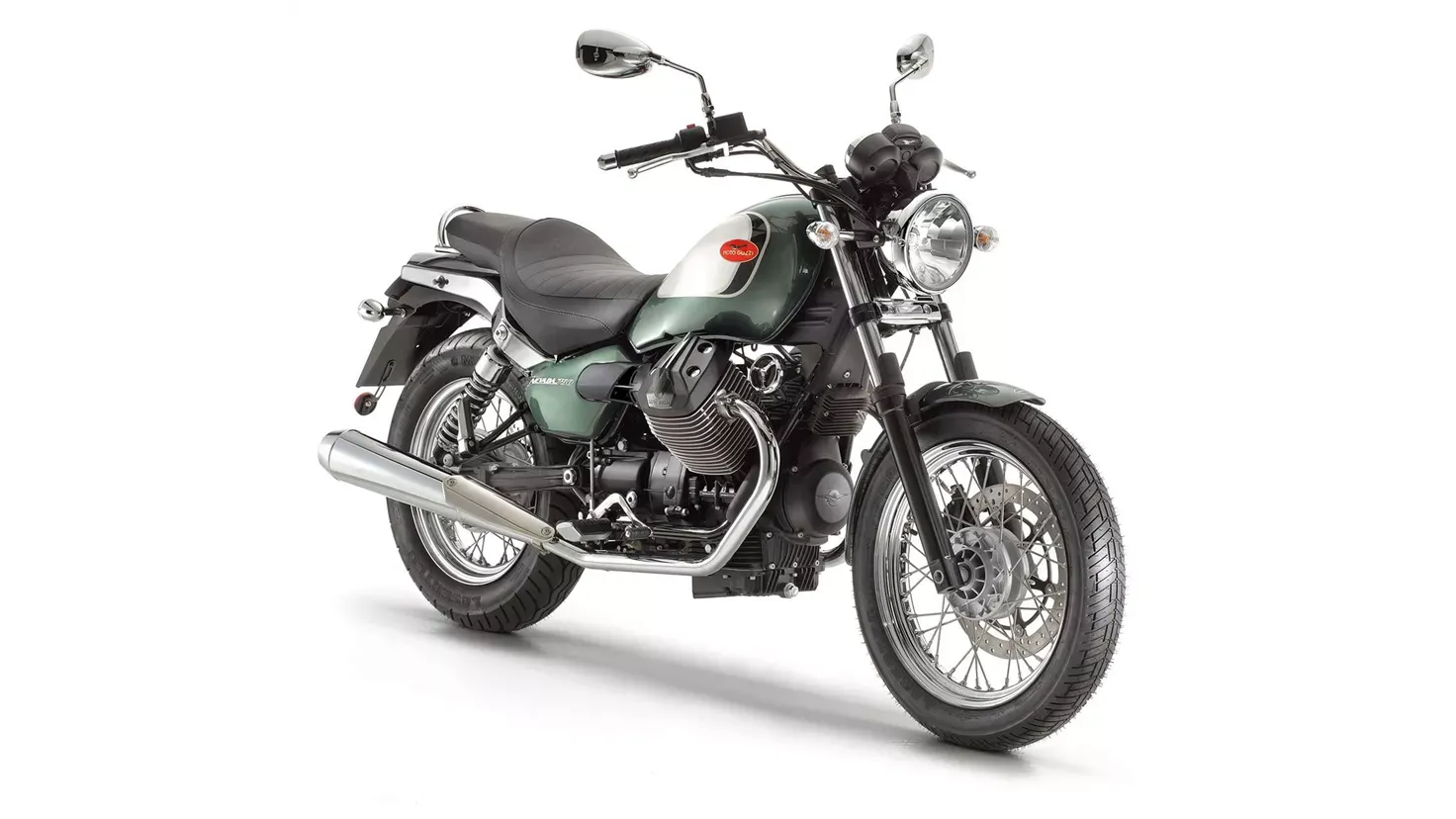

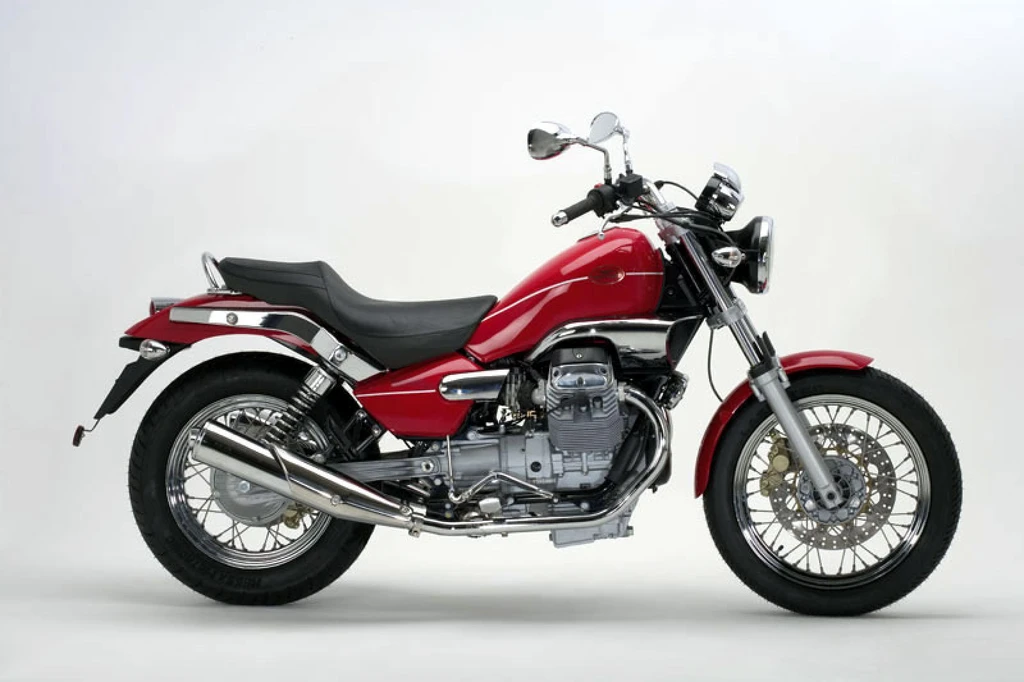

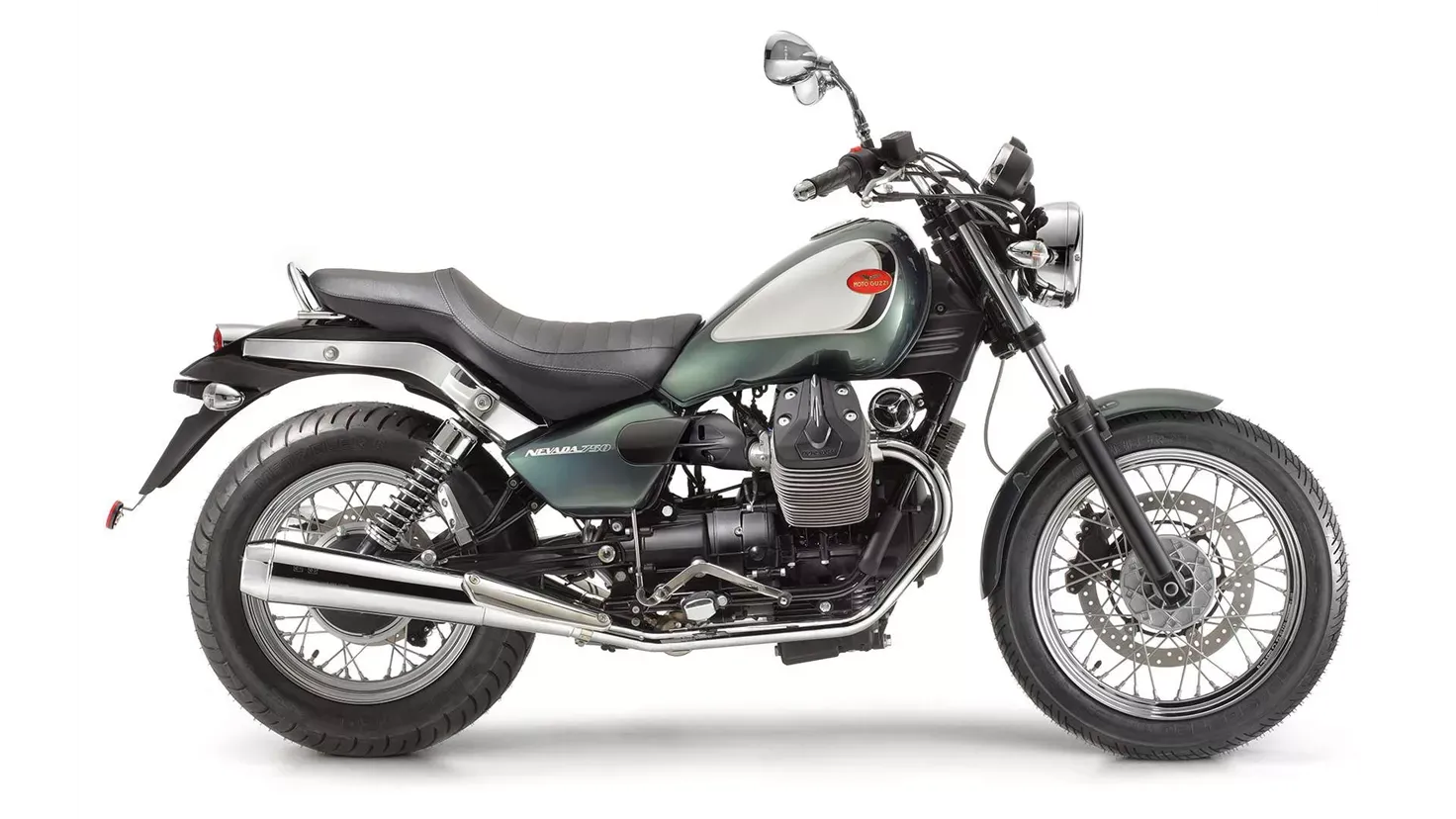

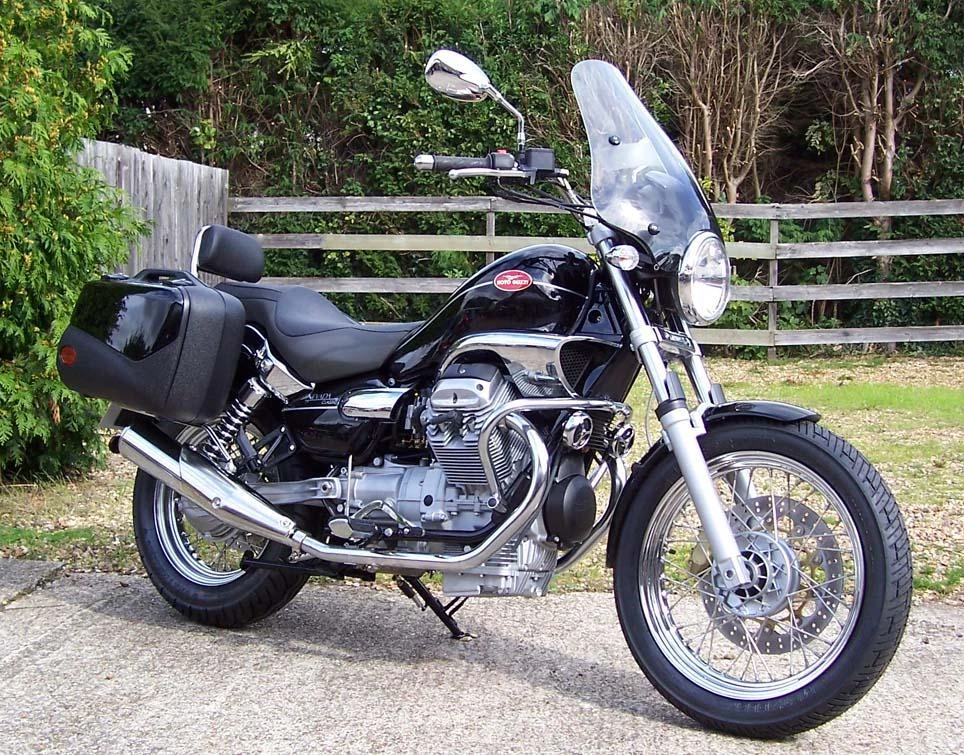

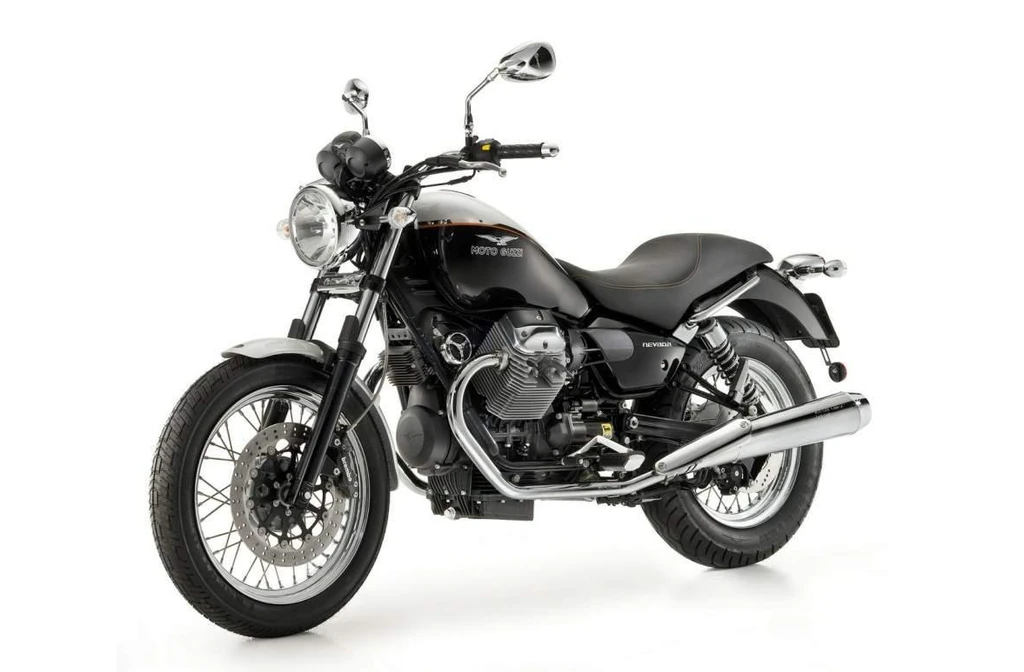

Moto Guzzi Nevada 750 Classic 20th Anniversary (2010)

Moto Guzzi Nevada 750 Classic 20th Anniversary (2010)

The Nevada 750 has been a stalwart of the Guzzi lineup for two decades, earning its reputation as a rugged and reliable mid-range cruiser. This year’s Anniversary model celebrates this milestone with a fresh new look and no compromises on performance. The Anniversary 750 boasts a distinctive style, with a more muscular and rebellious aesthetic, courtesy of a redesigned front end, including a new chrome headlight and handlebars.

At the heart of this bike lies the legendary 744cc cross-twin V90 engine, a true gem of Guzzi’s engineering prowess. This 90-degree V-twin powerhouse is a masterclass in engine design, delivering a thrilling 54.7 Nm of torque at just 3600 rpm. Paired with a smooth and efficient electronic injection system, this engine is a joy to ride.

Whether cruising through the city or carving up the twisties, the Anniversary 750 is a bike that’s impossible to ignore. Its bold new look and razor-sharp handling make it the perfect choice for riders who crave a sense of adventure and a touch of Italian flair.

Key Specifications

Engine TypeFour stroke, 90 V twin, longitudinally mounted, OHV, 2 valves per cylinder
Engine Capacity45.4 cubic inches / 744 cc
Max Power35.5kW/48kW @6600rpm
Max Torque40.3 ft-lb / 54.7 nm
Fuel Tank Capacity3.7 US gallons / 14.0 L
Seat Height30.0 inches / 767 mm
Moto Guzzi Nevada 750 Classic 20th Anniversary (2010)

All Specifications

Make & Model

ModelMoto Guzzi Nevada 750 Classic 20th Anniversary
Year2010

Engine

Engine TypeFour stroke, 90 V twin, longitudinally mounted, OHV, 2 valves per cylinder
Displacement45.4 cubic inches / 744 cc
Bore x Stroke80 x 74 mm
Compression Ratio9.6:1
Max Horsepower35.5kW/48kW @6600rpm
Max Torque40.3 ft-lb / 54.7 nm
Engine Management SystemWeber-Marelli electric injection
Lubrication SystemBy lobes with pressure pump
Cooling SystemAir cooled
ExhaustThree-way catalyzer with Lambda sensor

Performance

Top Speedn/a

Transmission

ClutchSingle disc, dry, with cush drive
Gearbox5 Speed
Gear Ratios1st 11/26 = 1 : 2,3636 2nd 14/23 = 1 : 1,6429 3rd 18/23 = 1 : 1,2778 4th 18/19 = 1 : 1,0556 5th 25/22 = 1 : 0,88
Final DriveShaft

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeDetachable tubular duplex cradle in special high-strengh steel
Front Suspension40mm Marzocchi hydraulic telescopic fork
Front Suspension Travel5.1 inches / 130 mm
Rear SuspensionSwinging fork in light alloy cast with two dampers and spring adjustable for preload and rebound
Rear Suspension Travel5.1 inches / 130 mm
Rake27.5
Trail135 mm / 5.4 in

Wheels & Brakes

Front Tire Size100/90 V18
Rear Tire Size130/90 V16
Front BrakesSingle 320mm disc 4 piston caliper
Rear BrakesSingle 260mm disc 1 piston caliper

Dimension & Weights

Seat Height30.0 inches / 767 mm
Wheelbase57.8 inches / 1467 mm
Fuel Tank Capacity3.7 US gallons / 14.0 L
Dry Weight184 kg /405.7 lbs

Features

  • 90 V twin, longitudinally mounted, OHV, 2 valves per cylinder engine
  • 744 cc displacement
  • 80 mm bore
  • 74 mm stroke
  • Aluminum alloy pistons
  • Graphite-coated cylinders
  • Electronic injection system with 36 mm throttle bodies
  • 54.7 Nm of torque at 3600 rpm
  • Double cradle steel frame with lower elements bolted
  • 27.5° headstock angle for stability
  • Marzocchi fork with 40 mm travel and 130 mm excursion
  • Swingarm with two shock preload adjustable
  • 320 mm floating front disc brake
  • 260 mm rear disc brake
  • 18 inch front wheel
  • 17 inch rear wheel
  • 2-up saddle design
  • Bicolor member fender with chrome headlight
  • Redesigned side panels
  • 14-liter fuel tank
  • Chrome handlebars
  • Low bar handlebar shape
  • Two-tone paint scheme with black and white
