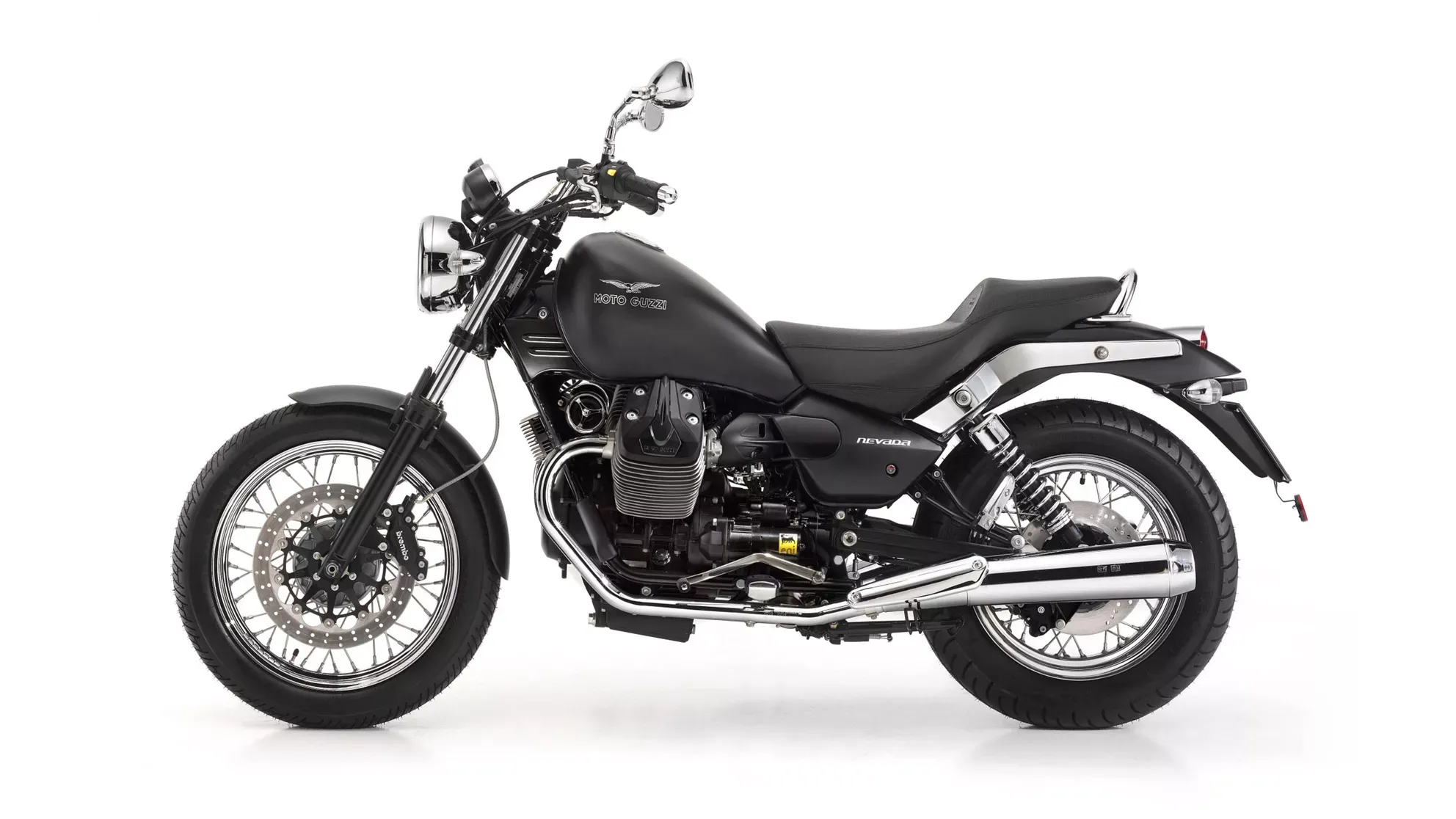

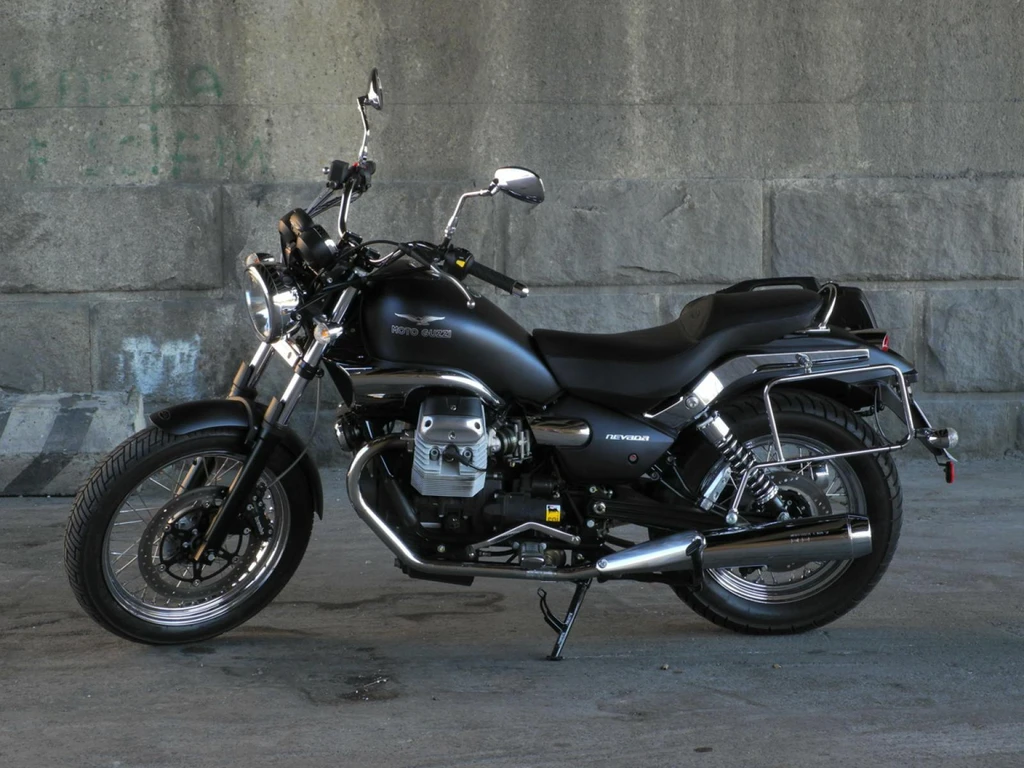

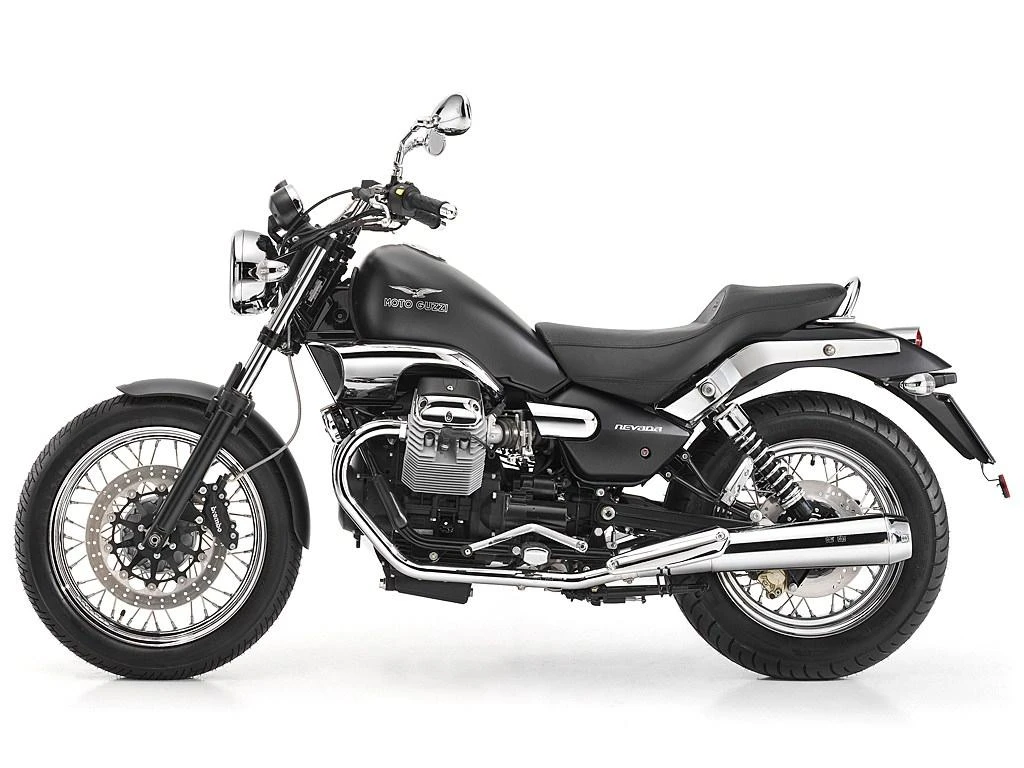

Moto Guzzi Nevada 750 Aquila Nera (2010)

Meet the Moto Guzzi Nevada 750 Aquila Nera, a 90-degree V-twin beauty that embodies the essence of Italian style and engineering. This longitudinally mounted, OHV powerplant delivers a rich, sonorous soundtrack that perfectly complements the bike’s aggressive stance and sleek black livery.

The Nevada 750 Aquila Nera is an expertly crafted roadster that combines the best of Guzzi’s heritage with modern flair. Its 2-valve-per-cylinder engine produces a smooth, effortless power delivery that makes long-distance touring a breeze. Whether carving up twisties or cruising down the highway, the Nevada 750 Aquila Nera is a true thrill ride.

For those who crave the ultimate Guzzi experience, the Nevada 750 Aquila Nera delivers. With its stunning looks, sublime handling, and a rich history to boot, this bike is sure to leave you breathless and eager for more. The Moto Guzzi Nevada 750 Aquila Nera: the perfect blend of style, substance, and Italian passion.

Key Specifications

Engine Type	Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valves per cylinder
Engine Capacity	45.4 cubic inches / 744 cc
Max Power	35.5kW/48kW @6600rpm
Max Torque	40.3 ft-lb / 54.7 nm
Fuel Tank Capacity	3.7 US gallons / 14.0 L
Seat Height	30.0 inches / 767 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Moto Guzzi Nevada 750 Aquila Nera
Year	2010

Engine

Engine Type	Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valves per cylinder
Displacement	45.4 cubic inches / 744 cc
Bore x Stroke	80 x 74 mm
Compression Ratio	9.6:1
Max Horsepower	35.5kW/48kW @6600rpm
Max Torque	40.3 ft-lb / 54.7 nm
Engine Management System	Weber-Marelli electric injection
Lubrication System	By lobes with pressure pump
Cooling System	Air cooled
Exhaust	Three-way catalyzer with Lambda sensor

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Single disc, dry, with cush drive
Gearbox	5 Speed
Gear Ratios	1st 11/26 = 1 : 2,3636 2nd 14/23 = 1 : 1,6429 3rd 18/23 = 1 : 1,2778 4th 18/19 = 1 : 1,0556 5th 25/22 = 1 : 0,88
Final Drive	Shaft

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Detachable tubular duplex cradle in special high-strengh steel
Front Suspension	40mm Marzocchi hydraulic telescopic fork
Front Suspension Travel	5.1 inches / 130 mm
Rear Suspension	Swinging fork in light alloy cast with two dampers and spring adjustable for preload and rebound
Rear Suspension Travel	5.1 inches / 130 mm
Rake	27.5
Trail	135 mm / 5.4 in

Wheels & Brakes

Front Tire Size	100/90 V18
Rear Tire Size	130/90 V16
Front Brakes	Single 320mm disc 4 piston caliper
Rear Brakes	Single 260mm disc 1 piston caliper

Dimension & Weights

Seat Height	30.0 inches / 767 mm
Wheelbase	57.8 inches / 1467 mm
Fuel Tank Capacity	3.7 US gallons / 14.0 L
Dry Weight	184 kg /405.7 lbs

Features

Four stroke engine
90 V twin configuration
Longitudinally mounted engine
OHV (Over Head Valve) design
2 valves per cylinder
1100cc engine option for California
750cc engine option for Nevada
Electronic fuel injection for Nevada

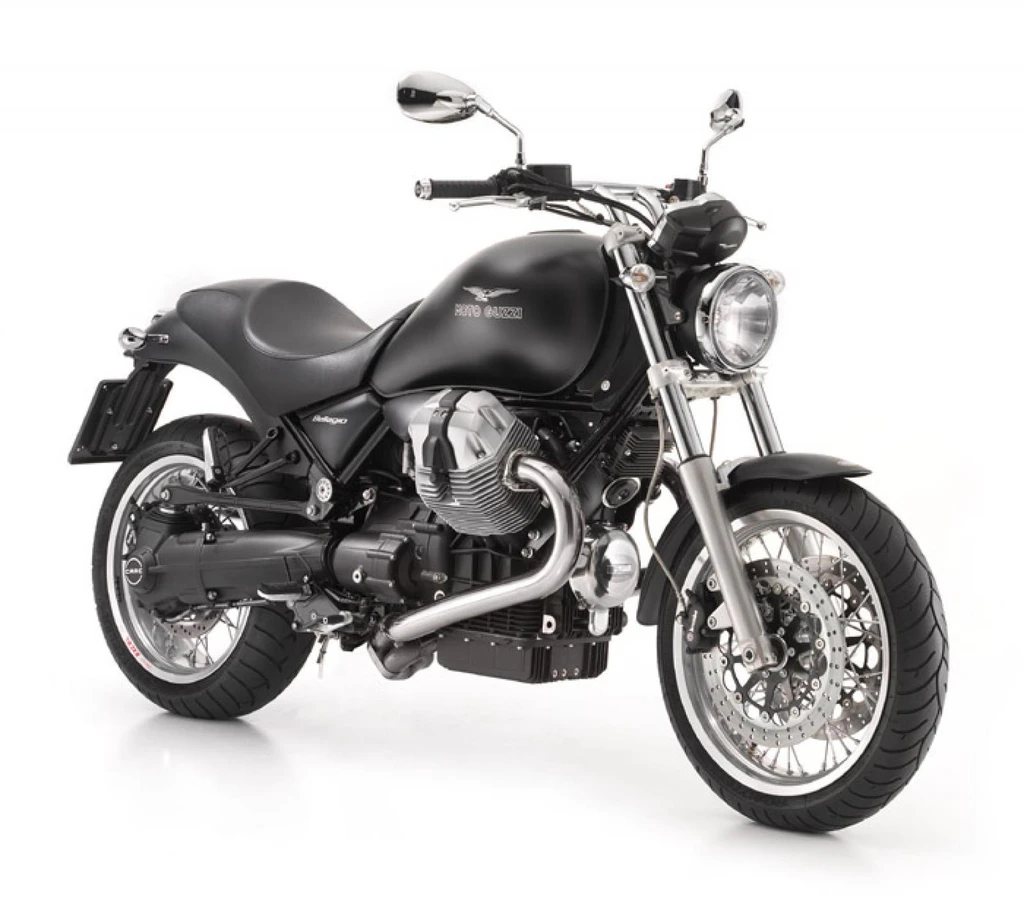

940cc short stroke engine for Bellagio
Dual spark plugs for Bellagio
Compact reactive cardan shaft (CA.R.C.) transmission for Bellagio
Six speed gearbox for Bellagio
