Moto Guzzi MGX-21 Flying Fortress (2016 – 2017)

Moto Guzzi MGX-21 Flying Fortress (2016 - 2017)

The MGX-21 Flying Fortress is a radical departure from traditional baggers, blending classic style with cutting-edge technology. This Italian stallion is powered by the same 1380cc 90-degree V-Twin found in the California 1400, producing a claimed 88.5 lb-ft of torque.

The Flying Fortress’s futuristic look is defined by its heavily sculpted batwing fairing and extensive use of carbon fiber, which adds to its aggressive stance. But what truly sets it apart is its impressive array of electronic rider aids, including three levels of traction control, three riding modes, two-channel ABS, cruise control, and a ride-by-wire system.

The result is a riding experience that’s both thrilling and accessible, with the bike’s stability and handling aided by the unique wheel covers that direct air flow from one side of the hub to the other. With its monochrome dot matrix display, entertainment system, and Bluetooth connectivity, the MGX-21 is a technological tour de force that’s as much at home on the highway as it is in the twisties. And as you settle into its saddle, you’ll be flying high on the wind, the sound of its V-Twin rumble a constant companion on the open road.

Key Specifications

Engine TypeFour stroke, 90 V-twin, SOHC, 4 valves per cylinder
Engine Capacity84.2 cubic inches / 1380 cc
Max Power96 hp /71 kW@ 6500 rpm
Max Torque89 ft/lb / 120 Nm @ 2750 rpm
Fuel Tank Capacity5.4 US gallons / 20.5 L
Seat Height29.1 inches / 740 mm
Moto Guzzi MGX-21 Flying Fortress (2016 - 2017)

All Specifications

Make & Model

ModelMoto Guzzi MGX-21 Flying Fortress
Year2016 – 2017

Engine

Engine TypeFour stroke, 90 V-twin, SOHC, 4 valves per cylinder
Displacement84.2 cubic inches / 1380 cc
Bore x Stroke104 x 81.2 mm
Compression Ratio10.5:1
Max Horsepower96 hp /71 kW@ 6500 rpm
Max Torque89 ft/lb / 120 Nm @ 2750 rpm
Lubrication SystemWet sump
Cooling SystemAir/ oil cooled
ExhaustThree-way catalyser with lambda probe

Performance

Top Speedn/a

Transmission

ClutchSingle-disc with integrated anti-vibration buffer
Gearbox6 speeds with final overdrive
Gear Ratios1st 17/38 = 1 : 2.235 2nd 20/34 = 1 : 1.700 3rd 23/31 = 1 : 1.348 4th 26/29 = 1 : 1.115 5th 31/30 = 1 : 0.968 6th 30/24 = 1 : 0.8
Final DriveShaft

Electrical & Electronics System

Battery12V – 18 Ah
StarterElectric

Chassis & Suspension

Frame TypeDouble cradle tubular frame in ALS steel with detachable rear subframe
Front SuspensionStandard swingarm, 46 mm, with radial calliper mounting bracket and telescopes on the stanchions,
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionSwingarm with double shock absorber with adjustable spring preload.
Rear Suspension Travel4.3 inches / 110 mm
Trail2750

Wheels & Brakes

WheelsSpoked steel rims
Front Tire Size130/70 R18
Rear Wheel/Rim SizeAluminium alloy 6.00 x 16
Rear Tire Size200/60 R16
Front Brakes2×320 mm stainless steel floating discs, Brembo radial callipers with 4 horizontally opposed pistons
Rear BrakesSingle282 mm stainless steel fixed disc, Brembo floating calliper with 2 parallel pistons

Dimension & Weights

Seat Height29.1 inches / 740 mm
Wheelbase66.7 inches / 1695 mm
Ground Clearance165 mm / 6.4 in
Fuel Tank Capacity5.4 US gallons / 20.5 L

Features

  • 1380cc 90-degree V-Twin engine
  • 88.5 lb-ft of torque
  • Carbon fiber used extensively in the design
  • Saddlebags for storage
  • Heavily sculpted batwing fairing
  • Electronic rider aids with three levels of traction control
  • Three riding modes
  • Two-channel ABS
  • Cruise control
  • Ride-by-wire system
  • Monochrome dot matrix display
  • Entertainment system with stereo and intercom
  • Bluetooth connectivity
  • LED lighting system
  • Wheel covers for increased stability and handling
  • Unique and patented technological features

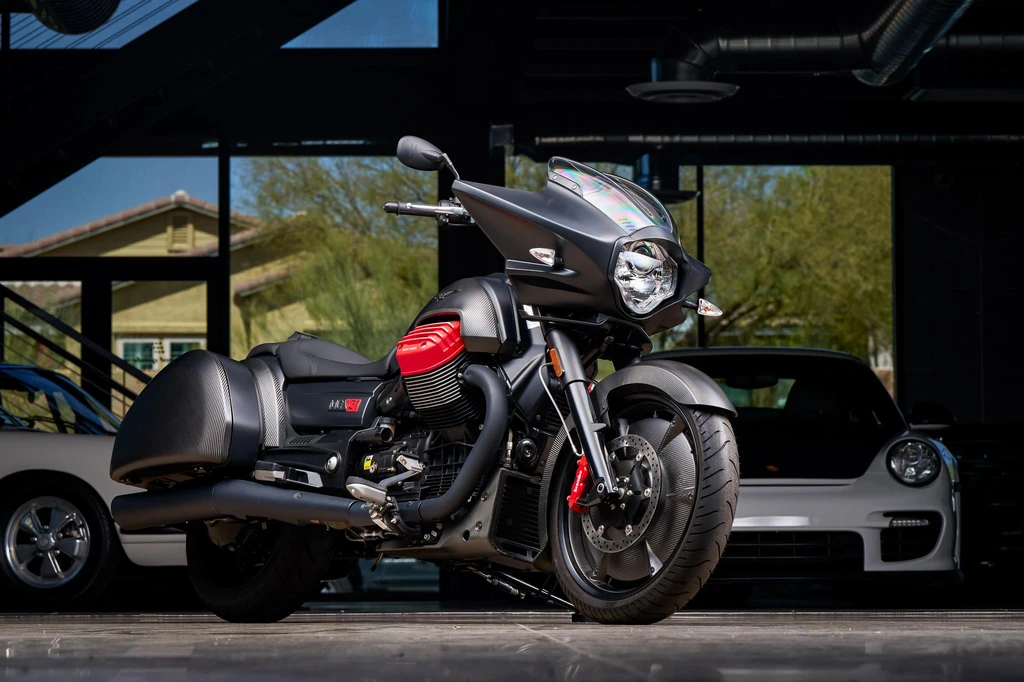

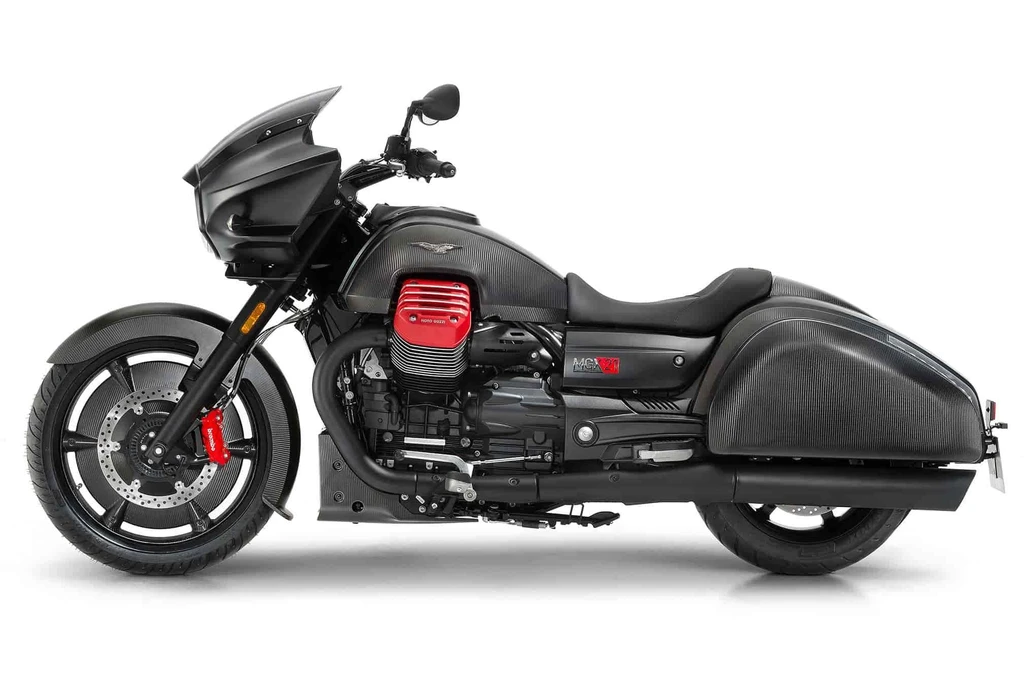

Moto Guzzi MGX-21 Flying Fortress (2016 - 2017)

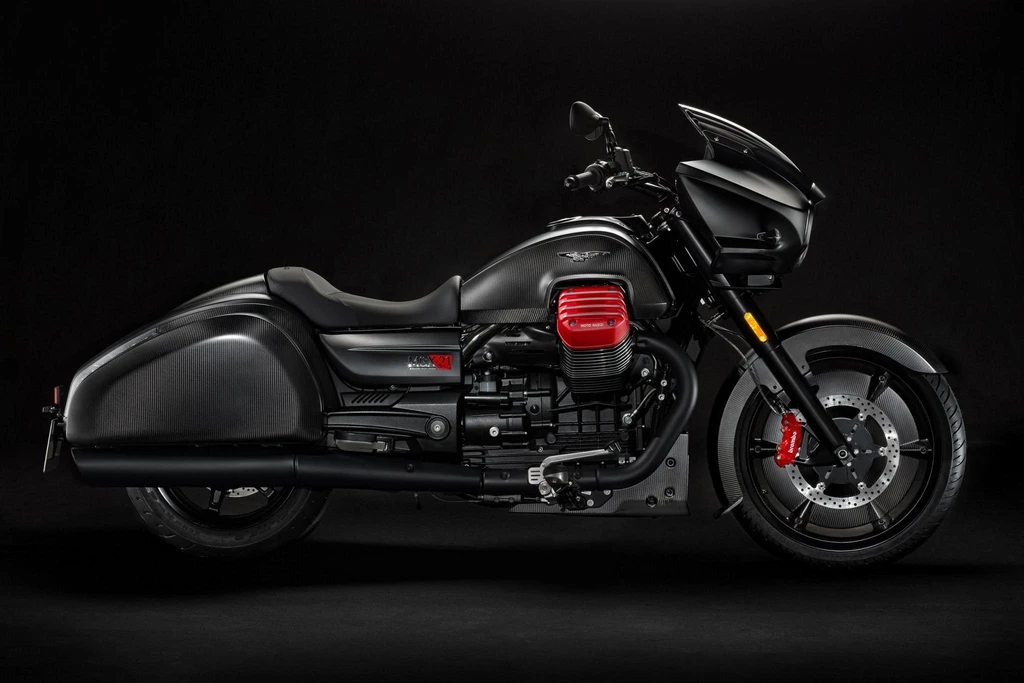

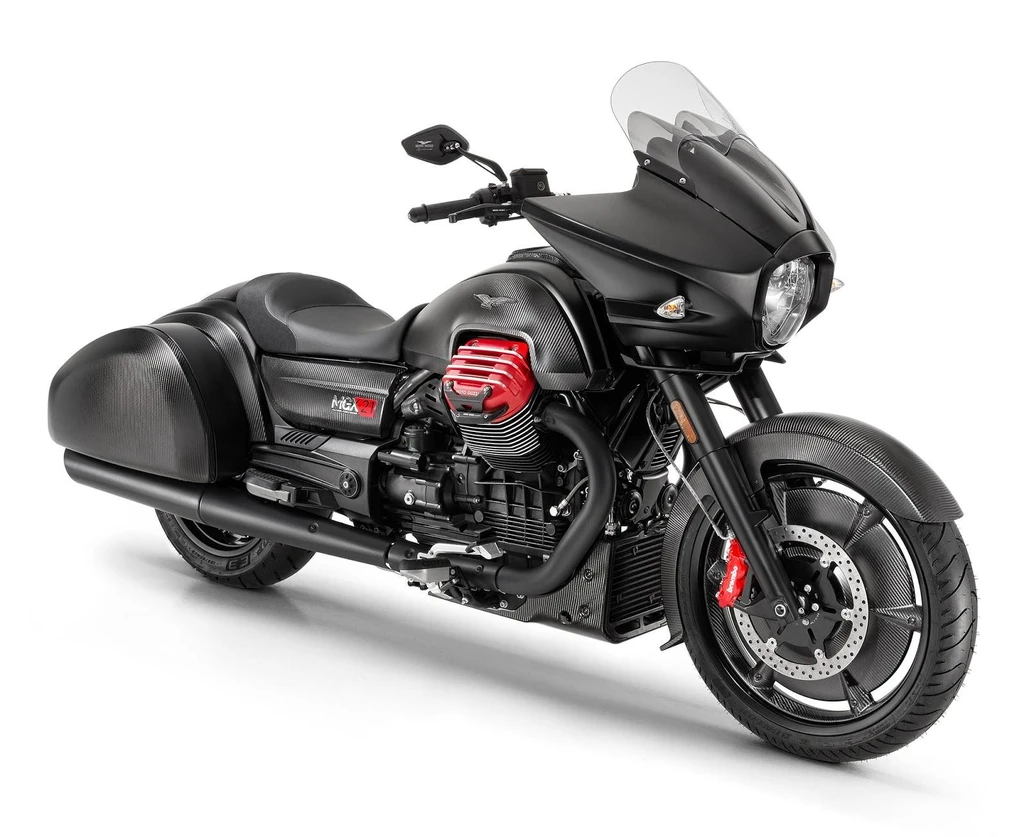

Moto Guzzi MGX-21 Flying Fortress (2016 - 2017)

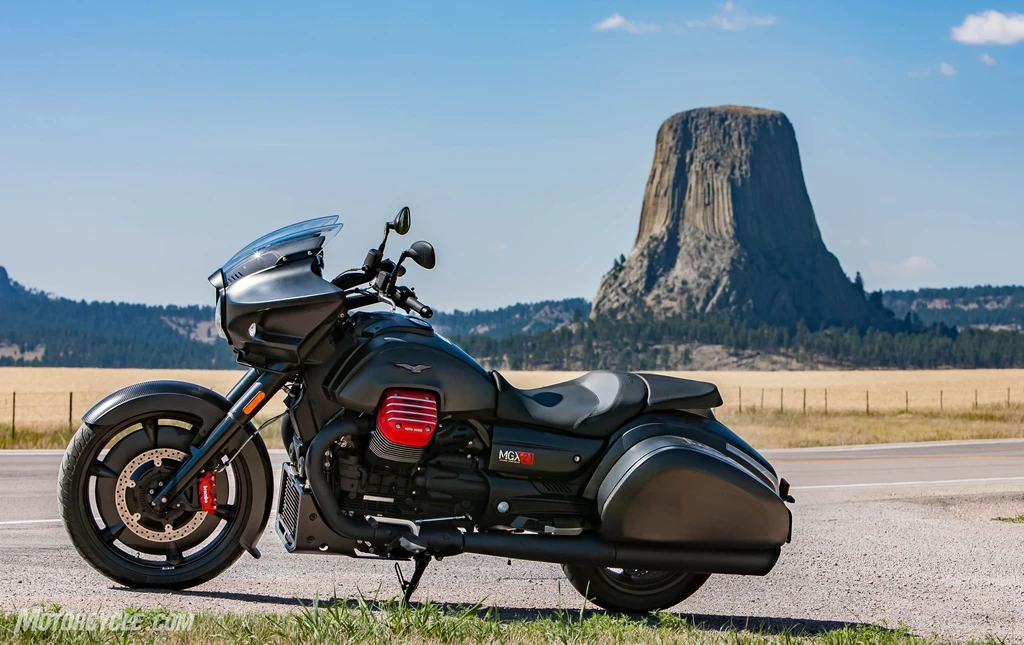

Moto Guzzi MGX-21 Flying Fortress (2016 - 2017)

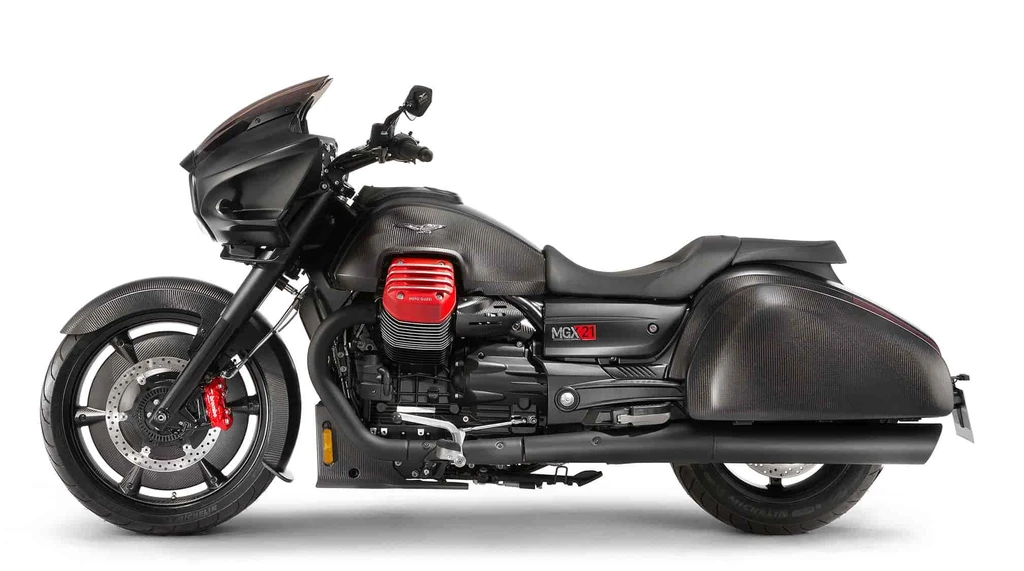

Moto Guzzi MGX-21 Flying Fortress (2016 - 2017)
