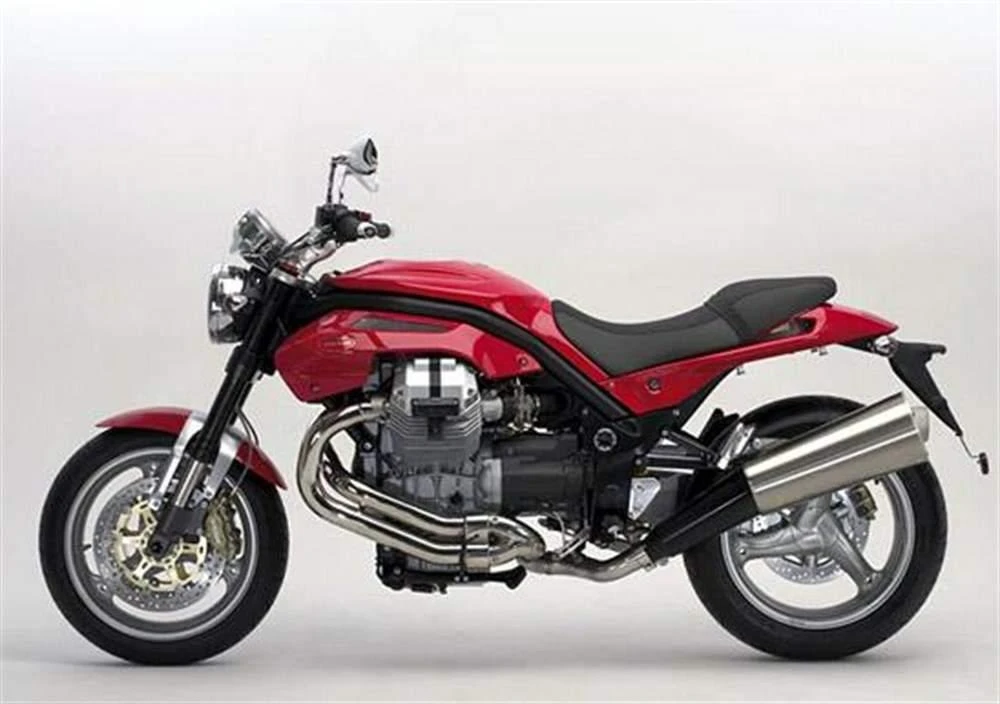

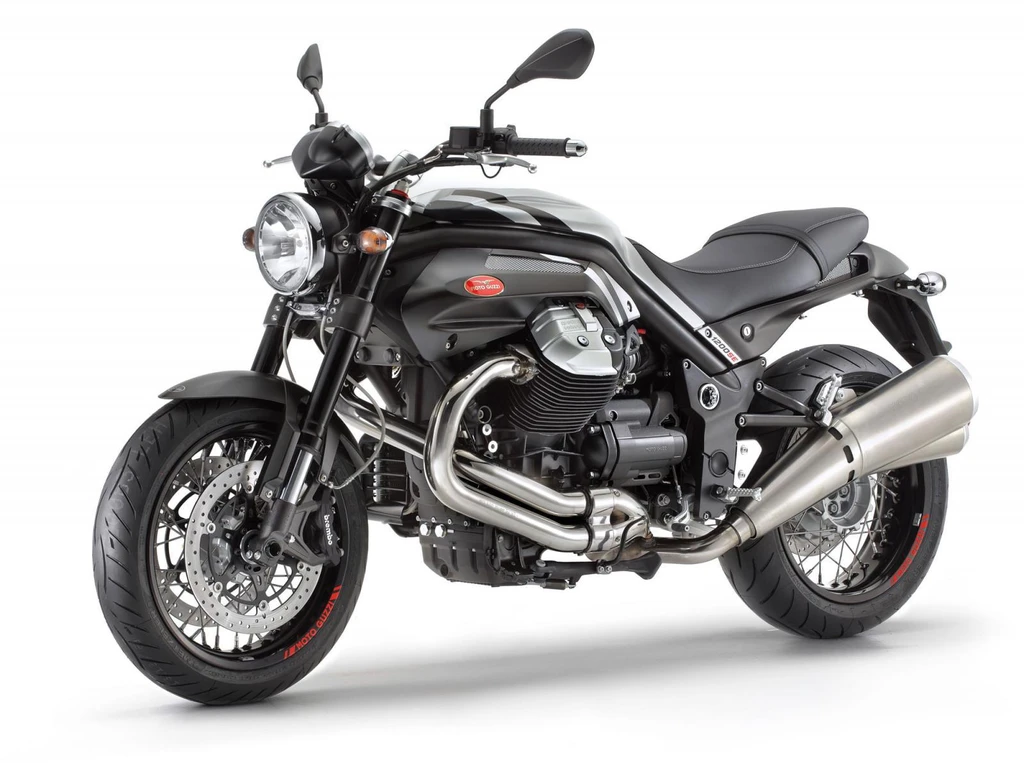

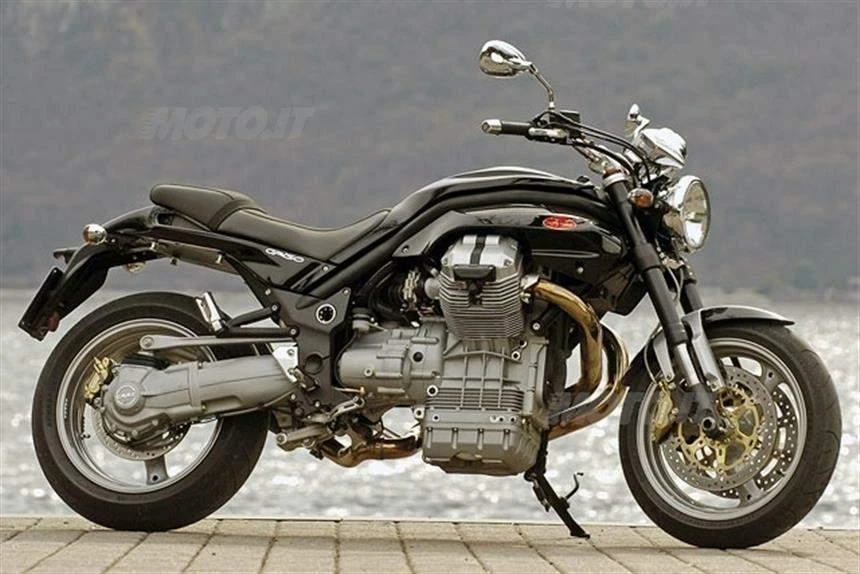

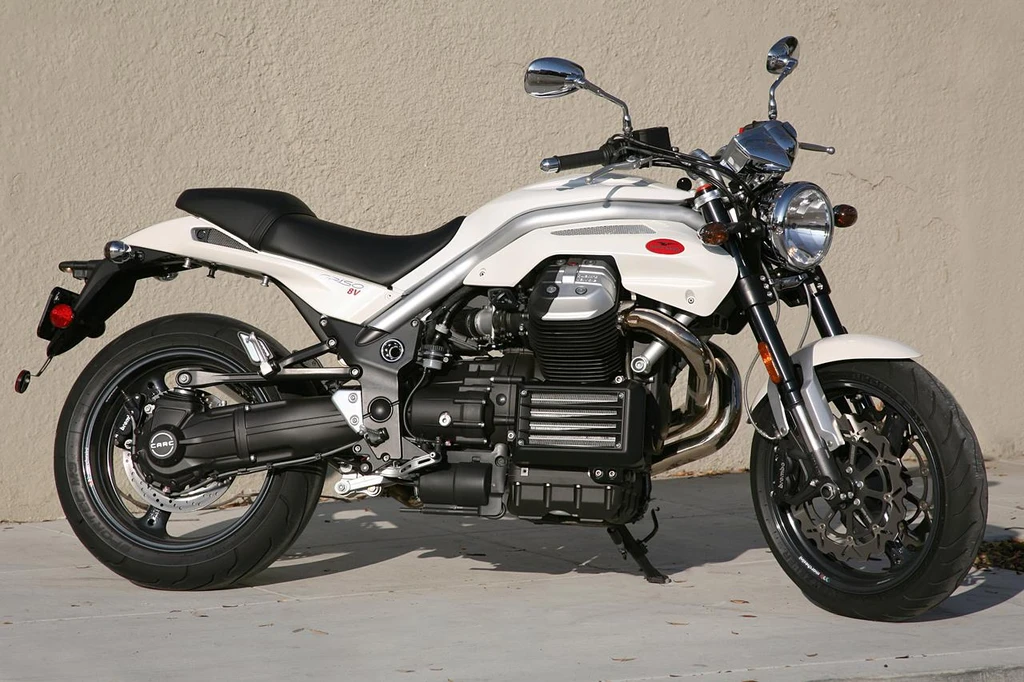

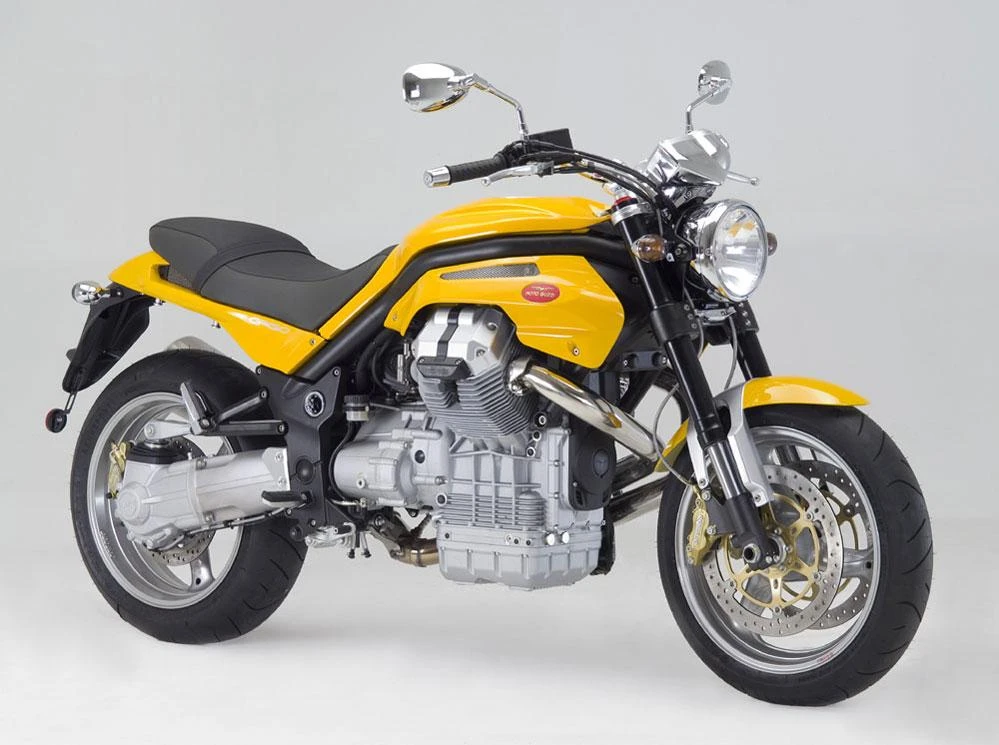

Moto Guzzi Griso850 (2007 - 2009)

The Moto Guzzi Griso 850 – a machine that embodies the very essence of Italian bike culture. This 850cc big twin boasts a technologically advanced engine that delivers sports-like performance, making it an absolute delight to ride on twisty roads or when tackling challenging climbs. With its aggressive appearance and black frame, grey transmission, and wheels, the Griso 850 exudes a determined and exuberant character that is impossible to ignore. While it may lack the oil cooler of its larger sibling, the 1100, its charm lies in its very own unique personality. The result is a bike that is at once both raw and refined, a true embodiment of the Moto Guzzi spirit. And with its distinctive styling, complete with the iconic “cannone fotonico” exhaust and “smilzo” fuel tank cap, the Griso 850 is sure to leave a lasting impression on any who are lucky enough to ride it.

Key Specifications

Engine Type	Four stroke, 90 V twin, longitudinally mounted, light alloy push-rod, 2 valves per cylinder.
Engine Capacity	53.5 cubic inches / 877 cc
Max Power	75 hp / 54.8 kW @ 7600 rpm
Max Torque	51.6 ft-lb / 70 nm
Fuel Tank Capacity	4.5 US gallons / 17.2 L
Seat Height	31.5 inches / 800 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Moto Guzzi Griso850
Year	2007 – 2009

Engine

Engine Type	Four stroke, 90 V twin, longitudinally mounted, light alloy push-rod, 2 valves per cylinder.
Displacement	53.5 cubic inches / 877 cc
Bore x Stroke	92 x 66 mm
Compression Ratio	9.8:1
Max Horsepower	75 hp / 54.8 kW @ 7600 rpm
Max Torque	51.6 ft-lb / 70 nm
Engine Management System	Magneti Marelli IAW alfa-n system Multipoint phased sequential fuel; 2 throttle bodies of 40 mm with injectors Weber IW 031, Lambda sensor
Lubrication System	Splash
Cooling System	Air cooled
Exhaust	Stainless steel, 2 in 1, with three ways catalyser and Lambda probe oxygen sensor

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Dual disc dry
Gearbox	6 Speed
Gear Ratios	1st 17/38 = 1 : 2.2352nd 20/34 = 1 : 1.7003rd 23/31 = 1 : 1.3474th 26/29 = 1 : 1.1155th 31/30 = 1 : 0.9676th 29/25 = 1 : 0.862
Final Drive	Shaft

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Double cradle, in high tensile strenght tubular steel
Front Suspension	Telescopic hydraulic fork with 45 mm, preload adjustable
Front Suspension Travel	4.7 inches / 120 mm
Rear Suspension	Single arm suspension progressive linkage, rear shock absorber adjustable in rebound ad pre-load
Rear Suspension Travel	4.35 inches / 110 mm
Rake	26.3
Trail	108 mm / 4.3 in

Wheels & Brakes

Front Tire Size	120/70 ZR17
Rear Tire Size	180/55 ZR17
Front Brakes	2x 320mm discs 4 piston calipers
Rear Brakes	Single 282mm disc 2 piston caliper

Dimension & Weights

Seat Height	31.5 inches / 800 mm
Wheelbase	61.2 inches / 1554 mm
Ground Clearance	185 mm / 7.3 in
Fuel Tank Capacity	4.5 US gallons / 17.2 L
Dry Weight	227 kg /500.4 lbs

Features

850cc engine
Sports-like performance
Aggressive appearance
Black frame
Grey transmission and wheels
Oil cooler on the right hand side (missing)
Different engine coloration
Different wheel coloration
Different transmission coloration
Different exhaust collector design
877cc displacement
56kW power output (compared to 64.8kW)
70Nm torque output (compared to 89Nm)
Same fluidity in power delivery
Same ability to handle low-end acceleration
Adjustable seat height (800mm)
Wide handlebar
High and rear-set footpegs
Modern mixed analog-digital instrumentation
Rich set of information displayed on the instrument cluster
