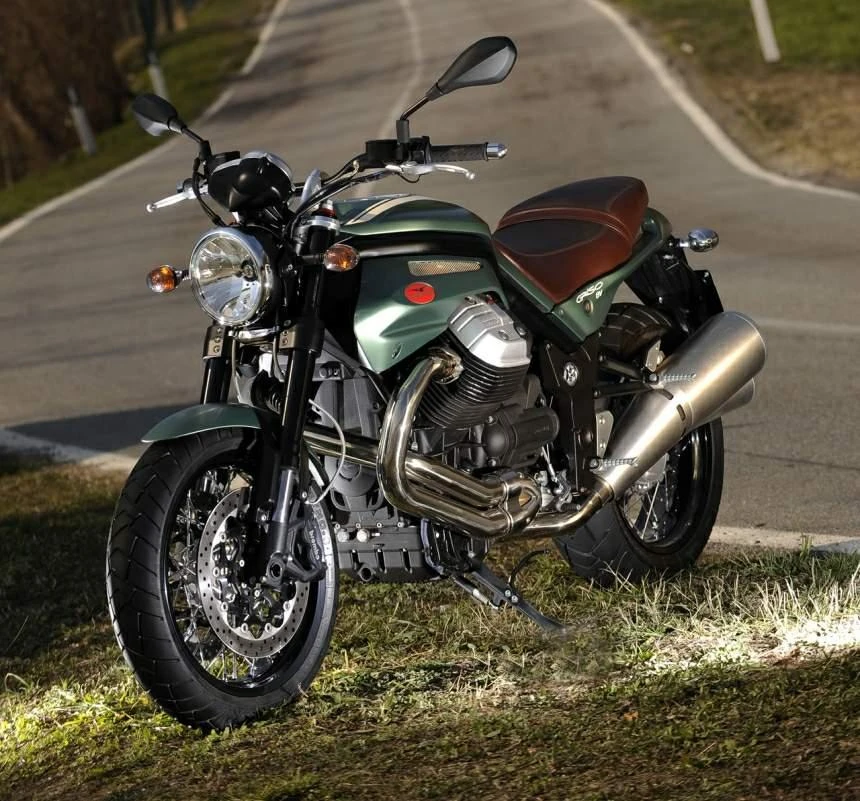

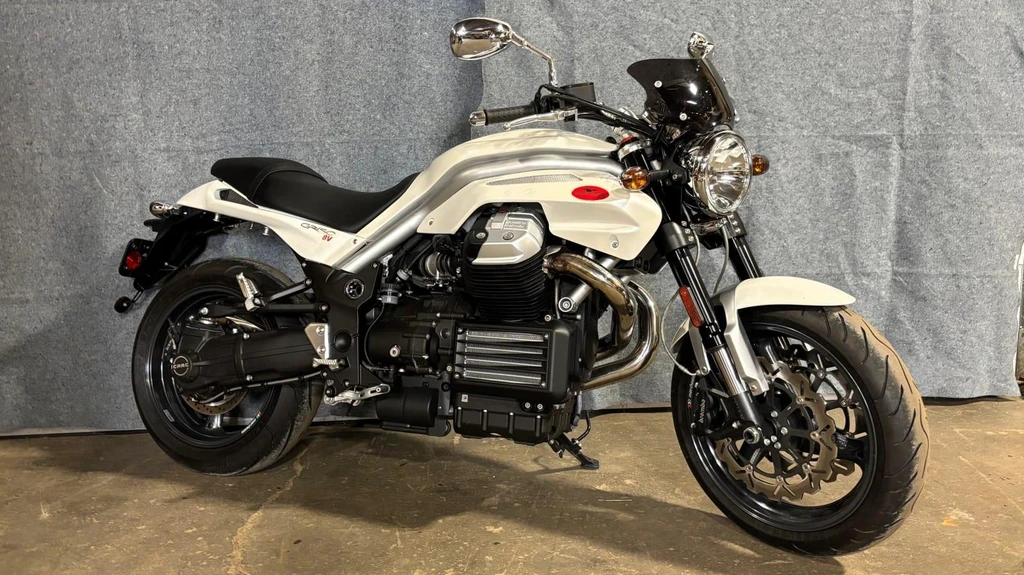

Moto Guzzi Griso 1200 8VS.E. (2009 – 2010)

Moto Guzzi Griso 1200 8VS.E. (2009 - 2010)

The Moto Guzzi Griso 8V SE is a masterpiece of Italian engineering, boasting a bold and nonconformist styling that sets it apart from its peers. At the heart of this exceptional motorcycle is a powerful transverse 90 V-twin “Quattrovalvole” series engine, delivering a peak power of approximately 110 hp at just 7500 rpm.

This potent powerplant is matched by a sophisticated chassis, capable of handling the engine’s impressive output with ease. The Griso 8V SE’s silky smooth power delivery and commanding presence invite the rider to push the limits of the motorcycle, and its outstanding chassis ensures that the rider remains firmly in control.

With its unique “Tenni” livery and premium leather saddle, the Griso 8V SE is a true work of art, designed to deliver an unparalleled riding experience. Whether carving through twisties or cruising down the highway, this exceptional motorcycle is sure to leave a lasting impression.

Key Specifications

Engine TypeFour stroke, V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Engine Capacity70.2 cubic inches / 1151 cc
Max Power80.8 kw / 108.3 hp
Max Torque80 ft-lb / 108 nm
Fuel Tank Capacity16.7 Litres / 4.5 gal
Seat Height31.4 inches / 800 mm
Moto Guzzi Griso 1200 8VS.E. (2009 - 2010)

All Specifications

Make & Model

ModelMoto Guzzi Griso 1200 8VS.E.
Year2009 – 2010

Engine

Engine TypeFour stroke, V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Displacement70.2 cubic inches / 1151 cc
Bore x Stroke95 x 81.2 mm
Compression Ratio11.0:1
Max Horsepower80.8 kw / 108.3 hp
Max Torque80 ft-lb / 108 nm
Engine Management SystemMultipoint sequential electronic injection, Magneti Marelli IAW 5A phased, alfa-n system; 2 x 50 mm throttle bodies with Weber IWP 189 injectors, Lambda probe.
Lubrication SystemWet sump
Cooling SystemAir cooled
ExhaustStainless steel two-into-one 3-way catalysed with Lambda probe.

Performance

Top Speed210 km/h

Transmission

ClutchSingle plate with integrated flexible couplings
Gearbox5 Speed
Gear Ratios1st17/38 = 1 : 2.2352nd20/34 = 1 : 1.7003rd23/31 = 1 : 1.3484th26/29 = 1 : 1.1155th31/30 = 1 : 0.9686th29/25 = 1 : 0.862
Final DriveShaft

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeHigh tensile steel tubular twin cradle
Front SuspensionUpside down 43 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
Front Suspension Travel120 mm / 4.7
Rear SuspensionProgressive single swingarm, fully adjustable monoshock with separate gas reservoir spring preload and hydraulic for rebound and compression.
Rear Suspension Travel4.3 inches / 110 mm
Rake26.3
Trail108 mm / 4.2 in

Wheels & Brakes

WheelsTubeless spoke wheels with aluminium Ber rim and Alpina spokes.
Front Tire Size120/70 ZR17
Rear Tire Size180/55 ZR17
Front Brakes2x 320 mm discs 4 piston calipers
Rear BrakesSingle 282mm disc 2 piston caliper

Dimension & Weights

Seat Height31.4 inches / 800 mm
Wheelbase61.0 inches / 1554 mm
Ground Clearance185 mm / 7.28 in
Fuel Tank Capacity16.7 Litres / 4.5 gal
Dry Weight222 kg / 489 lbs

Features

  • Air-cooled 1,150cc 8-valve engine
  • 110bhp at 7,500rpm
  • 108Nm of torque at 6,400rpm
  • Six-speed gearbox
  • Shaft drive
  • 17-inch rear wheel
  • 43mm USD fork at the front
  • Adjustable Boge rear shock
  • Twin 320mm Bembo discs at front
  • Radial-mount four-piston callipers
  • Single 282mm Brembo disc at the rear
  • Pirelli Scorpion tyres
  • Premium leather saddle with visible stitching
  • Attractive spoke wheels
  • Colour-coordinated badges
  • Matte green “Tenni” livery
  • Frame, wheels, steering plates, and handlebar painted black
  • Twin overhead tubular elements in high tensile steel
  • Lateral reinforcement of the lower cradle with ribbing
  • Torsional rigidity to the bike as a whole
  • Headstock inclined by 26
  • Trail of 108 mm
  • Wheelbase of 1544 mm
