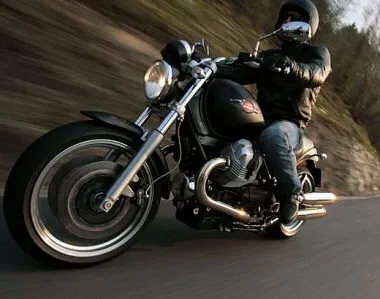

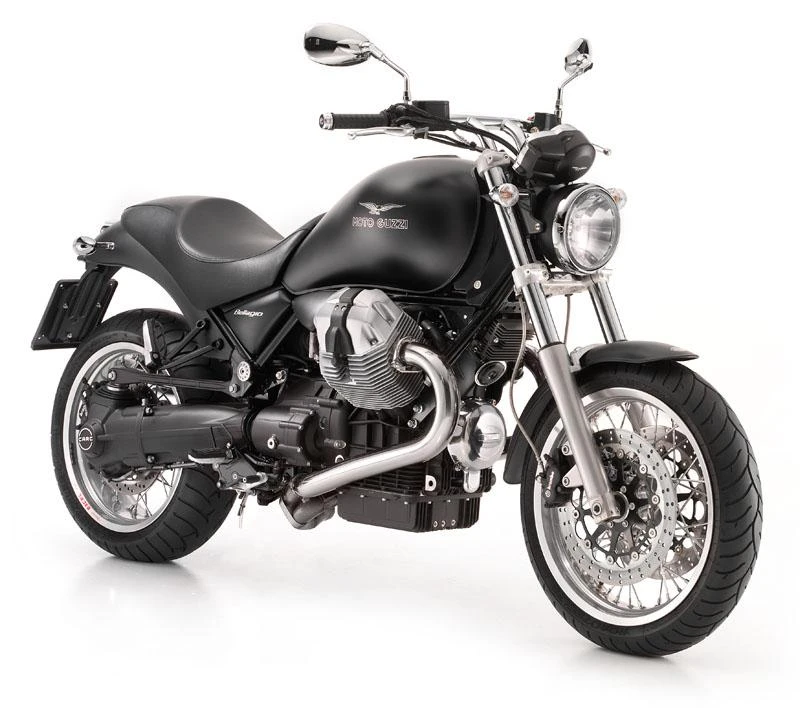

The Moto Guzzi Bellagio 940 is a custom-built motorcycle that embodies the essence of the legendary California model. At first glance, it appears to be hugging the road, yet poised to unleash its full potential at a moment’s notice, its powerful rear tire eager to propel the bike forward with breathtaking speed.
The 940’s compact frame cleverly conceals a potent engine that responds eagerly to even the slightest input from the rider. A specially designed riding position puts the rider in command, with a low, forward-set handlebar and saddle that seem to invite the rider to climb on and take control.
The Guzzi’s blend of style, technical innovation, and retro flair is a compelling combination that seduces the senses. From the spoked wheels and retro-style instrumentation to the chromed tank decor and aggressive exhaust system, every detail is a testament to Moto Guzzi’s reputation as a leader in the custom motorcycle world.
Whether cruising through the city or carving through the twisties, the Bellagio 940 is a machine that demands to be ridden hard and loved even harder, its potent engine and smooth, reactive shaft drive system making it an absolute joy to ride.
Key Specifications
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Engine Capacity
935
Max Power
75 hp /55 kW @ 7200 rpm
Max Torque
57.5 ft-lb / 78 nm
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Weight (Wet/Kerb)
509 lbs / 231 kg
Seat Height
30.7 inches / 780 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi Bellagio 940
Year
2007 –
Engine
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Displacement
935
Bore x Stroke
95 x 66 mm
Compression Ratio
10.0:1
Max Horsepower
75 hp /55 kW @ 7200 rpm
Max Torque
57.5 ft-lb / 78 nm
Engine Management System
Magneti Marelli IAW alfa-n fuel injection system
Cooling System
Air cooled
Exhaust
2 stainless steel pipes connected to 1 expansion chamber connected to two chromed steel silencers; 3-way catalyser with Lambda probe.
Performance
Top Speed
199.5 km/h
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Tubular steel double cradle
Front Suspension
45mm forks, preload and rebound adjust
Rear Suspension
Single shock with preload and rebound adjust
Wheels & Brakes
Front Tire Size
120/70 ZR 18
Rear Tire Size
180/55 ZR 17
Front Brakes
2x 320mm discs 2 piston calipers
Rear Brakes
Single 292mm disc 2 piston caliper
Dimension & Weights
Seat Height
30.7 inches / 780 mm
Fuel Tank Capacity
5.0 US gallons / 19.0 L
Wet (kerb/curb) Weight
509 lbs / 231 kg
Dry Weight
224 kg / 493.8 lbs
Features
Designed to evoke the on-road culture of the Custom world
Muscular but compact frame design
Engine designed to respond immediately from low revs
Special riding position for control and dominance
Low forward position of the handlebars
Saddle close to the rear wheel
Spoked wheels
Retro-style rounded instrumentation
Chromed tank decor
Reactive shaft drive system
Smooth acceleration
Aggressive exhaust system with twin coiled pipes
Engine with powerful acceleration
