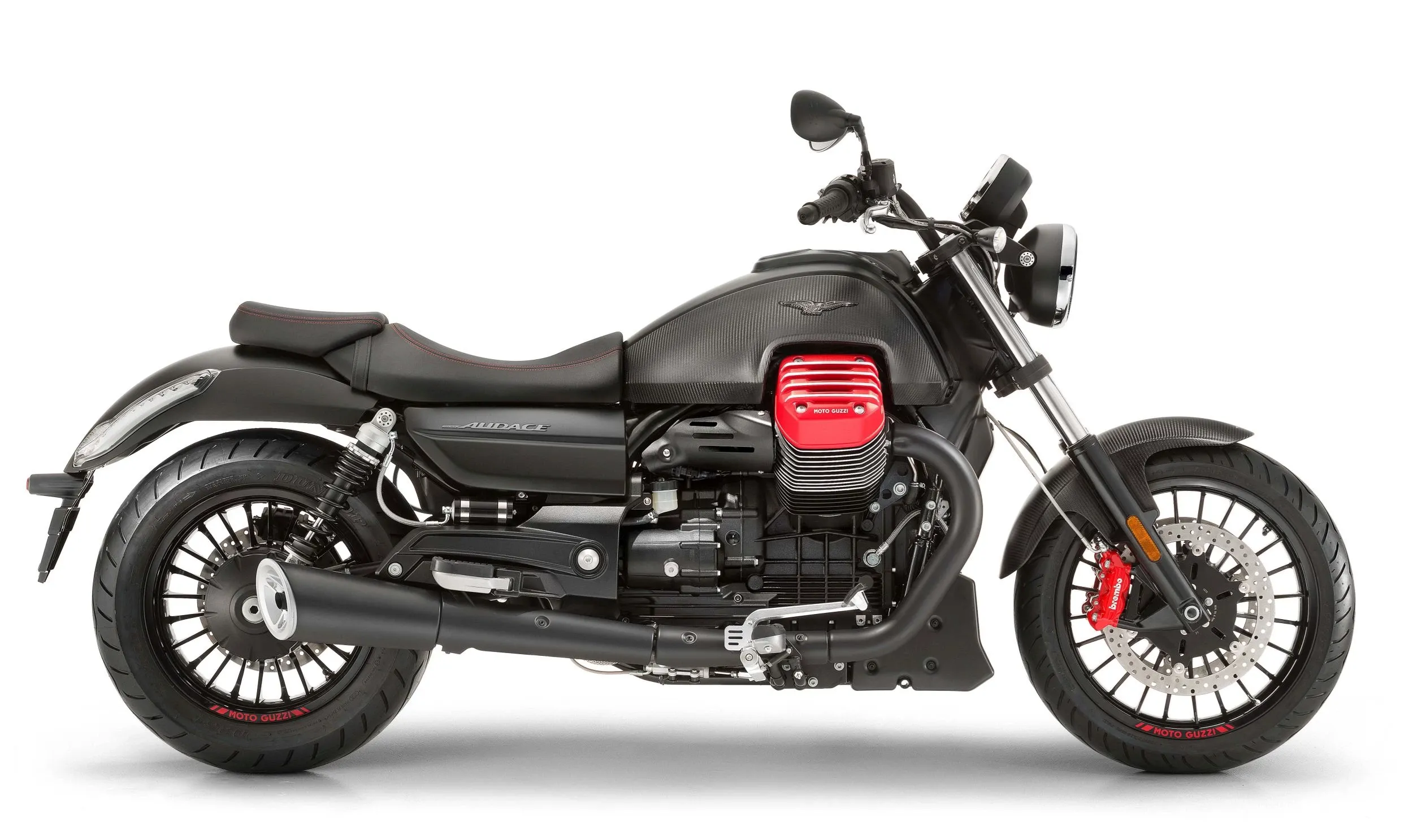

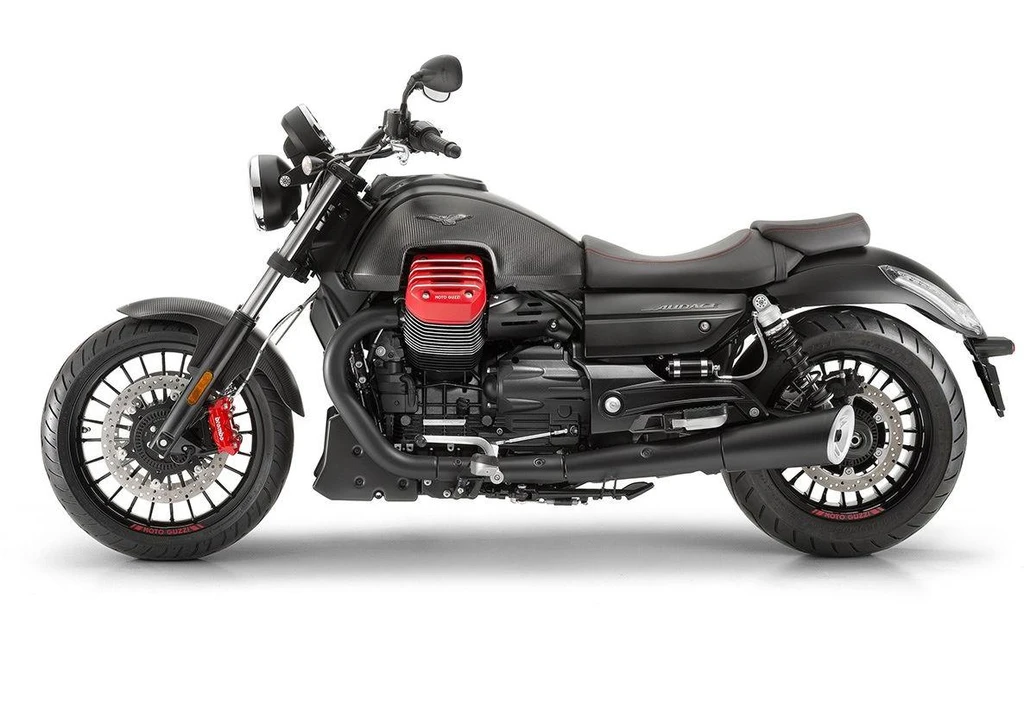

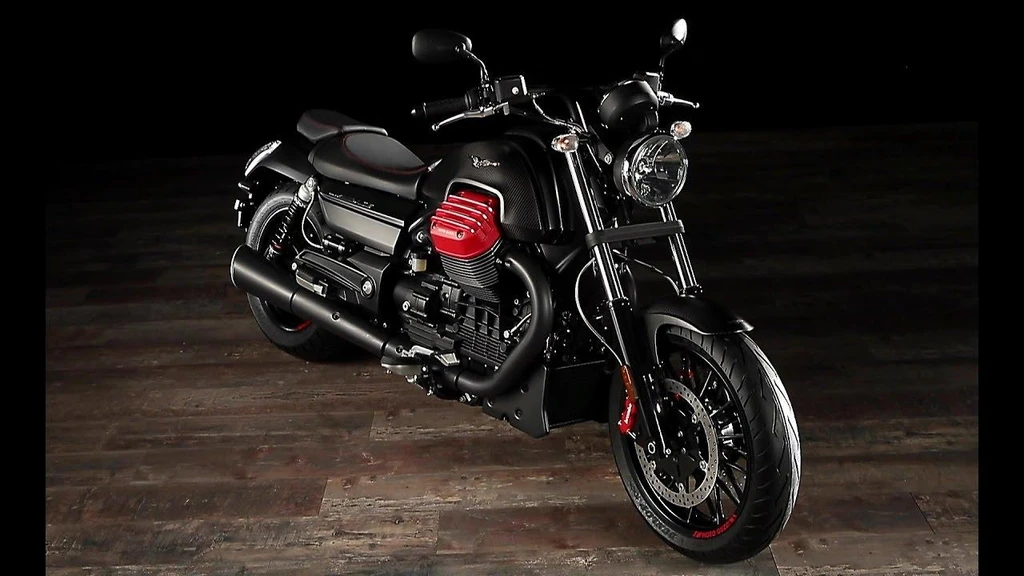

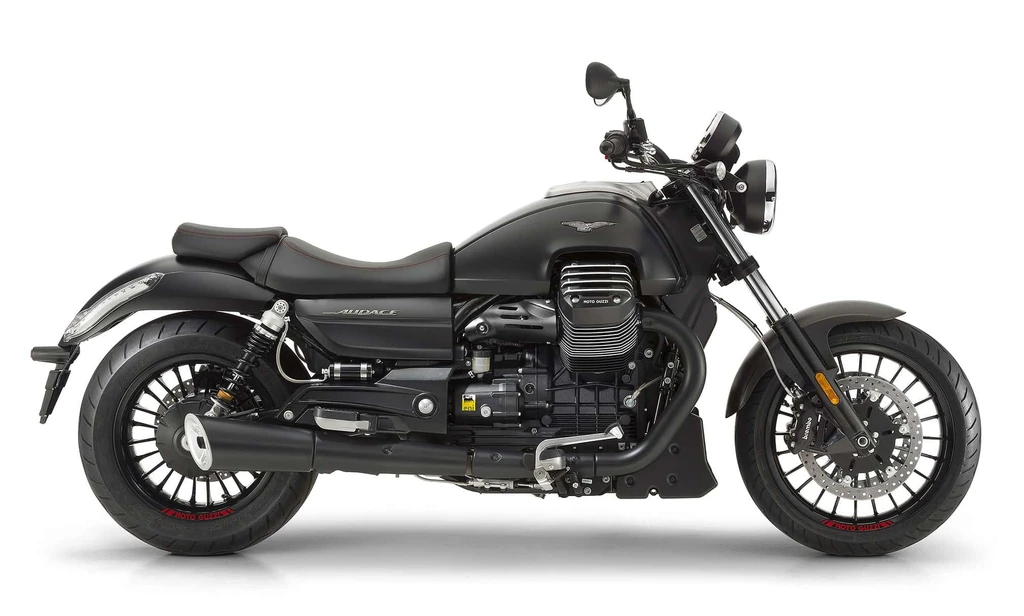

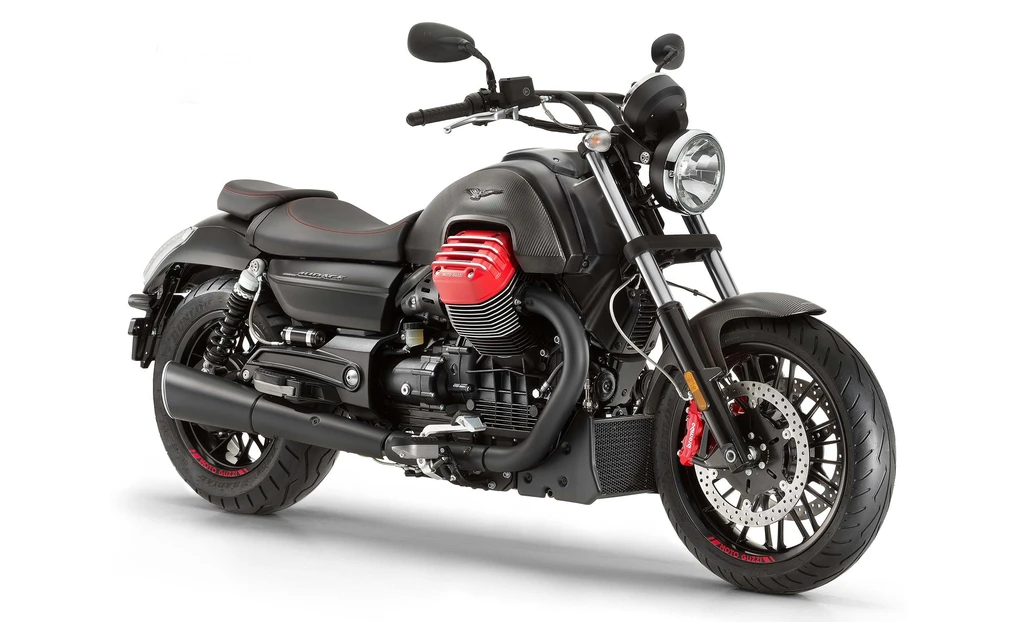

Moto Guzzi AudaceCarbon (2017)

The Moto Guzzi Audace Carbon is a striking declaration of the brand’s modern soul and future, boasting a sleek all-black theme and aggressive styling. Powered by the potent 1380cc v-twin engine, this Italian thoroughbred unleashes a commanding 89 lb-ft of torque at a mere 3,000 rpm, making it an absolute blast to ride.

With its restyled bars and secondary air system, the Audace Carbon is not only a head-turner but also a technologically advanced machine, meeting Euro 4 compliance with ease. The engine’s character is perfectly suited for both urban and touring duties, thanks to its three riding modes: Veloce, Turismo, and Pioggia.

But what truly sets the Audace Carbon apart is its exceptional riding experience, made even more exhilarating with the optional Moto Guzzi Multimedia Platform (MG-MP) that connects the bike to your smartphone, providing real-time data and enhancing the overall riding experience.

Key Specifications

Engine Type	Four stroke, 90 V-twin, SOHC, 4 valves per cylinder
Engine Capacity	84.2 cubic inches / 1380 cc
Max Power	71 kw / 96 hp
Max Torque	121 Nm / 12.3 kgf-m / 89.2 ft/lb @ 3000 rpm
Fuel Tank Capacity	4.7 US gallons / 20.5 L
Seat Height	29.1 inches / 740 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Moto Guzzi AudaceCarbon
Year	2017

Engine

Engine Type	Four stroke, 90 V-twin, SOHC, 4 valves per cylinder
Displacement	84.2 cubic inches / 1380 cc
Bore x Stroke	104 x 81.2 mm
Compression Ratio	10.5:1
Max Horsepower	71 kw / 96 hp
Max Torque	121 Nm / 12.3 kgf-m / 89.2 ft/lb @ 3000 rpm
Lubrication System	Wet sump
Cooling System	Air and oil cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Single-disc with integrated anti-vibration buffer
Gearbox	6 speed with final overdrive
Gear Ratios	1st 17:38 = 1:2.235 / 2nd 20:34 = 1:1.700 / 3rd 23:31 = 1:1.348 / 4th 26:29 = 1:1.115 / 5th 31:30 = 1:0.968 / 6th 30:24 = 1:0.8
Final Drive	Shaft

Electrical & Electronics System

Battery	12V – 18 Ah
Starter	Electric

Chassis & Suspension

Frame Type	Steel tubing, closed double cradle with elastic kinematic engine mounting system to isolate vibrations.
Front Suspension	Standard fork, 45 mm, with radial caliper mounting bracket
Front Suspension Travel	4.7 inches / 120 mm
Rear Suspension	Swingarm with double shock absorber with adjustable extension and spring preload with remote tank
Rear Suspension Travel	4.7 inches / 120 mm
Trail	38

Wheels & Brakes

Front Tire Size	130/70 R18
Rear Wheel/Rim Size	Aluminium alloy 6.00 x 16
Rear Tire Size	200/60 R16
Front Brakes	2 x320 mm stainless steel floating discs, Brembo radial calipers with 4 horizontally opposed pistons
Rear Brakes	Single282 mm stainless steel fixed disc, Brembo floating caliper with 2 parallel pistons

Dimension & Weights

Overall Length	2445 mm / 90.2 in
Overall Width	940 mm / 37.0 in
Overall Height	1180 mm / 46.5 in
Seat Height	29.1 inches / 740 mm
Wheelbase	66.3 inches / 1685 mm
Ground Clearance	165 mm / 6.4 in
Fuel Tank Capacity	4.7 US gallons / 20.5 L

Features

1380 cc v-twin engine
Carbon fiber front mudguard
All-black theme
Red cylinder head covers
Front brake calipers
Branded rims
Restyled bars
Secondary air system
Euro 4 compliant engine
89 lb-ft (120 Nm) max torque
3,000 rpm max torque
3 riding modes: Veloce, Turismo, Pioggia
Moto Guzzi Multimedia Platform (MG-MP) connectivity
Smartphone app connectivity
Trip parameters display on smartphone
Eco Ride feature for fuel efficiency
Longitudinal acceleration display
Extended trip computer
Storage and review of trip data
