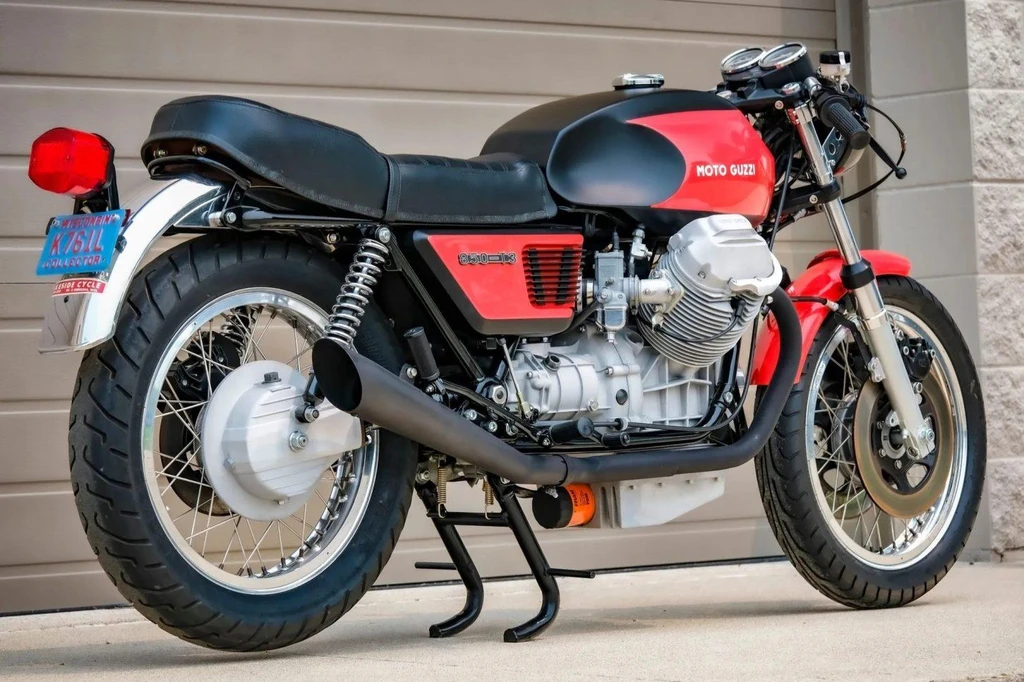

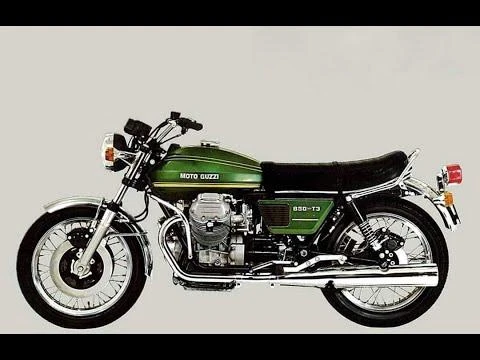

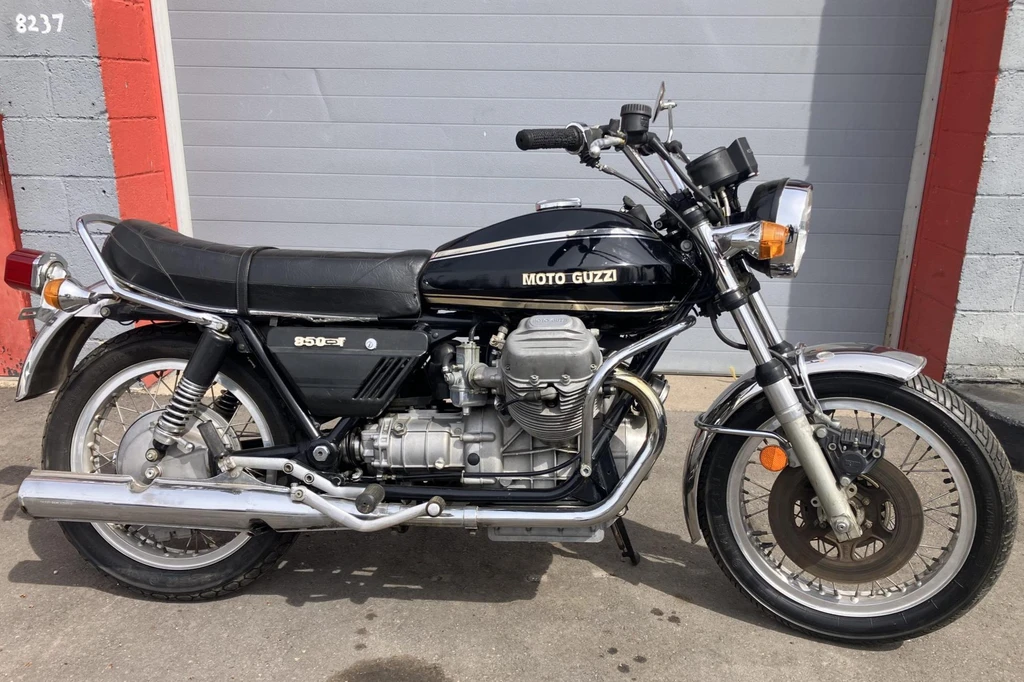

The Moto Guzzi 850 T3, a bike that wears its American influences on its sleeve, yet remains firmly rooted in Italian ingenuity. Its 90-degree V-twin engine, a longitudinally mounted masterpiece, delivers a potent blend of power and flexibility. As you settle into the saddle, you’re immediately struck by the bike’s riding position, a transcontinental stance that’s both bold and inviting.
The styling, while pseudo-American in inspiration, is unmistakably European in execution, with a dash of Italian flair that sets it apart from its transatlantic cousins. And then, of course, there’s the engine – a 90-degree V-twin that’s as raw and unrefined as it is engaging. Its unique character is impossible to ignore, with a hint of roughness that only adds to its charm.
But don’t let its quirks put you off – once you’ve grown accustomed to the Guzzi’s idiosyncrasies, you’ll find yourself drawn into a world of raw, unbridled riding experience. The 850 T3 is a bike that rewards patience and persistence, and those who take the time to understand its eccentricities will be richly rewarded with a truly unforgettable ride. And so, with a newfound sense of appreciation, the Moto Guzzi 850 T3 revealed itself as a true gem, a bike that’s as much a reflection of its Italian heritage as it is a testament to the enduring allure of the open road.
Key Specifications
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valve per cylinder
Engine Capacity
51.5 cubic inches / 844 cc
Max Power
68.5 hp / 51.0 kW @ 7000 rpm
Max Torque
54.2 ft-lb / 7.5 kgf-m @ 5800 rpm
Fuel Tank Capacity
6.6 US gallons / 25.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi 850 T3
Year
1975 – 76
Engine
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valve per cylinder
Displacement
51.5 cubic inches / 844 cc
Bore x Stroke
83 x 78 mm
Compression Ratio
9.5:1
Max Horsepower
68.5 hp / 51.0 kW @ 7000 rpm
Max Torque
54.2 ft-lb / 7.5 kgf-m @ 5800 rpm
Engine Management System
2x 30mm VHBT30 Dell’orto carburetors
Lubrication System
Gear driven oil pump with replaceable full flow oil filter
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Dual shocks
Wheels & Brakes
Front Tire Size
3.50-18
Rear Tire Size
4.10-18
Front Brakes
2x 300mm discs 1 piston calipers
Rear Brakes
Single 242mm disc 1 piston caliper
Dimension & Weights
Wheelbase
58 inches / 1473.2 mm
Fuel Tank Capacity
6.6 US gallons / 25.0 L
Dry Weight
220 kg / 485 lbs
Features
Four-stroke, 90 V-twin engine
Longitudinally mounted engine
OHV (overhead valve) design
2 valves per cylinder
850cc displacement
Pseudo-American styling
Dual seat
Rock-hard seat
Wide handlebars
Forward-set footboards
Infathomable switches
Transverse V-twin power unit
Powerful and flexible engine
Riding position is pure Transcontinental
Designed with an American market in mind
