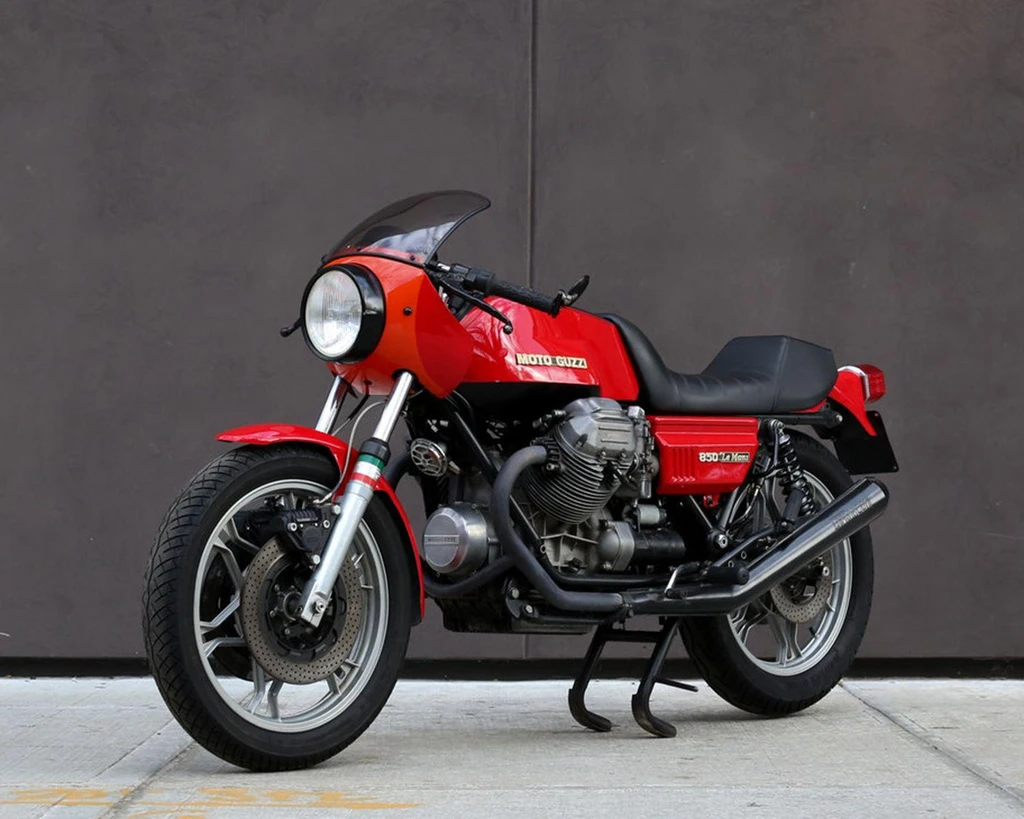

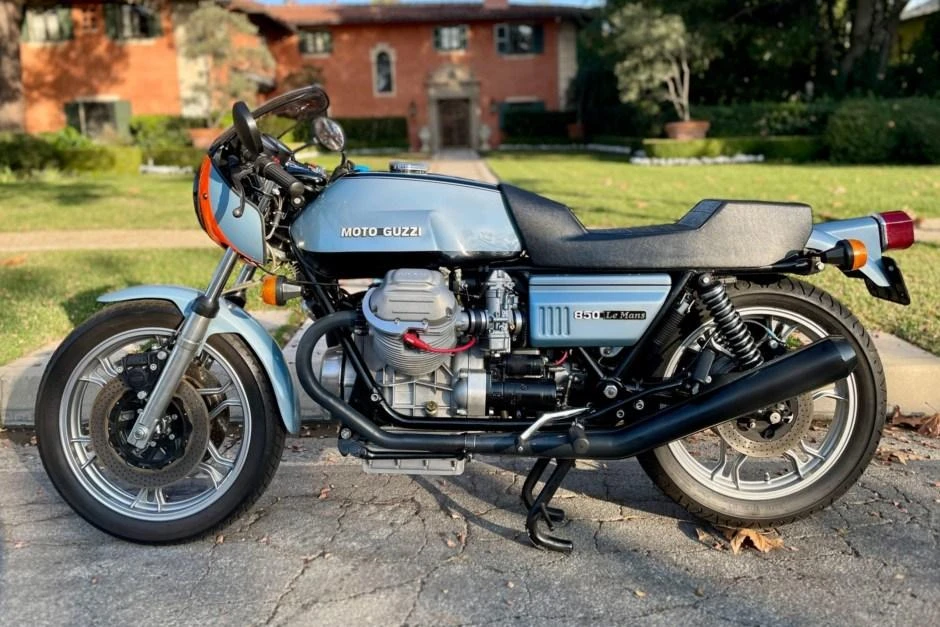

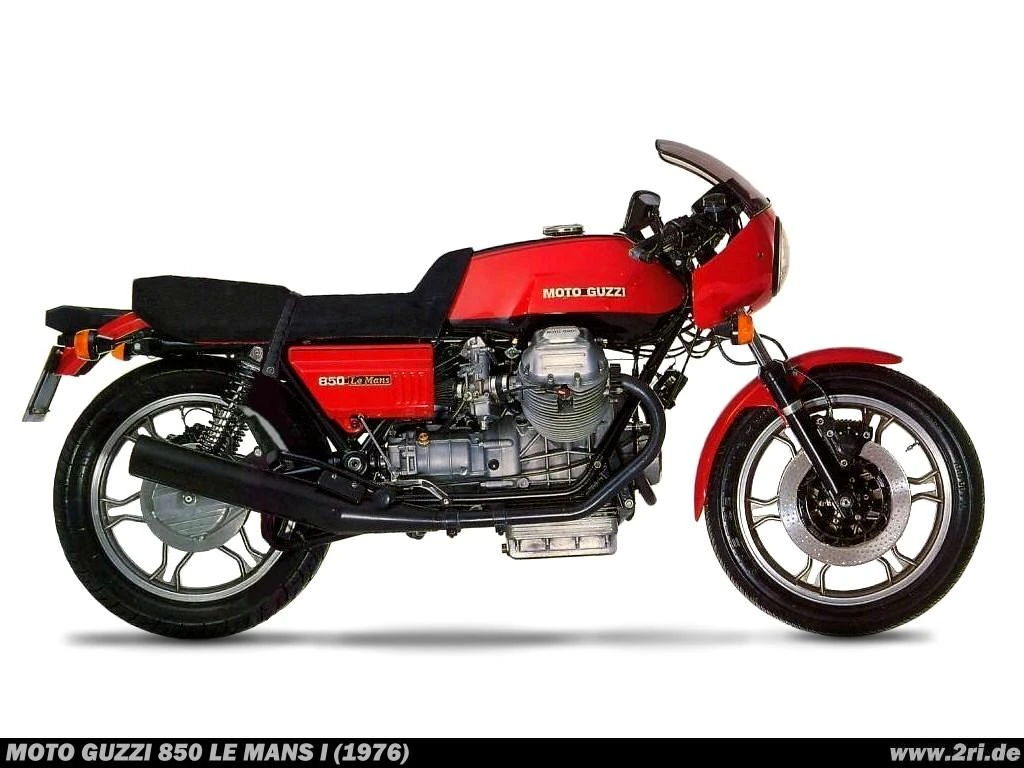

The Moto Guzzi 850 Le Mans Mark I is a formidable motorcycle that embodies the essence of a true sportster. Launched in 1975, it built upon the success of its predecessor, the V7 S3, and took the concept of the longitudinally mounted 90-degree V-twin engine to new heights.
The heart of this bike is its 844cc engine, which produces a healthy 81 bhp at 7600 rpm. But it’s not just about the numbers – the Guzzi motor is known for its brutal, unapologetic character, with a 10:2 compression ratio that adds to its raw, unbridled power.
The Le Mans’s engine and transmission sit in a sturdy duplex frame, with a dry-twin-plate clutch feeding power to a five-speed gearbox and shaft drive. The gearchange is smooth and light, making it a joy to ride and a true delight for enthusiasts.
The result is a motorcycle that embodies the perfect blend of power, style, and riding experience. The 850 Le Mans Mark I is a true classic, with its distinctive sound and feel setting it apart from its contemporaries.
Key Specifications
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV pushrod, 2 valves per cylinder
Engine Capacity
51.5 cubic inches / 844 cc
Max Power
80hp / 59.7 kW @ 7300 rpm
Max Torque
57.5 ft-lb / 79 nm
Fuel Tank Capacity
5.9 US gallons / 22.5 L
Weight (Wet/Kerb)
512 lbs / 232 kg
Seat Height
30.5 inches / 775 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi 850 Le Mans MarkI
Year
1976
Engine
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV pushrod, 2 valves per cylinder
Displacement
51.5 cubic inches / 844 cc
Bore x Stroke
83 x 78 mm
Compression Ratio
10.2:1
Max Horsepower
80hp / 59.7 kW @ 7300 rpm
Max Torque
57.5 ft-lb / 79 nm
Engine Management System
2x 36mm Dell’Orto carburetors
Lubrication System
Gear driven oil pump with replaceable full flow oil filter
