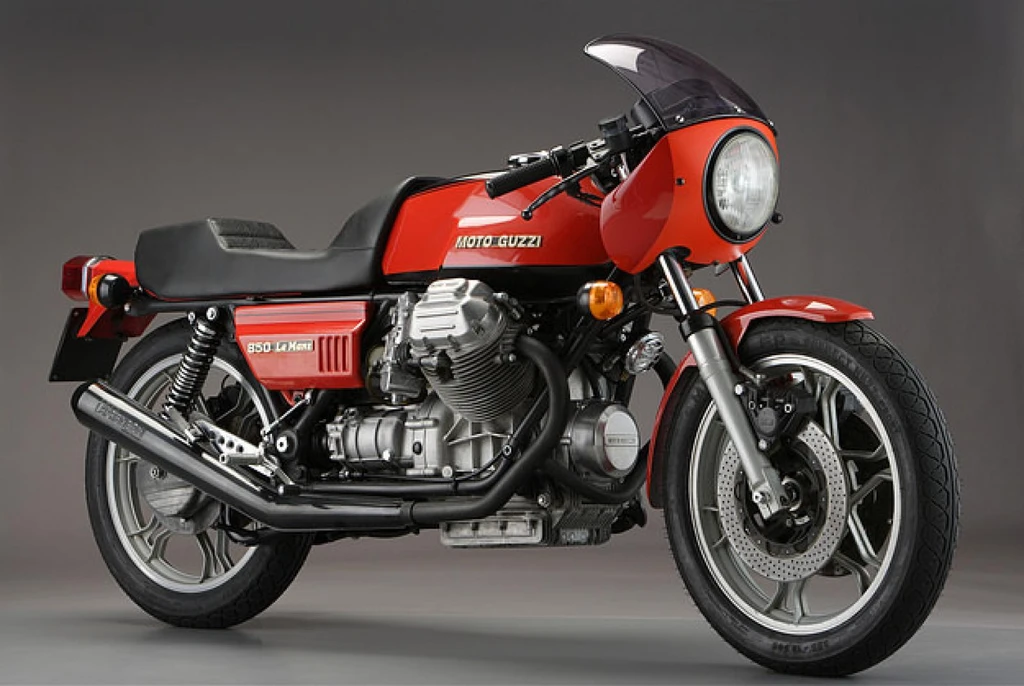

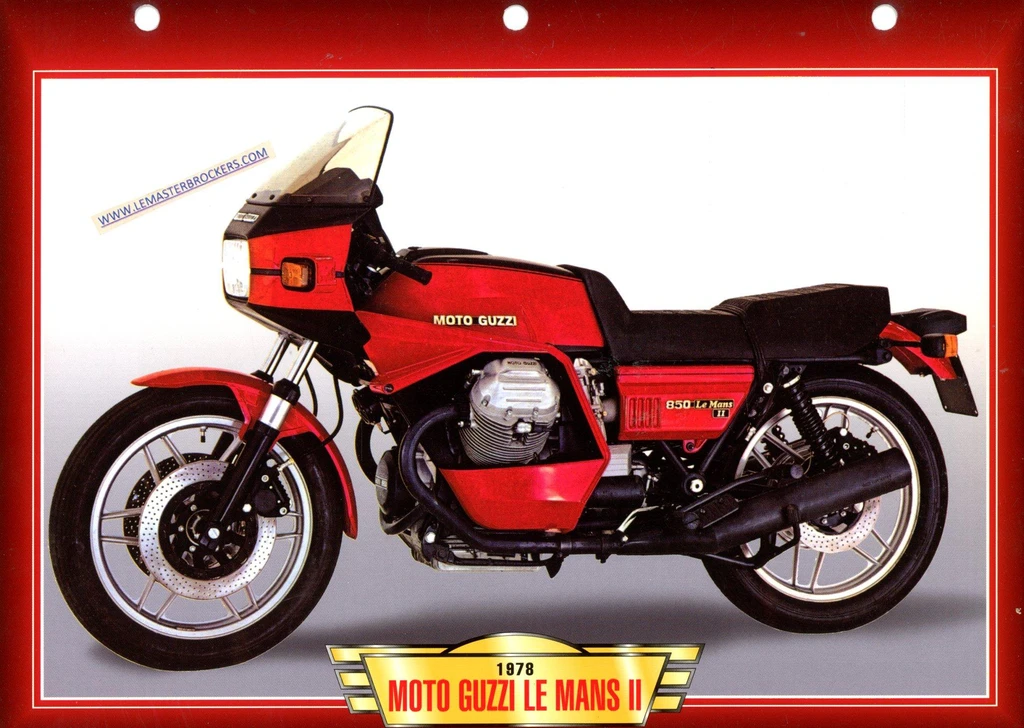

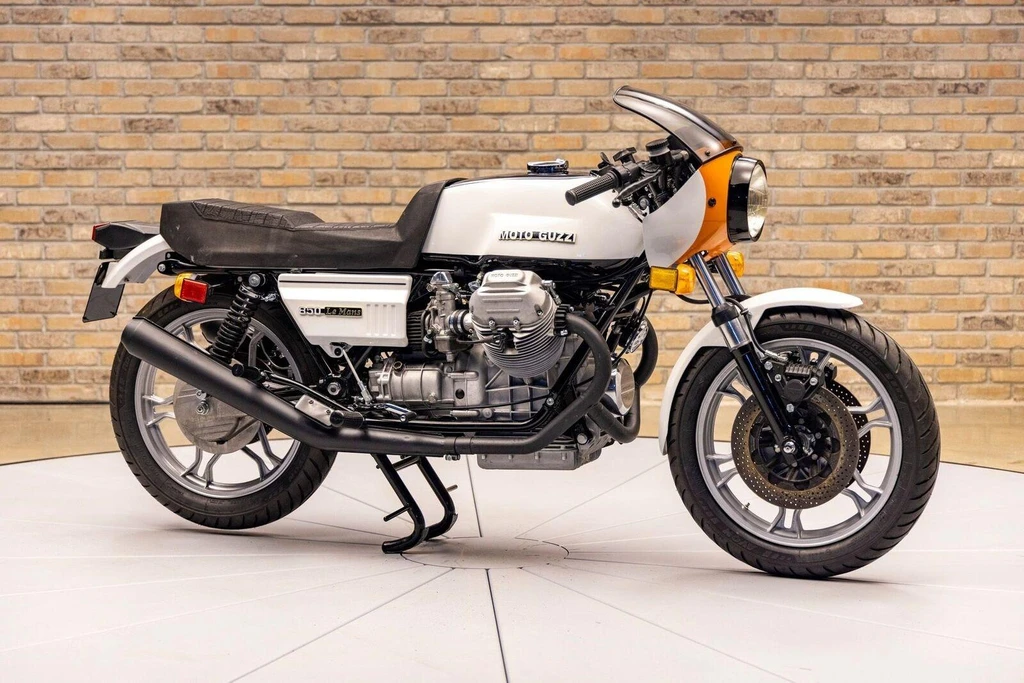

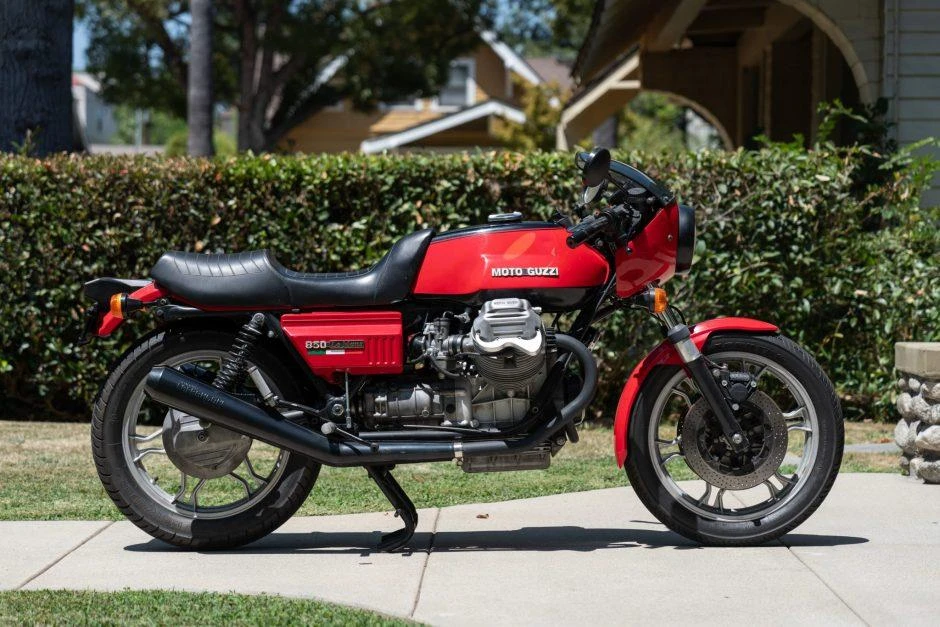

The Moto Guzzi 850 Le Mans Mark II, a motorcycle that embodies the perfect blend of power, handling, and braking, is a testament to the Italian manufacturer’s pursuit of excellence. At its heart lies a longitudinally mounted, 90-degree V-twin engine, boasting 2 valves per cylinder and delivering a rich, throaty exhaust note that’s unmistakably Guzzi.
Built on a sturdy tubular frame, the Le Mans Mark II features a linked braking system, where the foot pedal controls both rear and front discs, ensuring maximum stopping power. The addition of a bikini fairing, clip-on handlebars, and distinctive badging and trim give this motorcycle a unique, sporty look that’s sure to turn heads.
But what truly sets the Le Mans Mark II apart is its ability to deliver an exhilarating riding experience, with a perfect balance of raw power and handling. As a true thoroughbred, this motorcycle is sure to leave even the most seasoned riders grinning from ear to ear. And with its improved design and refinement, the Le Mans Mark II is a machine that’s ready to take on the best of the world’s motorcycles.
Key Specifications
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV pushrod, 2 valves per cylinder
Engine Capacity
51.5 cubic inches / 844 cc
Max Power
73 hp / 53.7 kW @ 7700 rpm
Max Torque
56.4 ft-lb / 76.4 nm
Fuel Tank Capacity
22.5 Litres / 4.8 gal
Seat Height
30 inches / 762 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi 850 Le Mans Mark II
Year
1978
Engine
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV pushrod, 2 valves per cylinder
Displacement
51.5 cubic inches / 844 cc
Bore x Stroke
83 x 78 mm
Compression Ratio
10.2:1
Max Horsepower
73 hp / 53.7 kW @ 7700 rpm
Max Torque
56.4 ft-lb / 76.4 nm
Engine Management System
2x 36mm Dell’Orto carburetors
Lubrication System
Gear driven oil pump with replaceable full flow oil filter
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Duplex cradle
Front Suspension
Oil damped telescopic fork
Rear Suspension
Swing arm with 3-pos preload
Wheels & Brakes
Front Tire Size
3.50 H18
Rear Tire Size
4.10 V18
Front Brakes
2x 310mm discs
Rear Brakes
Single 242mm disc
Dimension & Weights
Seat Height
30 inches / 762 mm
Wheelbase
58 inches / 1473 mm
Fuel Tank Capacity
22.5 Litres / 4.8 gal
Dry Weight
196 kg / 433 lbs
Features
Four stroke engine
90 V twin engine
Longitudinally mounted engine
OHV pushrod design
2 valves per cylinder
700 cc displacement
750 cc displacement
850 cc displacement
1000 cc displacement
Shaft drive
Linked braking system
Rear disc brake
Twin front disc brakes
Conventional hand-brake lever
Bikini fairing
Clip-on handlebars
Distinct badging and trim
All-of-a-piece angular seat
Stubby little handlebars
