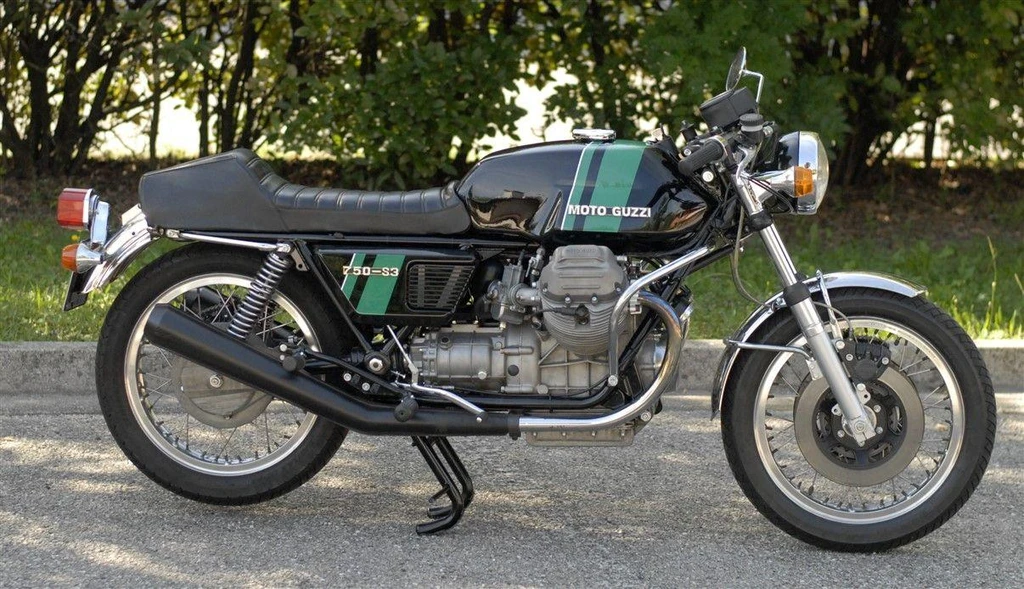

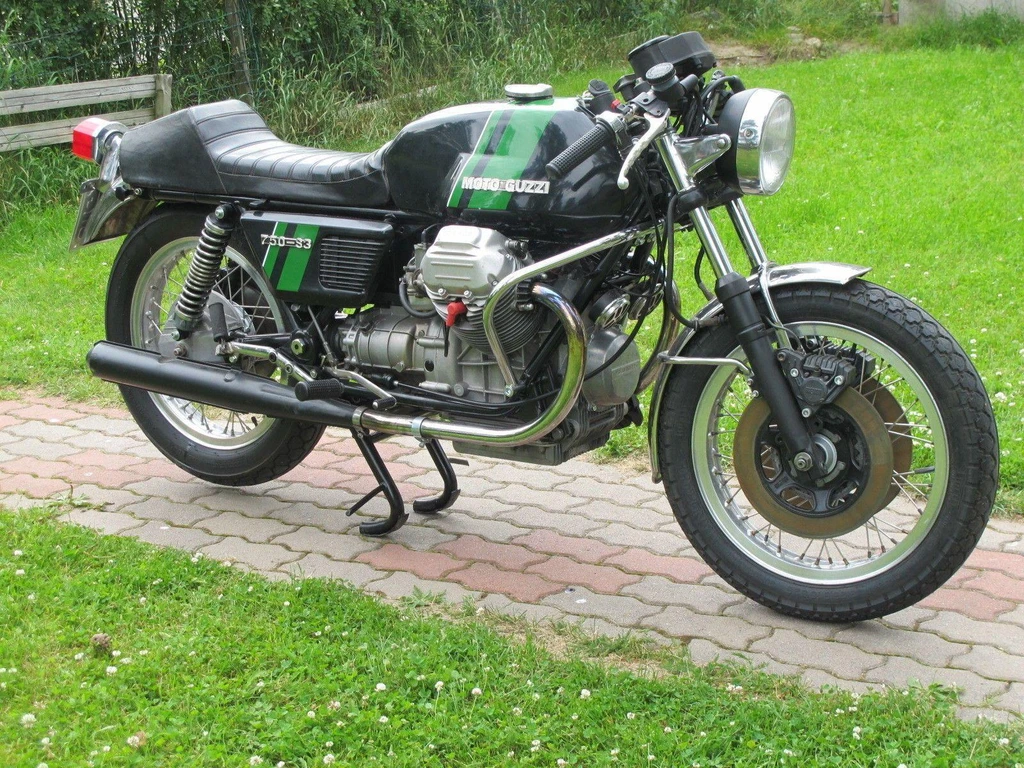

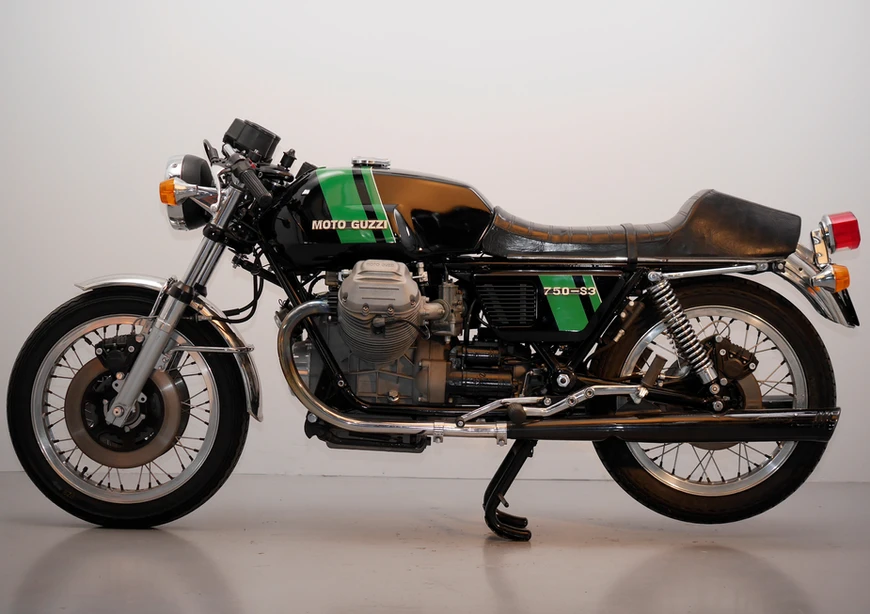

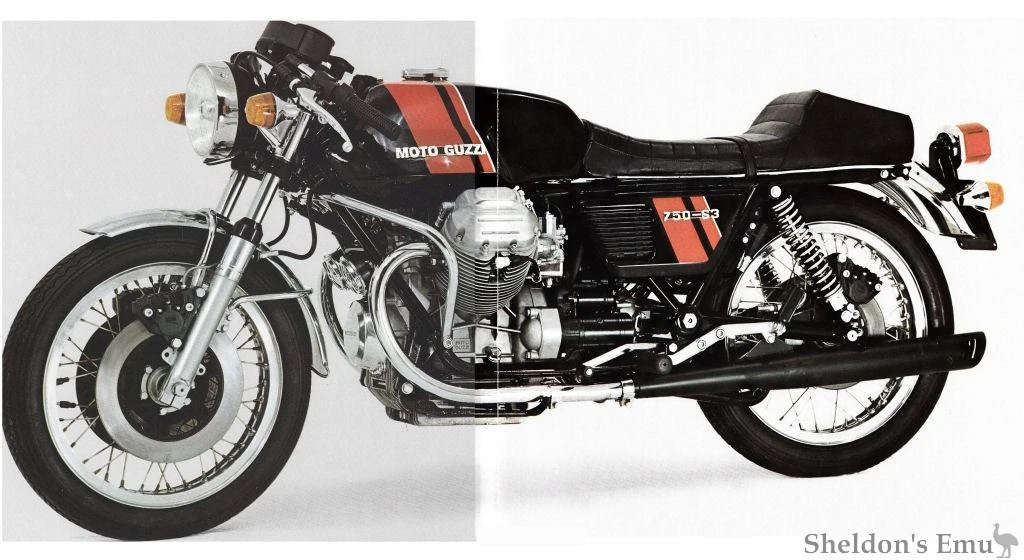

The Moto Guzzi 750S3 is a stunning example of Italian design and engineering from the mid-1970s. Its long, low silhouette, big transverse V-twin motor, and sculpted fuel tank make it a visually striking machine. But the 750S3 is more than just a pretty face – it’s also a high-performance sports bike that excels in handling, braking, and long-distance comfort.
The S3’s engine is a pushrod-operated 90-degree V-twin, heavily based on the V7 Sport’s unit but with its own unique character. With a 748cc capacity, 9.8:1 compression ratio, and 90-degree V configuration, this engine delivers a unique blend of power and smoothness.
Riding the 750S3 is a truly immersive experience, with the combination of clip-on bars, big engine, and distinctive styling all working together to create a sense of purpose and excitement. And with its linked triple-disc braking system, this bike stops as well as it goes, making it a true standout in its class. The Moto Guzzi 750S3 is a true classic, a bike that still delivers a thrilling riding experience today.
Key Specifications
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valve per cylinder.
Engine Capacity
45.6 cubic inches / 748.4 cc
Max Power
70 hp / 52 kW @ 7000 rpm
Max Torque
NA
Fuel Tank Capacity
5.9 US gallons / 22.5 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi 750S3
Year
1975
Engine
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valve per cylinder.
Displacement
45.6 cubic inches / 748.4 cc
Bore x Stroke
83 x 70 mm
Compression Ratio
9.8:1
Max Horsepower
70 hp / 52 kW @ 7000 rpm
Max Torque
NA
Engine Management System
2x 30mm Dell’Orto carburetors
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Swing arm with dual rear shocks
Wheels & Brakes
Front Tire Size
3.25H-18
Rear Tire Size
3.50H-18
Front Brakes
2 x 300mm discs
Rear Brakes
Single 242mm disc
Dimension & Weights
Wheelbase
57.9 inches / 1470 mm
Fuel Tank Capacity
5.9 US gallons / 22.5 L
Dry Weight
230 kg / 507 lbs
Features
Four-stroke 90 V-twin engine
Longitudinally mounted engine
OHV (overhead valve) design
2 valves per cylinder
748cc capacity
90-degree V-twin configuration
Pushrod-operated engine
Oil filter in crankcases
Chain and sprockets for camshaft drive
Steel frame with main spine between cylinders
Low seat height of 730mm (29in)
Thinly padded seat
High footrests
Long stretch forward to clip-ons
Transverse V-twin motor
Three 300mm (11.8in) front discs
Brembo calipers
Linked triple-disc braking system
