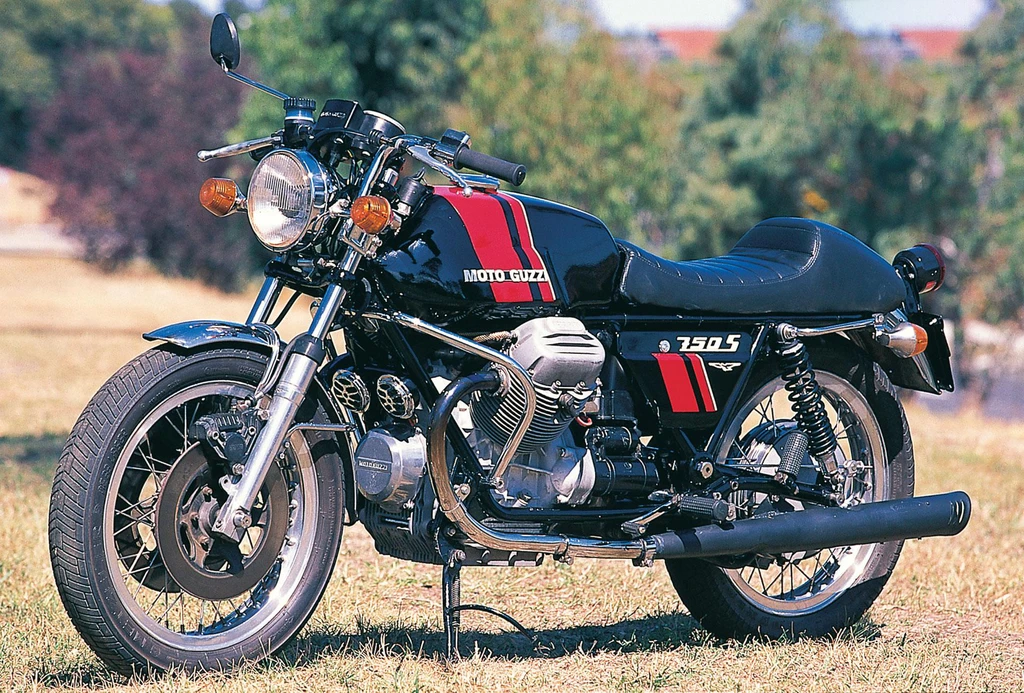

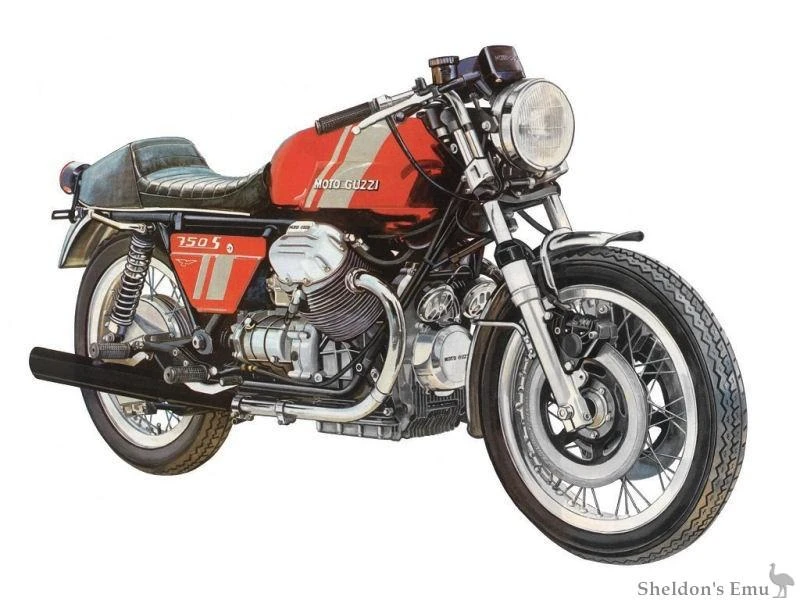

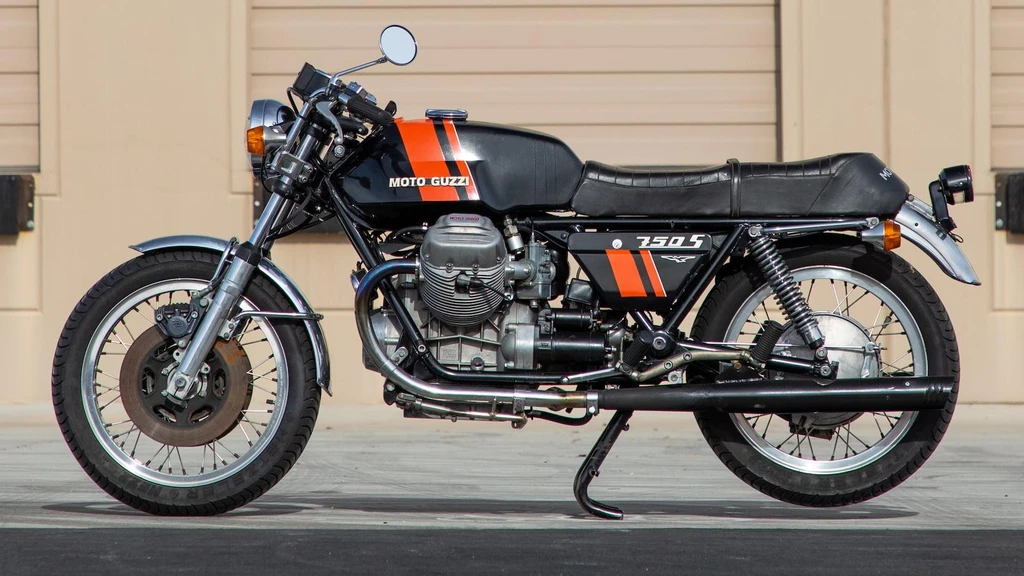

The 750S, Moto Guzzi’s answer to the burgeoning world of sport motorcycles, was a game-changer when it was first introduced in 1971. By marrying the comfort and practicality of a touring bike with the agility and style of a café racer, the 750S carved out a unique niche in the market.
Its longitudinally mounted, air-cooled 90-degree V-twin engine provided a smooth, linear power delivery that was perfect for devouring long stretches of winding roads. The Guzzi’s riding position was optimized for comfort, with a low seat height and adjustable clip-ons allowing riders to find their perfect stance.
While the Ducati 750 Sport and Desmo 750 Super Sport were built for short, intense bursts of speed, the 750S was designed for grand touring – capable of carrying riders over long distances with ease, comfort, and style.
Moto Guzzi’s 750S was the perfect blend of style, comfort, and performance, making it an unforgettable riding experience that left a lasting impression on all who rode it.
Key Specifications
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valve per cylinder
Engine Capacity
45.6 cubic inches / 748.4 cc
Max Power
62 hp / 46.2 kW @ 7250 rpm
Max Torque
NA
Fuel Tank Capacity
5.9 US gallons / 22.5 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi 750S
Year
1973 – 1975
Engine
Engine Type
Four stroke, 90 V twin, longitudinally mounted, OHV, 2 valve per cylinder
Displacement
45.6 cubic inches / 748.4 cc
Bore x Stroke
83 x 70 mm
Compression Ratio
9.8:1
Max Horsepower
62 hp / 46.2 kW @ 7250 rpm
Max Torque
NA
Engine Management System
2x 30mm Dell’Orto carburetors
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
5 Speed
Final Drive
Shaft
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Swing arm with dual rear shocks
Wheels & Brakes
Front Tire Size
3.25 H18
Rear Tire Size
3.50 H18
Front Brakes
2 x 280mm disc
Rear Brakes
220mm drum
Dimension & Weights
Wheelbase
57.9 inches / 1470 mm
Fuel Tank Capacity
5.9 US gallons / 22.5 L
Dry Weight
225 kg / 496 lbs
Features
Four-stroke 90 V twin engine
Longitudinally mounted engine
OHV (Overhead Valve) design
2 valves per cylinder
Battery with double contact breaker with automatic advance
Electric starting
First-class lighting
Shaft-drive
Double disc brakes in front
Monster discs almost a foot in diameter
Adjustable clip-ons
Comfortable riding position
Cushy seat
Compact and stylish gas tank
Holds five gallons of fuel
Room for a dual seat
Long-distance touring capabilities
Impressive performance for long-distance riding
