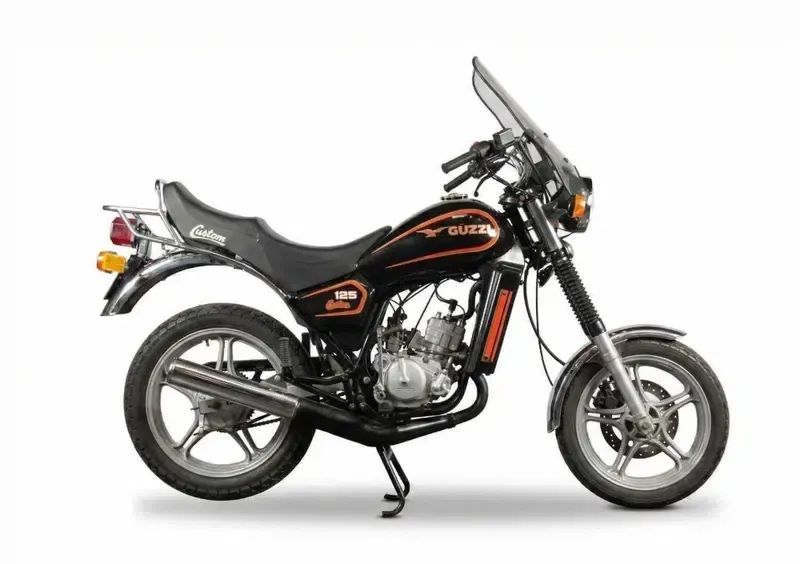

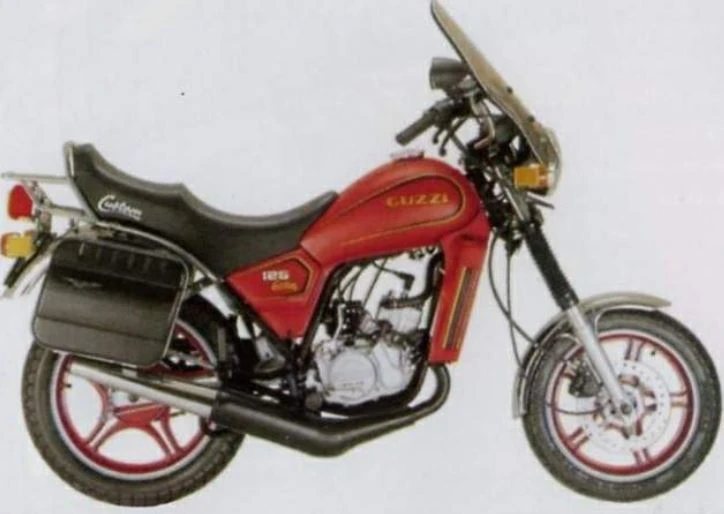

The Moto Guzzi 125 Custom is a true icon of Italian motorcycle design, with its sleek lines and minimalist aesthetic captivating riders for generations. At the heart of this diminutive darling lies a robust 125cc single-cylinder engine, its punchy 13.6 horsepower delivering a thrilling riding experience that belies its modest size.
This little Guzzi is all about finesse and control, its nimble handling and precise steering inviting riders to carve up twisties and explore the limits of its capabilities.
A true classic of the 80s and 90s motorcycle scene, the Moto Guzzi 125 Custom is a timeless beauty that remains as engaging to ride today as it was when new.
Key Specifications
Engine Type
Two stroke, single cylinder
Engine Capacity
7.5 cubic inches / 123 cc
Max Power
16.5 hp / 12.3 kW @ 7000 rpm
Fuel Tank Capacity
2.9 US gallons / 11.0 L
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Moto Guzzi 125 Custom
Year
1985 –
Engine
Engine Type
Two stroke, single cylinder
Displacement
7.5 cubic inches / 123 cc
Bore x Stroke
56 x 50 mm
Compression Ratio
11.5:1
Max Horsepower
16.5 hp / 12.3 kW @ 7000 rpm
Engine Management System
Dell’Orto PHBI 25 BS
Cooling System
Liquid cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Kick
Chassis & Suspension
Front Suspension
Telescopic forks
Rear Suspension
Swinging arm with hydraulic mono-shock
Wheels & Brakes
Front Tire Size
80/100 -16
Rear Tire Size
3.50 – 18
Front Brakes
260 mm single disc
Rear Brakes
Drum
Dimension & Weights
Fuel Tank Capacity
2.9 US gallons / 11.0 L
Dry Weight
110 kg / 242.5 lbs
