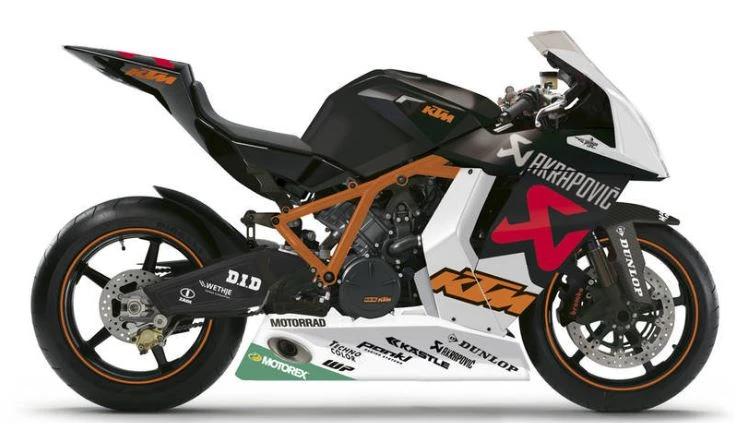

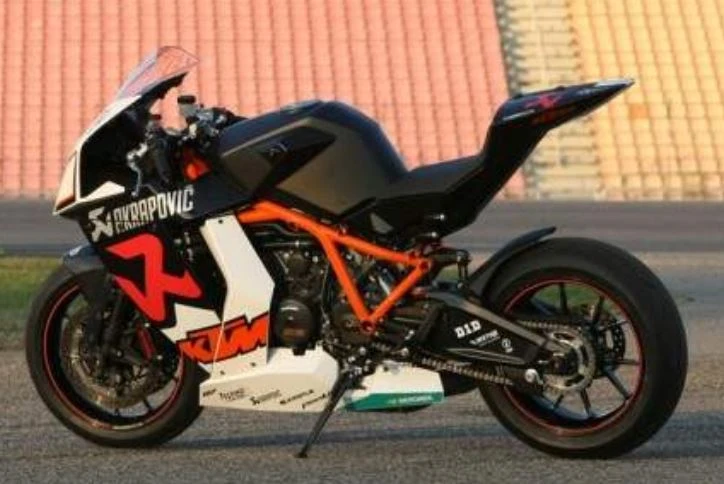

KTM RC8R 1190 Akrapovic Replica IDM (2010)

KTM RC8R 1190 Akrapovic Replica IDM (2010)

The KTM RC8R 1190 Akrapovic Replica IDM is a force to be reckoned with, boasting an impressive 180 horsepower thanks to its integrated Club Race Kit. This potent Superbike is equipped with a high-performance Akrapovic EVO4 exhaust system, modified cylinder head gasket, and injection mapping, making it one of the most powerful machines on the market.

The 75-degree V-twin cylinder, DOHC engine delivers a unique character, with a distinctive sound and feel that is sure to get your adrenaline pumping. Whether you’re carving up a racing circuit or dominating the roads, the RC8R’s exceptional handling and responsiveness will leave you wanting more.

With its lightweight steel trellis frame, WP suspension elements, and Brembo brake components, this bike is a true masterpiece of engineering. And with only 100 units available, each one is a highly sought-after collector’s item that’s sure to appreciate in value over time. The KTM RC8R 1190 Akrapovic Replica IDM is the ultimate riding experience, and one that will leave you breathless.

Key Specifications

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity73.0 cubic inches / 1195 cc
Max Power167.6 hp / 122.4 kW) @ 10250 rpm
Max Torque12.5 kgf-m / 90.7 ft.lbs @ 8000 rpm
Fuel Tank Capacity16.5 Litres / 3.5 gal
Seat Height805 mm / 825 mm
KTM RC8R 1190 Akrapovic Replica IDM (2010)

All Specifications

Make & Model

ModelKTM RC8R 1190 Akrapovic Replica IDM
Year2010

Engine

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement73.0 cubic inches / 1195 cc
Bore x Stroke105 x 69 mm
Compression Ratio13.5 :1
Max Horsepower167.6 hp / 122.4 kW) @ 10250 rpm
Max Torque12.5 kgf-m / 90.7 ft.lbs @ 8000 rpm
Cooling SystemLiquid cooling

Performance

Top Speed271.4 km/h

Transmission

ClutchWet multi-disc clutch, operated hydraulically
Gearbox6 Speed
Final Drive17:37

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeChromium-Molybdenum trellis frame, powder-coatedSubframe Aluminium
Front Suspension43mm WP Upside down adjustable
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionWP shock, fully adjustable
Rear Suspension Travel4.9 inches / 125 mm
Trail97 mm / 3.82 in

Wheels & Brakes

Front Tire Size120/70 ZR17
Rear Tire Size190/55 ZR17
Front Brakes2x 320mm discs 4 piston calipers
Rear BrakesSingle 240mm disc

Dimension & Weights

Seat Height805 mm / 825 mm
Ground Clearance110 mm / 4.3 in
Fuel Tank Capacity16.5 Litres / 3.5 gal
Dry Weight182 kg / 405.23 lb (no fuel)

Features

  • 7.5 kg lightweight steel trellis frame
  • Modified chassis geometry: caster raised by 6 mm, wheel base shortened
  • WP suspension 43 millimetre upsidedown fork, TiAlNi-coated
  • WP shock absorber, TiAlNi-coated piston rod
  • Forged Marchesini light alloy wheels with a multi-spoke design
  • Radially-mounted Brembo four-piston monoblock brake callipers
  • Reinforced 320 millimetre brake discs
  • Akrapovic Evo4 exhaust system
  • Modified cylinder head gasket
  • Injection mapping modified for high-performance
  • Power: 170 HP (125 kW) standard, 180 HP (132.4 kW) with club race kit
  • 1195 cc displacement
  • LC8 two-cylinder engine
  • Enlarged oil cooler
  • Optimised gears
  • Integrated Club Race Kit
  • Road homologation with original exhaust system
  • High-quality components throughout
  • Racing-adapted WP suspension chassis components
  • Exquisite Brembo brake technology
