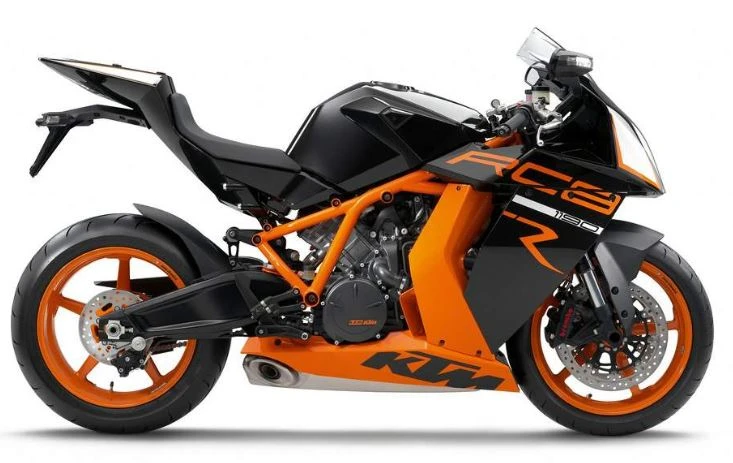

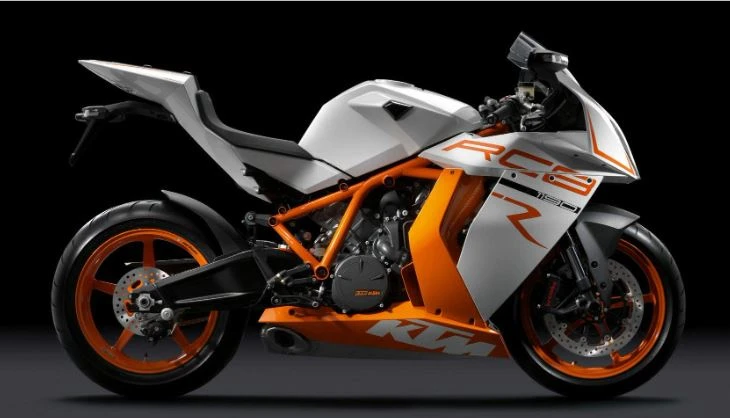

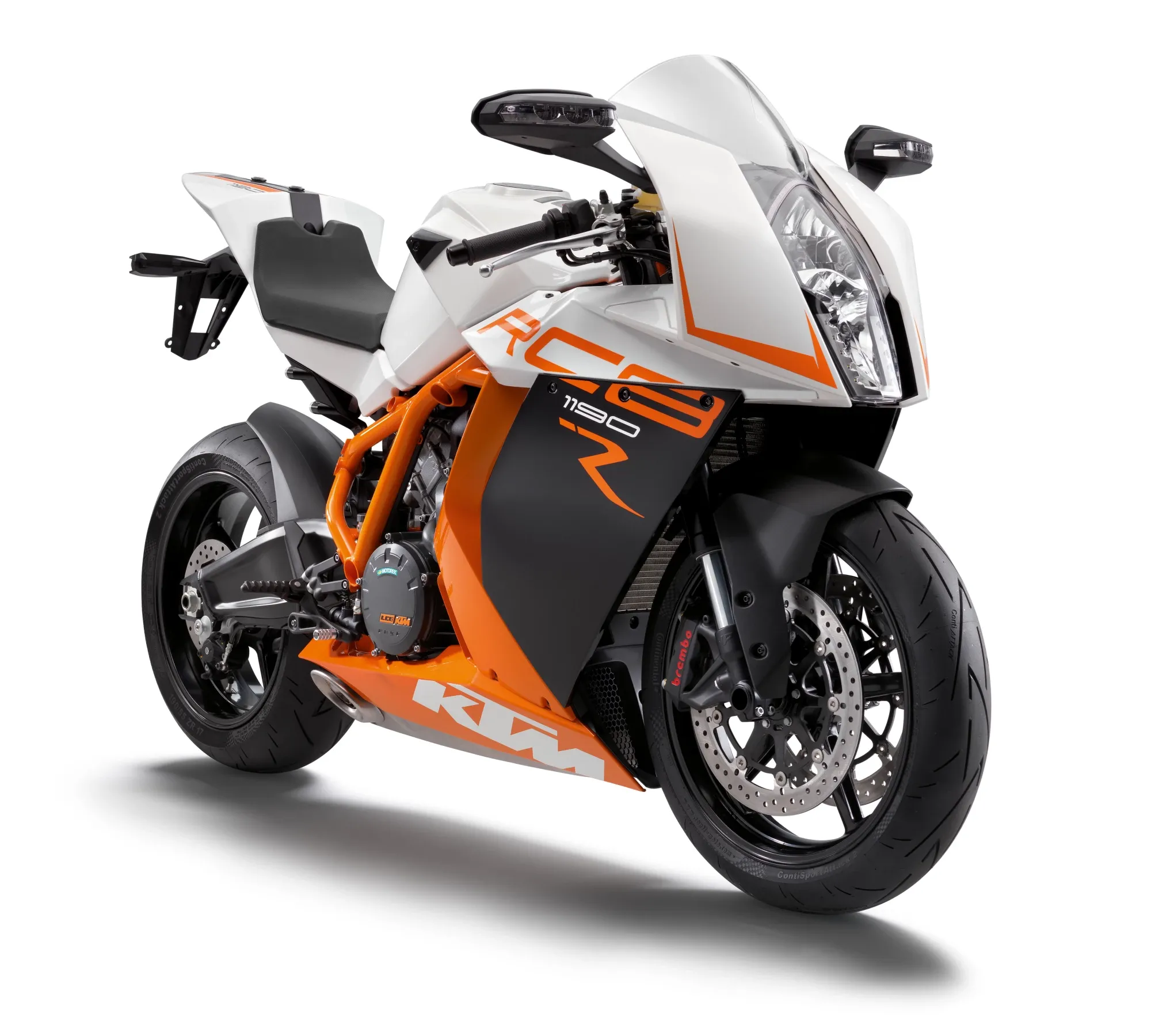

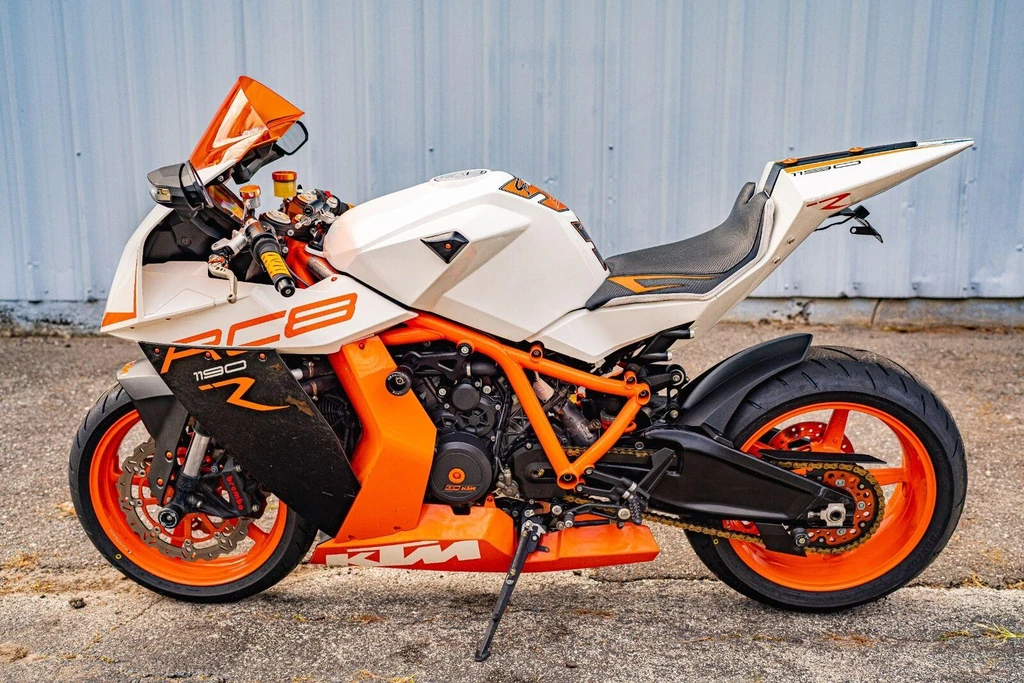

KTM RC8R 1190 (2013)

KTM RC8R 1190 (2013)

The KTM RC8R 1190 is a marvel of engineering, boasting a potent 75-degree V-twin engine that produces a whopping 175bhp and 93.6lb-ft of torque.

This powerhouse is tamed by a revised crankshaft, refined fuel injection, and new dual-plug ignition, ensuring a more linear power delivery and addressing the previous model’s notorious surge of power.

The suspension has been thoroughly revised, offering a wider range of adjustment than before, while the eccentric linkage for the rear shock provides unparalleled stability and control.

The RC8R’s aggressive styling is matched only by its performance capabilities, with a menacing reputation that precedes it on the track and the road.

Its extraordinary ergonomics and multitude of adjustability options make it a joy to ride, and with its completely street-legal status, there’s no excuse not to unleash its fury on the open road. The KTM RC8R 1190 is the ultimate super bike for those who crave raw power and unbridled excitement.

Key Specifications

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity73.0 cubic inches / 1195 cc
Max Power129 kw / 175 hp
Max Torque93.6 ft-lb / 127 nm
Fuel Tank Capacity16.5 Litres / 4.3 gal
Seat Height31.69 inches / 805 mm
KTM RC8R 1190 (2013)

All Specifications

Make & Model

ModelKTM RC8R 1190
Year2013

Engine

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement73.0 cubic inches / 1195 cc
Bore x Stroke105 x 69 mm
Compression Ratio13.5 :1
Max Horsepower129 kw / 175 hp
Max Torque93.6 ft-lb / 127 nm
Engine Management SystemKeihin EFI throttle body 52 mm
Lubrication SystemPressure lubrication with 3 Eaton pumps
Cooling SystemLiquid cooling

Performance

Top Speed271.4 km/h

Transmission

ClutchWet, multiple discs, hydraulic operated
Gearbox6 Speed claw shifted
Final DriveChain 5/8 x 5/16″ X Ring

Electrical & Electronics System

Chassis & Suspension

Frame TypeChromium-Molybdenum trellis frame, powder-coated Subframe Aluminium Handlebar Aluminium stump handlebar
Front Suspension43mm WP Upside down adjustable
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionWP shock, fully adjustable
Rear Suspension Travel4.9 inches / 125 mm
Trail97 mm / 3.82 in

Wheels & Brakes

Front Tire Size120/70 ZR17
Rear Tire Size190/55 ZR17
Front Brakes2x 320mm discs 4 piston calipers
Rear BrakesSingle 240mm disc

Dimension & Weights

Seat Height31.69 inches / 805 mm
Wheelbase56.1 inches / 1425 mm
Ground Clearance110 mm / 4.3 in
Fuel Tank Capacity16.5 Litres / 4.3 gal
Dry Weight186.0 kg / 410.1 lbs

Features

  • Four-stroke, 75V-twin cylinder engine
  • DOHC, 4 valves per cylinder
  • 168 to 175bhp power increase
  • 1.5lb-ft torque increase
  • New crankshaft
  • Refined fuel injection
  • Dual-plug ignition
  • New, heavier flywheel
  • Revised suspension with wider range of adjustment
  • New eccentric linkage for rear shock
  • Two-color paint schemes
  • LED running light
  • Track version available with race fairings and exhaust
  • Street-legal
  • Extraordinarily relaxed ergonomics
  • Multiple setting options, including:
  • Adjustable footrests
  • Variable lever operating angle and length
  • Adjustable seats
  • Adjustable hand levers
  • Two-height adjustable handlebar
  • Insanely powerful V2 twin-engine
  • 173 horsepower output
  • Extremely broad rev range
  • Spontaneous throttle response
  • State-of-the-art cylinder heads with twin plug ignition
  • Flow-optimized ducts
  • Cam follower drive
  • Electronic Keihin engine management system
  • Twin throttle valves
  • Modern electronic fuel injection system
