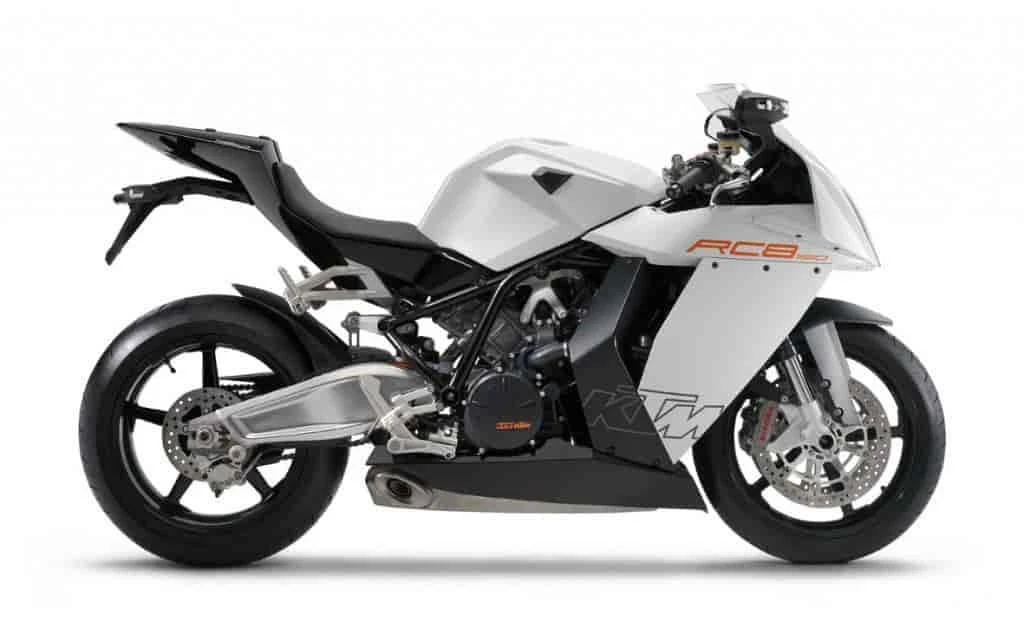

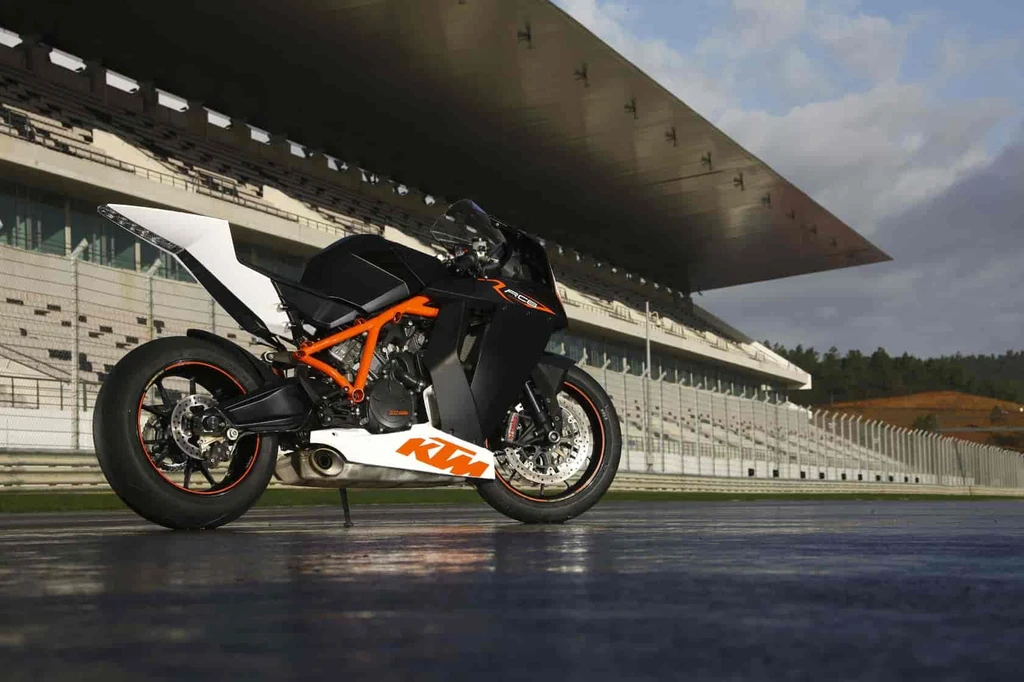

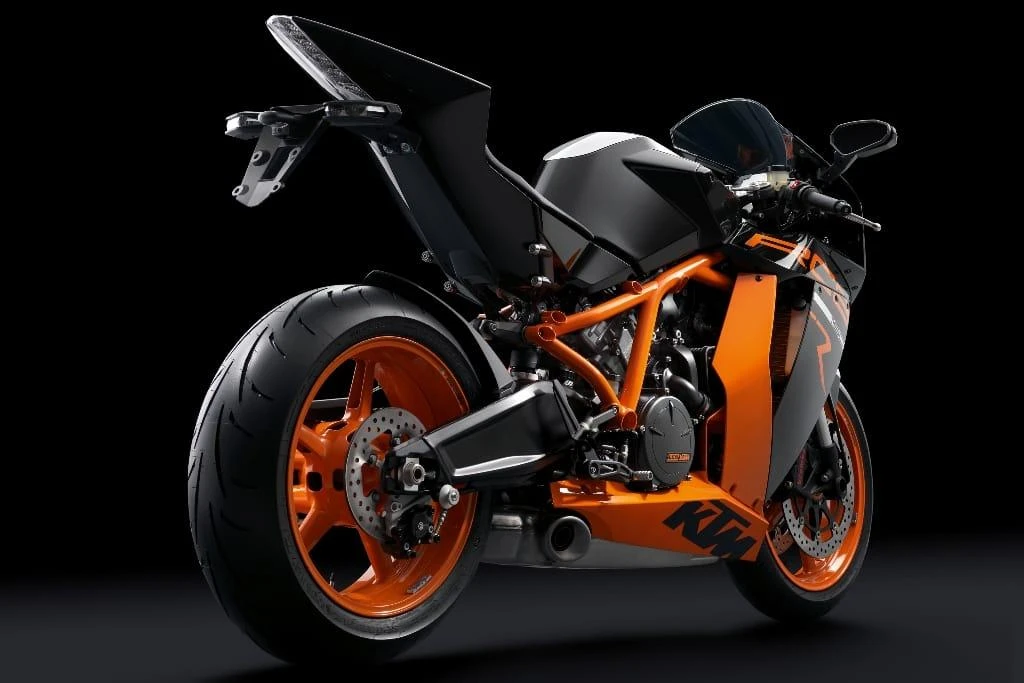

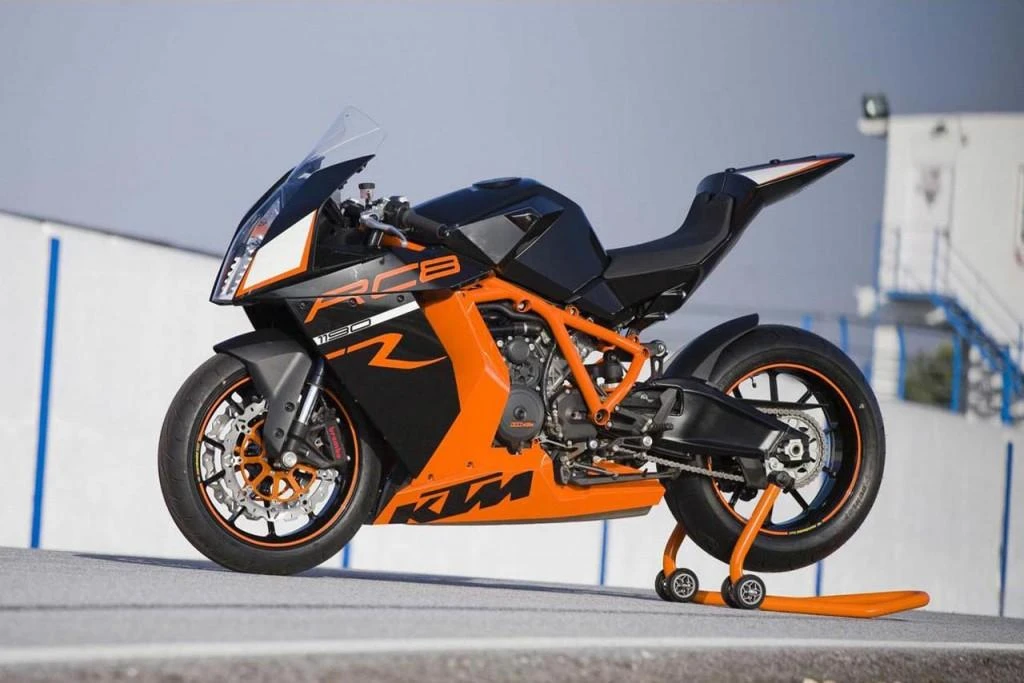

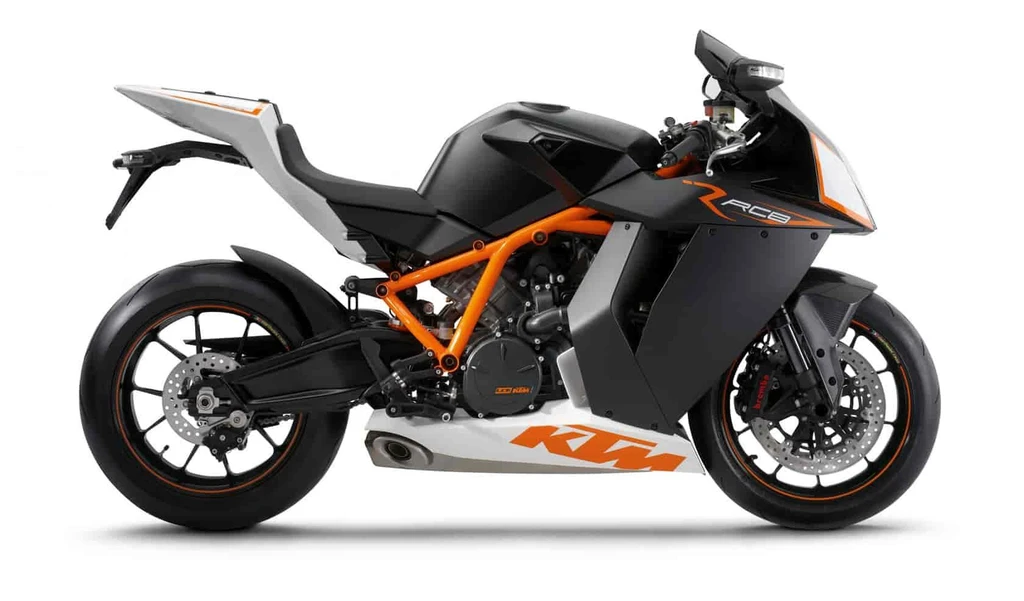

KTM RC8R 1190 (2010)

KTM RC8R 1190 (2010)

The KTM RC8R 1190 is a scorching hot Superbike that embodies the very essence of motor sports performance. Its potent 1195cc, 75-degree V-twin engine unleashes an astonishing 165 horsepower and 123 Nm of torque, ensuring blistering acceleration and razor-sharp handling.

The RC8R’s ultramodern two-cylinder construction is a marvel of engineering, its advanced DOHC and 4-valve per cylinder design delivering seamless power delivery and unwavering reliability. Whether carving through twisties or attacking a racing circuit, this Superbike is the ultimate thrill-seeking companion.

Its razor-sharp handling is further enhanced by the optional sport kit, which liberates an additional 15 horsepower, catapulting the RC8R to a staggering 180 horsepower. This, combined with its exceptional suspension and braking components, makes it the ultimate track-day machine. The RC8R 1190 is the undisputed king of the KTM Superbike range.

Key Specifications

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity73.0 cubic inches / 1195 cc
Max Power167.6 hp / 122.4 kW) @ 10250 rpm
Max Torque12.5 kgf-m / 90.7 ft.lbs @ 8000 rpm
Fuel Tank Capacity16.5 Litres / 3.5 gal
Seat Height805 mm / 825 mm
KTM RC8R 1190 (2010)

All Specifications

Make & Model

ModelKTM RC8R 1190
Year2010

Engine

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement73.0 cubic inches / 1195 cc
Bore x Stroke105 x 69 mm
Compression Ratio13.5 :1
Max Horsepower167.6 hp / 122.4 kW) @ 10250 rpm
Max Torque12.5 kgf-m / 90.7 ft.lbs @ 8000 rpm
Cooling SystemLiquid cooling

Performance

Top Speed271.4 km/h

Transmission

ClutchWet multi-disc clutch, operated hydraulically
Gearbox6 Speed
Final Drive17:37

Electrical & Electronics System

StarterElectric

Chassis & Suspension

Frame TypeChromium-Molybdenum trellis frame, powder-coatedSubframe Aluminium
Front Suspension43mm WP Upside down adjustable
Front Suspension Travel4.7 inches / 120 mm
Rear SuspensionWP shock, fully adjustable
Rear Suspension Travel4.9 inches / 125 mm
Trail97 mm / 3.82 in

Wheels & Brakes

Front Tire Size120/70 ZR17
Rear Tire Size190/55 ZR17
Front Brakes2x 320mm discs 4 piston calipers
Rear BrakesSingle 240mm disc

Dimension & Weights

Seat Height805 mm / 825 mm
Ground Clearance110 mm / 4.3 in
Fuel Tank Capacity16.5 Litres / 3.5 gal
Dry Weight182 kg / 405.23 lb (no fuel)

Features

  • Four-stroke 75V-twin cylinder engine
  • DOHC, 4 valves per cylinder
  • 1195 cc displacement
  • 165 hp top performance
  • 123 nm maximum torque
  • Optional sport kit for 180 hp
  • Forged light alloy wheels
  • Suspension components developed for motorsports use
  • Tubular steel frame with orange paint
  • Black-white-orange color scheme
  • Fuel injection system fine-tuned
  • Six-speed gearbox with improved smoothness
  • New oil cooler for optimized engine cooling
  • Brembo brakes with twin 320mm discs and radial-mount callipers
  • WP 43mm USD fork with multi-adjustable compression and rebound damping
  • Fully adjustable rear shock with ride height adjustment
  • Adjustable foot and hand controls
  • Spacious riding position
