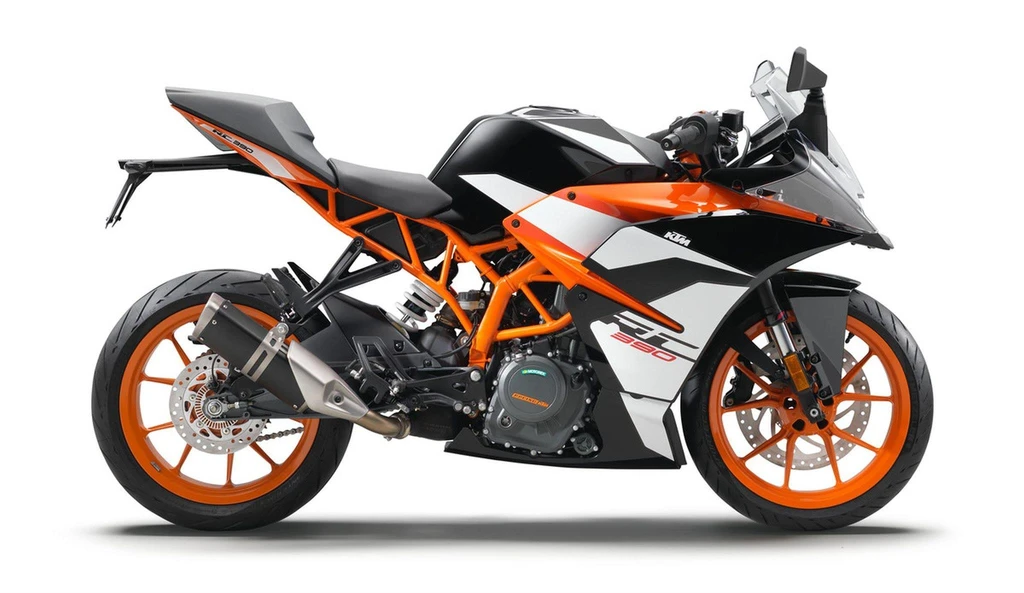

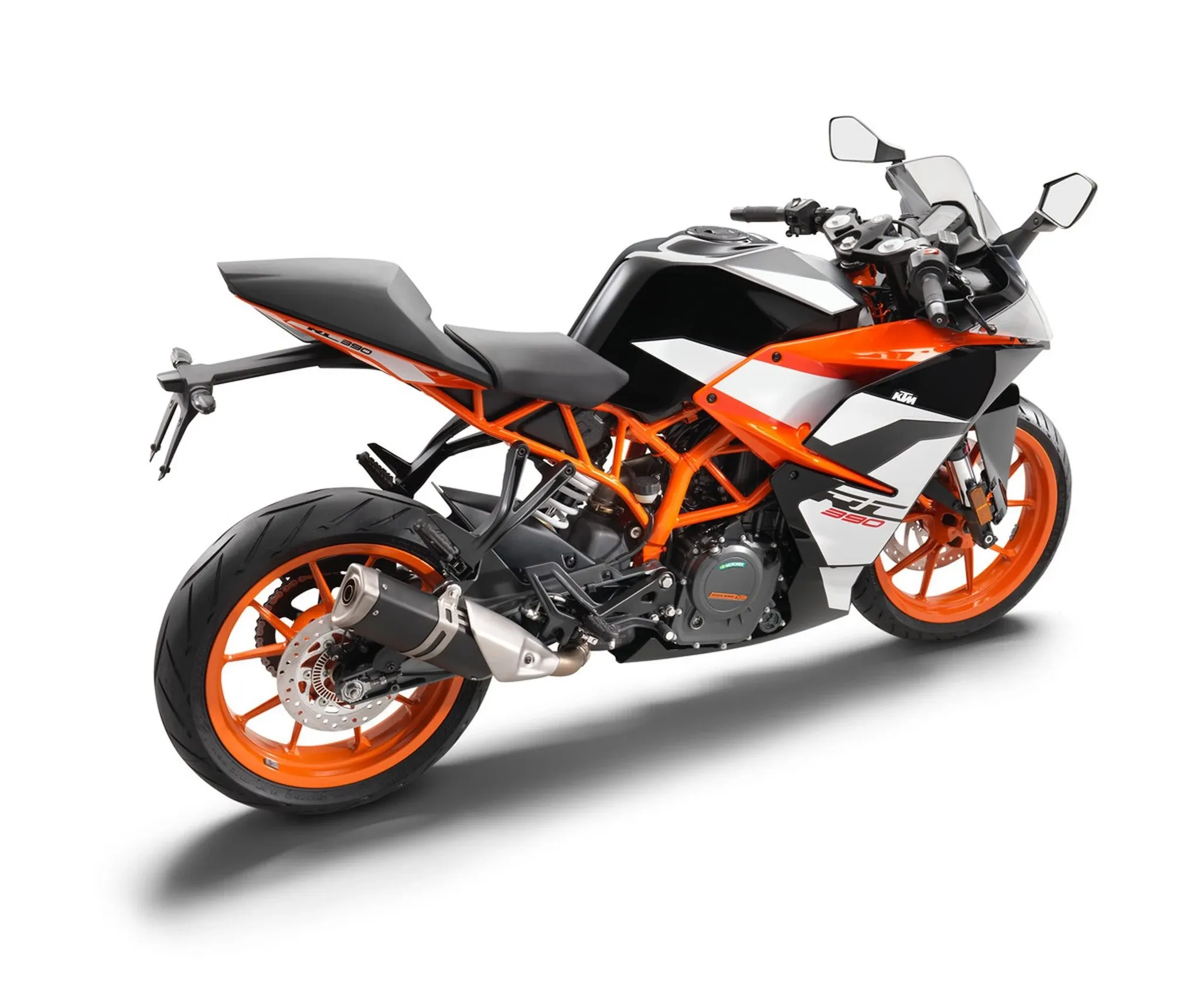

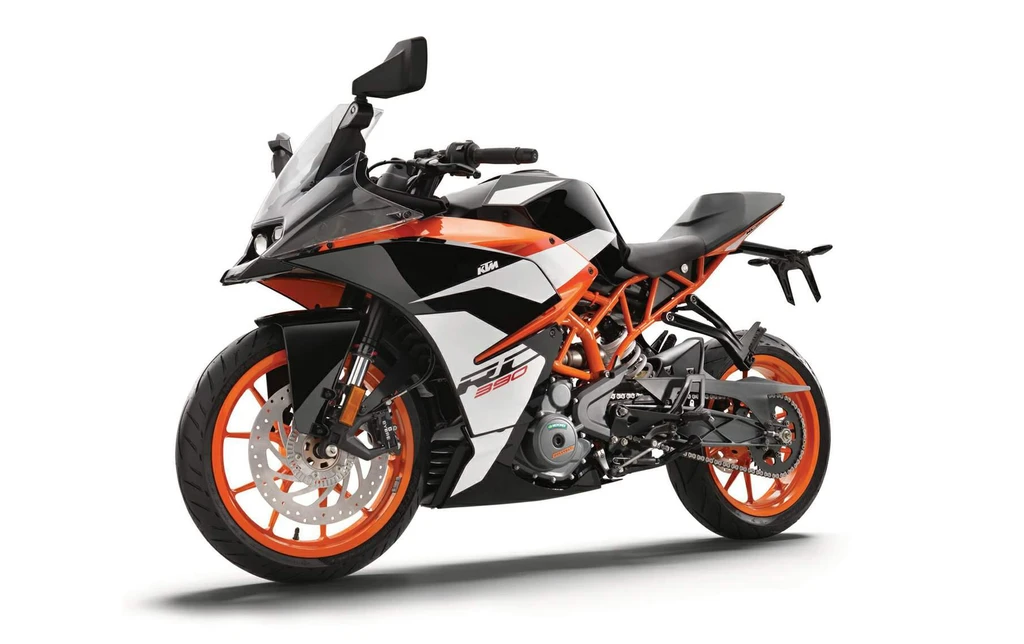

KTM RC 390 (2020)

The KTM RC 390 (2020) embodies the very essence of a sports bike, distilled to its purest form. This razor-sharp machine is designed for agility, speed, and thrill-seeking riders. With its A2-friendly engine, potent single-cylinder DOHC unit, and exceptional handling, it’s a force to be reckoned with on both country roads and the racetrack.

The state-of-the-art engine, boasting twin overhead camshafts and four valves per cylinder, unleashes a torrent of torque and punchy acceleration. Seamlessly combining impressive power with good manners in everyday use, it’s a true marvel of engineering. With outstanding fuel economy and a robust 32 kW (44 hp) output, the KTM RC 390 is an unbeatable option for A2 riders.

But what truly sets this motorcycle apart is its incredible agility, razor-sharp handling, and playfully responsive chassis. KTM’s ingenious design has resulted in a machine that is as at home in the twisty urban streets as it is on the track. With its advanced braking system, courtesy of BREMBO, the KTM RC 390 is poised to leave the competition in its dust, and its exceptional performance will leave you begging for more, and more, and more.

Key Specifications

Engine Type	Four stroke, single cylinder, DOHC with finger followers, 4 Valve per cylinder
Engine Capacity	22.7 cubic inches / 373 cc
Max Power	32 kw / 43 hp
Max Torque	26 ft-lb / 35.3 nm
Fuel Tank Capacity	10 Liters / 2.64 US gal
Seat Height	32.2 inches / 820 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM RC 390
Year	2020

Engine

Engine Type	Four stroke, single cylinder, DOHC with finger followers, 4 Valve per cylinder
Displacement	22.7 cubic inches / 373 cc
Bore x Stroke	89 x 60 mm
Compression Ratio	12.6:1
Max Horsepower	32 kw / 43 hp
Max Torque	26 ft-lb / 35.3 nm
Engine Management System	Bosch Injection
Lubrication System	Forced oil lubrication with 2 Eaton pumps
Cooling System	Liquid Cooled

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multi-disc clutch / mechanically operated
Gearbox	6 Speed
Final Drive	Chain5/8 x 1/4 X‑Ring

Electrical & Electronics System

Starter

Electric

Chassis & Suspension

Frame Type	Tubular space frame made from steel, powder-coated
Front Suspension	WP Suspension Up Side Down
Rear Suspension	WP Monoshock
Rear Suspension Travel	5.9 inches / 150 mm
Rake	65
Trail	100mm / 3.9 in

Wheels & Brakes

Front Tire Size	110/70 R17
Rear Tire Size	150/60 R17
Front Brakes	Single320 mm disc 4 piston radial caliper
Rear Brakes	Single230 mm disc 1 piston caliper

Dimension & Weights

Seat Height	32.2 inches / 820 mm
Wheelbase	52.7 inches / 1340 mm
Ground Clearance	179 mm / 7.0 in
Fuel Tank Capacity	10 Liters / 2.64 US gal
Dry Weight	149 kg / 328.5 lbs

Features

Four stroke, single cylinder engine
DOHC with finger followers, 4 Valve per cylinder
State-of-the-art single-cylinder engine
Twin overhead camshafts
Punchy torque and acceleration
Good manners in everyday use
Outstanding fuel economy
32 kW (44 hp) power output
Sportiest option for A2 riders
Intake design and fuel injection system
Compact, three-chamber silencer
Externally adjustable front fork
Orange painted frame
Increased steering head angle (66.5 degrees)
Shorter trail and wheelbase
Increased ground clearance
High-tech braking system with Brembo
State-of-the-art ABS
320 mm front brake disc
230 mm rear brake disc
Four piston radially bolted front caliper
Single piston floating rear caliper
10 liter steel fuel tank
1.5 liter reserve tank
Racing-inspired body position
Freedom of movement for rider and pillion
Unsurpassed operability and large contact surfaces
