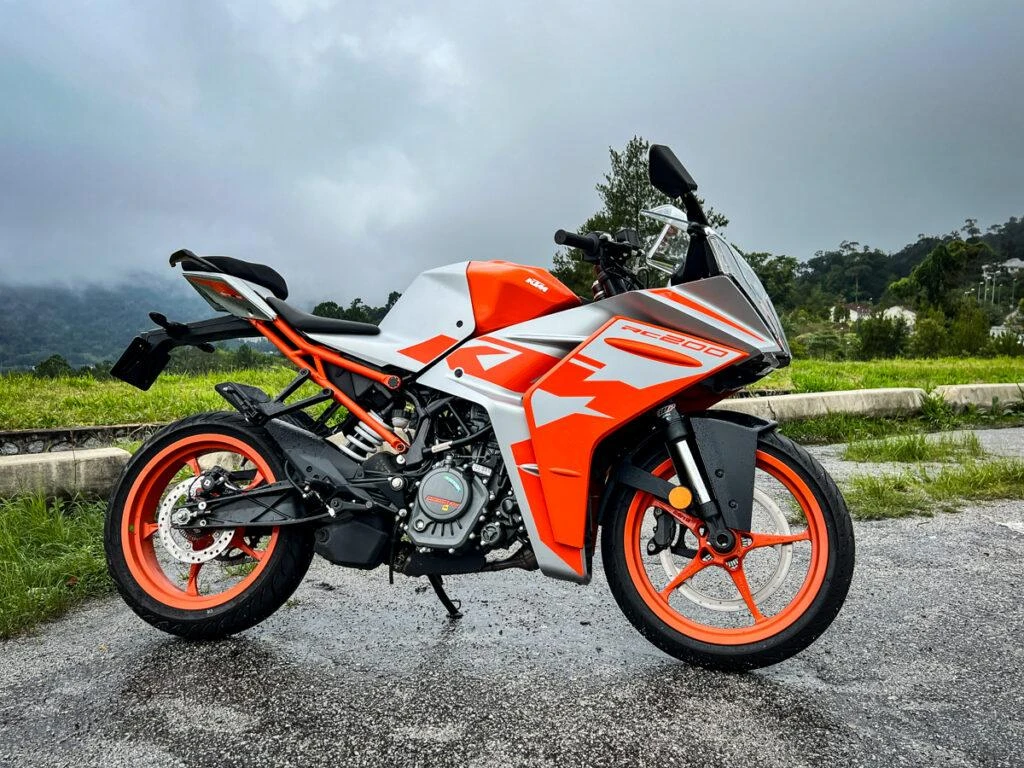

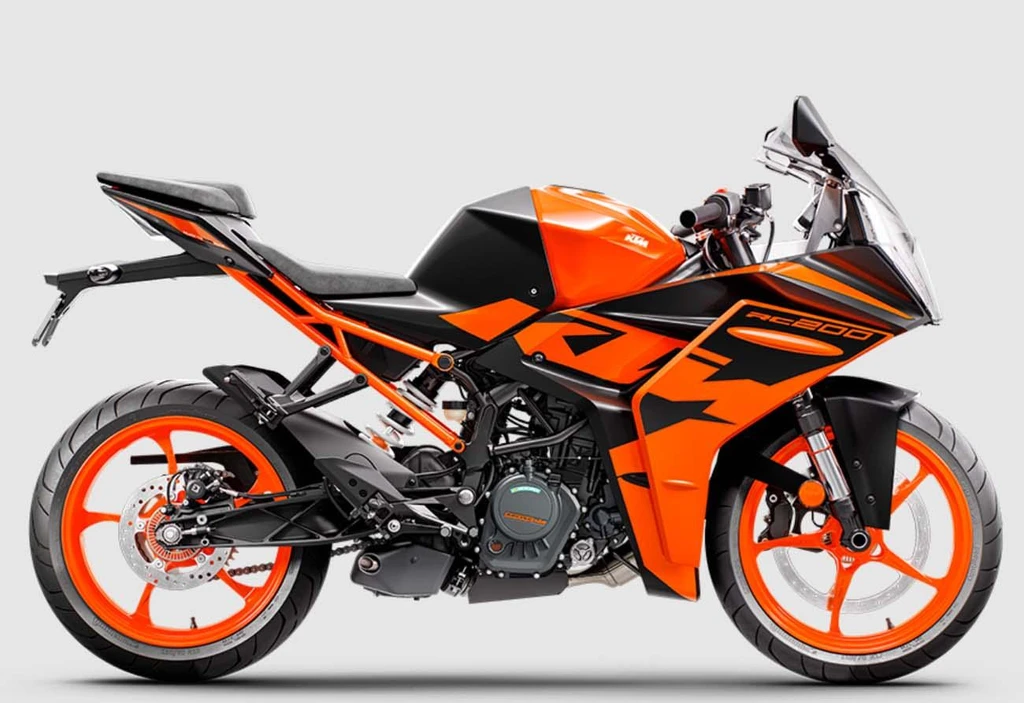

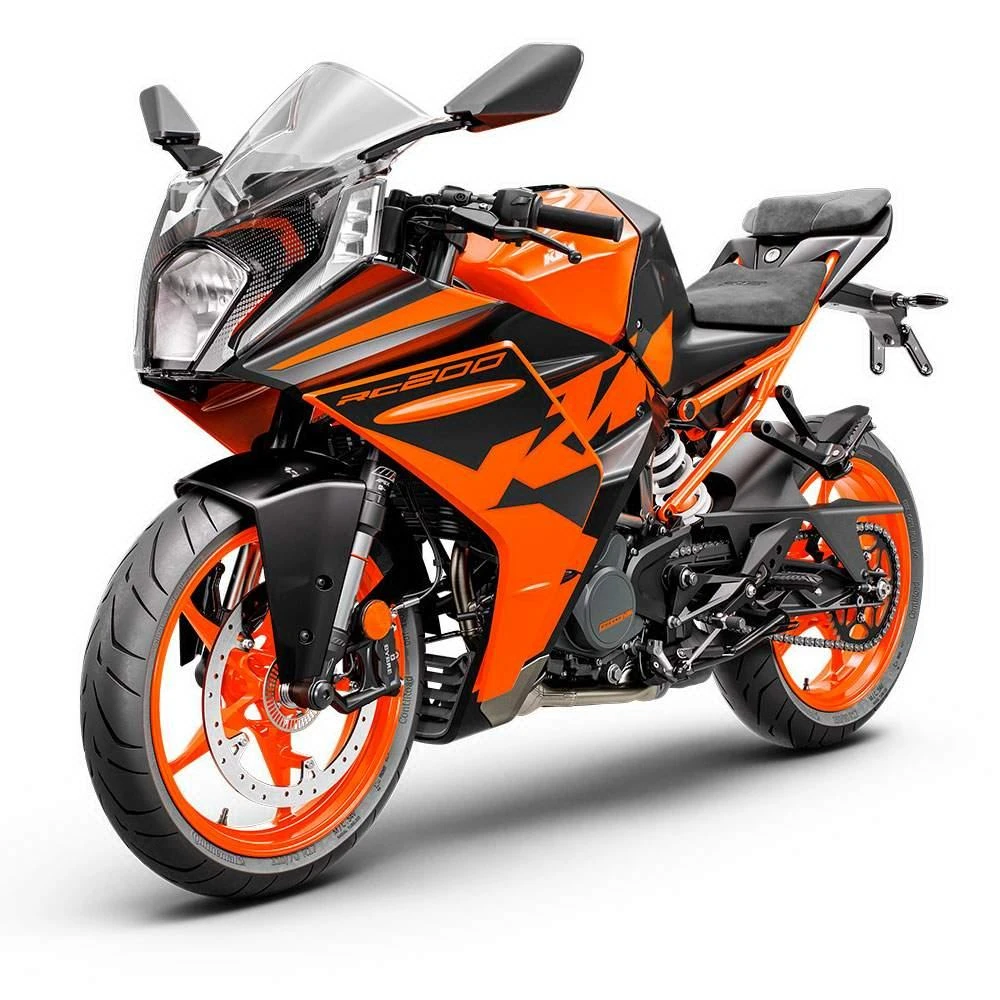

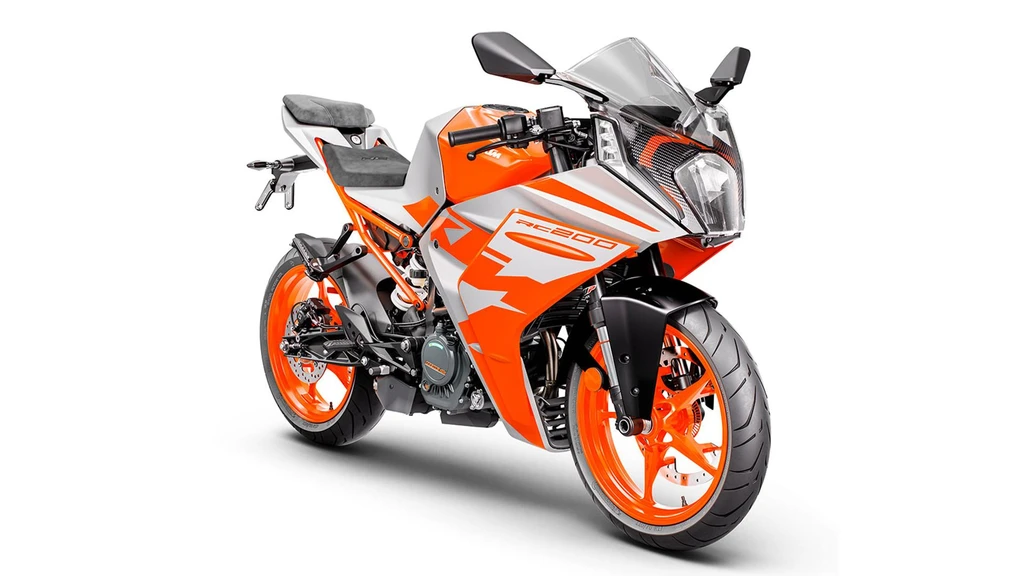

The 2022 KTM RC 200 is a razor-sharp, track-focused motorcycle that’s been updated with a BS6 engine, delivering 25hp and 19.5Nm of torque from its 199.5cc, fuel-injected powerplant.
The engine’s character is perfectly suited to the RC 200’s lightweight, agile chassis, making it an absolute blast to ride on twisty roads and circuits alike.
With a premium parts list that includes WP APEX suspension, lightweight wheels, and dual-channel ABS, the RC 200 offers class-leading performance at an unbeatable price.
The result is a motorcycle that’s as thrilling to ride as it is to look at, and one that’s set to take the entry-level supersport class by storm.
Key Specifications
Engine Type
Four stroke, single cylinder. DOHC with finger followers, 4 Valve per cylinder
Engine Capacity
12.1 cubic inches / 199.5 cc
Max Power
25.4 hp / 19 kW @ 10000 rpm
Max Torque
14 lb-ft / 19.5 Nm @ 8000 rpm
Fuel Tank Capacity
3.6 US gallons / 13.7 L
Seat Height
32.4 inches / 824 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM RC 200
Year
2022 –
Engine
Engine Type
Four stroke, single cylinder. DOHC with finger followers, 4 Valve per cylinder
Displacement
12.1 cubic inches / 199.5 cc
Bore x Stroke
72 x 49 mm
Compression Ratio
14.5:1
Max Horsepower
25.4 hp / 19 kW @ 10000 rpm
Max Torque
14 lb-ft / 19.5 Nm @ 8000 rpm
Engine Management System
Bosch Injection
Lubrication System
Wet sump
Cooling System
Liquid Cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet multi-disc clutch, mechanically operated
Gearbox
6 Speed
Final Drive
Chain,520 X‑Ring
Electrical & Electronics System
Starter
Electric
ABS
Bosch 9.1 MB Two Channel ABS (Supermoto ABS)
Chassis & Suspension
Frame Type
Steel trellis frame, powder-coated
Front Suspension
WP APEX 43
Rear Suspension
WP APEXMonoshock
Rear Suspension Travel
5.9 inches / 150 mm
Rake
66.8
Trail
100 mm / 3.9 in
Wheels & Brakes
Front Tire Size
95/75-R17
Rear Tire Size
115/75-R17
Front Brakes
Single320 mm disc, four-piston radial fixed calliper
Rear Brakes
Single230 mm disc, single-piston floating calliper
ABS
Bosch 9.1 MB Two Channel ABS (Supermoto ABS)
Dimension & Weights
Seat Height
32.4 inches / 824 mm
Ground Clearance
158 mm / 6.2 in
Fuel Tank Capacity
3.6 US gallons / 13.7 L
Dry Weight
151 kg / 332.8 lbs
Features
Four stroke, single cylinder engine
DOHC with finger followers
4 Valve per cylinder
Fuel-injected engine
199.5cc displacement
25hp power output
19.5Nm of torque
Underbelly exhaust
Dual-channel ABS
WP APEX suspension
Lightweight wheels
BS6 engine
Same suspension, chassis, and brakes setup as BS4 model
One variant available
DOHC engine
