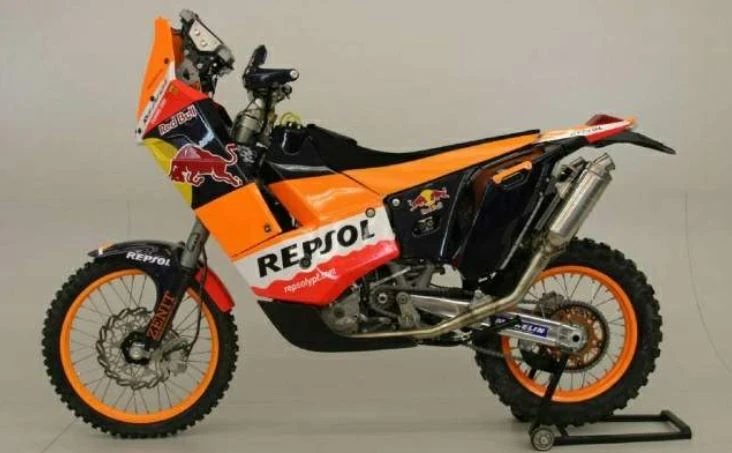

Get ready for the ultimate off-road adventure with the KTM LC4 690 Rally Replica. This production racing machine is a result of the Austrian manufacturer’s success in the Dakar Rally and is designed to deliver exceptional performance and handling. The 690 Rally Replica boasts a groundbreaking single-cylinder engine with improved characteristics, lower vibration, and generous power delivery.
With a focus on racing technology, the bike features a robust self-supporting tubular frame, ergonomically designed tanks, and a flat seat unit for improved control. The six-gear transmission allows for seamless shifting and access to the engine’s full performance potential.
As the latest addition to KTM’s “Ready to Race” philosophy, the 690 Rally Replica is the ultimate tool for passionate private racers seeking to conquer the toughest off-road challenges. With its exceptional power, agility, and handling, this machine is ready to take on the most demanding terrain and leave the competition in its dust.
Key Specifications
Engine Type
Four stroke, single Cylinder. SOHC, 4 Valve
Engine Capacity
39.9 cubic inches / 690 cc
Max Power
80.2 hp / 59 kW @ 8500 rpm
Max Torque
75 Nm / 7.65 kg-m @ 6750 rpm
Fuel Tank Capacity
36 Litres / 9.5 gal
Weight (Wet/Kerb)
452 lbs / 205 kg
Seat Height
38.5 inches / 960 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM LC4 690 Rally Replica
Year
2007
Engine
Engine Type
Four stroke, single Cylinder. SOHC, 4 Valve
Displacement
39.9 cubic inches / 690 cc
Bore x Stroke
102x80mm
Compression Ratio
11.7;1
Max Horsepower
80.2 hp / 59 kW @ 8500 rpm
Max Torque
75 Nm / 7.65 kg-m @ 6750 rpm
Engine Management System
41 mm Carburetor
Lubrication System
Wet sump
Cooling System
Liquid Cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet Multi-disc hydraulically operated,
Gearbox
6 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Front Suspension
48mm WP USD forks
Front Suspension Travel
11.8 inches / 300 mm
Rear Suspension
WP Monoshock with Pro-Lever linkage
Rear Suspension Travel
12.2 inches / 310 mm
Rake
28
Trail
120 mm / 4.7 in
Wheels & Brakes
Front Tire Size
90/80 -R21
Rear Tire Size
130/80 -R18
Front Brakes
2x 300mm discs 2 piston calipers
Rear Brakes
Single 240mm disc 1 piston caliper
Dimension & Weights
Seat Height
38.5 inches / 960 mm
Ground Clearance
320 mm / 12.5 in
Fuel Tank Capacity
36 Litres / 9.5 gal
Wet (kerb/curb) Weight
452 lbs / 205 kg
Dry Weight
162 kg / 357 lbs
Features
690cc single cylinder engine with improved characteristics and lower vibration
Reduced engine weight by 3 kg
Reduced total motorcycle weight by 8 kg
New six-gear transmission
Robust self-supporting tubular frame for optimal weight distribution
Ergonomically shaped tanks for improved control
Flat seat unit for improved control
Newly designed paneling for increased stability
Production racing machine for passionate private racers
Developed by the KTM Rally Department and tested by top riders
Based on the KTM Ready to Race philosophy
Manufactured to order
Race-proven winning technology
Lower levels of vibration
Generous power delivery
