The Freeride 250R embodies the perfect blend of agility and power, thanks to its innovative, two-stroke engine. With a contactless, fully electronic ignition system and digital timing adjustment, this engine delivers an unparalleled punch, churning out gut-wrenching torque from the low rev range.
The unique characteristics of the two-stroke engine, hitting the piston twice as often, create an exceptional riding experience. The engine’s design prioritizes torque response and rideability over raw power, making it the ultimate tool for Freeriding.
This deliberate approach to engine design allows riders to fully immerse themselves in the thrill of off-road riding, unlocking new levels of enjoyment and connection with the bike.
Key Specifications
Engine Type
Two stroke, single cylinder
Engine Capacity
15.2 cubic inches / 249 cc
Max Power
NA
Max Torque
NA
Fuel Tank Capacity
1.85 US gallons / 7.0 L
Seat Height
36.0 inches / 915 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model

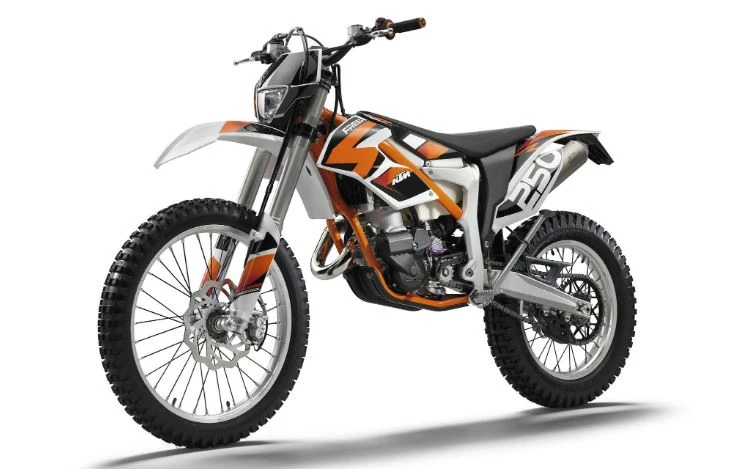

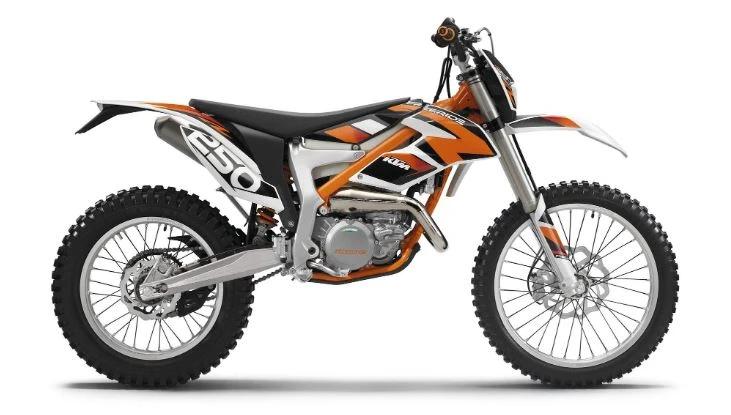

KTM Freeride 250R
Year
2014 – 2015
Engine
Engine Type
Two stroke, single cylinder
Displacement
15.2 cubic inches / 249 cc
Bore x Stroke
66.4 X 72 mm
Compression Ratio
12.3:1
Max Horsepower
NA
Max Torque
NA
Engine Management System
Carburettor
Cooling System
Liquid Cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet multi-disc clutch, Brembo hydraulics
Gearbox
6 Speed, claw shifted
Primary Drive Ratio
26:72
Final Drive
Chain 5/8 x 1/4″ X Ring
Electrical & Electronics System
Starter
Electric
Chassis & Suspension
Frame Type
Perimeter steel-aluminium composite frame
Front Suspension
WP Suspension4357 MXMA
Front Suspension Travel
9.8 inches / 250 mm
Rear Suspension
WP-PDS shock absorber,
Rear Suspension Travel
11.0 inches / 280 mm
Rake
23.0
Trail
67
Wheels & Brakes
Front Tire Size
80/100-21
Rear Tire Size
110/90-19
Front Brakes
Single 260mm disc 2 piston caliper
Rear Brakes
Single 210mm disc 1 piston caliper
Dimension & Weights
Seat Height
36.0 inches / 915 mm
Wheelbase
55.8 inches / 1418 mm
Fuel Tank Capacity
1.85 US gallons / 7.0 L
Dry Weight
92.5 kg / 204 lbs
Features
Contactless, controlled, fully electronic ignition system
Digital ignition timing adjustment
Type Kokusan ignition system
Two-stroke engine
Burly two-stroke engine
Light and agile off-road chassis
Freeride segment model
Freeriding ideal engine design
Pleasant torque response
Optimum rideability
Off-road specific engine design
Maximum torque output
Low rev range torque
Gut-wrenching torque
Two-stroke enduro engine design
Designed for maximum power and torque
Engine designed for enjoyable off-roading
