The KTM 990 Supermoto T Limited Edition embodies the perfect blend of sporty spirit and long-distance comfort, making it an ideal companion for travelers seeking to combine speed with practicality.
The 75-degree V-twin engine, with its DOHC and 4 valves per cylinder, delivers a rich and smooth power delivery, perfectly suited for both spirited riding and cruising over long distances.

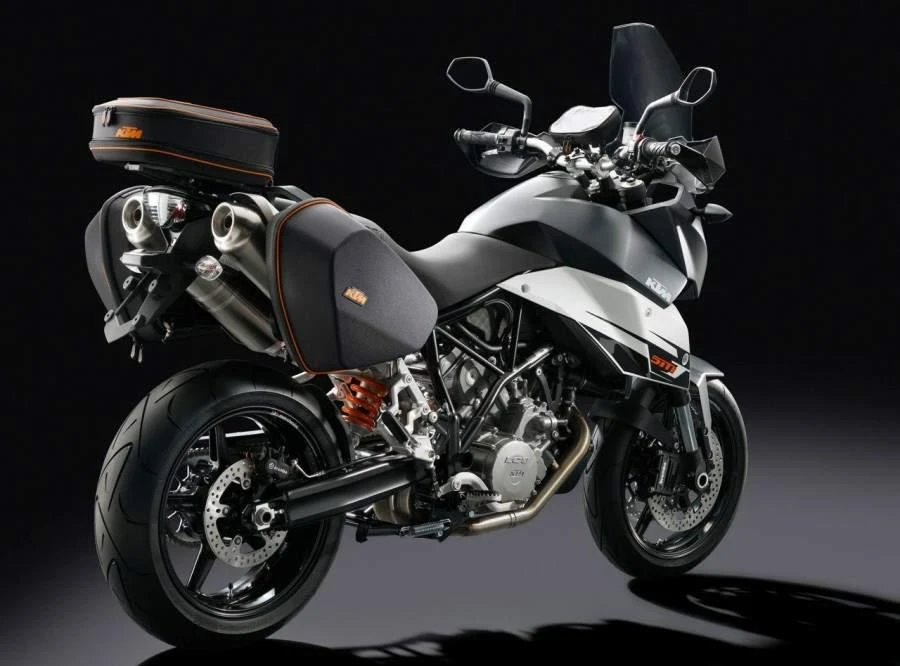

The 990 Supermoto T Limited Edition is a masterclass in versatility, with a range of accessories that make it an ideal choice for extended touring. From the Ergo saddle and touring windscreen to the GPS mount and center stand, every detail has been carefully considered to enhance the riding experience.
The result is a motorcycle that is capable of delivering unlimited riding fun, whether you’re carving up twisty roads or tackling long stretches of motorway. With its sleek design and impressive performance, the KTM 990 Supermoto T Limited Edition is the ultimate machine for anyone seeking a thrilling and practical riding experience.
Key Specifications
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity
60.9 cubic inches / 999.8 cc
Max Power
116 hp / 85 kW @ 9000 pm
Max Torque
97.Nm / / 71.5 ft/lb @ 7000 rpm
Fuel Tank Capacity
19 Litres / 5.0 gal
Seat Height
855 mm / 33.9
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 990 Supermoto T Limited Edition
Year
2010
Engine
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement
60.9 cubic inches / 999.8 cc
Bore x Stroke
101 x 62.4mm
Compression Ratio
11.5:1
Max Horsepower
116 hp / 85 kW @ 9000 pm
Max Torque
97.Nm / / 71.5 ft/lb @ 7000 rpm
Engine Management System
Keihin EMS With FPT fuel injection
Lubrication System
Dry-sump lubrication with 2 rotor pumps
Cooling System
Liquid cooling,
Exhaust
2 x Premium steel with three-way-catalyser
Performance
Top Speed
222.0 km/h
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet multi-disc clutch, operated hydraulically
Gearbox
6 Speed
Final Drive
Chain 5/8 x 5/16″ X Ring
Electrical & Electronics System
Battery
12 V/11.2 Ah
Starter
Electric
Chassis & Suspension
Frame Type
Tubular Chromoly space frame powered coated.
Front Suspension
48mm WP USD adjustable
Front Suspension Travel
6.3 inches / 160 mm
Rear Suspension
WP shock, fully adjustable
Rear Suspension Travel
7.1 inches / 180 mm
Rake
24.4
Trail
109 mm / 4.3 in
Wheels & Brakes
Front Tire Size
120/70 ZR17
Rear Tire Size
180/55 ZR17
Front Brakes
2x 305mm discs 4 piston calipers
Rear Brakes
Single 240mm disc 2 piston caliper
Dimension & Weights
Seat Height
855 mm / 33.9
Ground Clearance
195 mm / 7.68 in
Fuel Tank Capacity
19 Litres / 5.0 gal
Dry Weight
196.0 kg / 432.1 lbs
Features
Four-stroke, 75V-twin cylinder engine
DOHC with 4 valves per cylinder
KTM SMT (Super Moto Travel) design for long-distance travel
Comfortable seating for long journeys
Ergo saddle for improved comfort
Rear bag and pannier for carrying gear
12V socket for charging electronics
GPS support with housing
Touring windscreen for increased protection
Center stand for maintenance and parking
Chrome-molybdenum frame
WP chassis
LC8 engine with 115 hp
Light and compact engine design (58 kg)
Multifunctional cockpit
Integrated half fairing and windscreen
