The KTM 990 Supermoto R is a force to be reckoned with on the road, boasting a potent 999cc LC8 V-Twin engine that pumps out a substantial 116 horsepower.
Its sophisticated electronic fuel injection system ensures a remarkably smooth partial load response, while its radial Brembo Monoblock four-pot callipers and Bosch 9M+ ABS provide razor-sharp braking capabilities.
But what truly sets the 990 SM R apart is its exceptional handling and ride dynamics, thanks to its 48mm USD forks by WP and rear shock from the same maker.
This potent combination makes for a thrilling riding experience, one that’s both exhilarating and comfortable.
Its lightweight and compact design, coupled with its intelligent multi-function balancer shaft, make it a masterclass in engineering, and one that leaves all other Supermotos in its wake. The KTM 990 Supermoto R is, without a doubt, the most radical twin-cylinder Supermoto on the market.
Key Specifications
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity
60.9 cubic inches / 999.8 cc
Max Power
114.hp / 83.2 kW) @ 4000 rpm
Max Torque
97.Nm / / 71.5 ft/lb @ 7000 rpm
Fuel Tank Capacity
15 Litres / 3.9 gal
Seat Height
34.45 inches / 875 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model

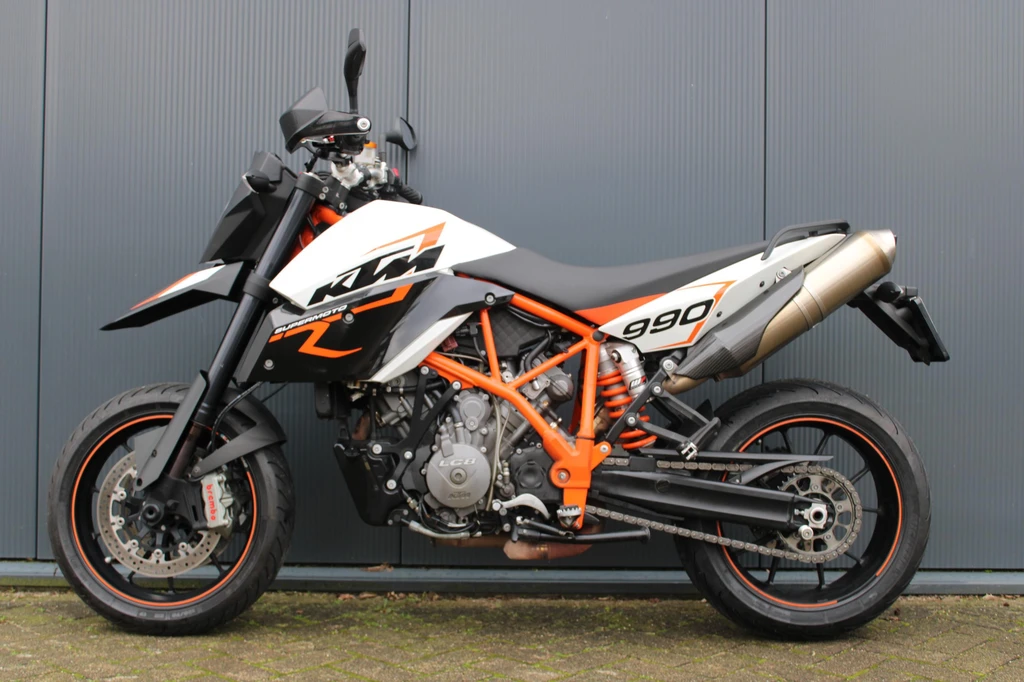

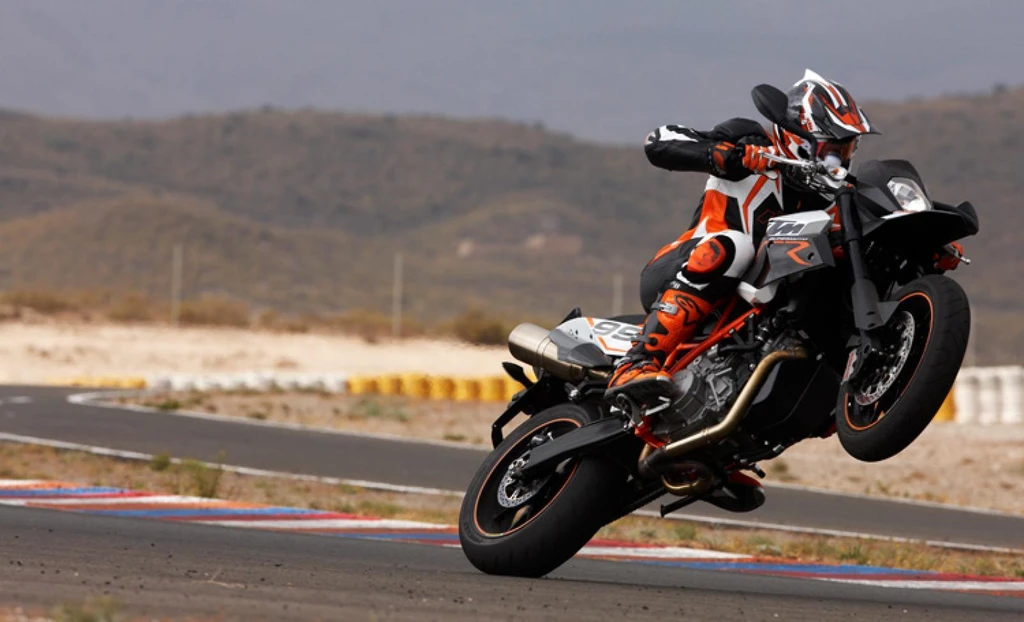

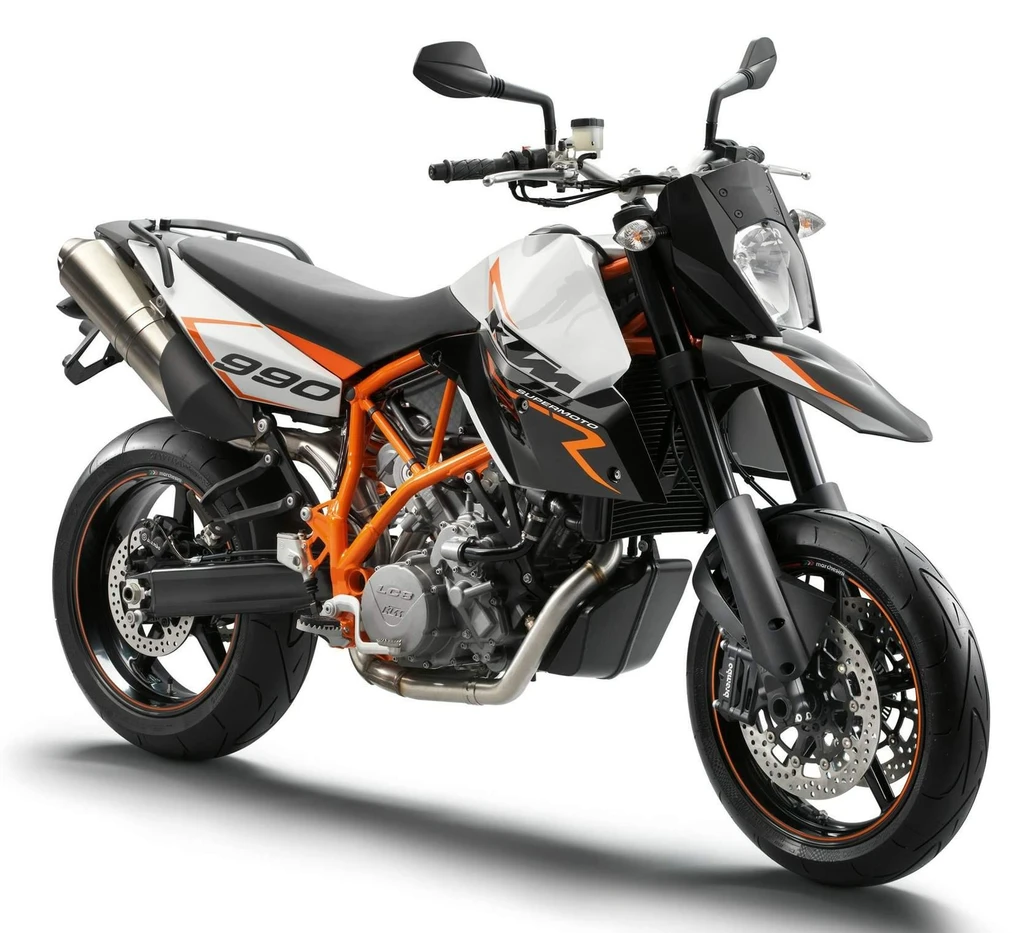

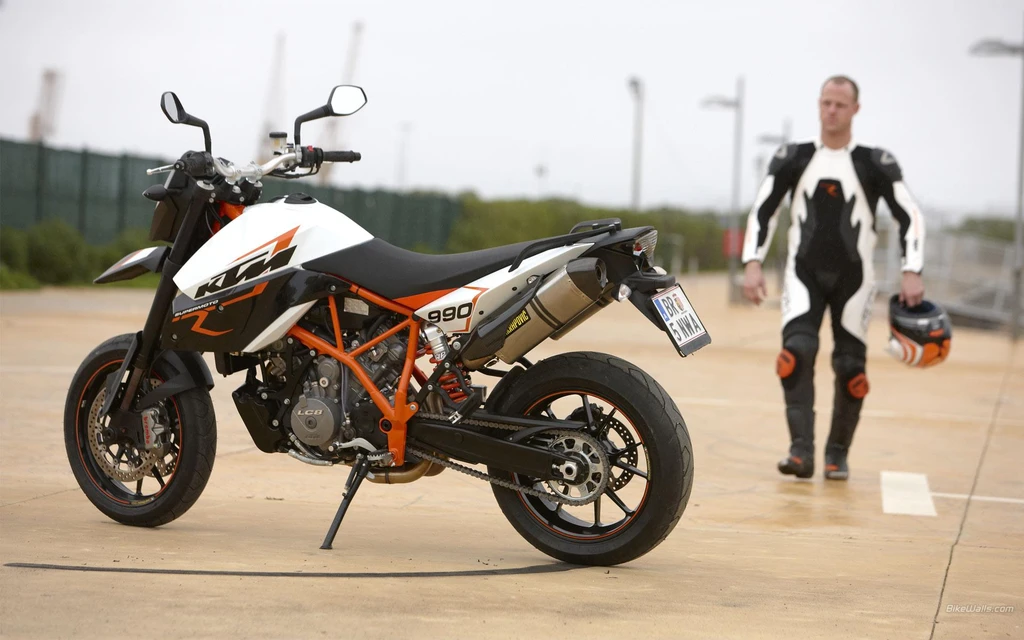

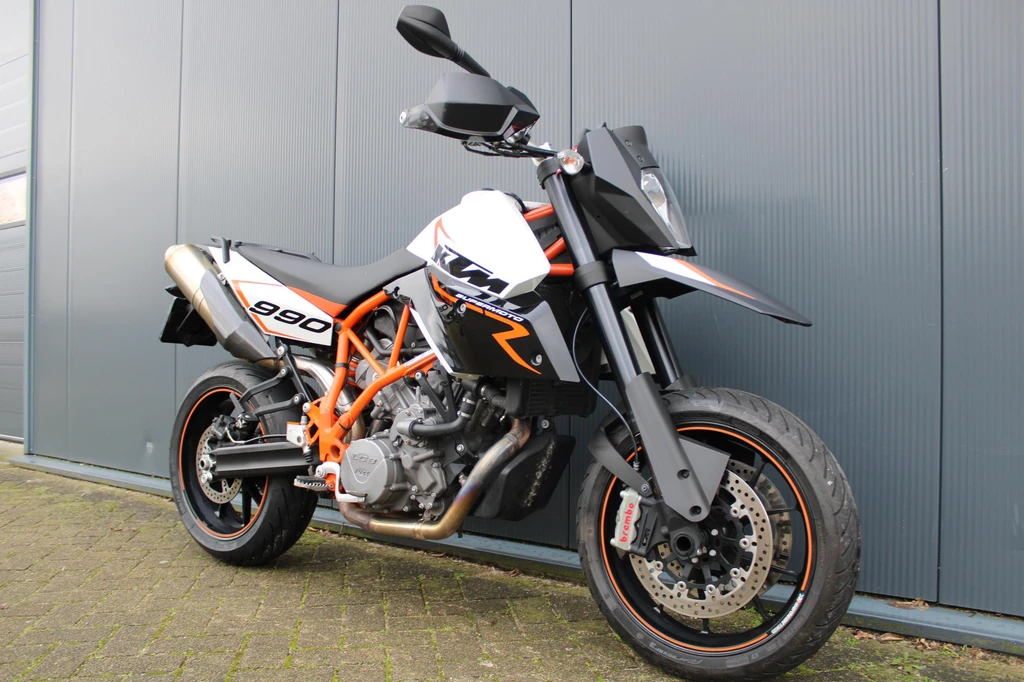

KTM 990 Supermoto R
Year
2011
Engine
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement
60.9 cubic inches / 999.8 cc
Bore x Stroke
101 x 62.4mm
Compression Ratio
11.5:1
Max Horsepower
114.hp / 83.2 kW) @ 4000 rpm
Max Torque
97.Nm / / 71.5 ft/lb @ 7000 rpm
Engine Management System
Electronic fuel injection / electric
Lubrication System
Dry-sump lubrication with 2 rotor pumps
Cooling System
Liquid cooling,
Exhaust
2 x Premium steel with three-way-catalyser
Performance
Top Speed
229.8 km/h
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet multi-disc clutch, operated hydraulically
Gearbox
6 Speed
Final Drive
Chain.
Electrical & Electronics System
Battery
12 V/11.2 Ah
Starter
Electric
Chassis & Suspension
Frame Type
Tubular space frame made from chrome molybdenum steel, powder-coated
Front Suspension
48mm WP USD adjustable
Front Suspension Travel
6.3 inches / 160 mm
Rear Suspension
WP shock, fully adjustable
Rear Suspension Travel
7.1 inches / 180 mm
Rake
24.4
Trail
109 mm / 4.3 in
Wheels & Brakes
Front Tire Size
120/70 ZR17
Rear Tire Size
180/55 ZR17
Front Brakes
2x 305mm discs 4 piston calipers
Rear Brakes
Single 240mm disc 2 piston caliper
Dimension & Weights
Seat Height
34.45 inches / 875 mm
Wheelbase
59.3 inches / 1505 mm
Ground Clearance
195 mm / 7.7 in
Fuel Tank Capacity
15 Litres / 3.9 gal
Dry Weight
192 kg / 423 lbs
Features
999cc LC8-V2 engine
116 hp
Electronic Keihin fuel injection with two throttle valves
