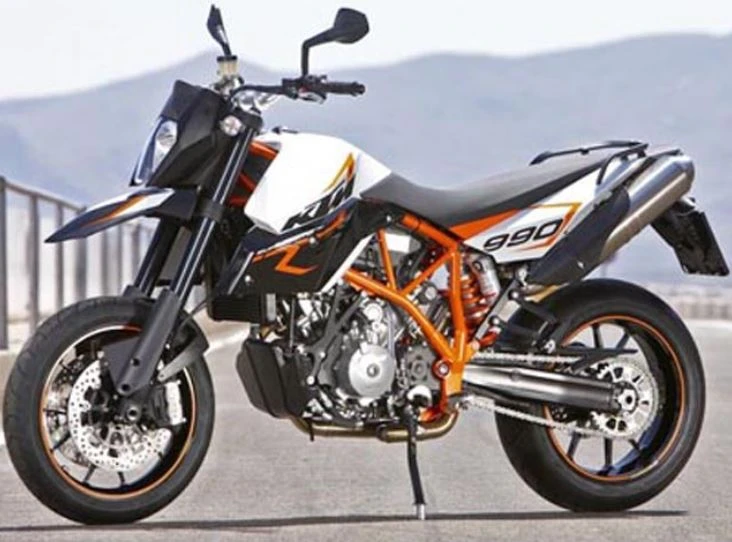

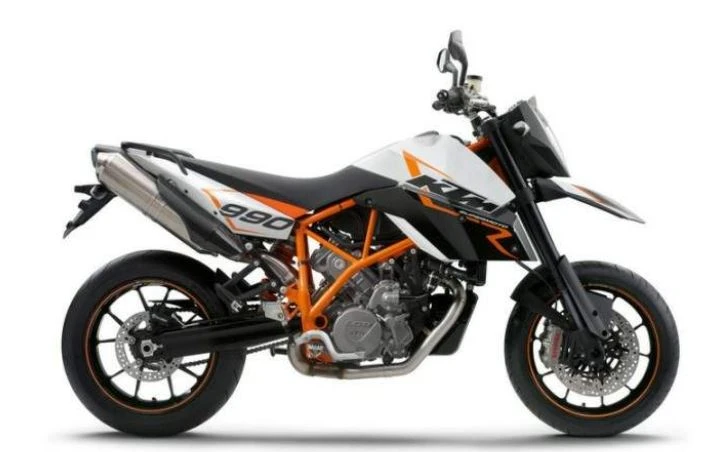

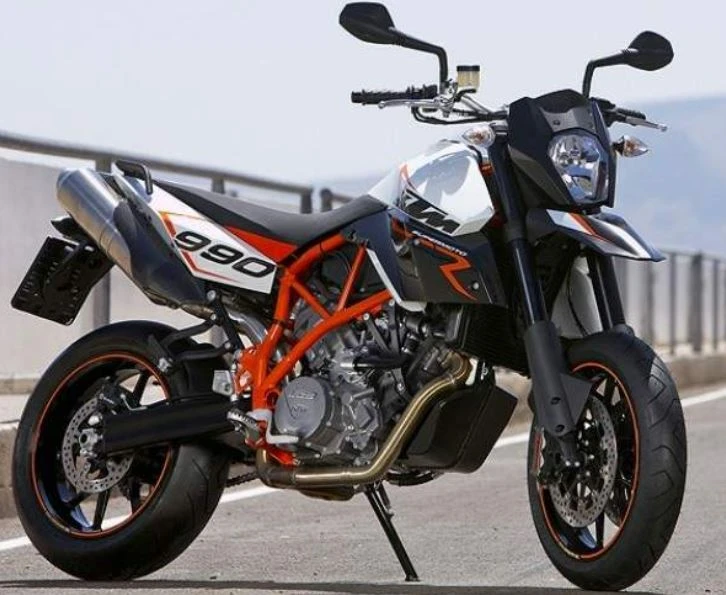

The 2010 KTM 990 Supermoto R is a purpose-built machine that embodies the essence of supermoto riding. Its 75-degree V-twin LC8 engine, a carryover from the Super Duke R, delivers a potent 115 horsepower and 72 lb-ft of torque. The addition of Brembo brakes with monoblock radial-mount calipers and a fully adjustable suspension system, front and rear, make this bike a formidable handler on both road and dirt.
Riding the Supermoto R is an exhilarating experience, with its short gearing and responsive power delivery making it a joy to carve through twisties. The 990 R’s unique engine character, with its smooth, linear power delivery and hint of character, makes it an ideal companion for both short, spirited blasts and longer, more leisurely rides.
With its razor-sharp handling, impressive power output, and Brembo brakes, the KTM 990 Supermoto R is a true supermoto icon, setting the standard for its class.
Key Specifications
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity
60.9 cubic inches / 999.8 cc
Max Power
114.hp / 83.2 kW) @ 4000 rpm
Max Torque
97.Nm / / 71.5 ft/lb @ 7000 rpm
Fuel Tank Capacity
15 Litres / 3.9 gal
Seat Height
34.45 inches / 875 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 990 Supermoto R
Year
2010
Engine
Engine Type
Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement
60.9 cubic inches / 999.8 cc
Bore x Stroke
101 x 62.4mm
Compression Ratio
11.5:1
Max Horsepower
114.hp / 83.2 kW) @ 4000 rpm
Max Torque
97.Nm / / 71.5 ft/lb @ 7000 rpm
Engine Management System
Electronic fuel injection / electric
Lubrication System
Dry-sump lubrication with 2 rotor pumps
Cooling System
Liquid cooling,
Exhaust
2 x Premium steel with three-way-catalyser
Performance
Top Speed
229.8 km/h
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet multi-disc clutch, operated hydraulically
Gearbox
6 Speed
Final Drive
Chain.
Electrical & Electronics System
Battery
12 V/11.2 Ah
Starter
Electric
Chassis & Suspension
Frame Type
Tubular space frame made from chrome molybdenum steel, powder-coated
Front Suspension
48mm WP USD adjustable
Front Suspension Travel
6.3 inches / 160 mm
Rear Suspension
WP shock, fully adjustable
Rear Suspension Travel
7.1 inches / 180 mm
Rake
24.4
Trail
109 mm / 4.3 in
Wheels & Brakes
Front Tire Size
120/70 ZR17
Rear Tire Size
180/55 ZR17
Front Brakes
2x 305mm discs 4 piston calipers
Rear Brakes
Single 240mm disc 2 piston caliper
Dimension & Weights
Seat Height
34.45 inches / 875 mm
Wheelbase
59.3 inches / 1505 mm
Ground Clearance
195 mm / 7.7 in
Fuel Tank Capacity
15 Litres / 3.9 gal
Dry Weight
192 kg / 423 lbs
Features
Four-stroke, 75V-twin cylinder engine
DOHC with 4 valves per cylinder
LC8 engine
Brembo brakes
Monoblock radial-mount calipers
Fully adjustable front and rear suspension
Bigger fuel tank
Forged Marchesini wheels
Four-piston Brembo monobloc racing calipers
Two-piston caliper at the rear
Low-profile tank with almost 4-gallon capacity
Cast, two-piece calipers
Softer suspension with fully adjustable fork
5-gallon fuel tank
Windscreen
Easily detachable semi-hard luggage
Larger, passenger-friendly saddle
Luggage rack
Engine produces 115-hp
Single-shaft counterbalancer
Chrome-moly trellis chassis
