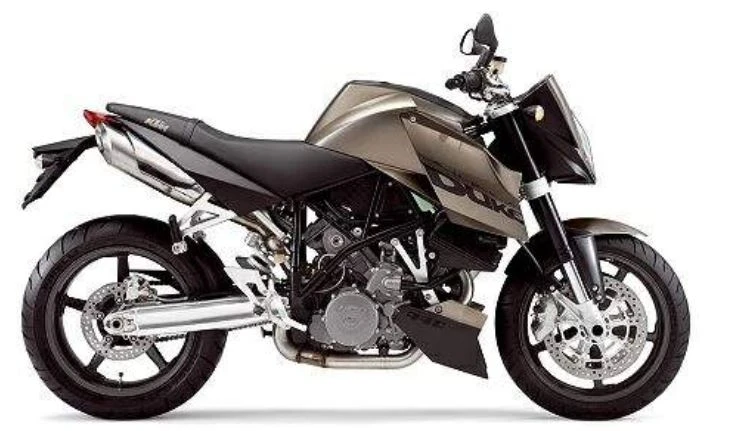

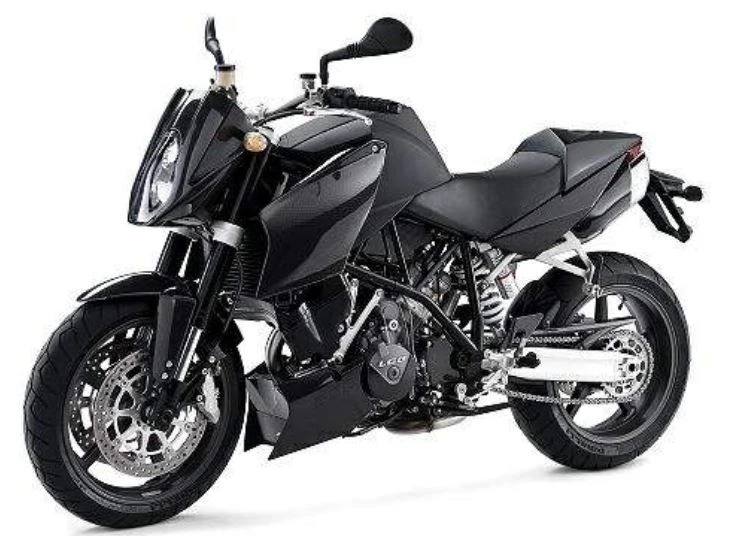

KTM 990 Super Duke RR Titanium Limited Edition (2006)

KTM 990 Super Duke RR Titanium Limited Edition (2006)

The KTM 990 Super Duke RR Titanium Limited Edition is a behemoth of a bike, boasting a 75V-twin cylinder engine with four valves per cylinder and a DOHC configuration. This powerhouse is paired with a range of carbon fiber components, including a front spoiler, tank spoilers, and side covers, to name a few.

The addition of a performance Akrapovic Slip on silencer and adapted EFI mapping further enhances the bike’s performance capabilities. Carbon fiber is a material often associated with high-end race cars and supercars, prized for its exceptional strength-to-weight ratio and stiffness.

But what truly sets the KTM 990 Super Duke RR apart is its riding experience – a thrilling blend of power, agility, and handling that will leave even the most seasoned riders grinning from ear to ear.

With its incredible acceleration and razor-sharp reflexes, this bike is a true marvel of engineering, and a testament to KTM’s commitment to innovation and excellence.

Key Specifications

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity60.9 cubic inches / 999.8 cc
Max Power88 kw / 120 hp
Max Torque100 Nm @ 7000 rpm
Fuel Tank Capacity18.5 Litres / 4.8 gal
Seat Height33.6 inches / 855 mm
KTM 990 Super Duke RR Titanium Limited Edition (2006)

All Specifications

Make & Model

ModelKTM 990 Super Duke RR Titanium Limited Edition
Year2006

Engine

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement60.9 cubic inches / 999.8 cc
Bore x Stroke101 x 62.4mm
Compression Ratio11.5:1
Max Horsepower88 kw / 120 hp
Max Torque100 Nm @ 7000 rpm
Engine Management SystemElectronic fuel injection / electric
Lubrication SystemDry-sump lubrication with 2 rotor pumps
Cooling SystemLiquid cooling,
Exhaust2 x Premium steel with three-way-catalyser

Performance

Top Speedn/a

Transmission

ClutchWet multi-disc clutch, operated hydraulically
Gearbox6 Speed
Final DriveChain, X-Ring 5/8 x 5/16″

Electrical & Electronics System

Battery12 V/11.2 Ah
StarterElectric

Chassis & Suspension

Frame TypeChromium-Molybdenum trellis frame, powder-coated Subframe AluminiumHandlebar Aluminium 28/22 mm (1.89″), tapered
Front Suspension48mm WP Upside down adjustable
Front Suspension Travel5.3 inches / 135 mm
Rear SuspensionWP shock, fully adjustable
Rear Suspension Travel6.3 inches / 160 mm
Rake24
Trail103mm / 4.0 in

Wheels & Brakes

Front Tire Size120/70 ZR17
Rear Tire Size180/55 ZR17
Front Brakes2x 320mm discs 4 piston calipers
Rear BrakesSingle 240mm disc 1 piston caliper

Dimension & Weights

Seat Height33.6 inches / 855 mm
Wheelbase56.6 inches / 1438 mm
Ground Clearance165 mm / 6.4 in
Fuel Tank Capacity18.5 Litres / 4.8 gal

Features

  • Here is the list of features:
  • Four stroke, 75V-twin cylinder engine
  • DOHC
  • 4 valves per cylinder
  • Multiple carbon fiber parts
  • Front spoiler
  • Front fender
  • Tank spoilers
  • Side covers
  • Engine sprocket cover
  • Boot protectors on foot pegs
  • Chain protector
  • Rear splash protector
  • Protectors for ignition and clutch cover
  • Airbox side covers
  • Performance Akrapovic Slip on silencer
  • Adapted EFI Mapping
  • Carbon fiber engine sprocket cover
  • Extremely lightweight properties
  • High strength-to-weight ratio
