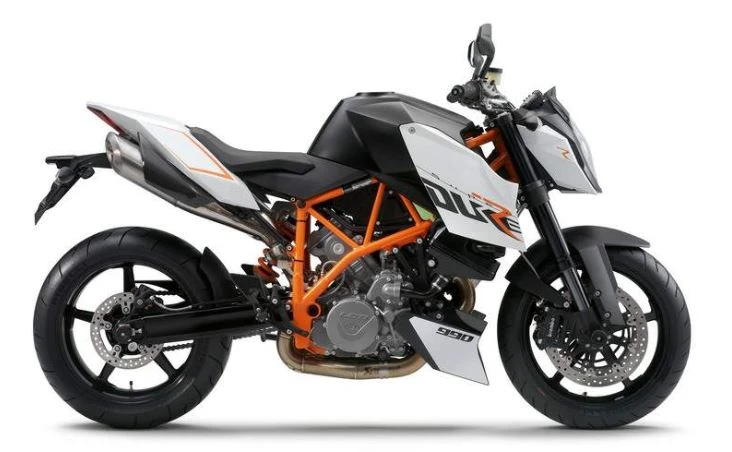

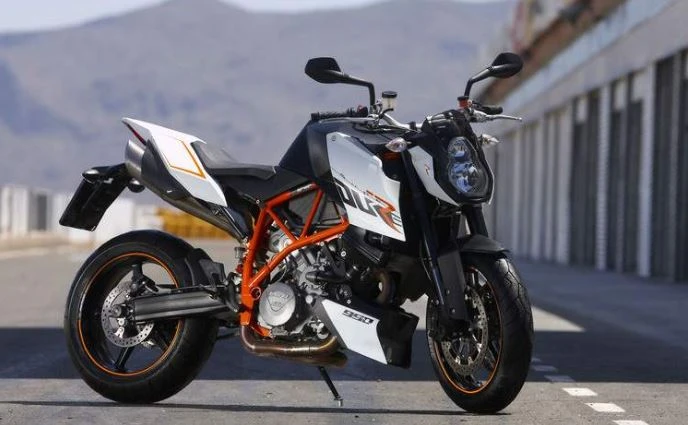

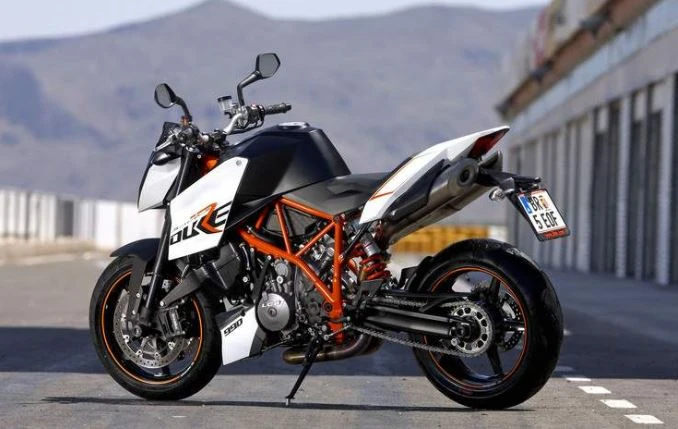

KTM 990 Super Duke R (2009)

The KTM 990 Super Duke R is a powerhouse of a motorcycle, boasting a 75-degree V-twin engine that unleashes a torrent of power and torque.

Its fully adjustable 48mm WP forks and ultralight mono-seat tail section provide exceptional handling and maneuverability, while the chromium molybdenum tubular trellis frame weighs in at a mere 9 kg.

This bike is not just a road-going machine, but a track-ready beast, with a second cylinder added to the supermoto’s DNA to create a versatile, fun, and reliable ride that can tackle both daily commutes and long highway stints with ease.

As we put the KTM 990 Super Duke R through its paces, one thing becomes clear: this bike is a force to be reckoned with, delivering a riding experience that is both exhilarating and refined. And as we conclude our test, it’s clear that the KTM 990 Super Duke R is the ultimate road-going motorcycle.

Key Specifications

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity	60.9 cubic inches / 999.8 cc
Max Power	130.hp / 96.9 kW @ 10000 rpm
Max Torque	101.7 Nm / 75.0 ft.lb @ 8000 rpm
Fuel Tank Capacity	18.5 Litres / 4.8 gal
Seat Height	34.06 inches / 865 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	KTM 990 Super Duke R
Year	2009

Engine

Engine Type	Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement	60.9 cubic inches / 999.8 cc
Bore x Stroke	101 x 62.4mm
Compression Ratio	11.5:1
Max Horsepower	130.hp / 96.9 kW @ 10000 rpm
Max Torque	101.7 Nm / 75.0 ft.lb @ 8000 rpm
Engine Management System	Electronic fuel injection / electric
Lubrication System	Dry-sump lubrication with 2 rotor pumps
Cooling System	Liquid cooling,

Performance

Top Speed

236.3 km/h

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multi-disc clutch, operated hydraulically
Gearbox	6 Speed
Final Drive	Chain, X-Ring 5/8 x 5/16″

Electrical & Electronics System

Battery	12 V/11.2 Ah
Starter	Electric

Chassis & Suspension

Frame Type	Chromium-Molybdenum trellis frame, powder-coated Subframe AluminiumHandlebar Aluminium 28/22 mm (1.89″), tapered
Front Suspension	48mm WP USD adjustable
Front Suspension Travel	5.3 inches / 135 mm
Rear Suspension	WP shock, fully adjustable
Rear Suspension Travel	5.9 inches / 150 mm
Rake	22.7
Trail	93.9 mm / 3.69 in

Wheels & Brakes

Front Tire Size	120/70 ZR17
Rear Tire Size	180/55 ZR17
Front Brakes	2x 320mm discs 4 piston calipers
Rear Brakes	Single 240mm disc 2 piston caliper

Dimension & Weights

Seat Height	34.06 inches / 865 mm
Wheelbase	57.1 inches / 1450 mm
Ground Clearance	140 mm / 5.5 in
Fuel Tank Capacity	18.5 Litres / 4.8 gal
Dry Weight	186 kg / 410.05 lb

Features

Four stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
115-hp motor
Liquid-cooled, fuel-injected
Single-shaft counterbalancer
Basic chrome-moly trellis chassis
Fully adjustable 48 WP forks
Ultralight mono-seat tail section
Chromium molybdenum tubular trellis frame weighing 9 kg
Additional steering damper
Forged Marchesini wheels
Four-piston Brembo monobloc racing calipers
Two-piston caliper rear stopper
Low-profile tank holds almost four gallons
Cast, two-piece calipers (T model)
Softer suspension (T model)
Larger 5-gallon tank (T model)
Windscreen (T model)
Easily detachable semi-hard luggage (T model)
Larger, more passenger-friendly saddle (T model)
