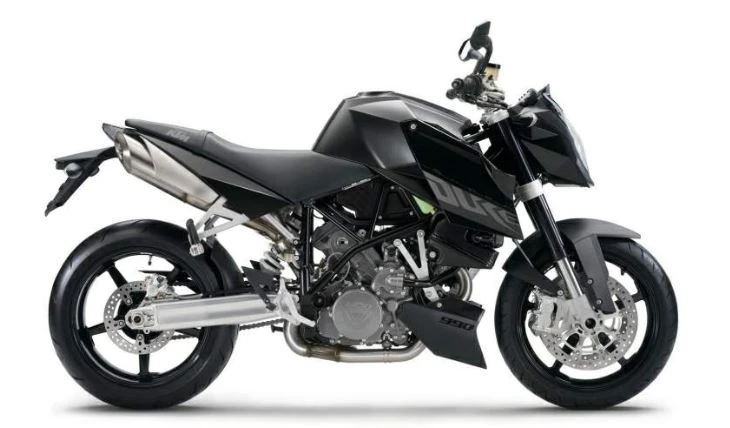

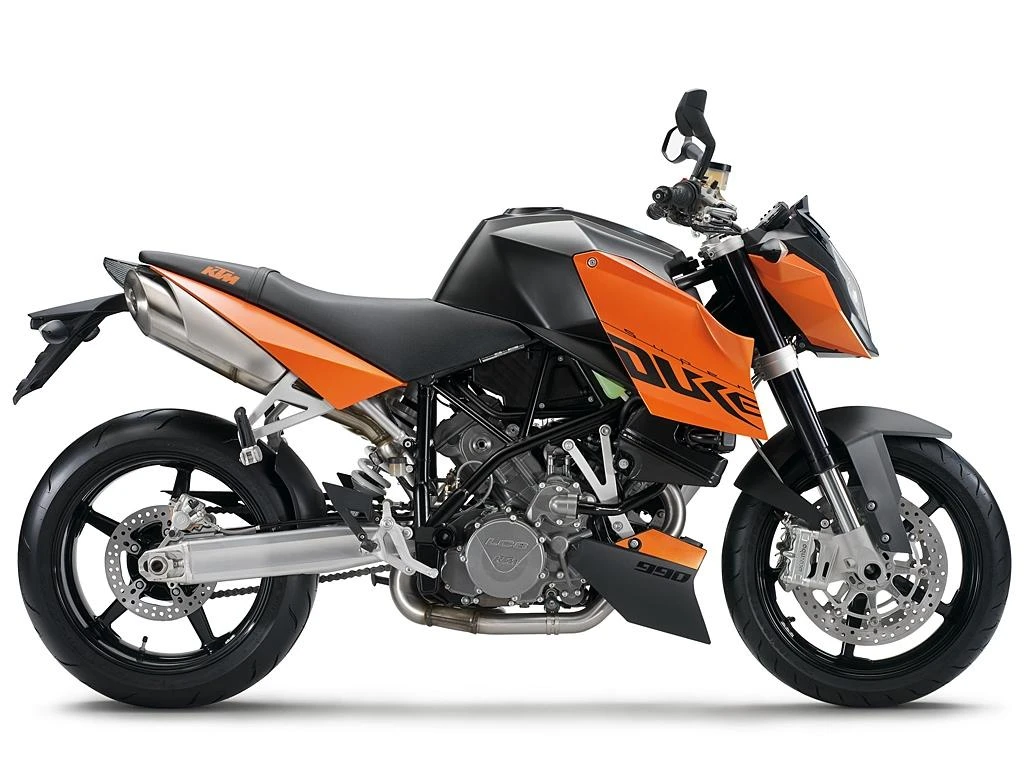

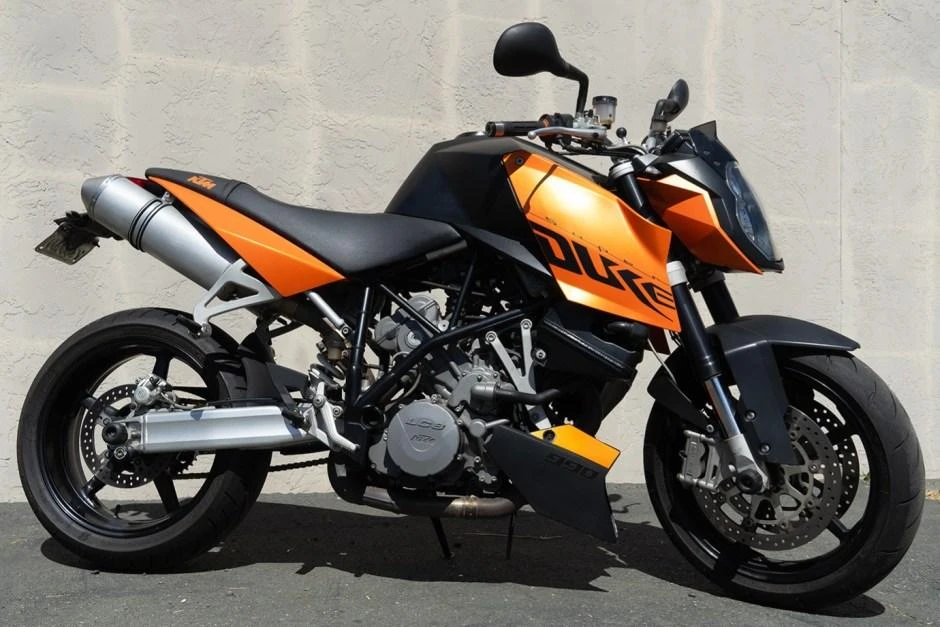

KTM 990 Super Duke (2007)

KTM 990 Super Duke (2007)

The KTM 990 Super Duke is a four-stroke, 75-degree V-twin cylinder powerhouse, boasting a DOHC configuration and four valves per cylinder.

Its revamped engine, refined for 2007, delivers a thrillingly strong yet controllable torrent of V-twin torque, making it a blast to ride on the most twisted roads.

The Super Duke’s agile yet reassuringly precise handling, coupled with its impressive capability and speed, makes it the most brilliantly entertaining superbike that money can buy, as aptly described by MAG member Roland Brown.

With its freshened-up styling, the Super Duke retains its status as one of the most distinctive bikes around, its angular, edgy lines perfectly complemented by typical orange, black, and grey paint options.

Riding the KTM 990 Super Duke is an exhilarating experience, one that will leave even the most seasoned riders wondering how they ever managed without it.

Key Specifications

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Engine Capacity60.9 cubic inches / 999.8 cc
Max Power88 kw / 120 hp
Max Torque100 Nm @ 7000 rpm
Fuel Tank Capacity18.5 Litres / 4.8 gal
Seat Height33.6 inches / 855 mm
KTM 990 Super Duke (2007)

All Specifications

Make & Model

ModelKTM 990 Super Duke
Year2007

Engine

Engine TypeFour stroke, 75V-twin cylinder, DOHC, 4 valves per cylinder
Displacement60.9 cubic inches / 999.8 cc
Bore x Stroke101 x 62.4mm
Compression Ratio11.5:1
Max Horsepower88 kw / 120 hp
Max Torque100 Nm @ 7000 rpm
Engine Management SystemElectronic fuel injection / electric
Lubrication SystemDry-sump lubrication with 2 rotor pumps
Cooling SystemLiquid cooling,
Exhaust2 x Premium steel with three-way-catalyser

Performance

Top Speed236 km/h / 146.6 mph

Transmission

ClutchWet multi-disc clutch, operated hydraulically
Gearbox6 Speed
Final DriveChain, X-Ring 5/8 x 5/16″

Electrical & Electronics System

Battery12 V/11.2 Ah
StarterElectric

Chassis & Suspension

Frame TypeChromium-Molybdenum trellis frame, powder-coated Subframe AluminiumHandlebar Aluminium 28/22 mm (1.89″), tapered
Front Suspension48mm WP Upside down adjustable
Front Suspension Travel5.3 inches / 135 mm
Rear SuspensionWP shock, fully adjustable
Rear Suspension Travel6.3 inches / 160 mm
Rake24
Trail103mm / 4.0 in

Wheels & Brakes

Front Tire Size120/70 ZR17
Rear Tire Size180/55 ZR17
Front Brakes2x 320mm discs 4 piston calipers
Rear BrakesSingle 240mm disc 1 piston caliper

Dimension & Weights

Seat Height33.6 inches / 855 mm
Wheelbase56.6 inches / 1438 mm
Ground Clearance165 mm / 6.4 in
Fuel Tank Capacity18.5 Litres / 4.8 gal
Dry Weight186 kg / 410 lbs

Features

  • Four stroke, 75V-twin cylinder engine
  • DOHC, 4 valves per cylinder
  • 999cc engine capacity
  • LC8 engine format
  • Cylinder spacing at 75 degrees
  • Reshaped combustion chambers
  • New valve timing
  • Repositioned spark plugs
  • New spark plugs
  • Revised injection system
  • Revised exhaust system
  • Catalyser-holding, Euro3-meeting under-seat silencers
  • Chrome-moly tubular steel frame
  • Slightly shallower steering angle
  • New fork yokes
  • Unchanged trail
  • Multi-adjustable WP suspension
  • 48mm USD forks
  • Cantilever monoshock
  • Brembo 17-inch wheels
  • Radial four-pot, four-pad calipers
  • 320mm front discs
  • New instrument panel (digital speedo, analogue tacho)
